As this cable comes in standard roll packaging of 50 meters, we suggest to buy in multiples of “50m” to get a complete roll package. Less than “50m” will be shipped in cut pieces of ordered Length. ( 1 Qty = 1 Meter )
Note: 1 Qty = 1 Meter. The standard roll length is 50 meters. Shrink sleeve length will be continuous as per your ordered Qty.
Package Includes:

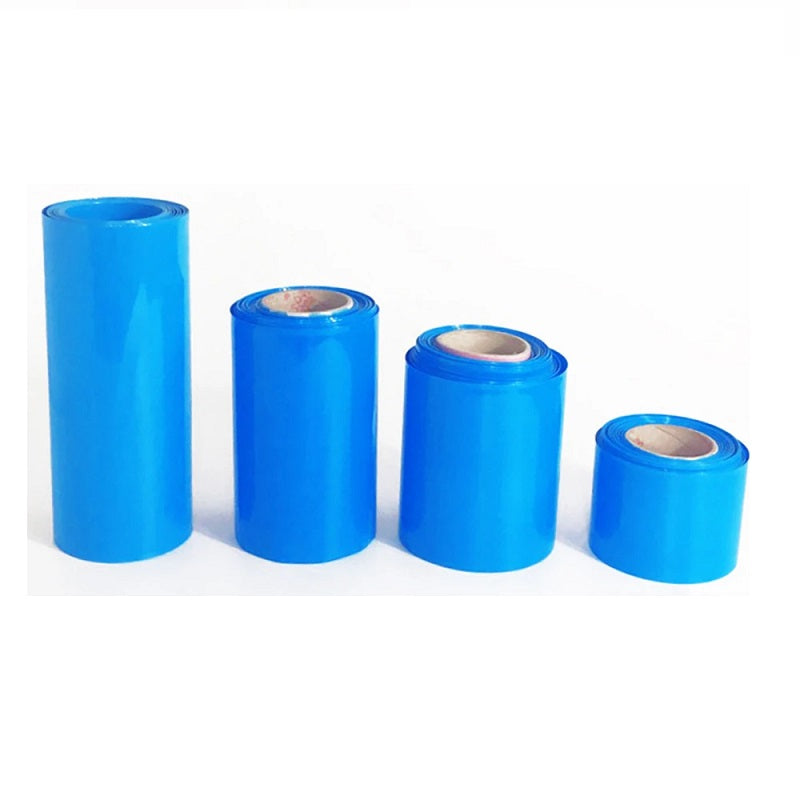

1× PVC Heat Shrink Sleeve 125mm Sky Blue
Specifications:-
| Diameter (mm): |
125 |
|---|---|
| Color: |
Sky Blue |
| Roll Length - Metric |
50 Meter Roll |
| Shrink Ratio: |
0.084027778 |
| Operating Temperature (°C): |
-40 to 125 |
| Ultimate Tensile Strength |
ASTM D 2671-≥1 0. 4 |
| Elongation Ratio |
≥200% |
| Radial Shrinking Ratio |
≥50% |
| Dielectric Strength |
≥15 kV/mm |
| Heat Shock |
No Cracking |
| Additional Specs.: |
Cold Bend: No Cracking, Concentricity:≥65%, Corrosion of Bare Copper: No Corrosion |
| Flammability |
ASTM D 267 1 C-VW—1 |
| Shipping Weight | 0.3 kg |
| Shipping Dimensions | 20 × 15 × 15 cm |
