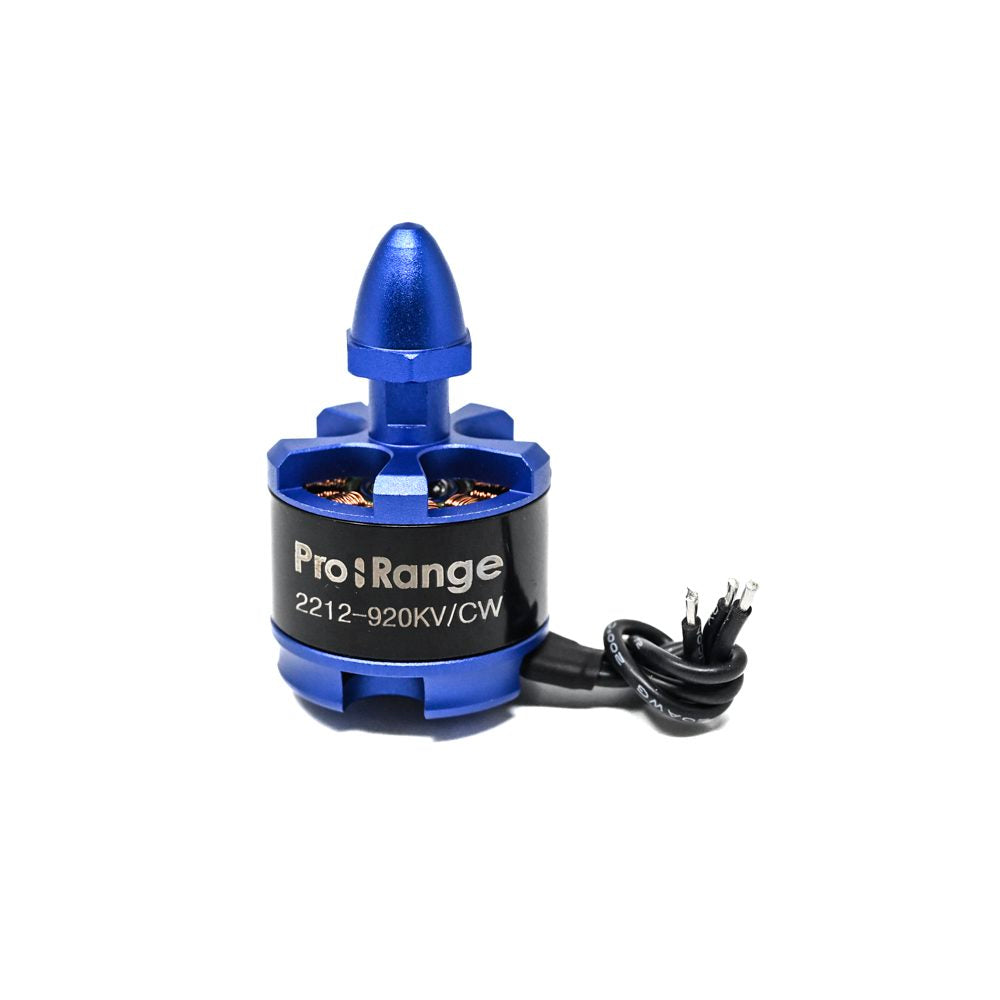

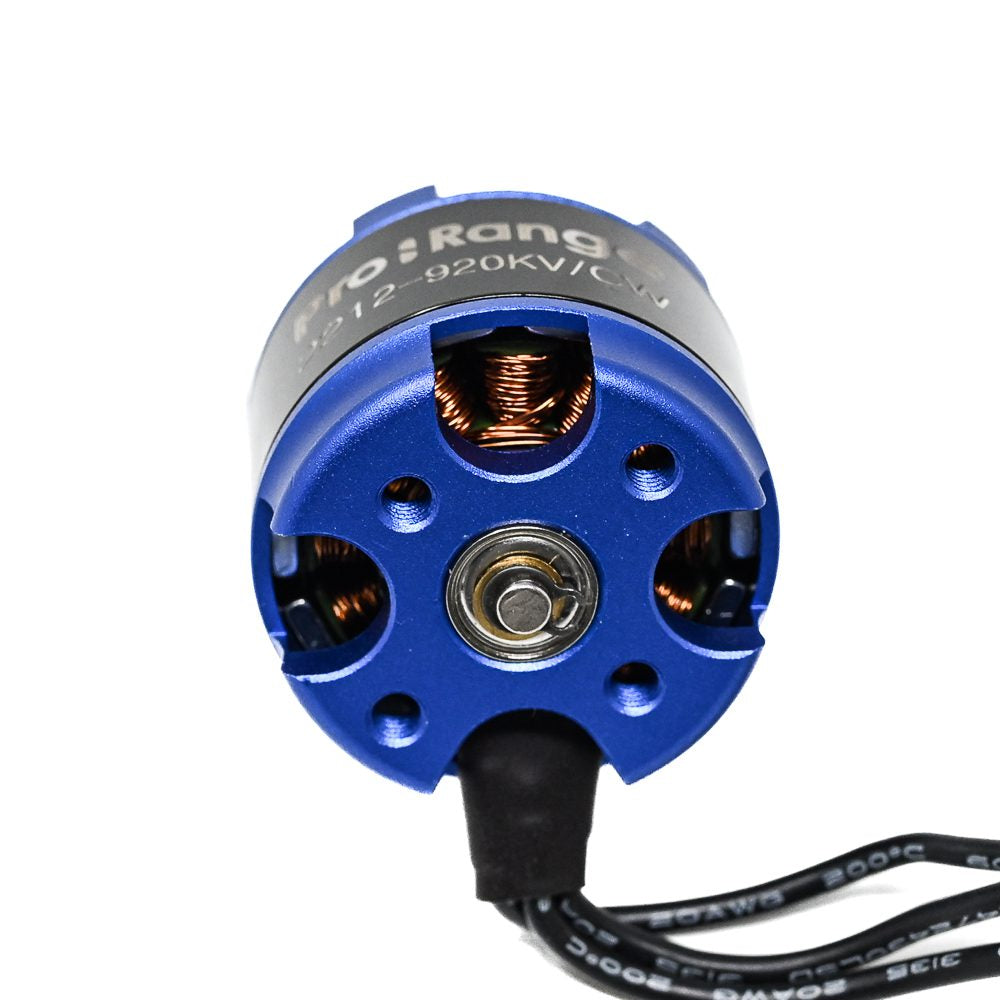

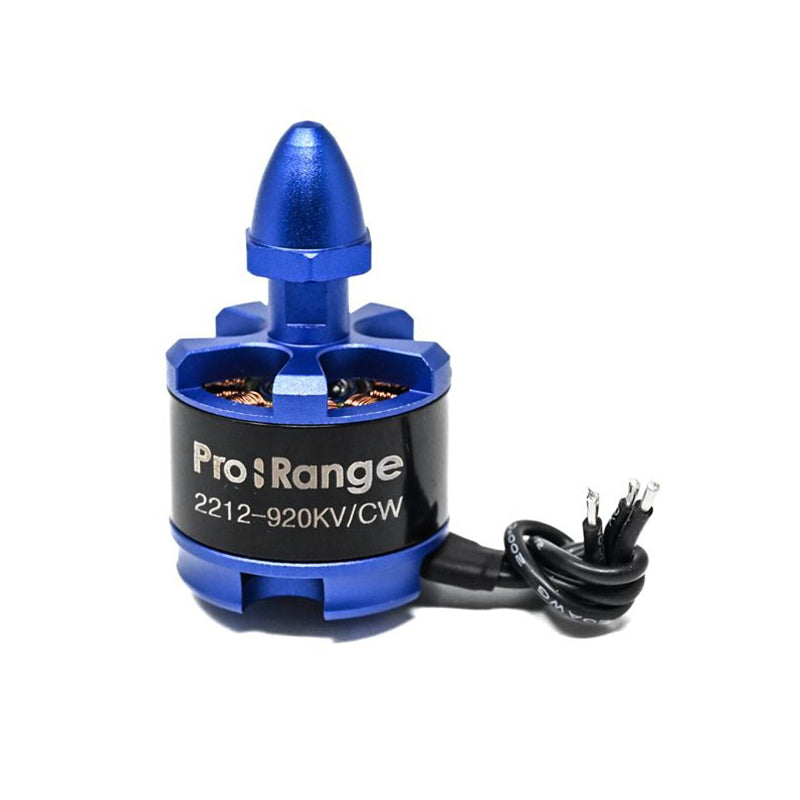

The Pro-Range-B2212-920KV CW Brushless Drone Motor is a high-performance, cost-effective solution for drone and RC aircraft enthusiasts. Engineered for efficiency and reliability, this motor delivers excellent thrust output and steady performance under varying loads. With a KV rating of 920 and compatible with 2S–4S LiPo batteries, it is ideal for medium-sized quadcopters and fixed-wing crafts. Typically used on the left front and right rear arms of quadcopters
The Pro-Range-B2212-920KV CW motor supports a range of propellers such as 8045 and 1045, providing thrust up to 980g depending on the setup. At 11.1V, it can achieve power outputs up to 118W with a current draw of around 10.6A. It is built with durable materials, lightweight at just 50g, and ensures high efficiency—up to 6.1g/W. Whether you’re building a custom drone or upgrading your current setup, the B2212-920KV offers solid performance and dependable output in a compact, well-designed package.
Features:
- 920KV rating for optimal efficiency and performance.
- Supports 2S–4S LiPo battery configurations.
- Compatible with propellers like 8045 and 1045.
- High efficiency up to 6.1g/W.
- Lightweight design (approx. 50g).
- Maximum thrust up to 980g.
- Ideal for drones, quadcopters, and RC planes.

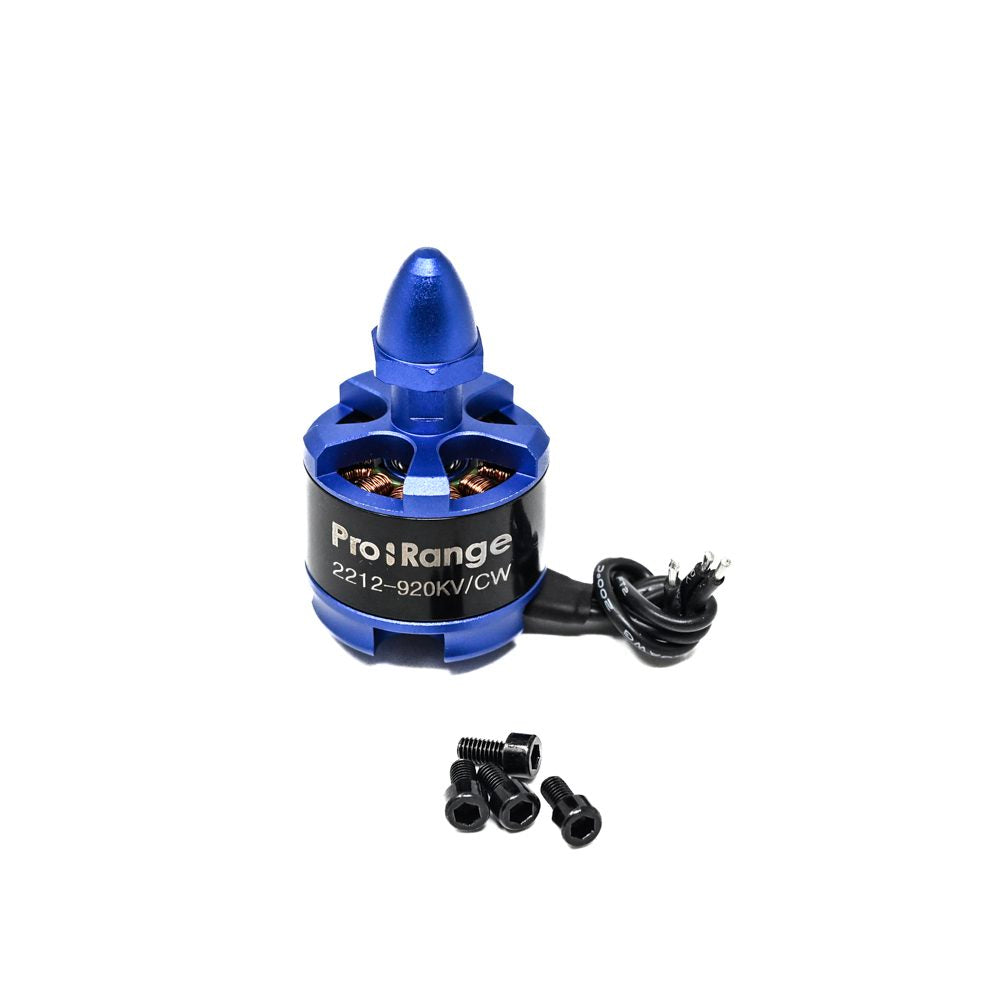

Package Includes:
1× Pro-Range-B2212-920KV CW Brushless Drone Motor
1× Screw set
Specifications:-
| Rotation angle |
CW |
|---|---|
| Motor KV (RPM/V): |
920 |
| Motor Type: |
Brushless Motor |
| Model Type: |
B2212 |
| Compatible LiPO Batteries: |
2S to 4S |
| Framework |
Multirotor |
| Shaft Diameter (mm): |
3.17 |
| Max. Efficiency Current (A) |
8.0–9.5 |
| Max. Power (W) |
118 |
| Maximum Thrust (gm) |
710 |
| No-load current (A) |
0.7–0.8 |
| No-Load Current (mA) |
700–800 |
| No of poles |
14 |
| Operating Temperature (°C): |
-20 to 80 |
| Outer Diameter [OD] (mm): |
27.7 |
| Weight (g): |
45 |
| Shipping Weight | 0.065 kg |
| Shipping Dimensions | 8 × 4 × 4 cm |
