Features:
Stable transmission power, long transmission distance, ≥0.5km@25mW, ≥1km @ 200mW, ≥1.5km@400mW (original antenna)
6 levels of transmit power switching: 0mW / 25mW / 50mW / 100mW / 200mW / 400mW
Support OSD interface to adjust image transmission frequency and power
Output 40CH, including A, b, E, F, r
Fast frequency lock, without disturbing companion
Self-check function of output power
Support NTSC / PAL
Wide output voltage range and low power consumption
Light weight
Package Includes:

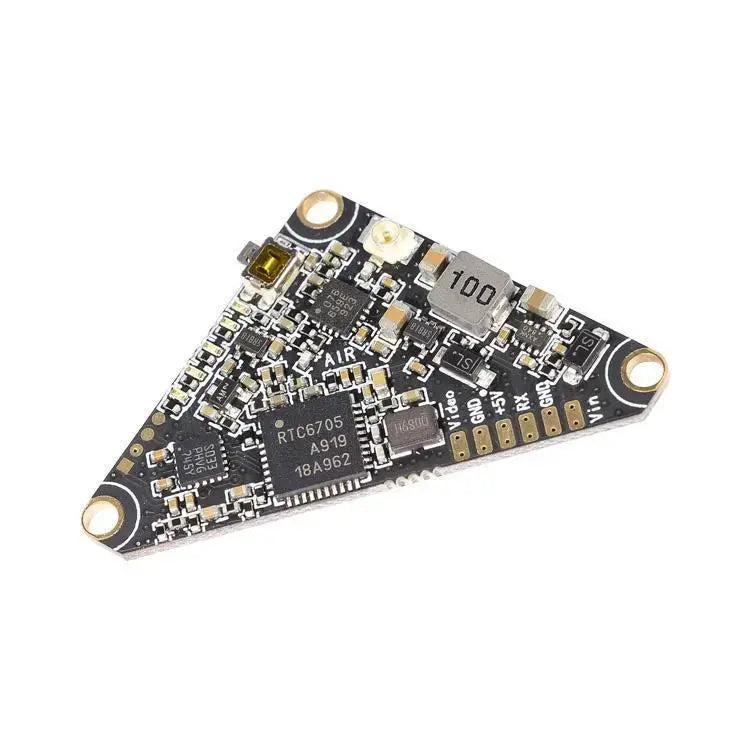

1x PandaRC VT5804 Air 25-400mW Video Transmitter
| SPECIFICATIONS | |
|---|---|
| Frequency Band | 5.8GHz |
| Channel | 40CH |
| Power | 0/25/50/100/200/400mW Switchable |
| Input Voltage | 6-26V,+12V/240mA @400mW |
| Video Format | NATSC/PAL |
| Dimension | 28.5×28.5x3mm |
| Mounting Holes | 25.5X25.5mm |
| Weight | ≤3g (Without antenna) |
