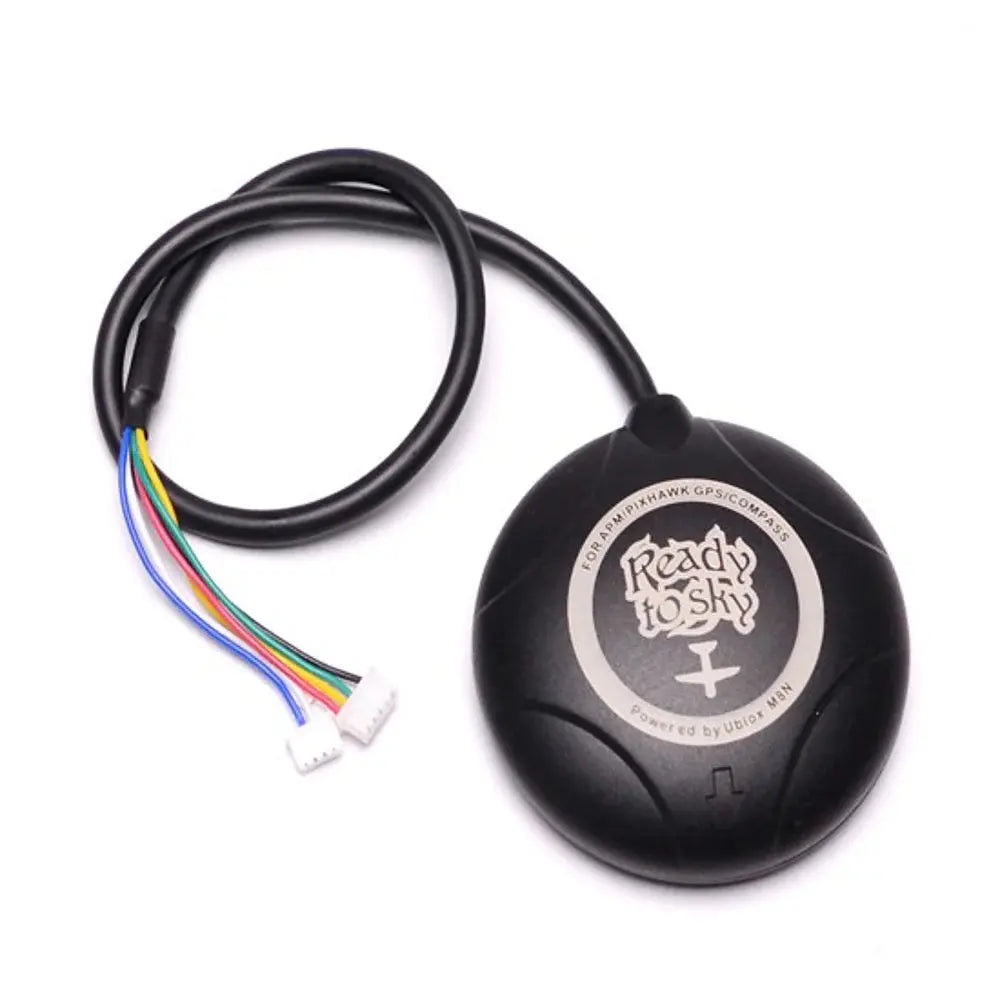

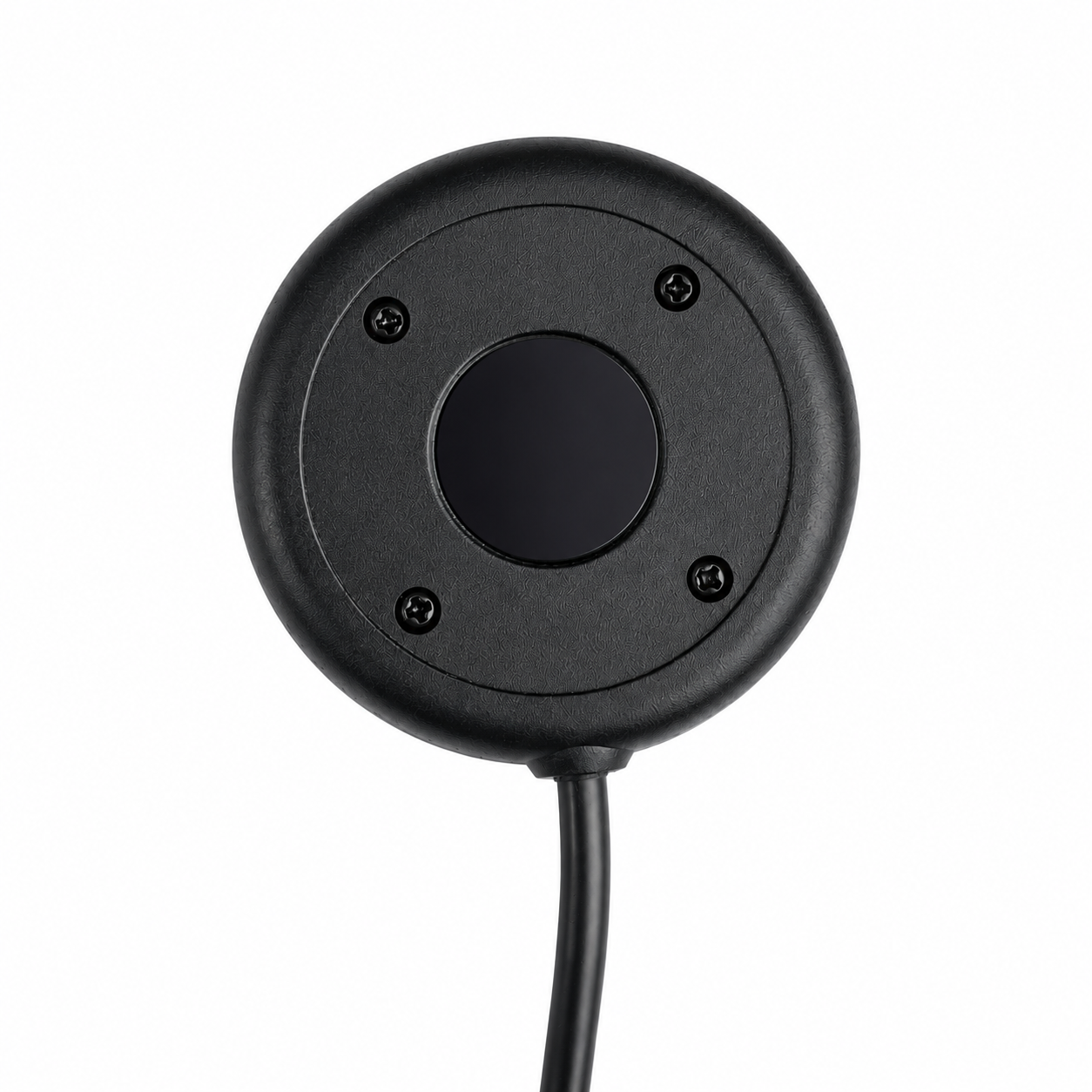

The NEO-M8N ReadytoSky GPS Module is a compact and reliable GPS receiver module that is commonly used in unmanned aerial vehicles (UAVs) and drones. Its primary function is to provide precise location information and compass data to the flight controller, enabling accurate navigation and flight planning.
Features:
High-Performance GPS Receiver: The NEO-M8N module utilizes the u-blox NEO-M8N chipset, known for its high accuracy and fast acquisition of GPS signals. This chipset is capable of receiving signals from multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou, enhancing the module’s reliability and precision.
Integrated Compass: This module includes a built-in compass (magnetometer) that provides heading information, allowing the drone to determine its orientation in relation to the Earth’s magnetic field. This is crucial for tasks such as waypoint navigation and Return-to-Home (RTH) functions.
Dual Antennas: Many NEO-M8N modules come with dual antennas for enhanced signal reception. These antennas are usually placed at a distance from each other, which helps mitigate multipath interference and improves signal strength.
Compatible with APM and PIXHAWK: The NEO-M8N is designed to work seamlessly with popular flight controllers like APM and PIXHAWK. It typically interfaces with these flight controllers through a standardized connector and communication protocol.
Real-Time Kinematics (RTK) Support: Some versions of the NEO-M8N module may support RTK, a high-precision positioning technique that provides centimeter-level accuracy. RTK requires a base station for differential correction, making it ideal for applications where extreme accuracy is needed, such as surveying or mapping.
High Update Rate: The module typically offers a high update rate, ensuring that GPS and compass data are refreshed frequently. This is important for responsive and stable flight control.
Compact Form Factor: The module is designed to be small and lightweight, making it easy to integrate into a drone’s frame without adding significant weight.
Vibration Dampening: Some NEO-M8N modules may feature vibration dampening mechanisms to reduce the impact of drone vibrations on GPS and compass performance.
LED Indicators: LEDs on the module can provide status information, such as GPS fix status and communication with the flight controller, which is useful for troubleshooting and diagnostics.
Easy Installation: The module typically comes with a mount and cable, making it straightforward to install and connect to your flight controller.
Package Includes:
1× Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk.
1× Extra 5-pin Connector for APM.
1× Duble-sided Tap
| SPECIFICATION:- | |
| Model | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine. |
| Main Chip | Ublox NEO-M8N |
| Input Supply Voltage (VDC) | 0.5 ~ 3.6 |
| Sensitivity (dBm) | Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) | 2 |
| 2.5 | |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | 54 x 22 (Dia x W) |
| Weight (gm) | 23 |
| Cable Length (cm) | 20 |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 7 × 6 × 6 cm |
