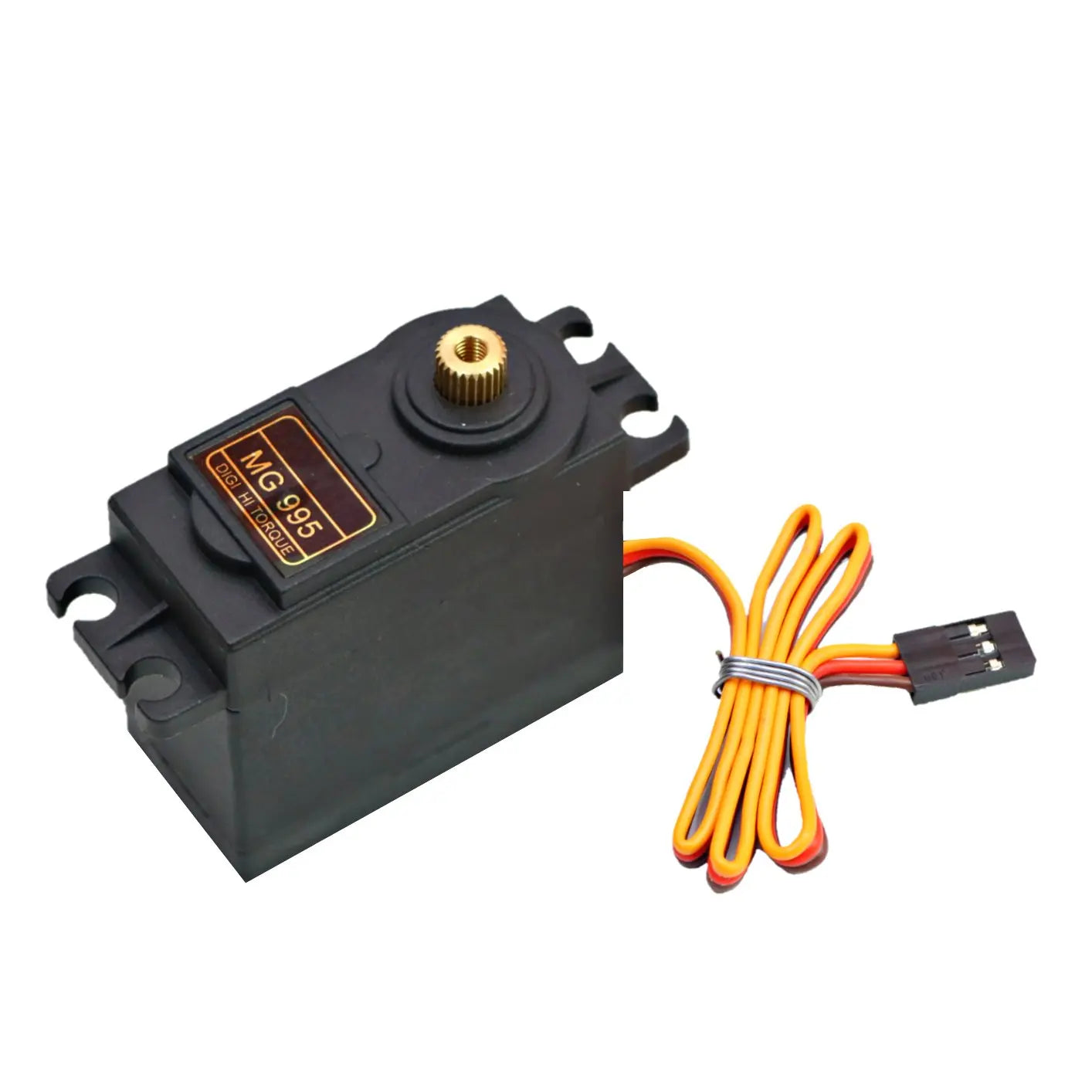

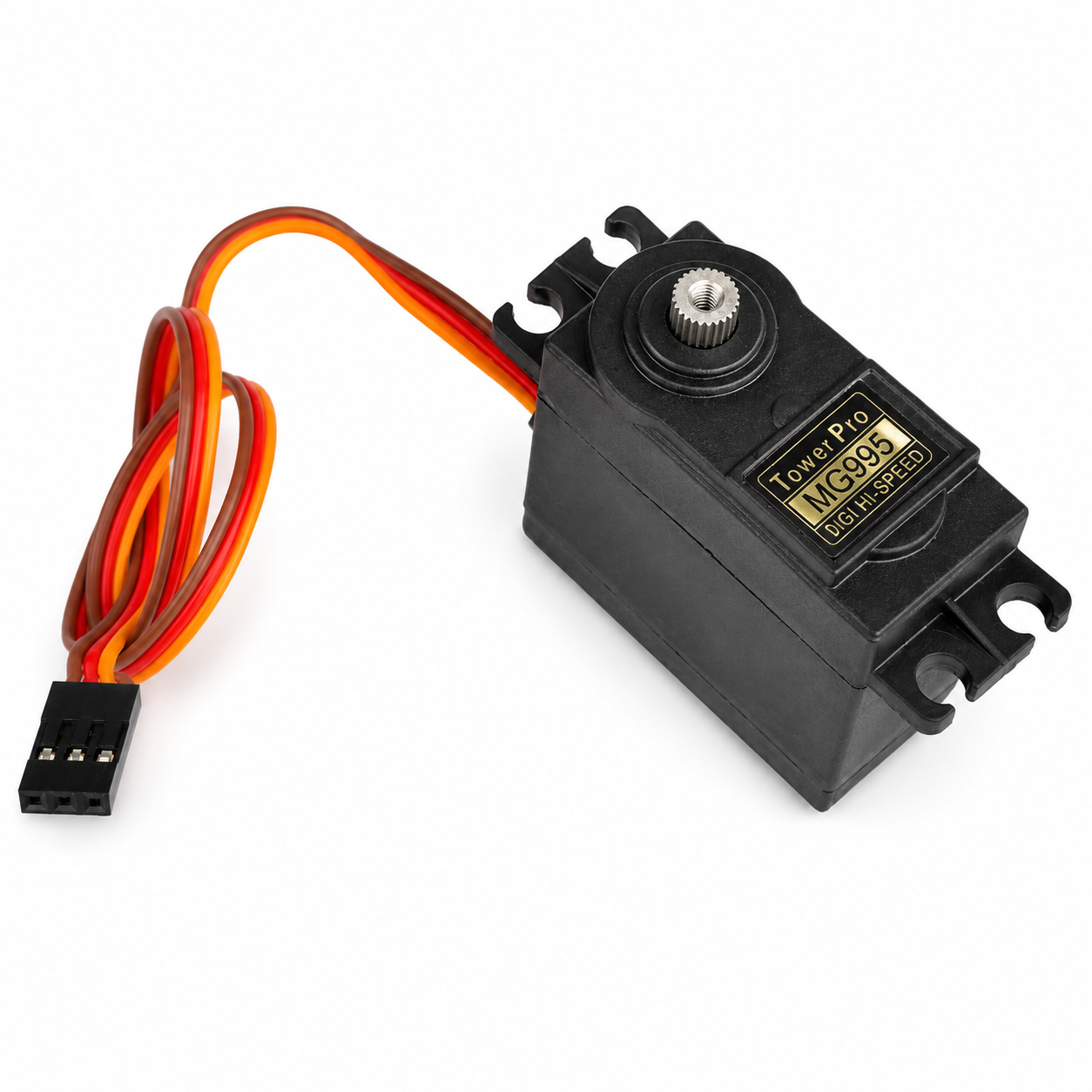

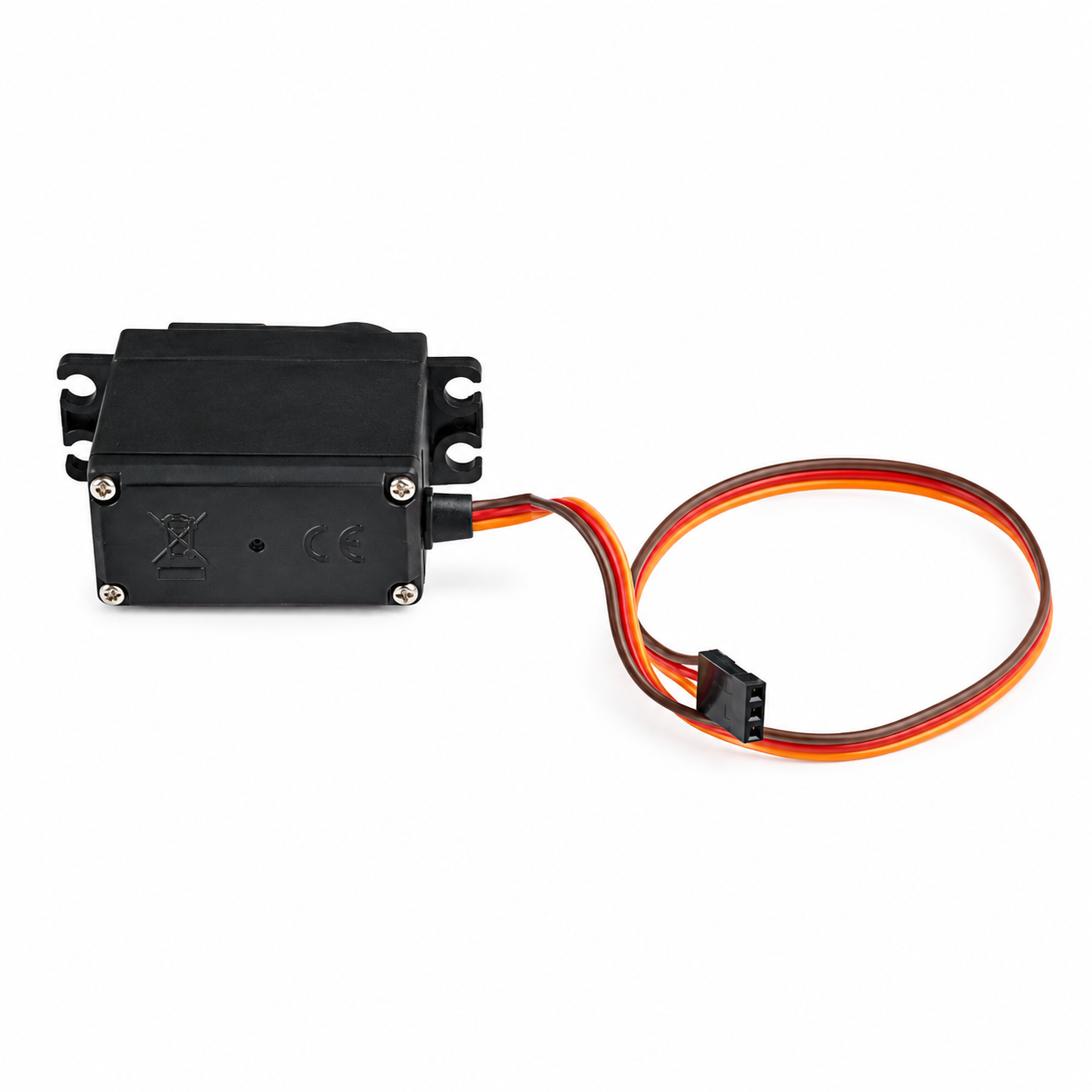

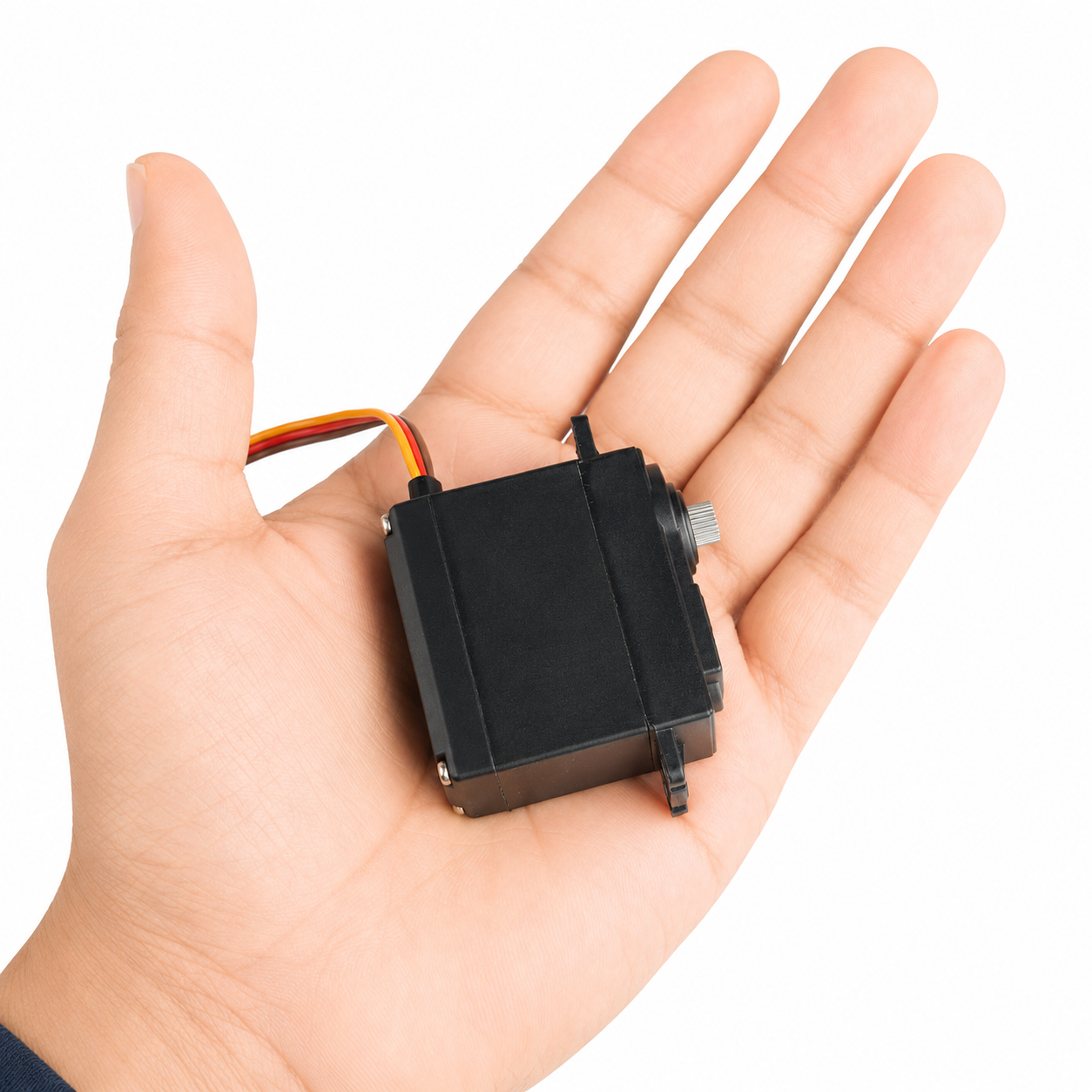

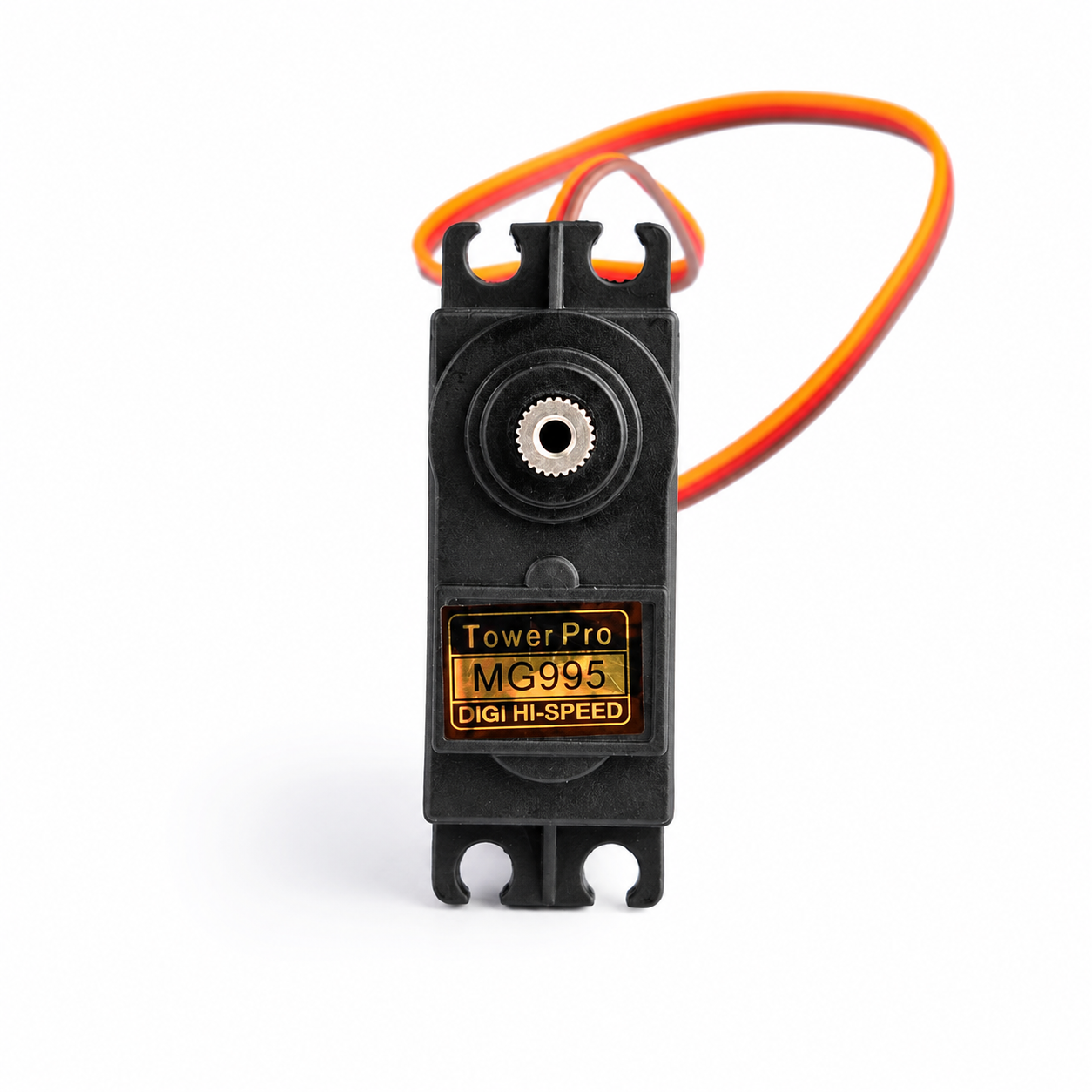

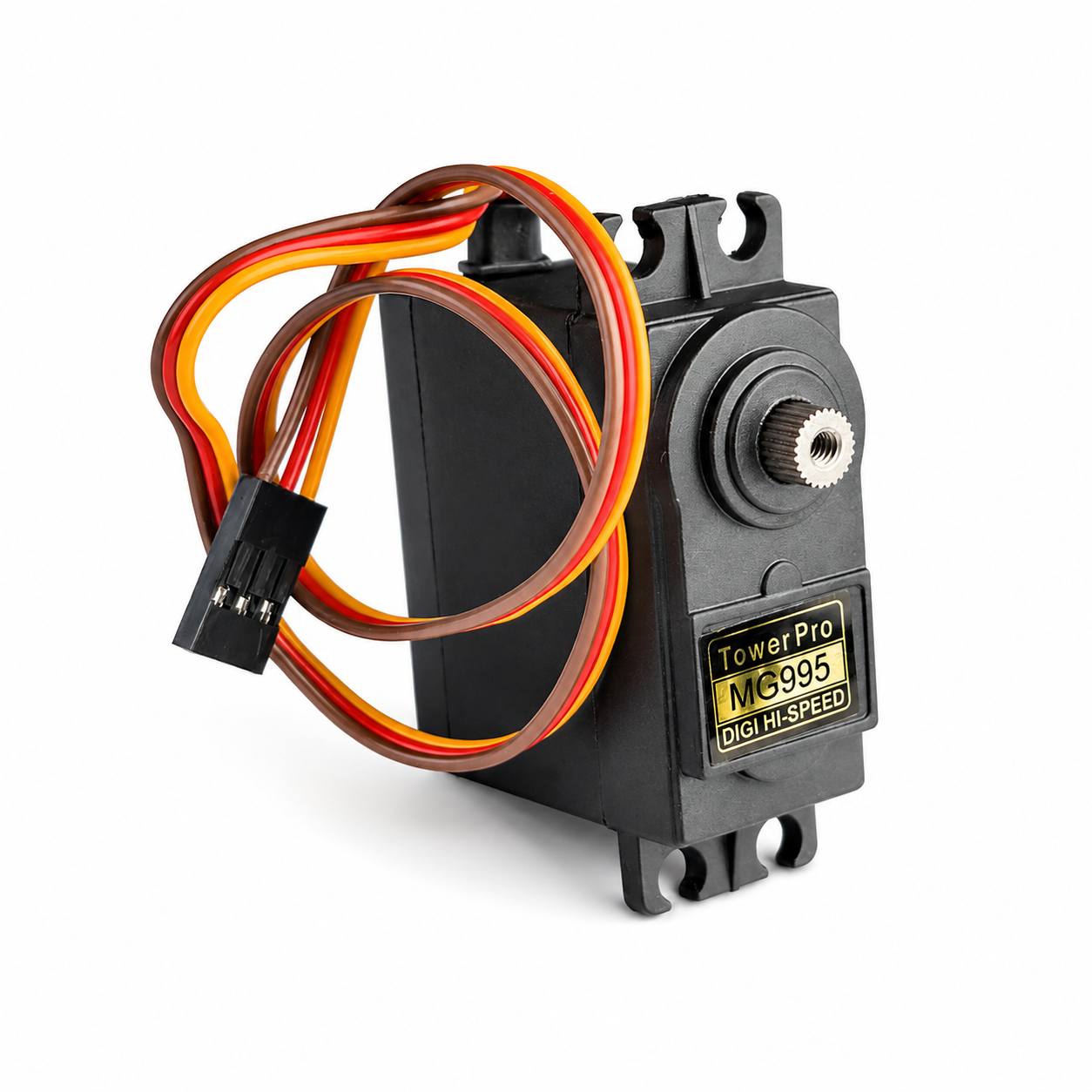

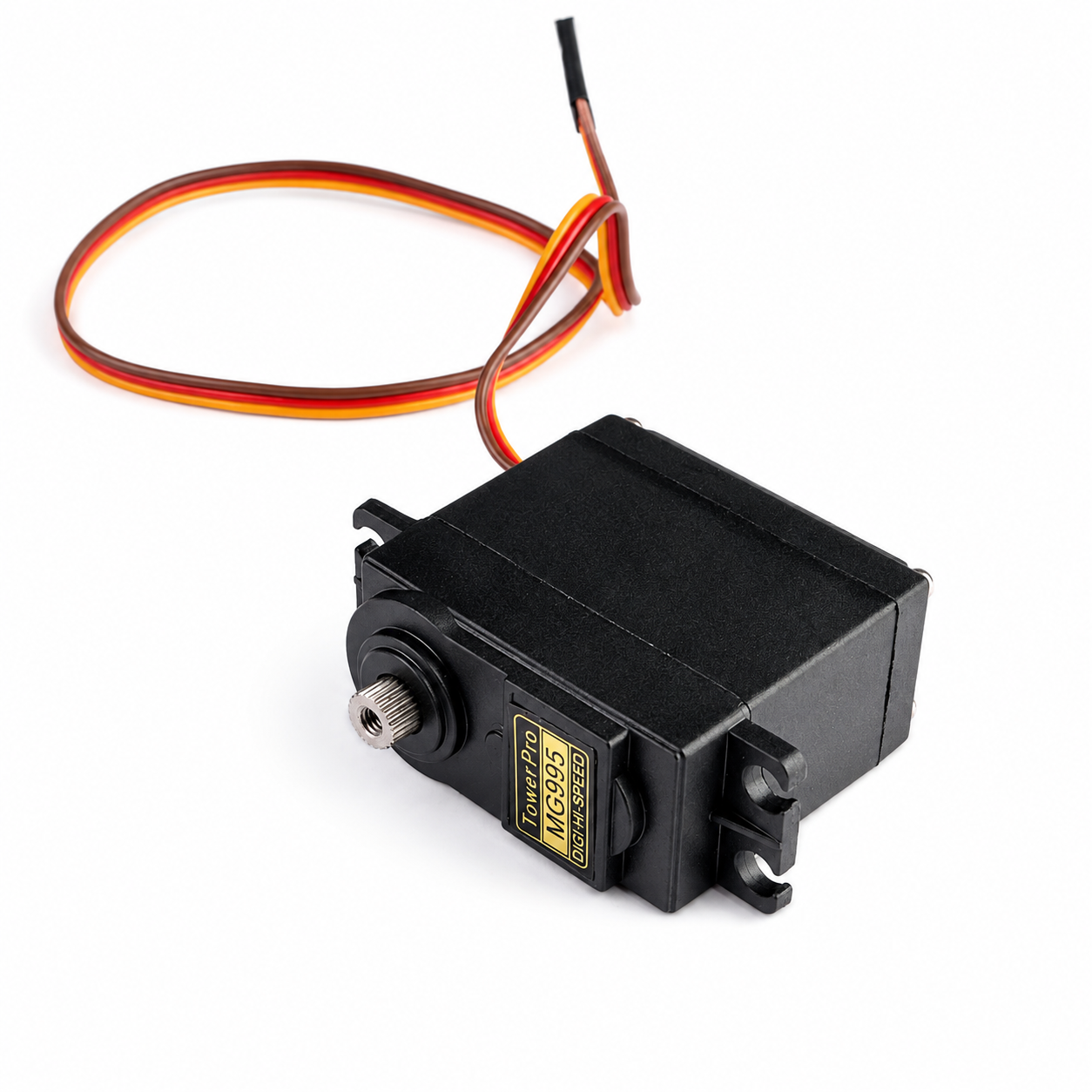

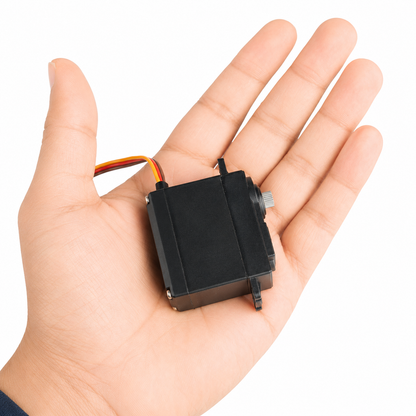

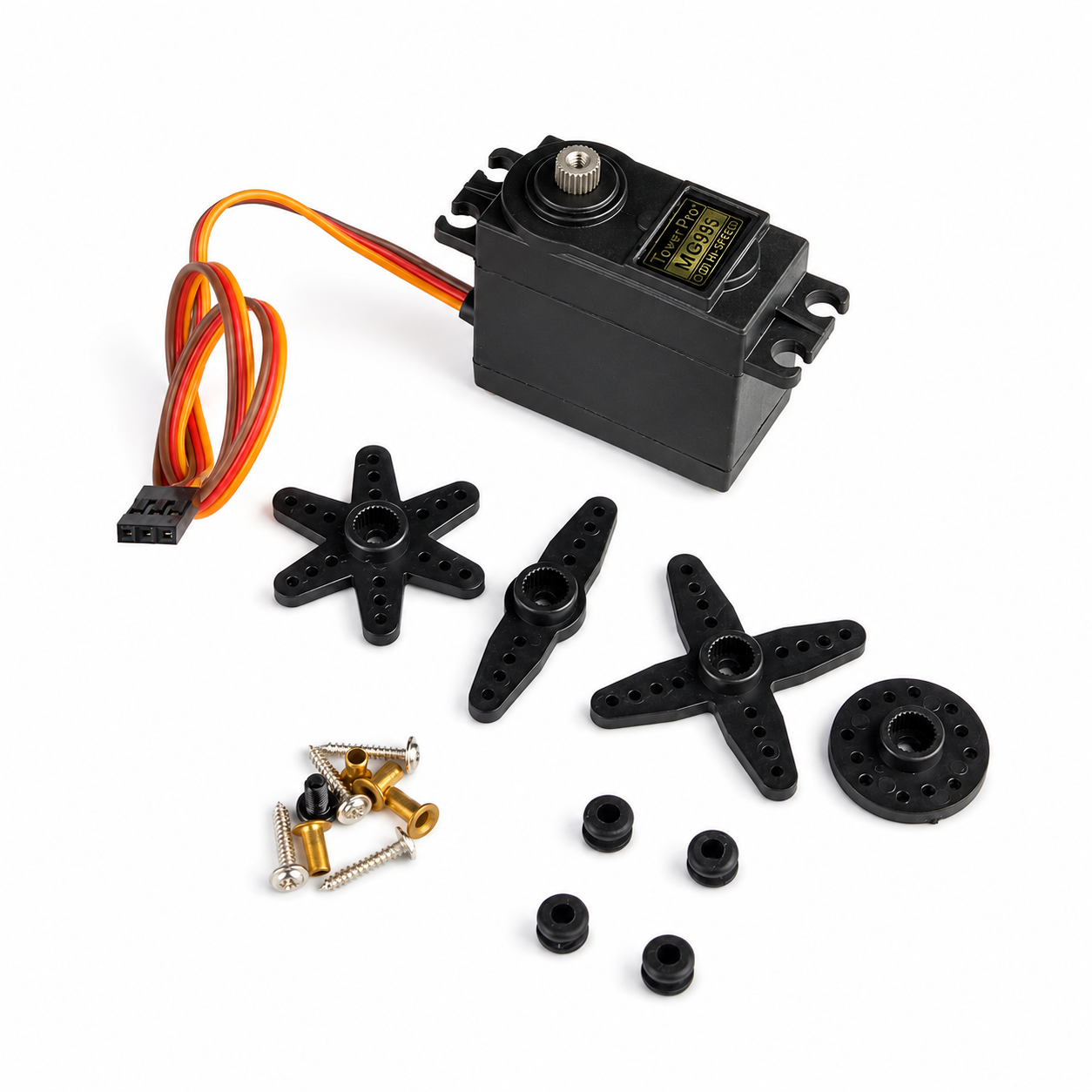

The MG995 is a popular analog servo motor known for its high torque and durability. It is commonly used in various applications, including RC (remote control) vehicles, robotics, and hobbyist projects. Below is a description and key features of the MG995 servo motor:

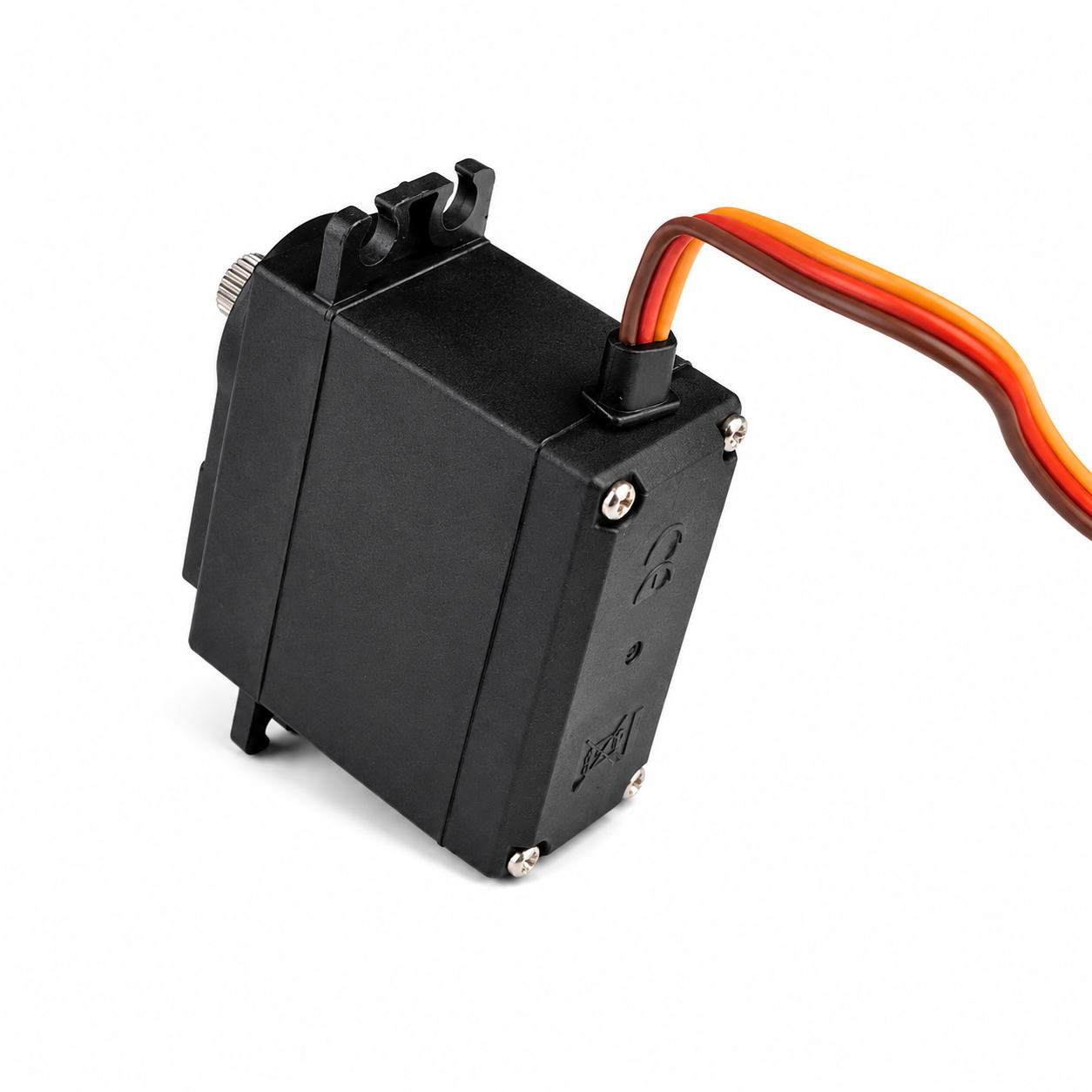

The MG995 servo motor is a robust and reliable servo that features metal gears, high torque output, and 180° rotation. Servo motors are used to control the position of objects, such as controlling the steering of an RC car or the movement of robotic limbs, based on an input signal. The MG995 is widely recognized for its ability to provide precise and controlled motion.
Key Features:
Metal Gears: One of the standout features of the MG995 servo is its metal gears. These gears are known for their strength and resistance to wear and tear, making the servo suitable for high-stress applications.
High Torque: The MG995 is known for its high torque output, which is rated at approximately 13 kilograms per centimeter (13 kg/cm) or about 180 oz/inch. This means it can exert a considerable amount of force to move or hold objects in place.
180° Rotation: This servo motor offers a 180-degree rotation range, making it suitable for applications that require a wide range of motion control.
Analog Control: The MG995 operates using analog control signals, typically using a pulse-width modulation (PWM) signal. By varying the width of the pulse, you can control the position of the servo motor within its 180° range.
Operating Voltage: The MG995 servo motor typically operates within a voltage range of 4.8V to 6V, which is common for most hobbyist and RC applications. It is essential to power it within this specified range to ensure proper operation.
Position Feedback: Servo motors like the MG995 often have internal potentiometers or other feedback mechanisms that provide positional feedback to the control system, allowing for precise control and feedback on the servo’s position.
Versatility: Due to its high torque and metal gear construction, the MG995 can be used in a wide range of applications, including RC cars, boats, aircraft, robotic arms, and animatronics.
Durable Construction: The servo motor is built to withstand mechanical stresses and vibrations, making it suitable for applications where reliability is crucial.
Brand: SKY RC
Item Name: MG995 180° Metal Gear Servo
Servo Type: Analog Servo
Traveling: 180°(max)
Connector Wire Length: 300mm DuPont
Dimension : 40 x 19 x 43mm
weight: 66g
Stall Torque: 13 kg-cm at 4.8V
Stall Torque: 15 kg-cm at 6V
Operation Voltage: 4.8 – 7.2Volts
Gear Type: All Metal Gears
Application: For RC Car, RC Robot, RC Boat, etc
More Features:
High quality servo for RC Models
High precision metal gear
13kg High Torque
Small size analog servo
Package Included:
1× MG995 180° metal gear servo Motor
1× Servo Arm Set
| SPECIFICATION | |
|---|---|
| Model | MG995 |
| Weight(gm) | 55 |
| Operating Voltage (VDC) | 4.8 ~ 7.2 |
| Operating Speed @4.8V | 20sec/60° |
| Operating Speed @6.6V | 16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 10 |
| Stall Torque @6.6V (Kg-Cm) | 12 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 1 |
| Gear Type | Metal |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 30 |
| Length (mm) | 40.5 |
| Width (mm) | 20 |
| Height (mm) | 44 |
| Shipment Weight | 0.059 kg |
| Shipment Dimensions | 9 × 8 × 3 cm |
