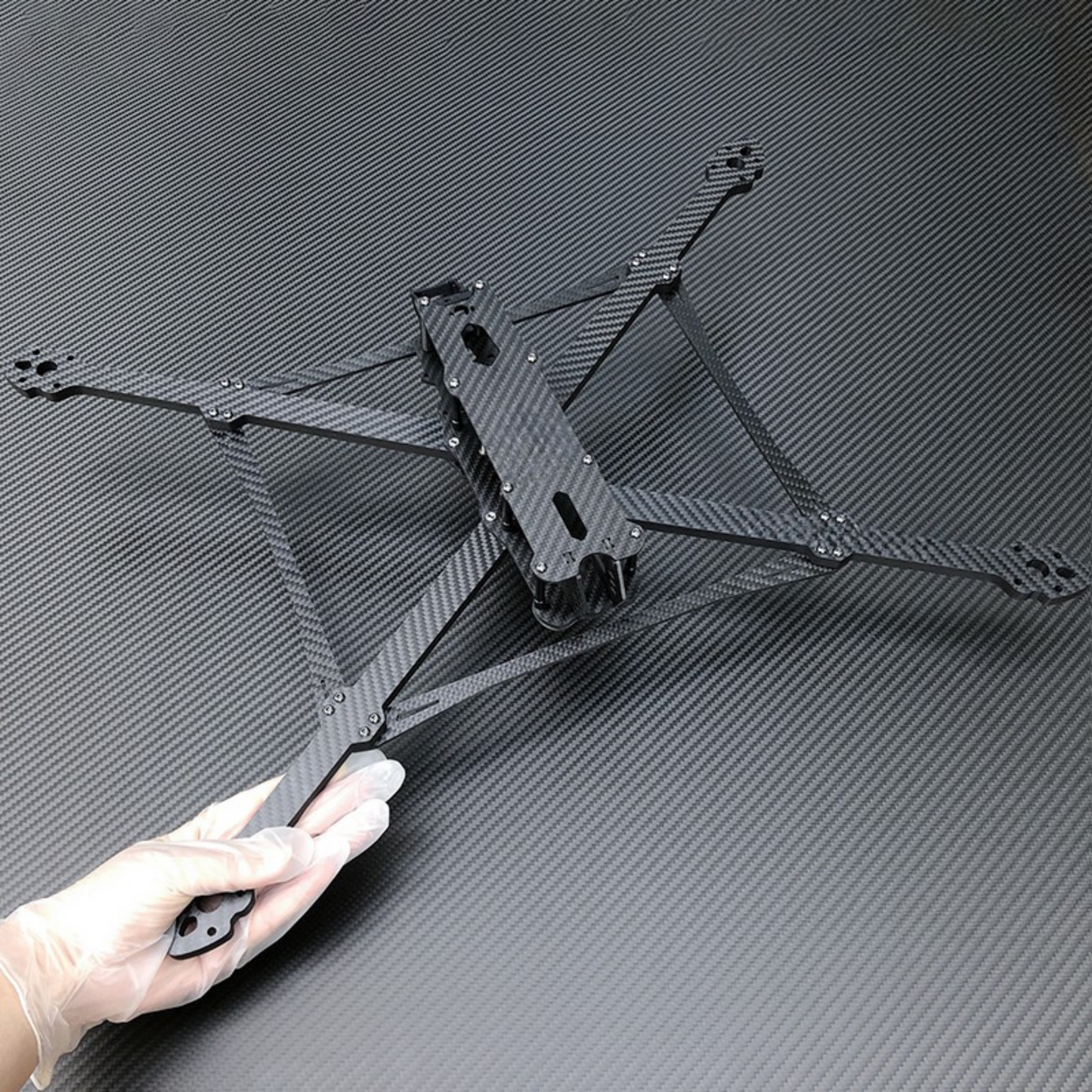

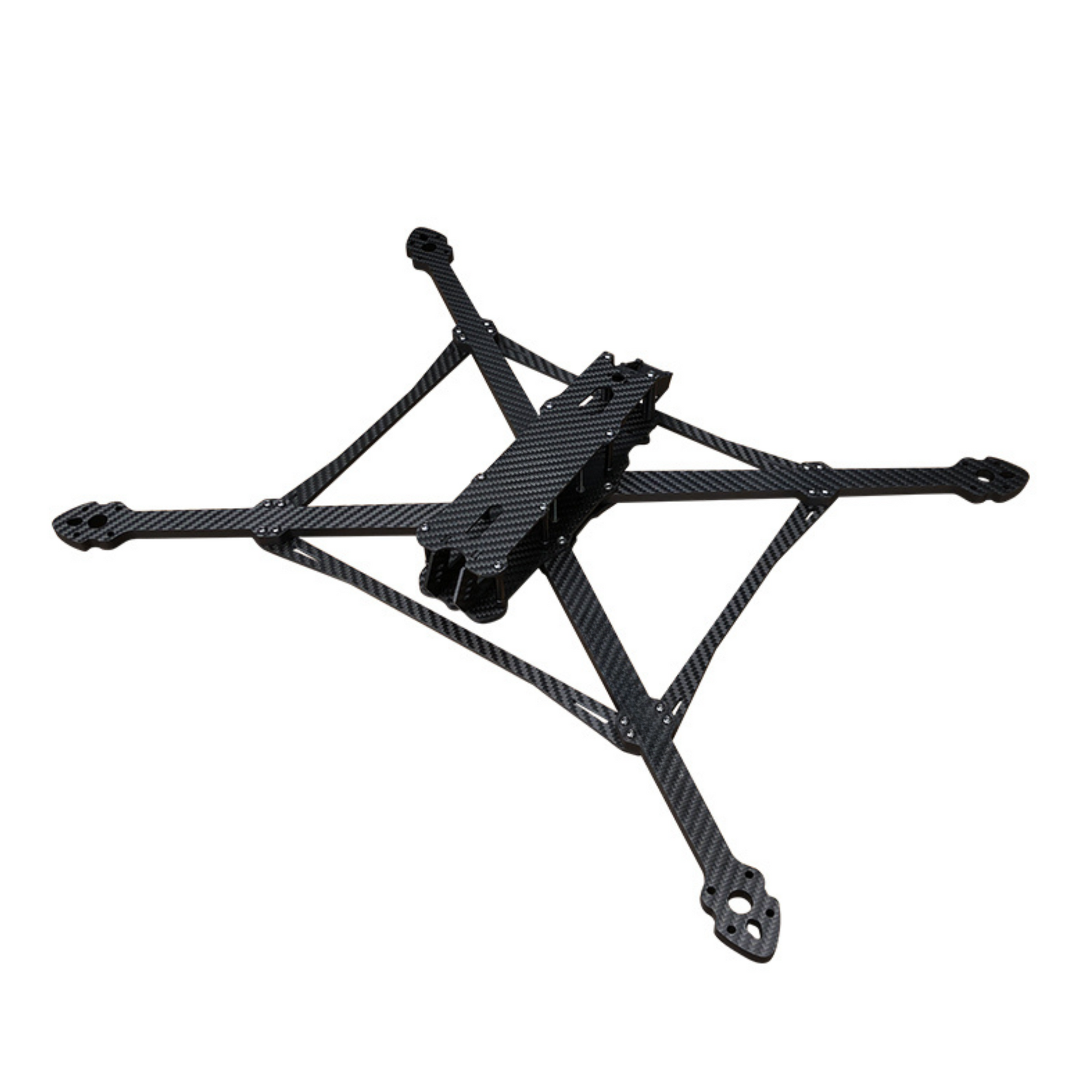

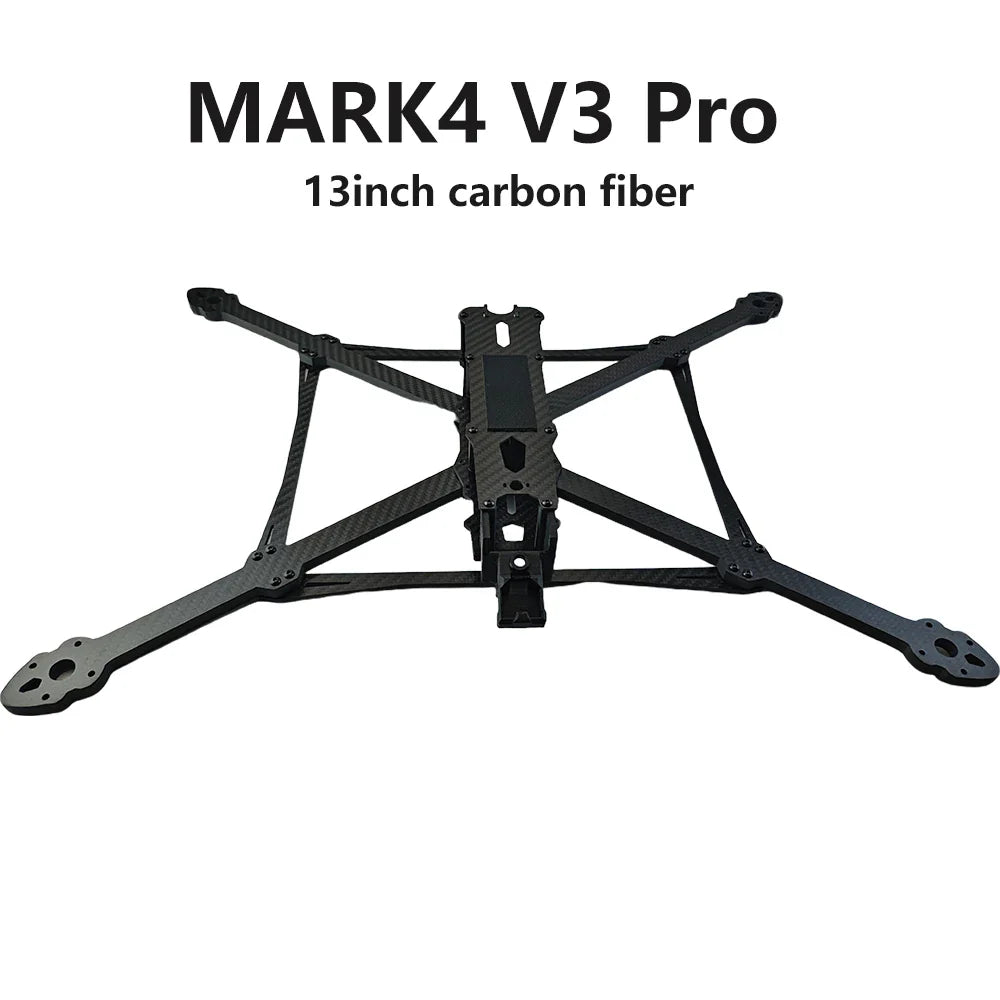

Mark4 V3 13 Inches 570mm Carbon Fiber Frame

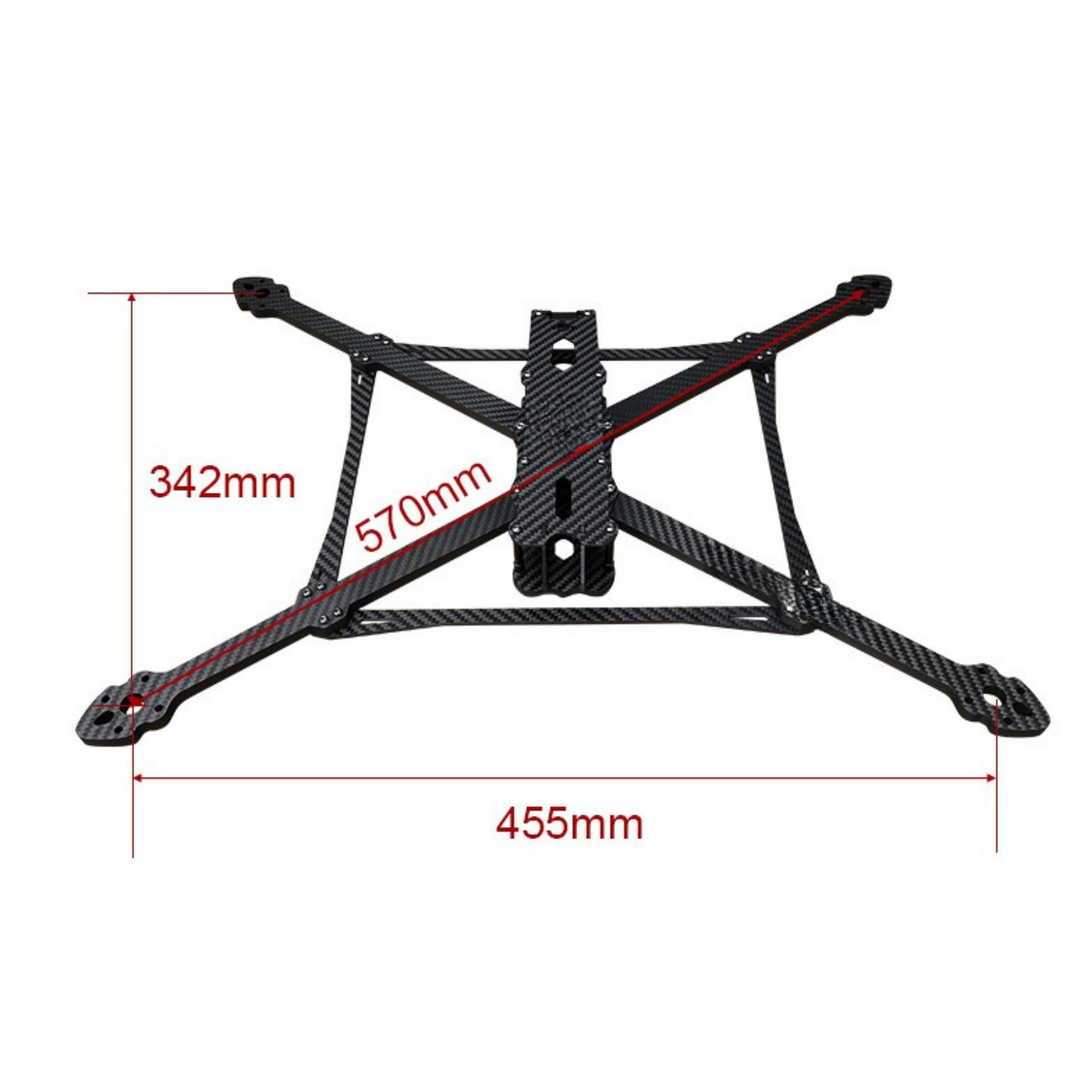

The Mark4 V3 13-Inch 570mm Carbon Fiber Frame is a high-performance drone frame specially designed for freestyle and long-range FPV flying. Its 570mm wheelbase is perfect for large-size motors and 13-inch propellers.
This frame is constructed from high-quality carbon fiber, making it both strong and lightweight — reducing the risk of damage during high-speed flights or accidental crashes. It features 8mm thick arms, which provide excellent stability and vibration resistance.
The frame offers multiple mounting options inside — including 20x20mm and 30.5x30.5mm flight controller stack mounts. The motor mounts are 21x21mm, making them suitable for 42xx size motors. It also supports a micro-size FPV camera (19mm) with a side-mounted design for added protection.
Key Features:
- 570mm wheelbase (supports 13-inch propellers)
- Strong 8mm carbon arms
- Lightweight yet highly durable design
- Supports 42xx motors and large propellers
- 20x20mm & 30.5x30.5mm mounting patterns
- Compatible with 19mm micro FPV cameras (side-mounted for protection)
