Specification |
Details |
|---|---|

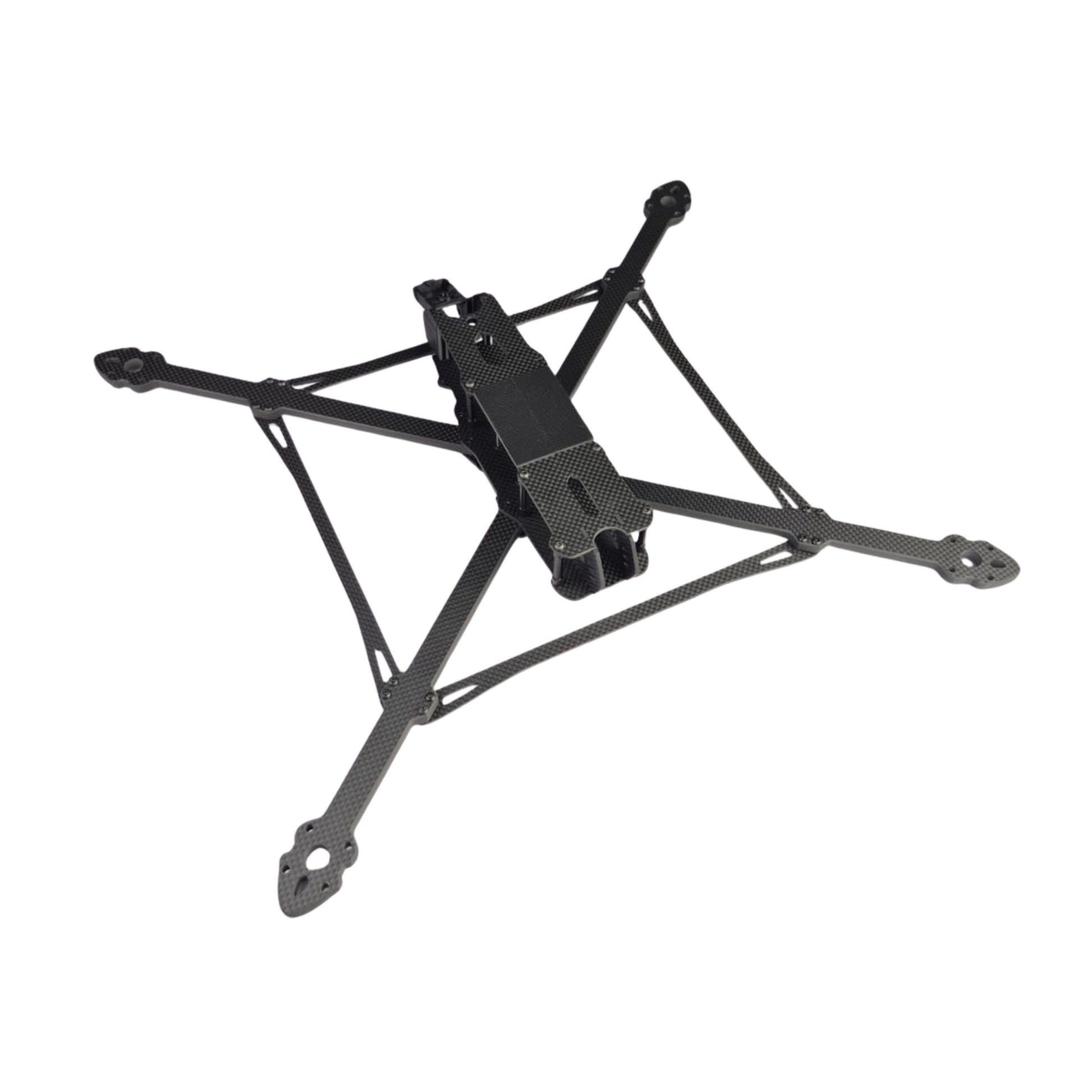

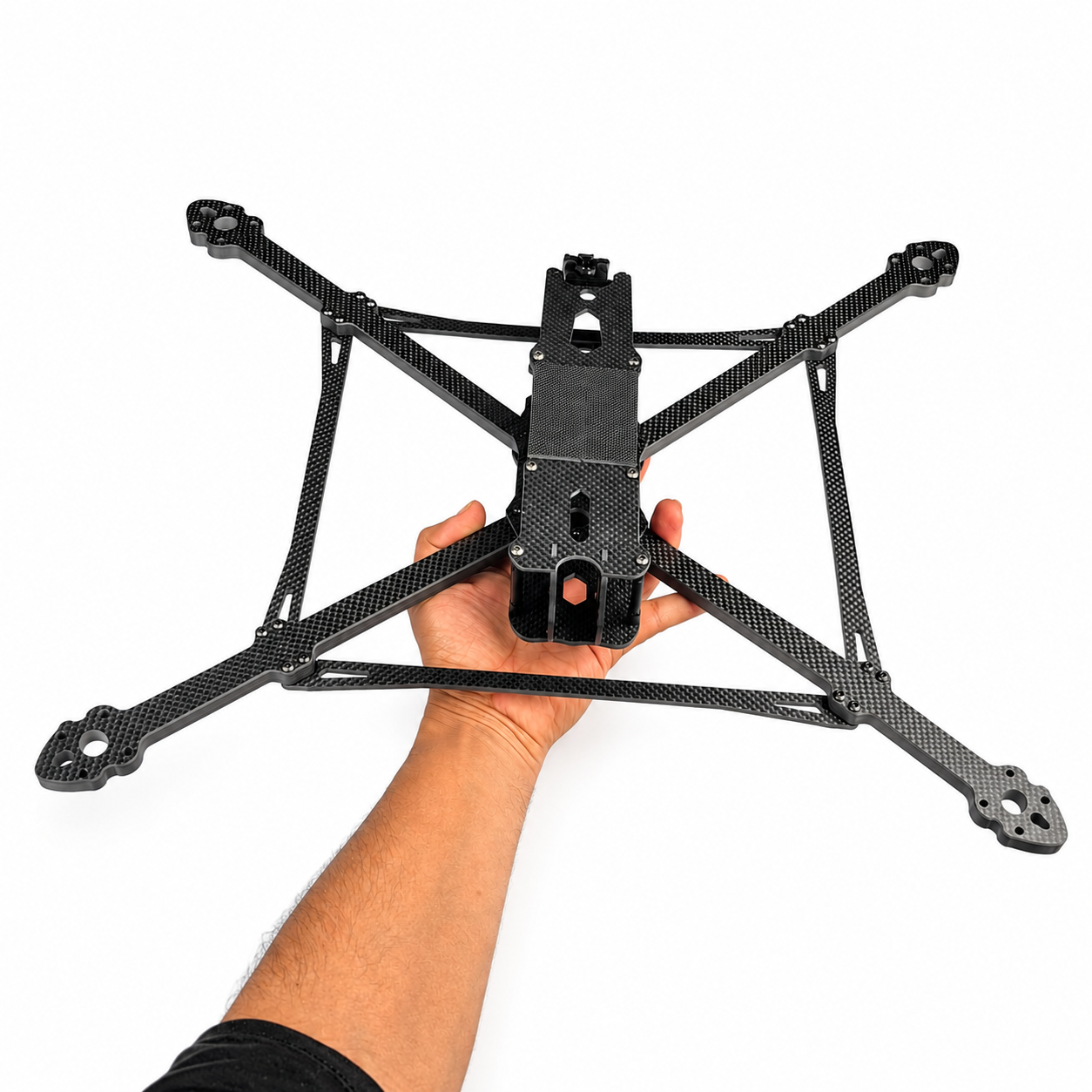

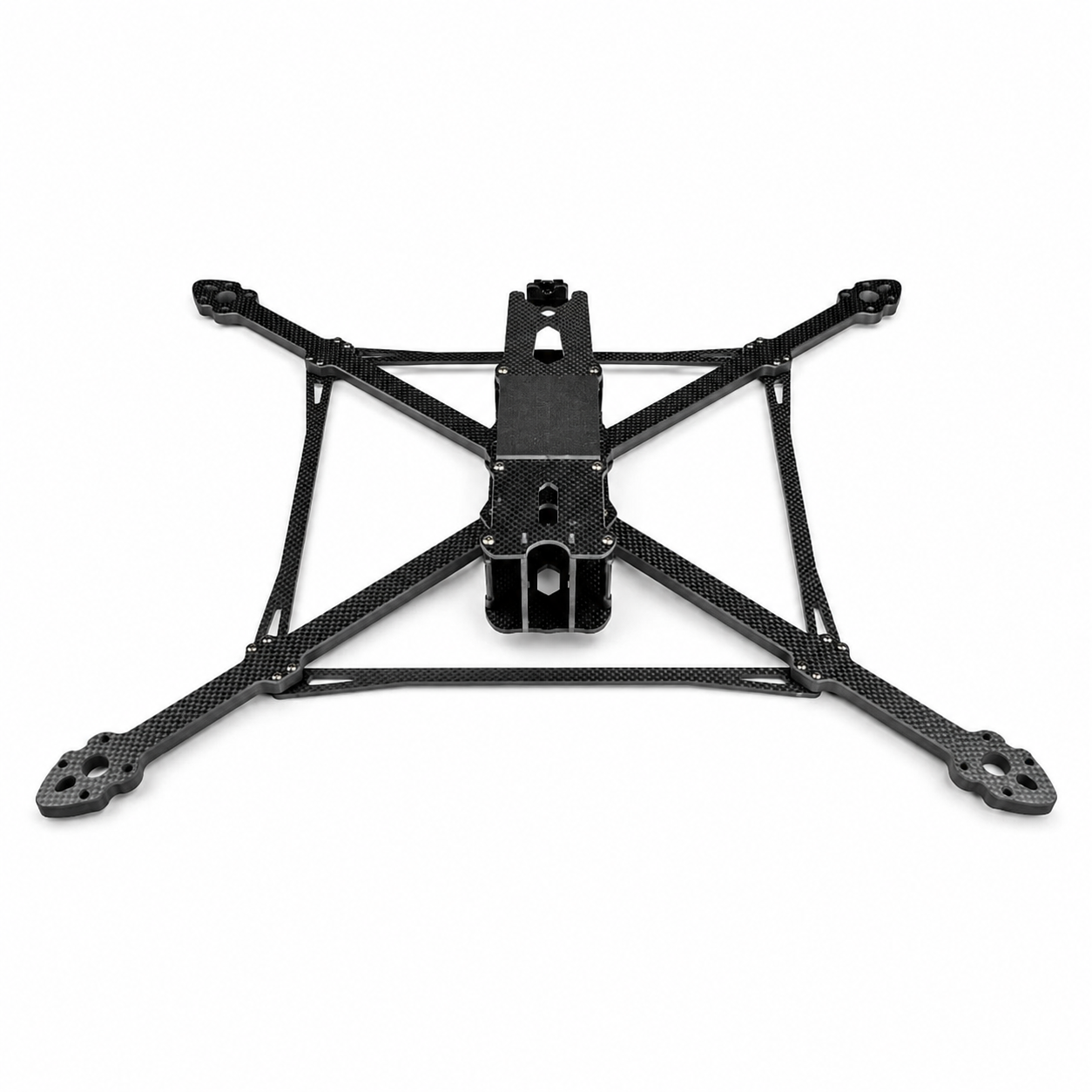

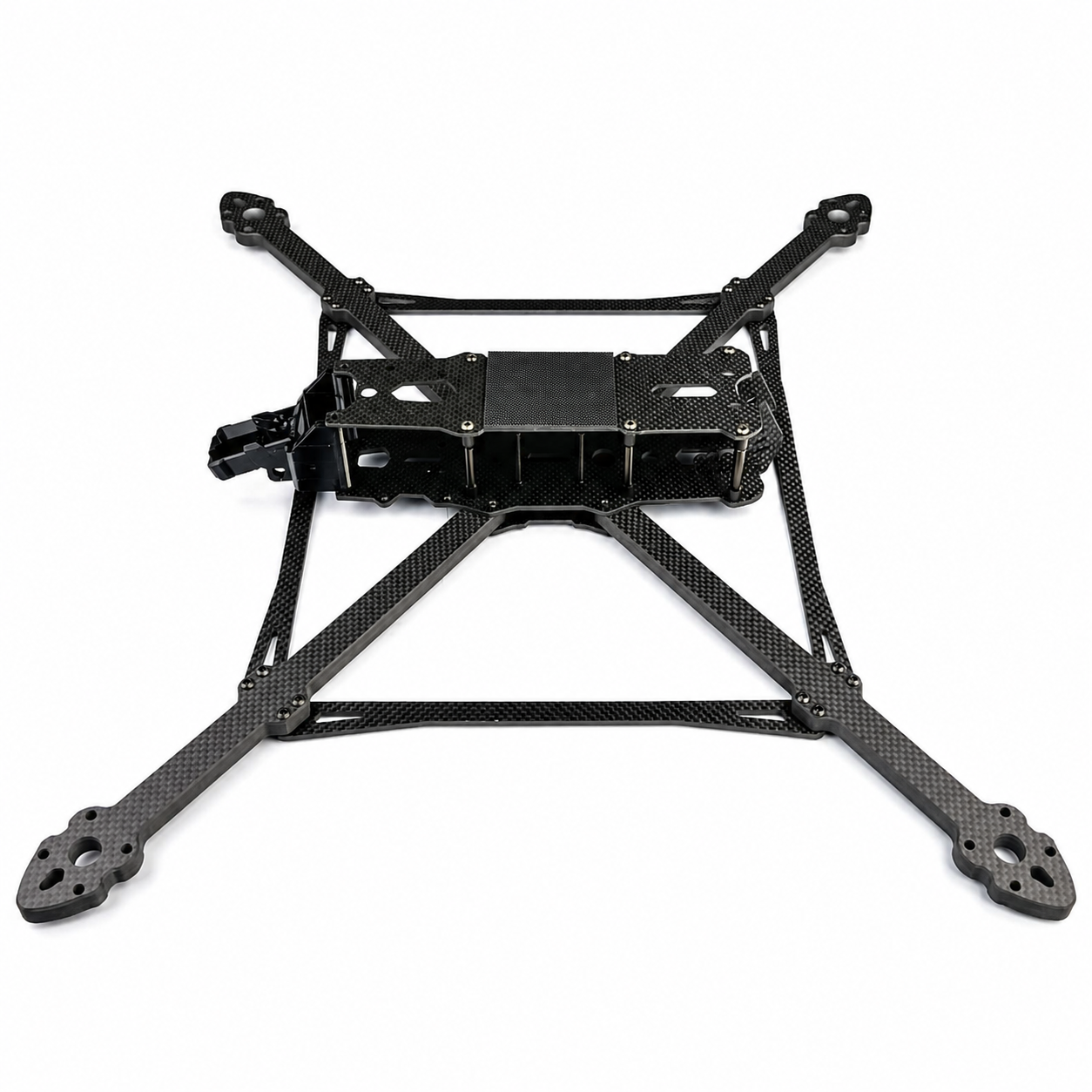

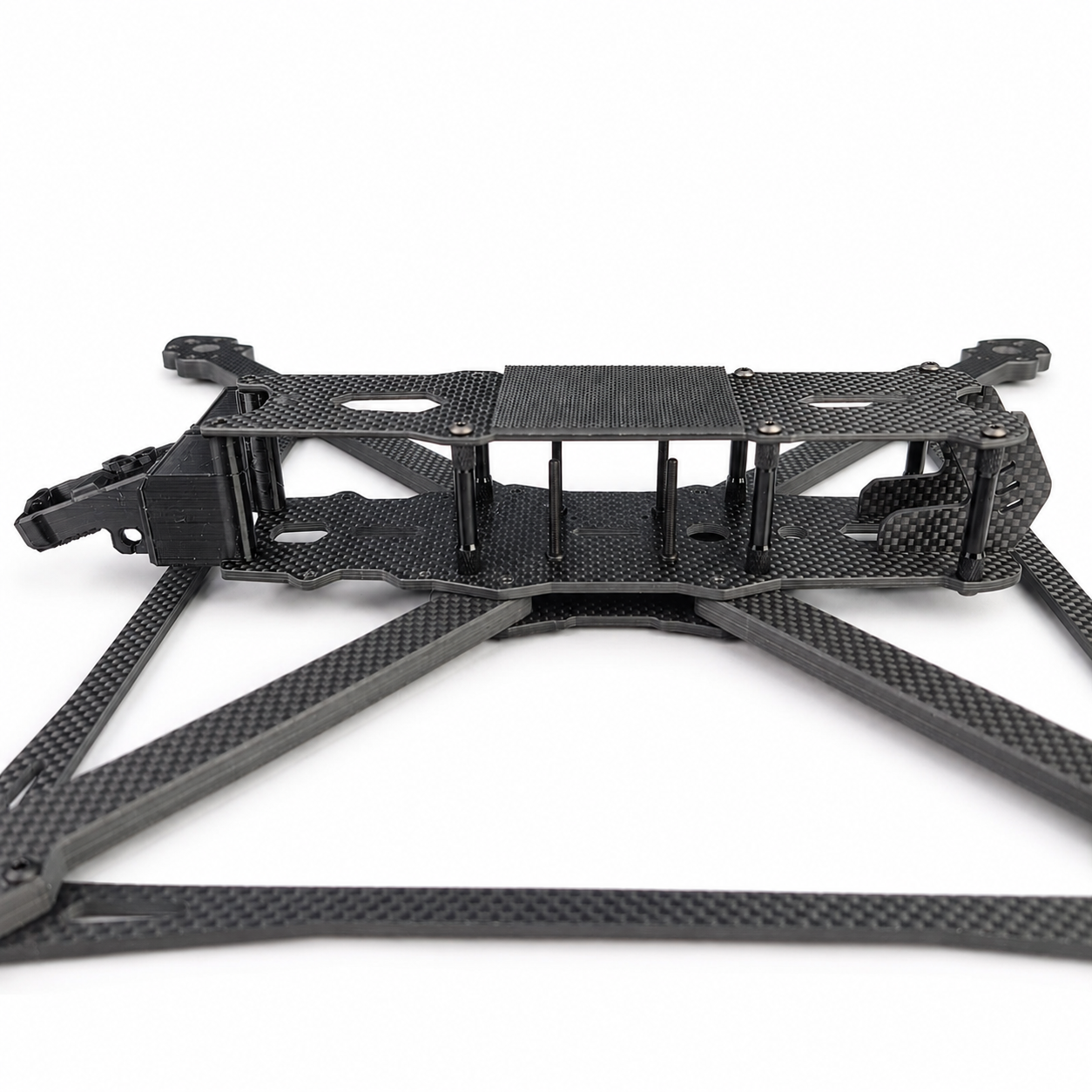

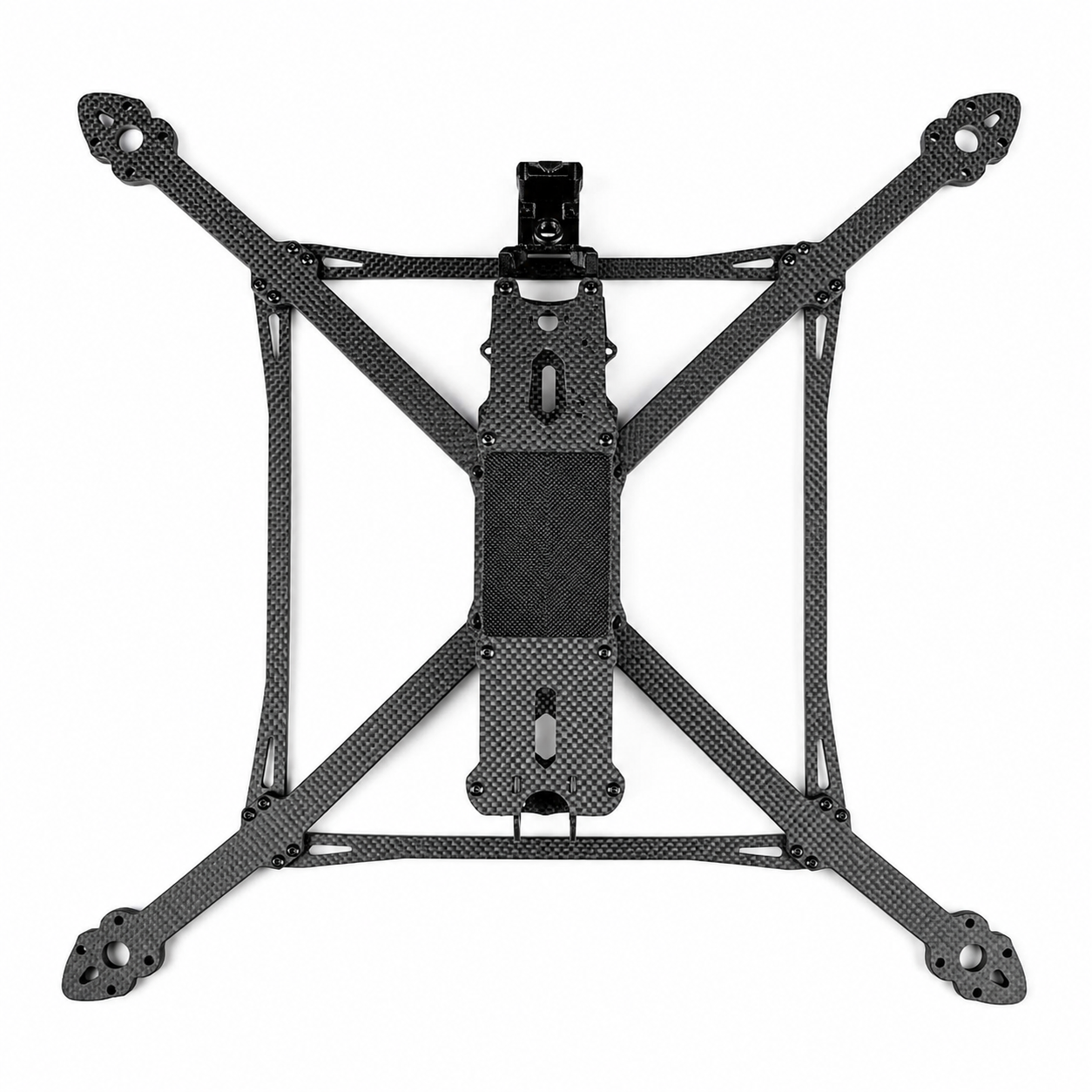

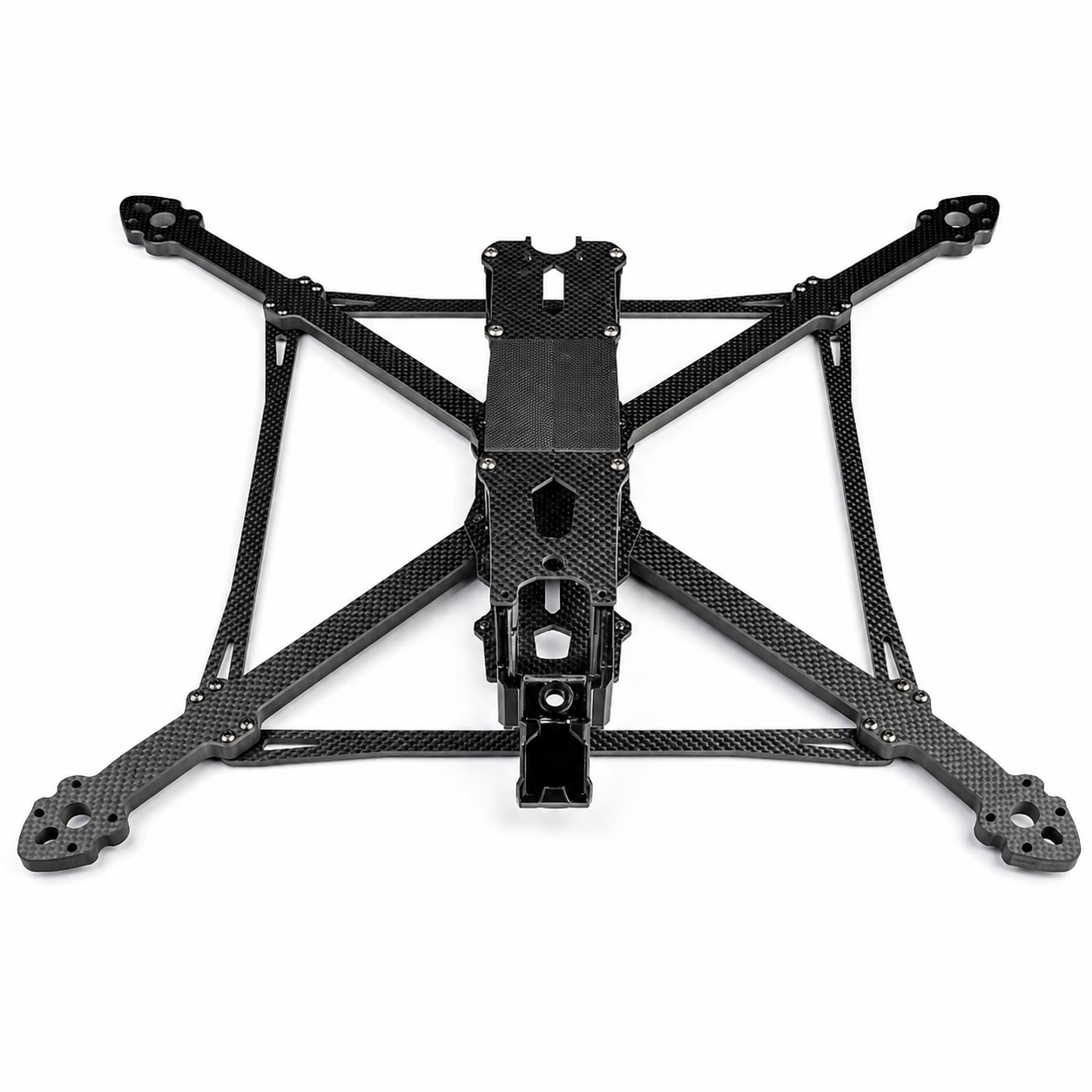

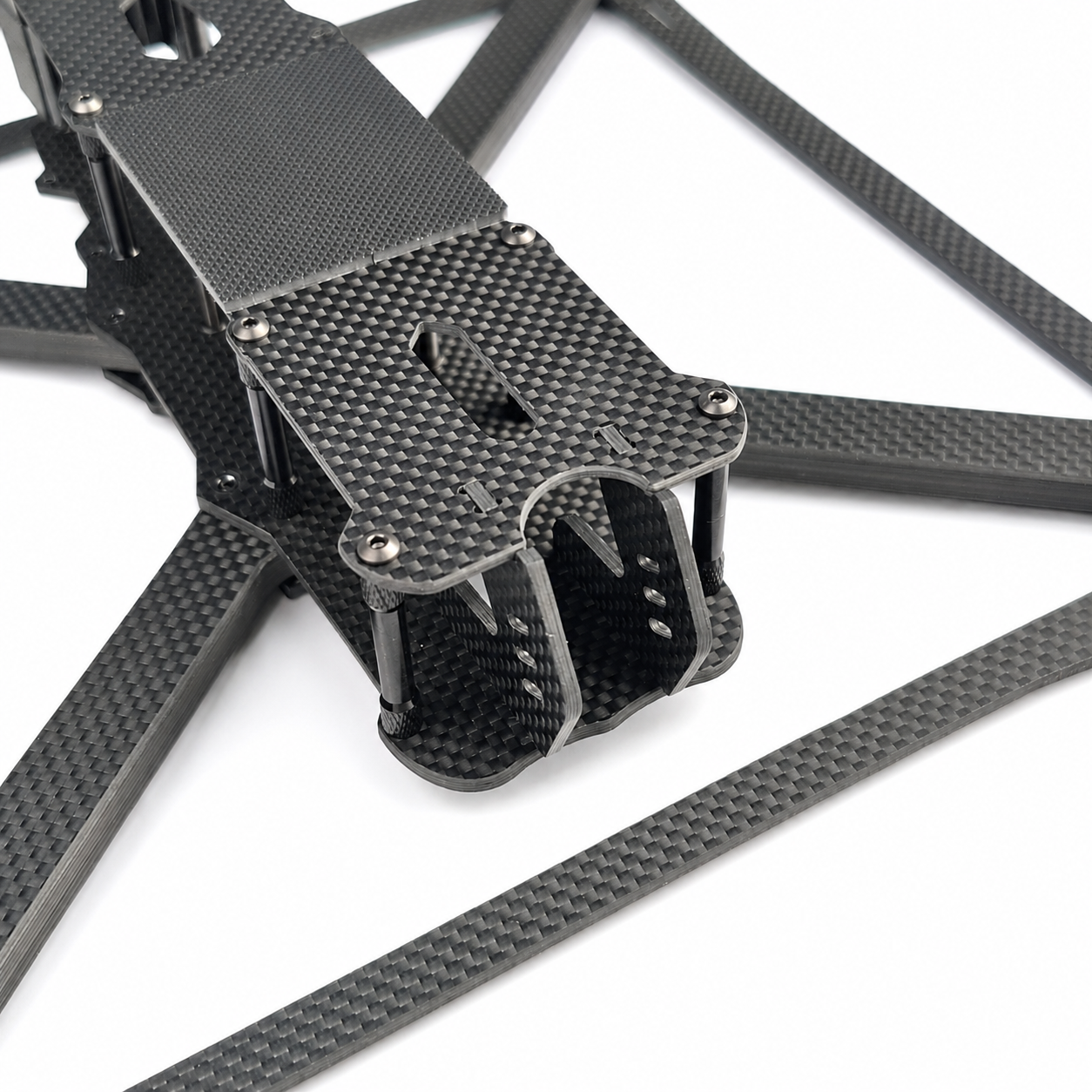

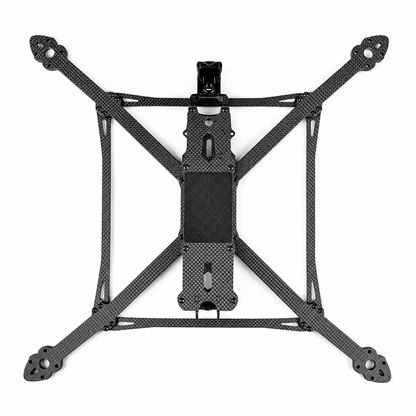

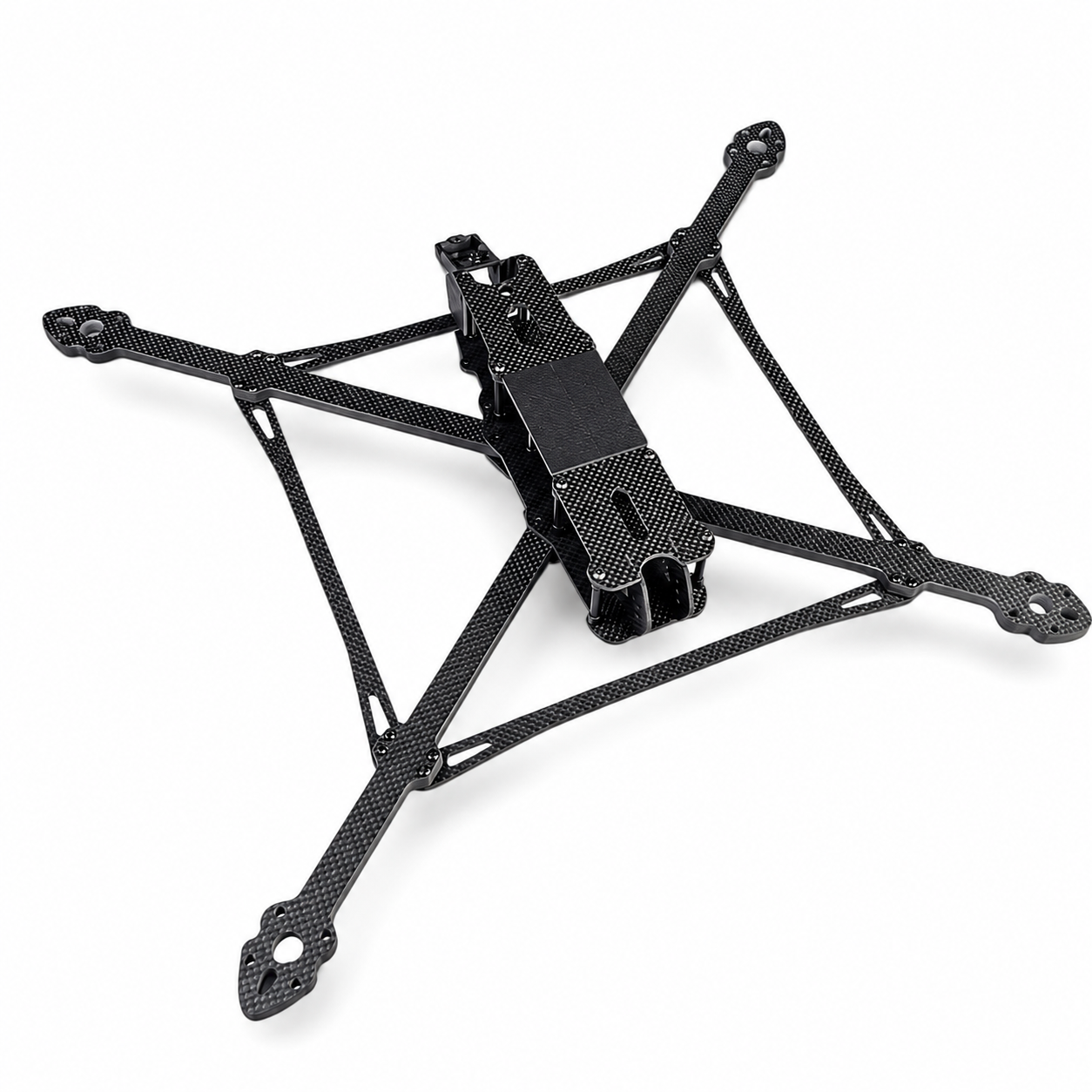

| Product Name | Mark4 13 V3 Carbon Fiber Frame |
| Frame Size | 13 Inch |
| Wheelbase | 570mm |
| Material | High-Strength Carbon Fiber |
| Upper Plate Thickness | 1.5mm |
| Bottom Plate Thickness | 3mm |
| Lower Fixed Plate Thickness | 3mm |
| Camera Side Plate Thickness | 2.5mm |
| Front Lip Plate Thickness | 2.5mm |
| Rear Lip Thickness | 2.5mm |
| Camera Arm Thickness | 8mm |
| Surround Reinforcement Thickness | 3mm |
| Camera Mount Spacing | 19mm |
| Flight Controller Mounting | 20Ã20mm / 30.5Ã30.5mm |
| Motor Mounting Hole Spacing | 21Ã21mm |
| VTX Mounting Hole Spacing | 20Ã20mm / 30.5Ã30.5mm |
