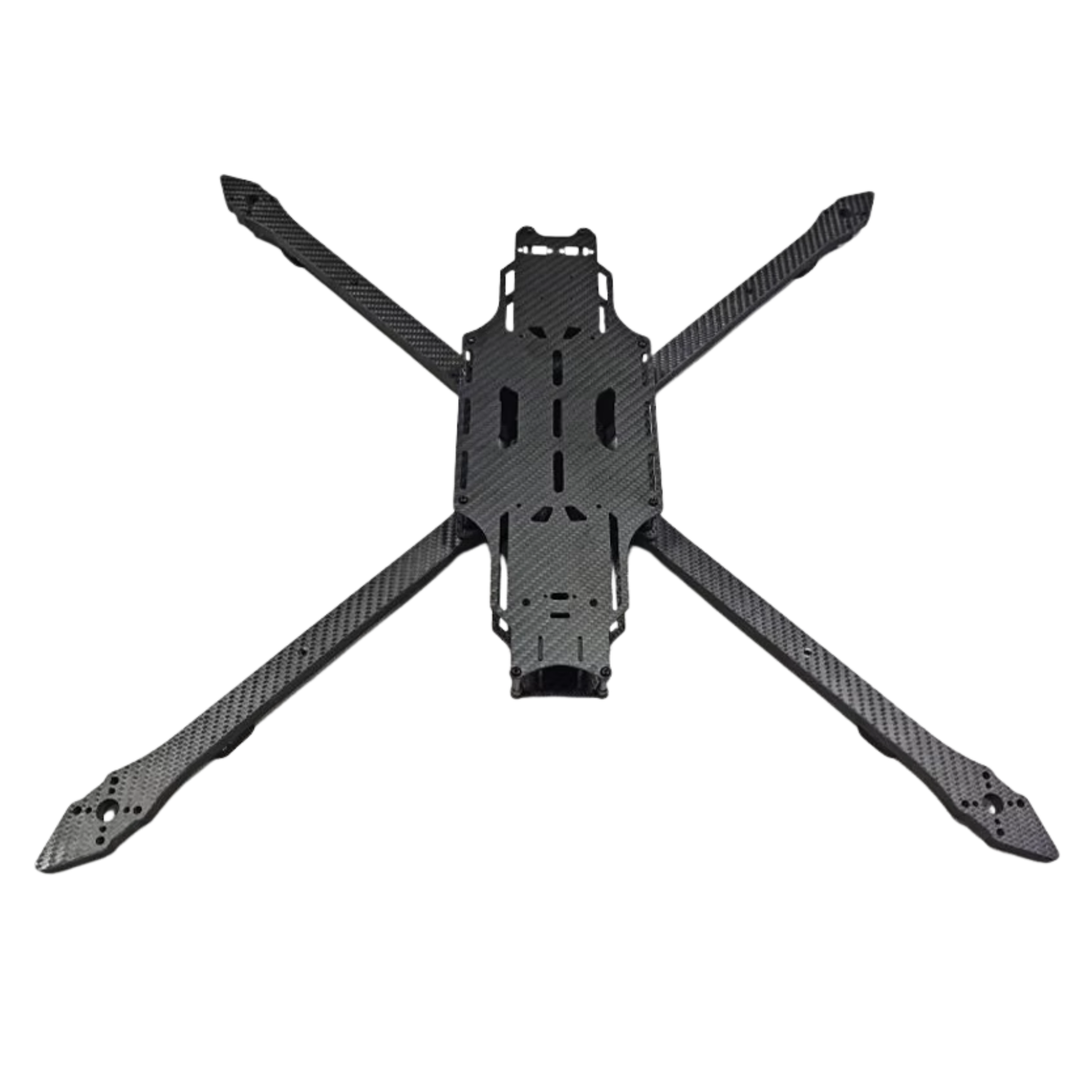

15 Inch Carbon Fiber Drone Frame – Balanced and Reliable Structure
This 15-inch drone frame is designed with a Positive X configuration, offering a well-balanced layout suitable for stable and controlled flight performance. The overall dimensions of 514mm x 514mm make it ideal for mid-size drone builds requiring precise alignment and proportional spacing.
The frame is constructed using T300 carbon fiber plate material, providing a durable structure while keeping the overall weight practical. The total weight of the frame is 671 grams (excluding printouts), helping maintain an efficient balance between strength and load capacity.
Plate thickness is configured for structural consistency:
-
Upper Plate: 2.0mm
-
Middle Plate: 3.0mm
- Base Plate: 3.0mm

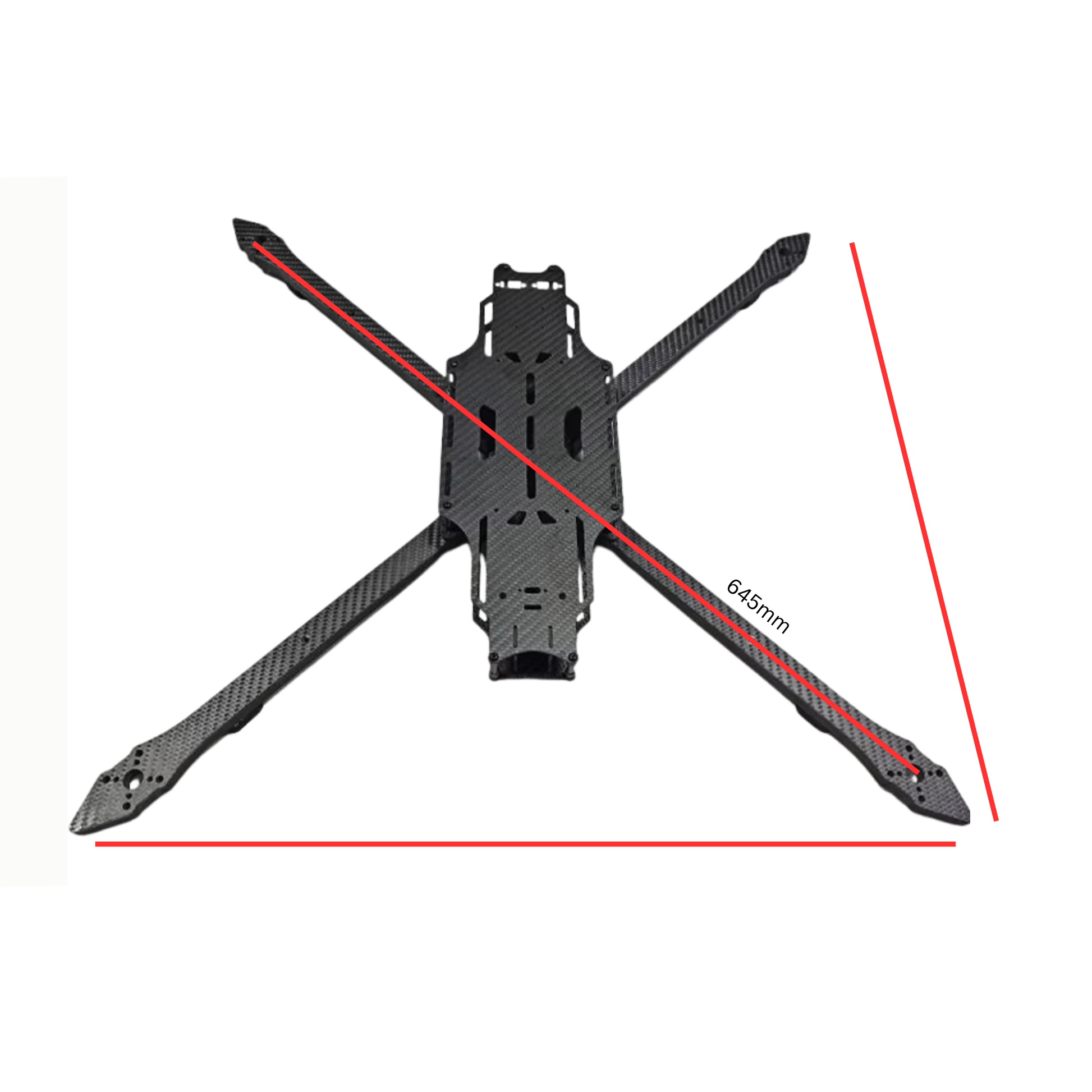

With a 645mm wheelbase, the frame supports a stable flight posture, while the 2.0mm side panels add extra structural support. The 8mm arm length ensures proper motor mounting and consistent spacing across all arms.
