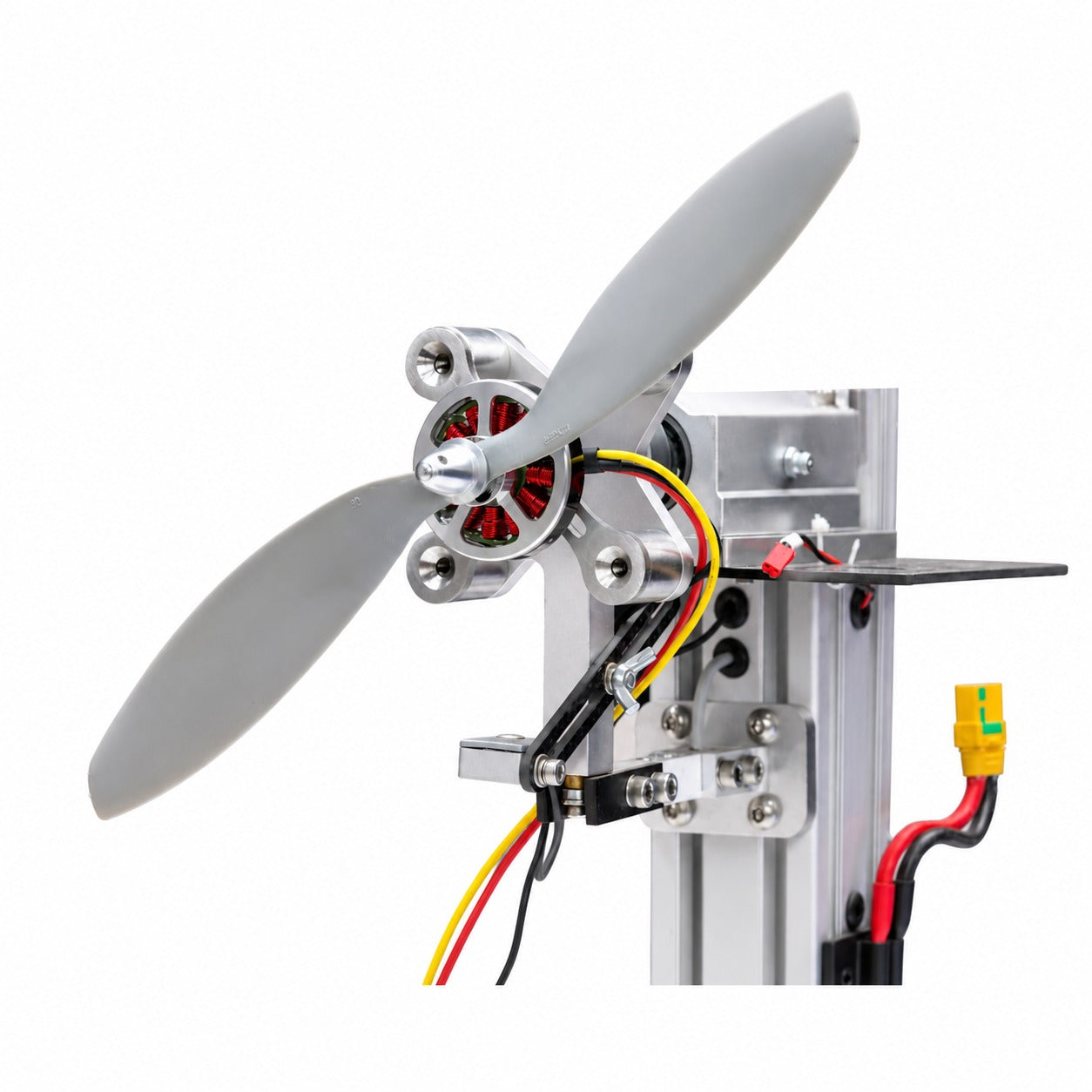

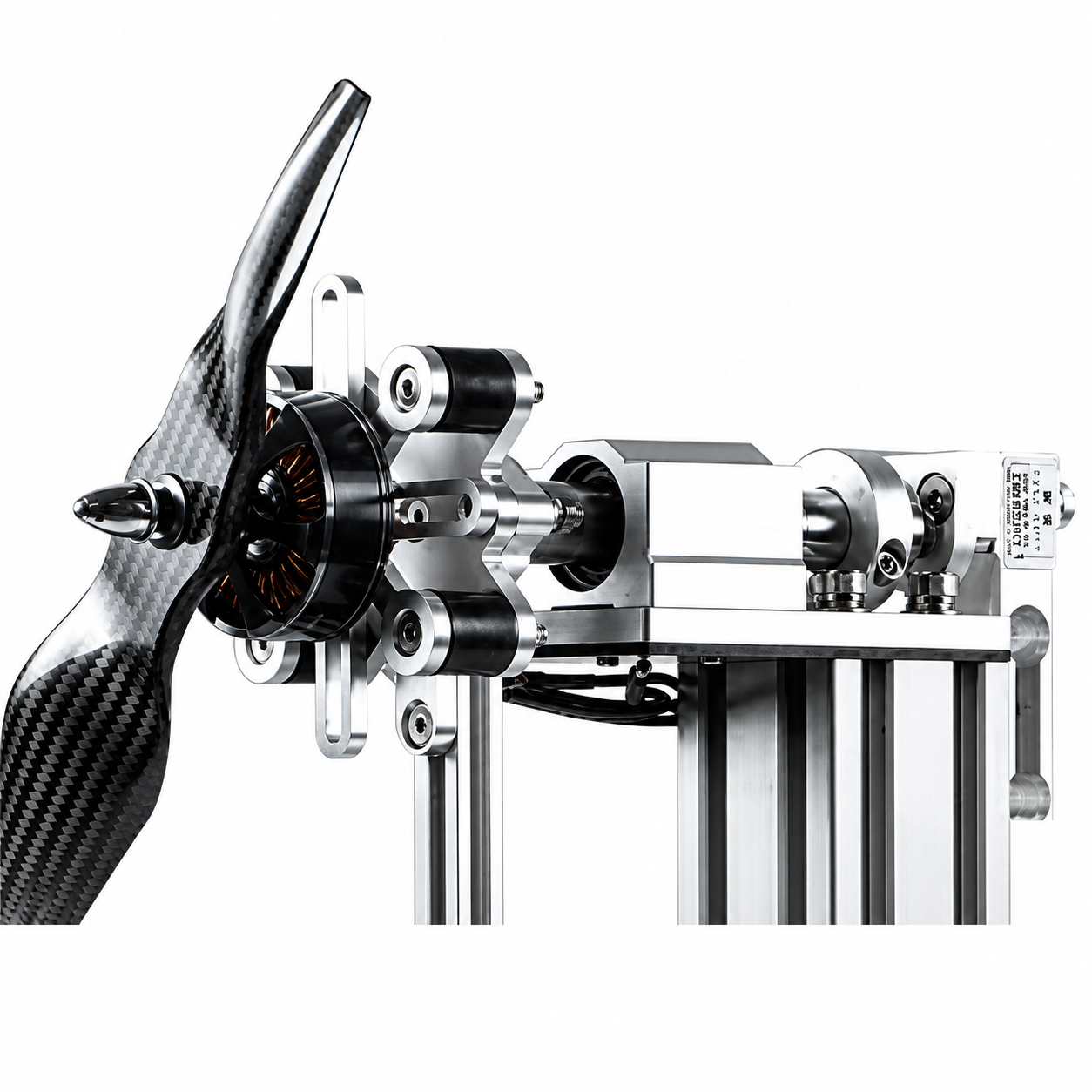

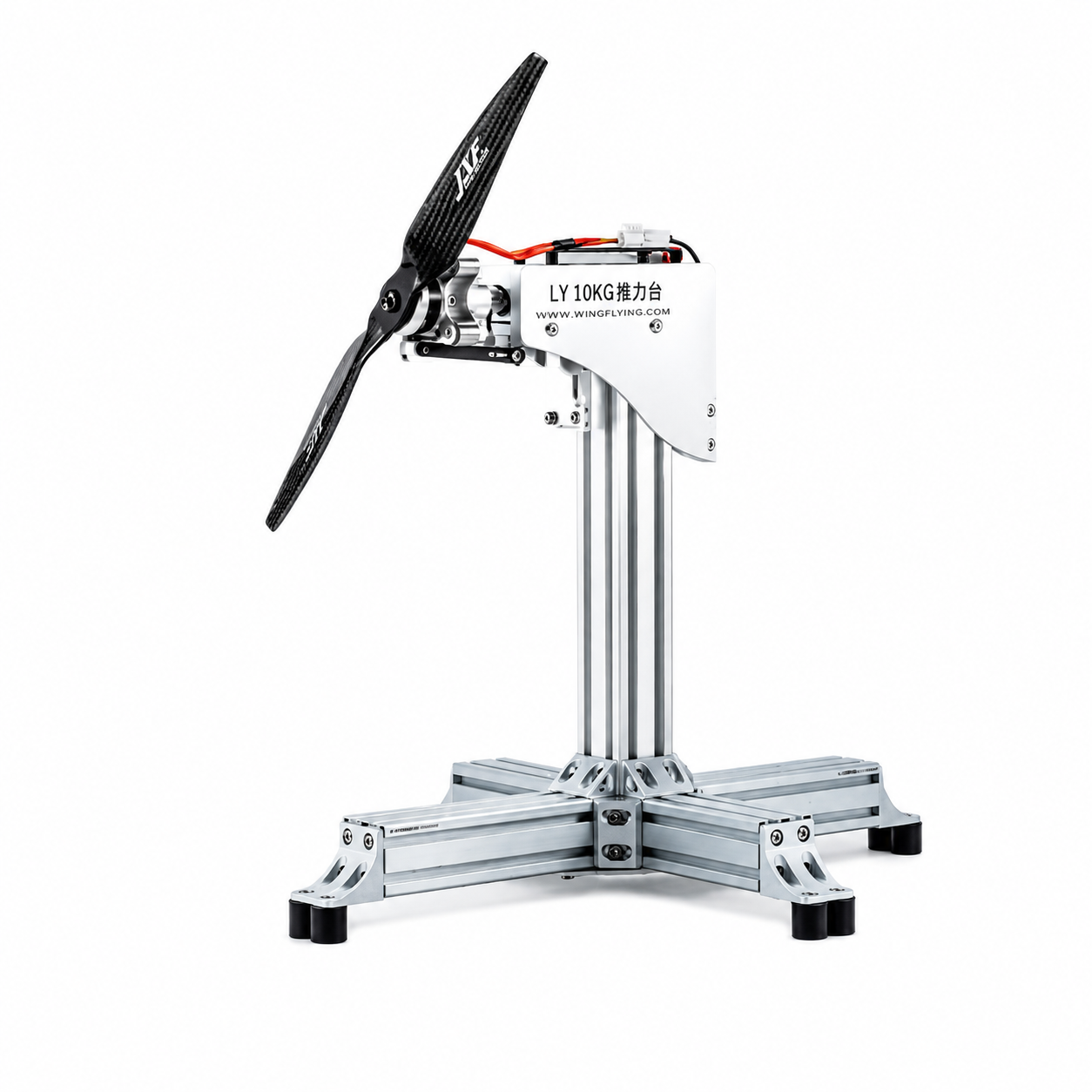

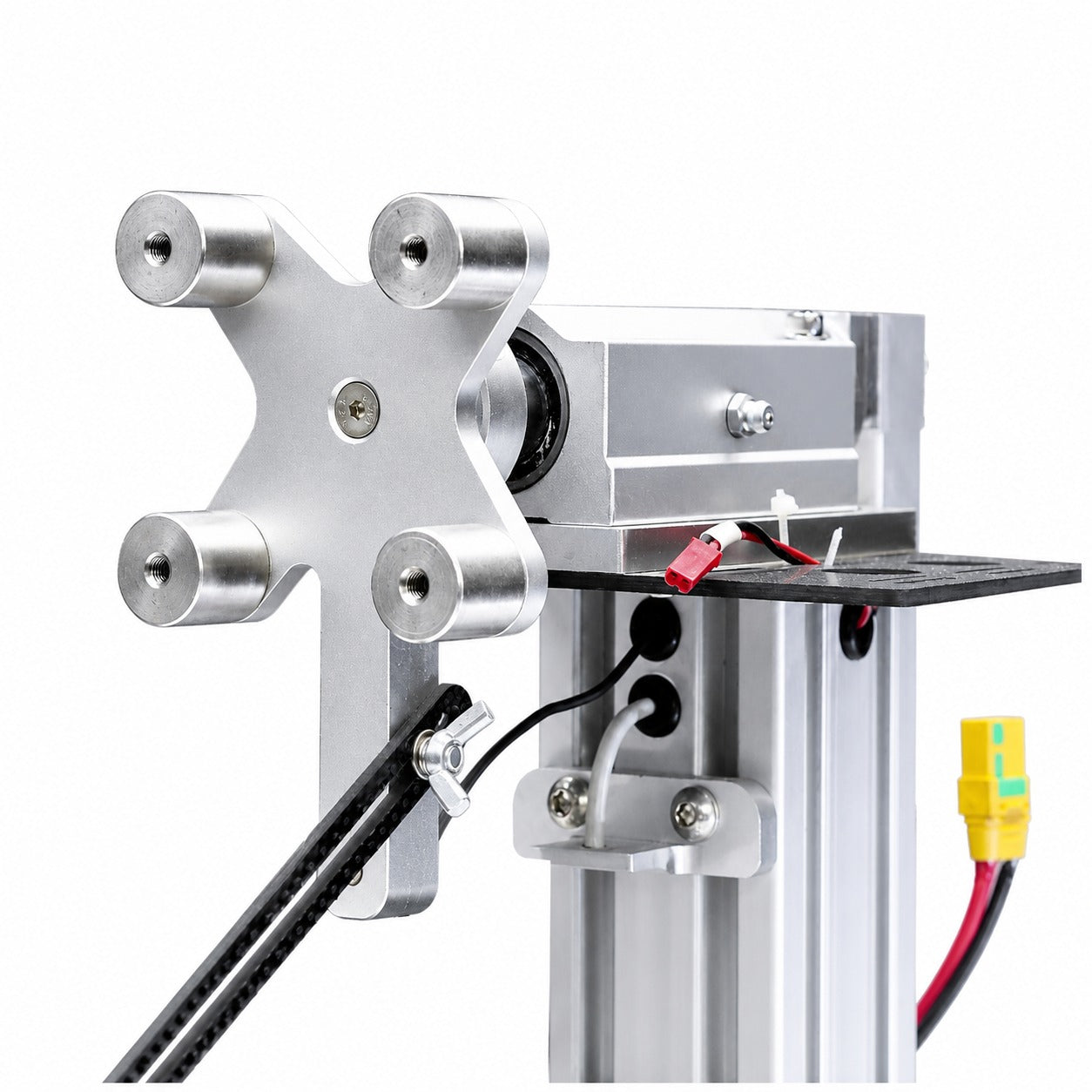

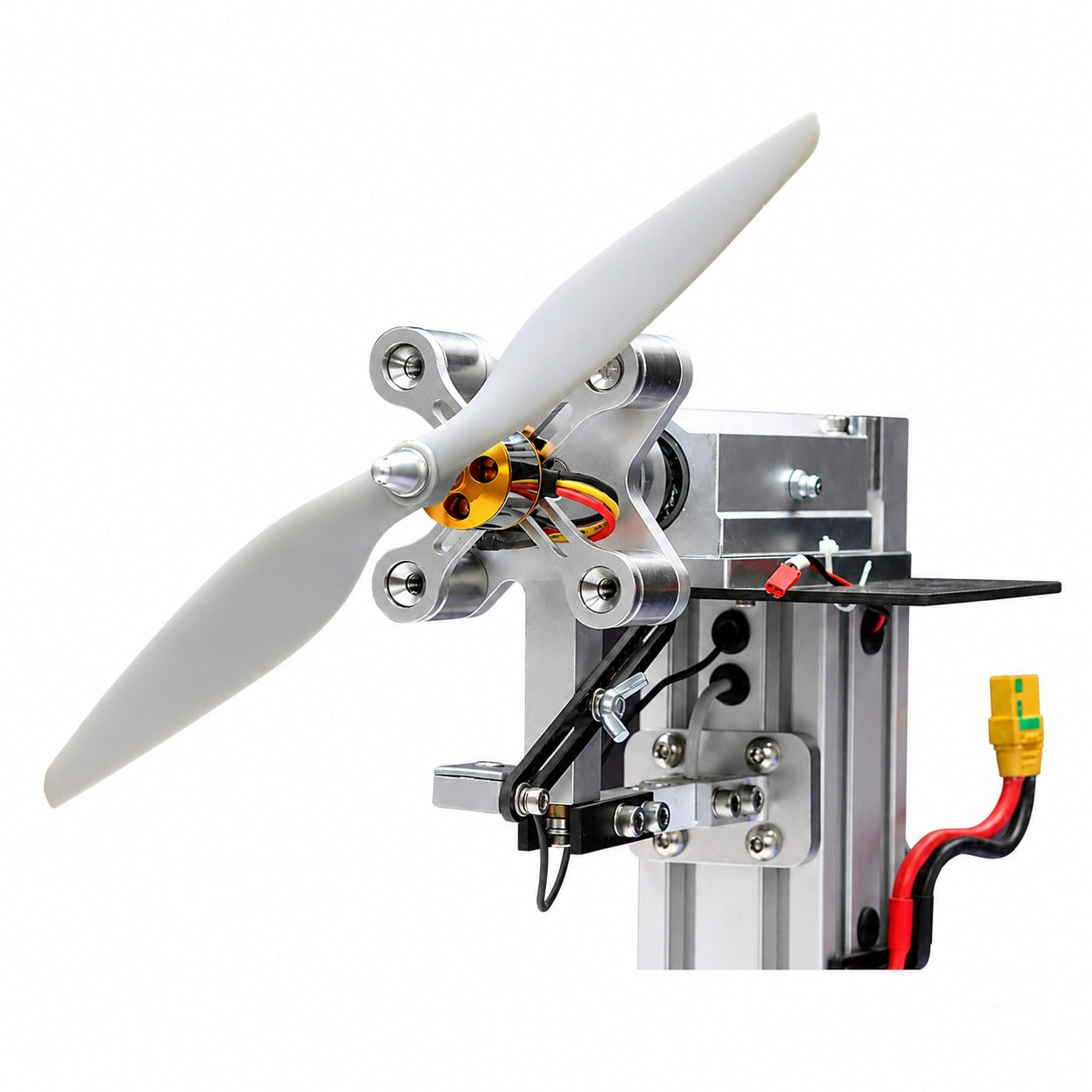

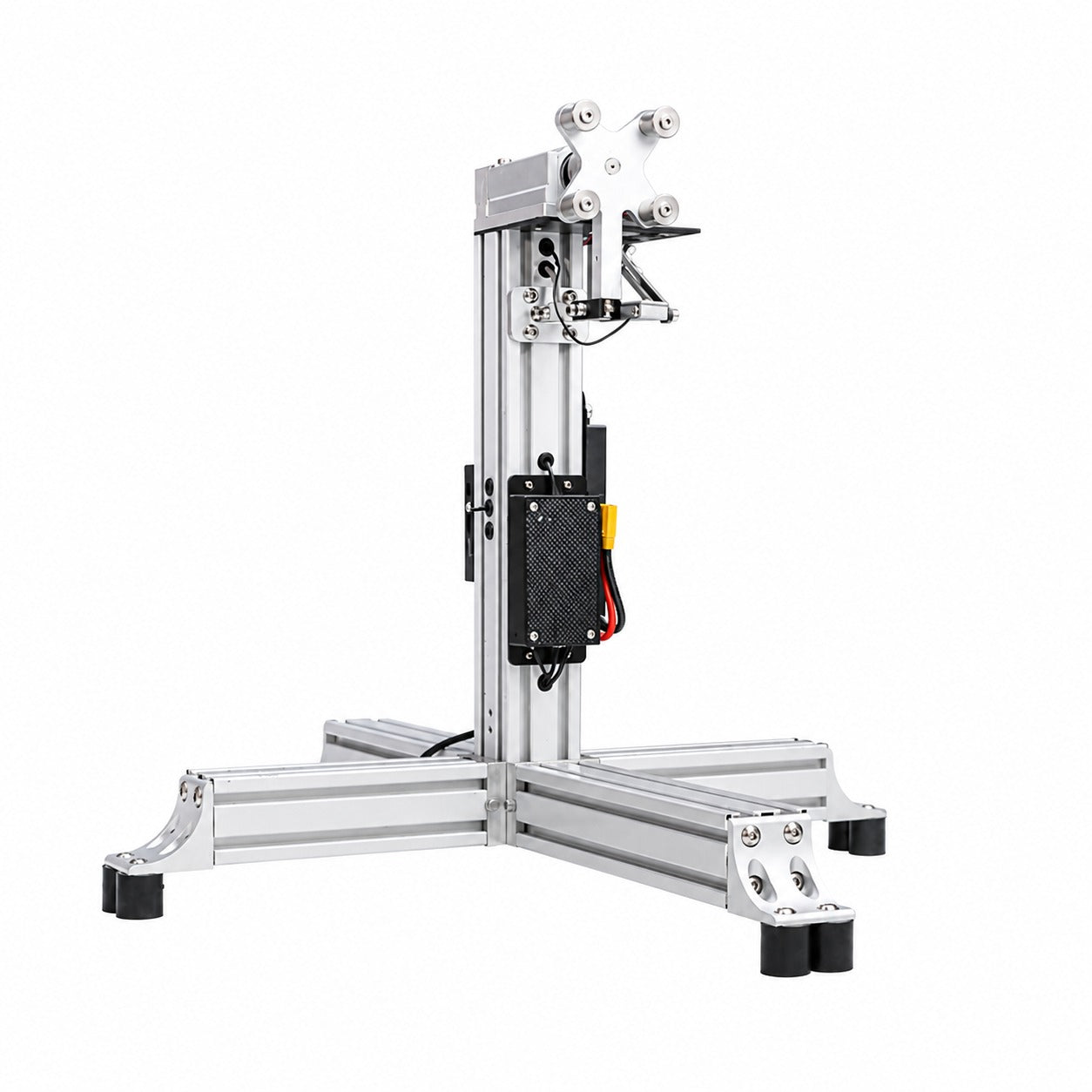

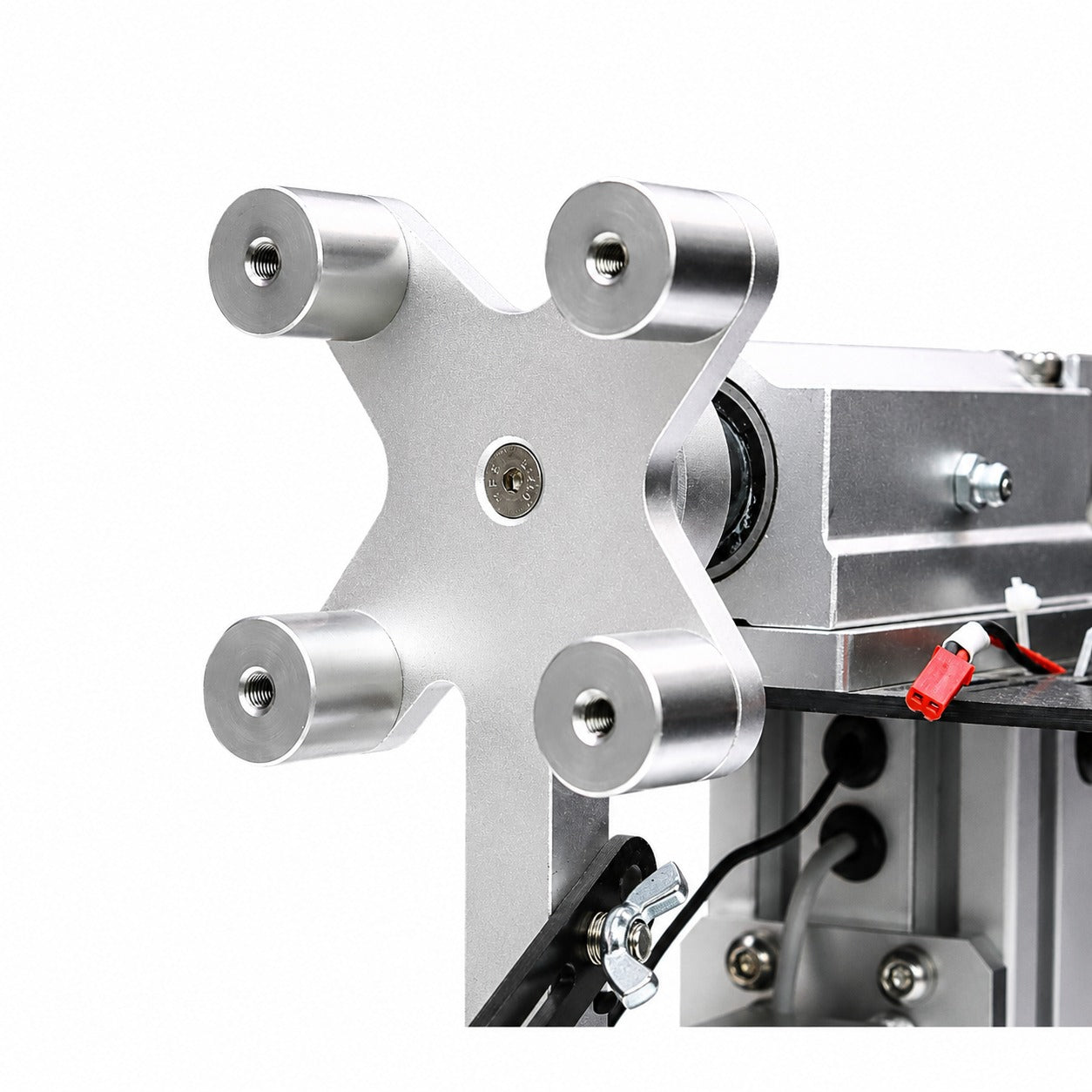

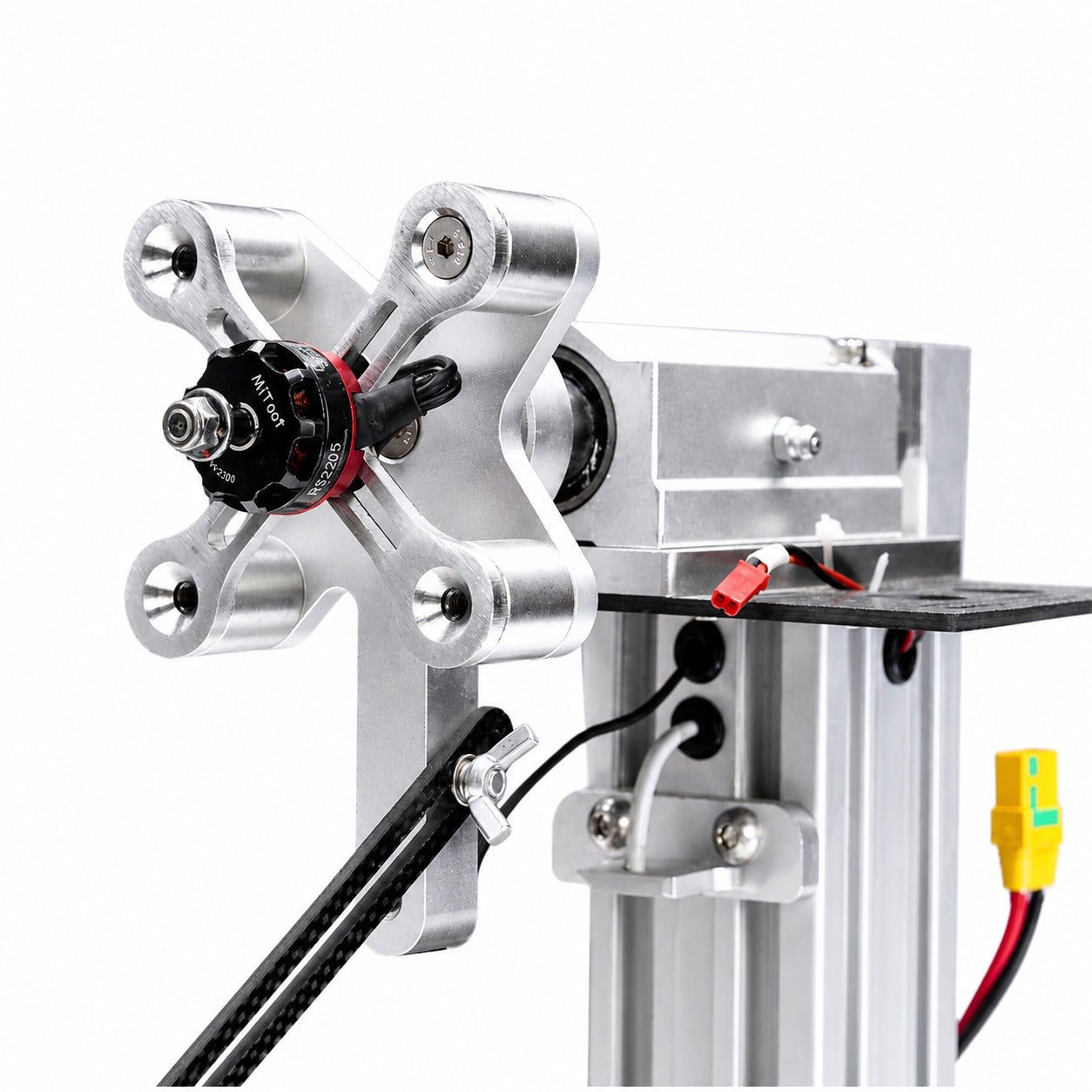

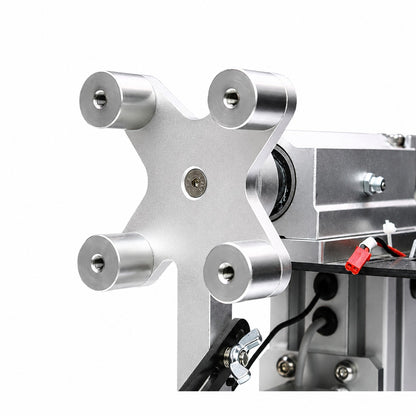

LY-10 KGF Thrust Stand/ Drone Test Equipment
LY-10KGF thrust stand, also named LY-10KGF drone test equipment, is an advanced test tool to measure and record the thrust, torque, voltage, current, RPM, motor and propeller efficiency of medium-sized propulsion systems.Β WingFlyingΒ is a professional drone test stand supplier in China, providing advanced drone test equipment for you.
It is capable of measuring 1-10kg thrust and max torque 5 Nβ’M, which is great to test the propulsion system of medium-sized drones.
| Parameter | Value |
|---|---|
| Basic Information | |
| Operating Temperature | 0 ~ +40 β |
| Operating Humidity | β€ 80% |
| Storage Temperature | -20 ~ +60 β |
| Storage Humidity | β€ 90% |
| Net Weight | 7 kg |
| Dimension | 775 Γ 585 Γ 555 mm |
| Power Supply | 12V 2A DC5521 |
| Propulsion System | |
| Recommended Propulsion | Max Thrust 3 ~ 6 kg |
| Minimum Propulsion | > 1 kg Thrust |
| Maximum Propulsion | 10 kg Thrust |
| Maximum Propeller | 30 Inch |
| Voltage & Current | |
| Voltage Range | 5 ~ 65 V |
| Voltage Resolution | 0.01 V |
| Voltage Accuracy | 0.05% + 0.05% FS |
| Current Range | 0 ~ 100 A |
| Current Resolution | 0.01 A |
| Current Accuracy | 0.1% + 0.1% FS |
| Thrust Measurement | |
| Range | 10 kgf |
| Resolution | 1 gf |
| Accuracy | 0.1% + 0.1% FS |
| RPM Sensor | |
| Range | 60 ~ 150000 RPM |
| Resolution | 1 RPM |
| Accuracy | 0.05% Β± 0.05% FS |
| Temperature Probe | |
| IR Temperature (Motor Case) | -70 ~ +350 β |
| IR Resolution | 0.1 β |
| IR Accuracy | Β±0.5 β |
| Ambient Temperature | -40 ~ +125 β |
| Ambient Resolution | 0.1 β |
| Ambient Accuracy | Β±0.5 β |
