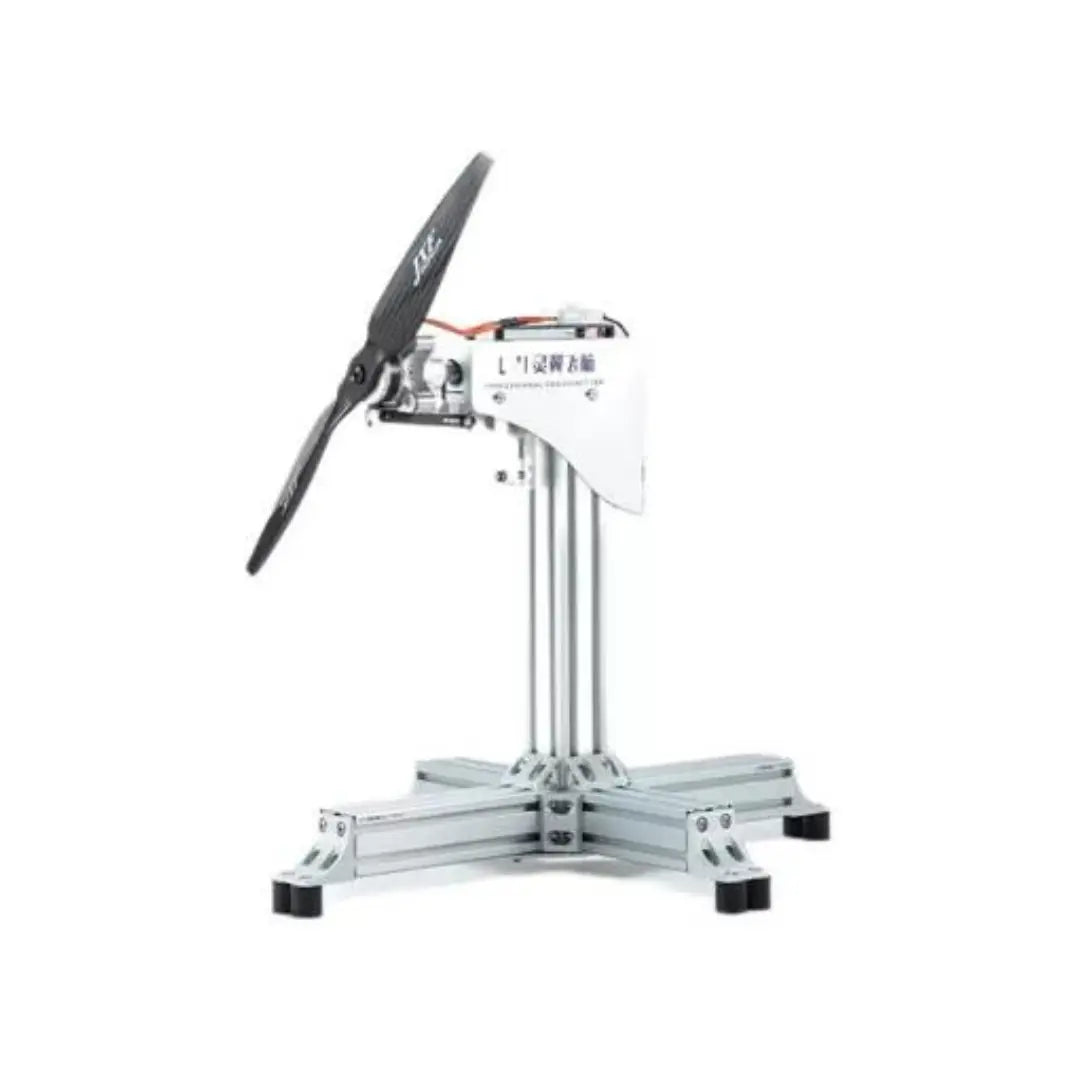

LY-10 KGF Thrust Stand/ Drone Test Equipment
LY-10KGF thrust stand, also named LY-10KGF drone test equipment, is an advanced test tool to measure and record the thrust, torque, voltage, current, RPM, motor and propeller efficiency of medium-sized propulsion systems.Β WingFlyingΒ is a professional drone test stand supplier in China, providing advanced drone test equipment for you.
It is capable of measuring 1-10kg thrust and max torque 5 Nβ’M, which is great to test the propulsion system of medium-sized drones.
Specification ofΒ DroneΒ 10 KGFΒ Test Equipment
| Suggested Propulsion System | Max thrustοΌ1kgf |
| Max Thrust | 10KG |
| Max Propeller | 30inch |
| Torque | 5 Nβ’m |
| Current | 0-100A |
| Voltage | 5-65V |
| RPM | 30-15000 RPM |
