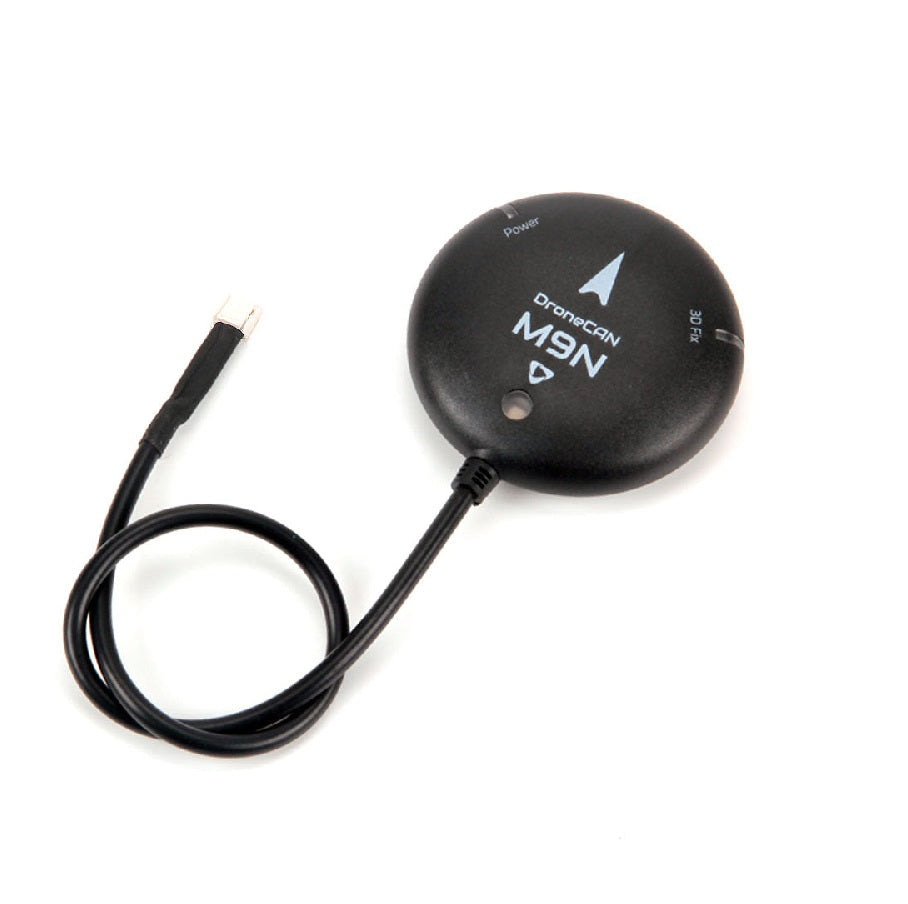

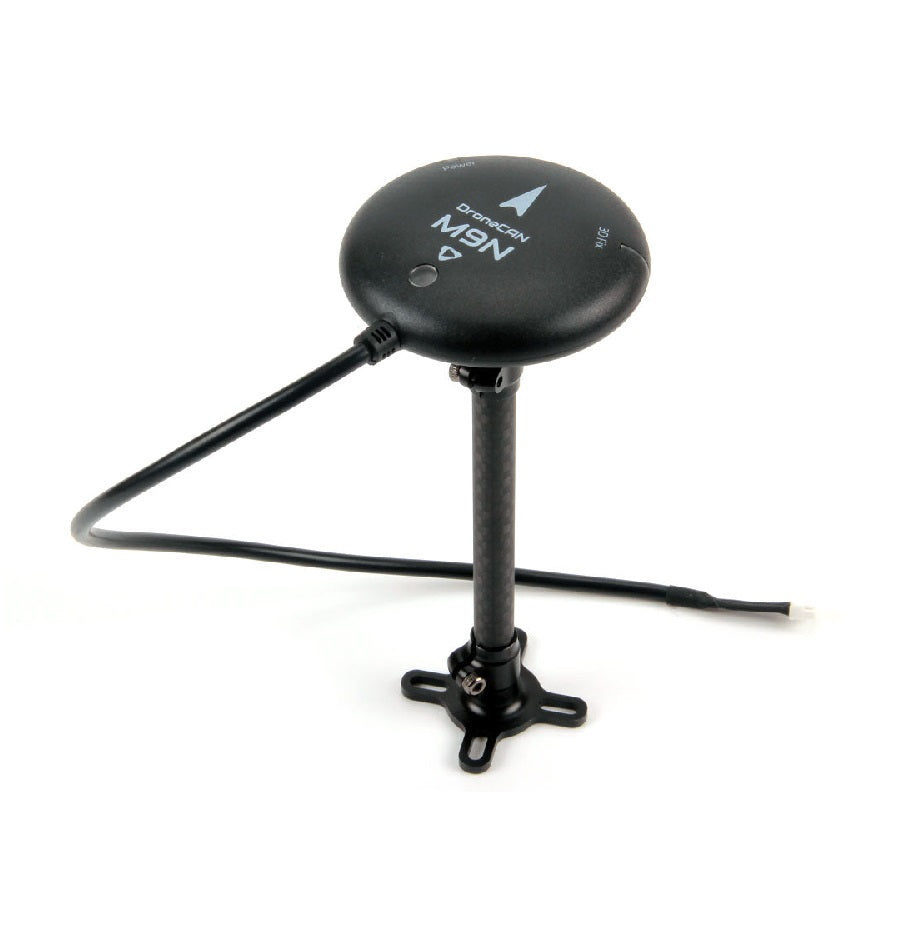

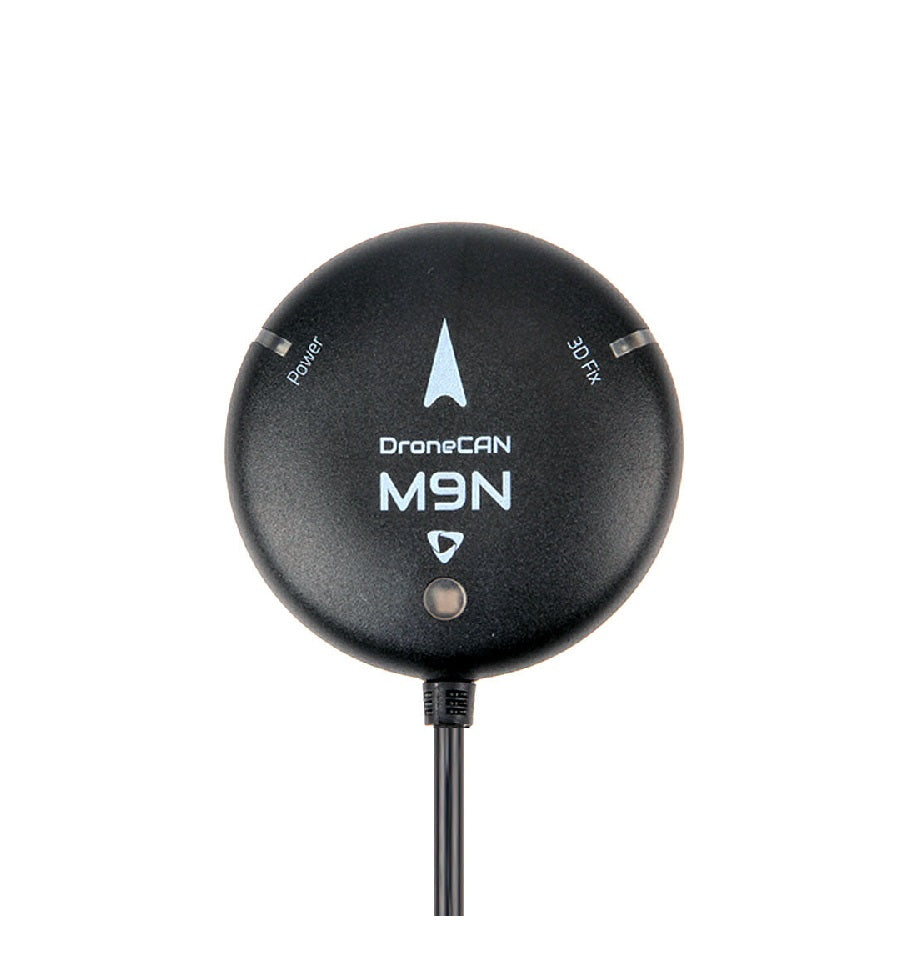

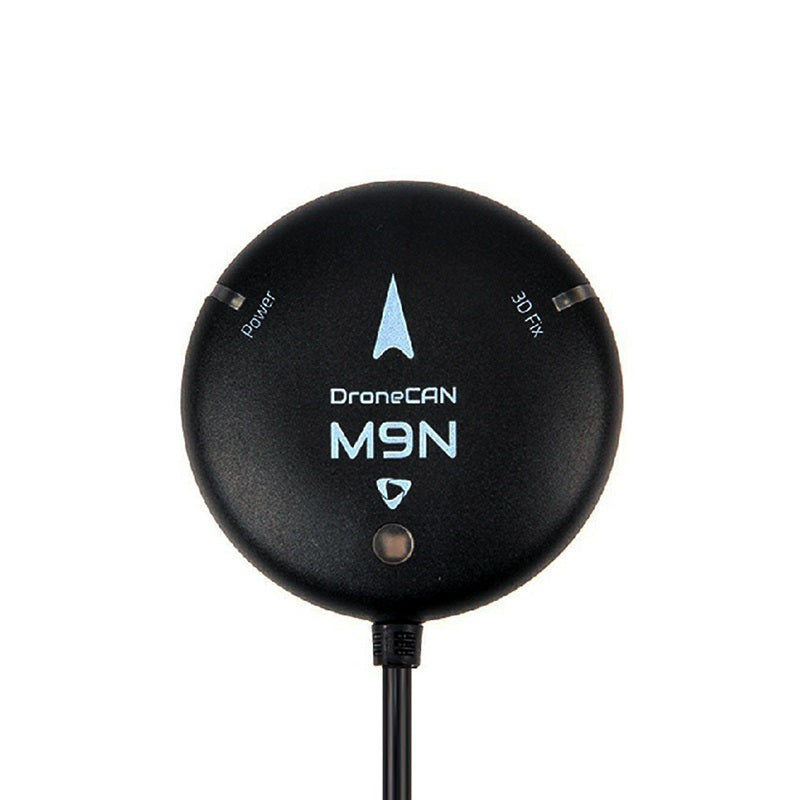

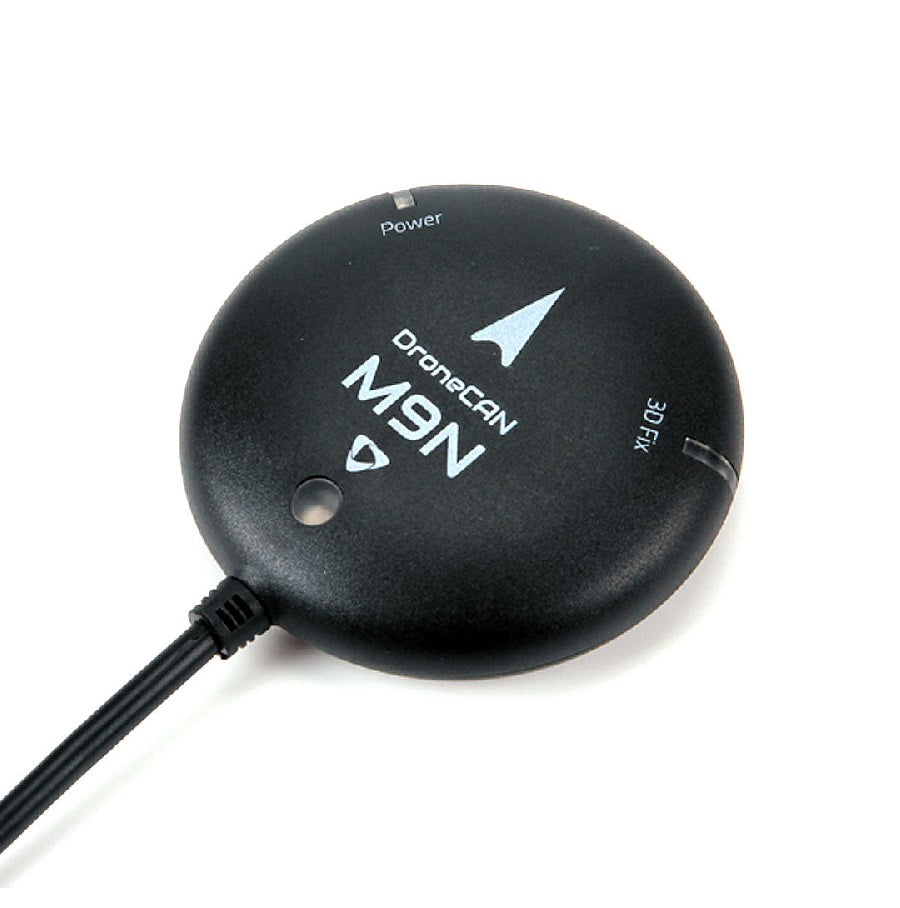

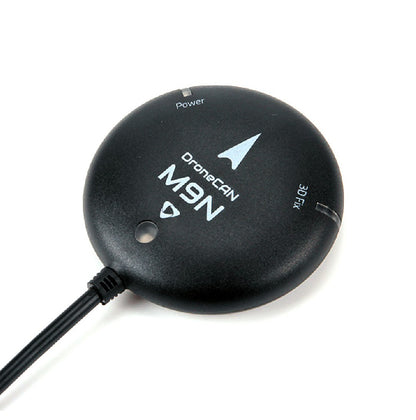

The Holybro DroneCAN GPS has an UBLOX M8N or M9N module, BMM150 compass, tri-colored LED indicator. It has the STM32G4 Processor and adopted the DroneCAN protocol for communication, making it more reliable and better in dealing with electromagnetic interference compare to serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.
Features:
- Advanced GNSS Technology
- Powerful Processor
- DroneCAN Protocol
- Clear Status Indication
- Serial Port Efficiency
- CAN Bus Compatibility
- Β LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Β Low noise 3.3V regulator

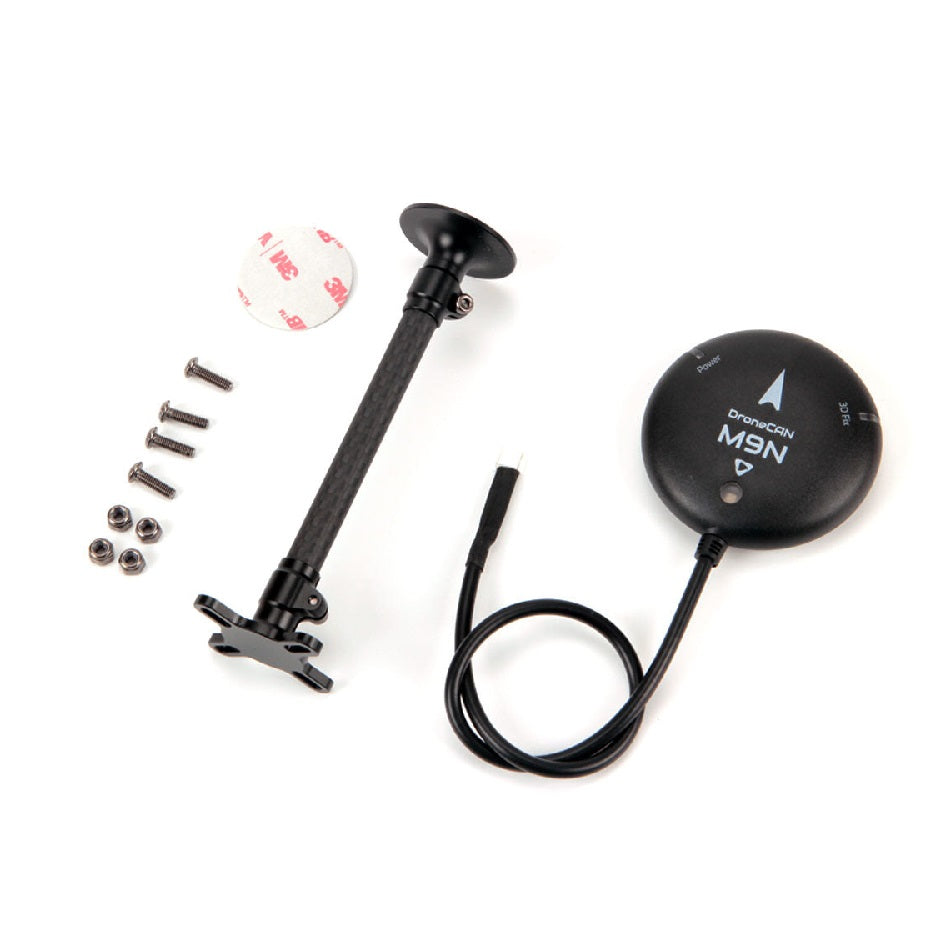

Package Includes:
1Γ Holybro DroneCAN M9N GPS
Specifications:-
| Item Type: |
GPS Module |
|---|---|
| GNSS |
Ublox NEO M9N |
| No. of Concurrent GNSS |
Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou) |
| Processor |
STM32G4 (170MHz, 512K FLASH) |
| Compass |
BMM150 |
| Band Rate |
GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C |
| Navigation Update Rate |
5Hz Default(10Hz MAX) |
| Accuracy: |
2.5 |
| Refresh Speed (ms) |
0.05 |
| Current Consumption (mA): |
Less than 200mA @ 5V |
| Input Voltage (V): |
4.7 to 5.2 |
| Operating Temperature (Β°C): |
-40~80C |
| Size (mm): |
Diameter: 54mm Thickness: 14.5mm |
| Shipping Weight | 0.111 kg |
| Shipping Dimensions | 14 Γ 12 Γ 5 cm |
