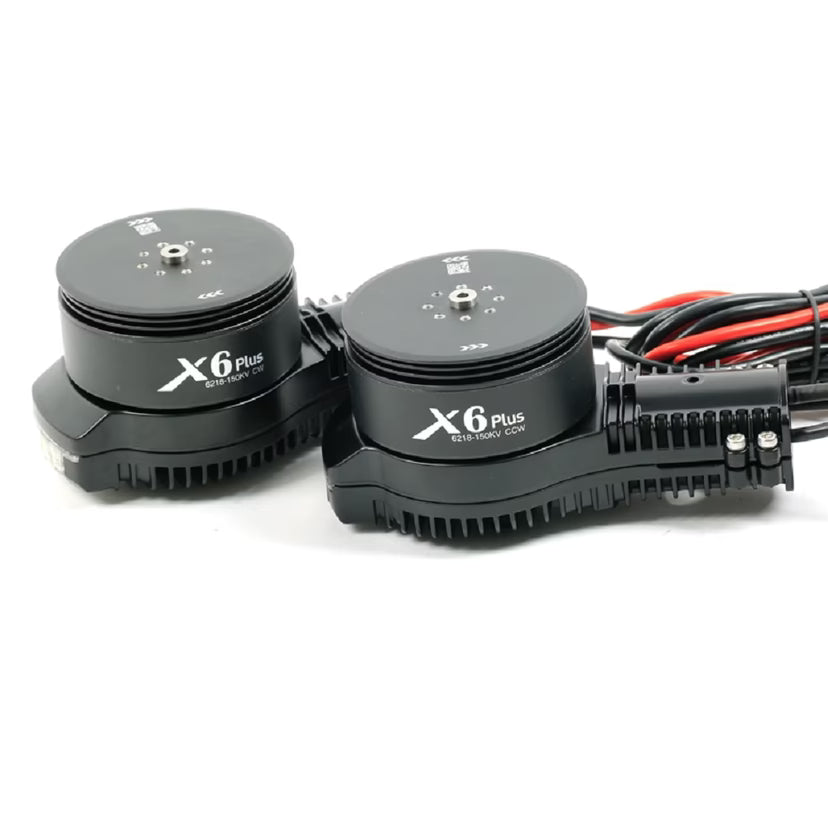

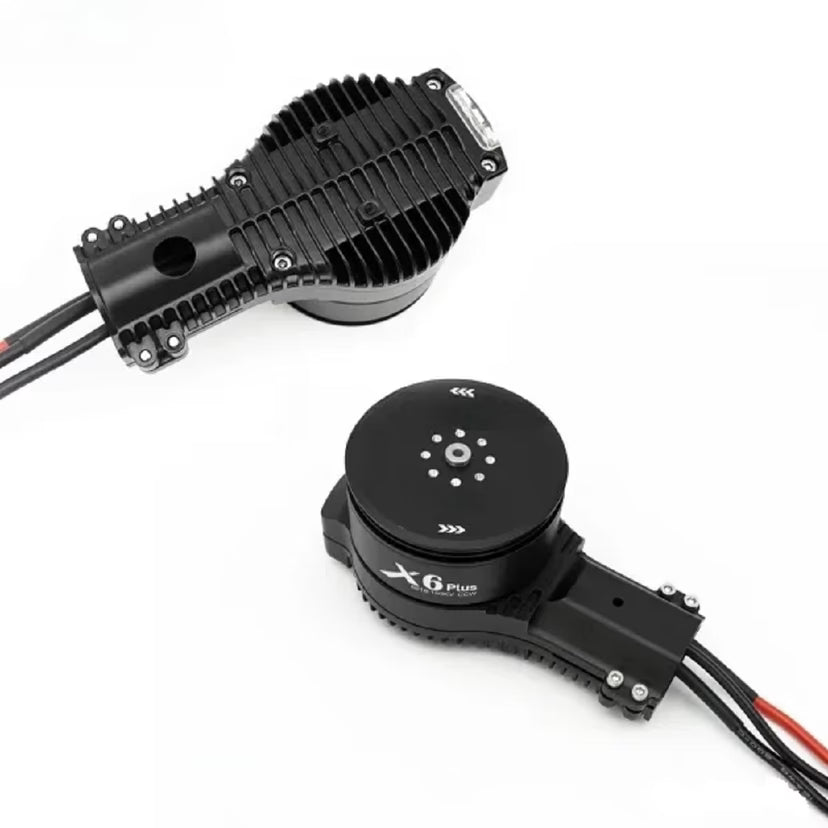

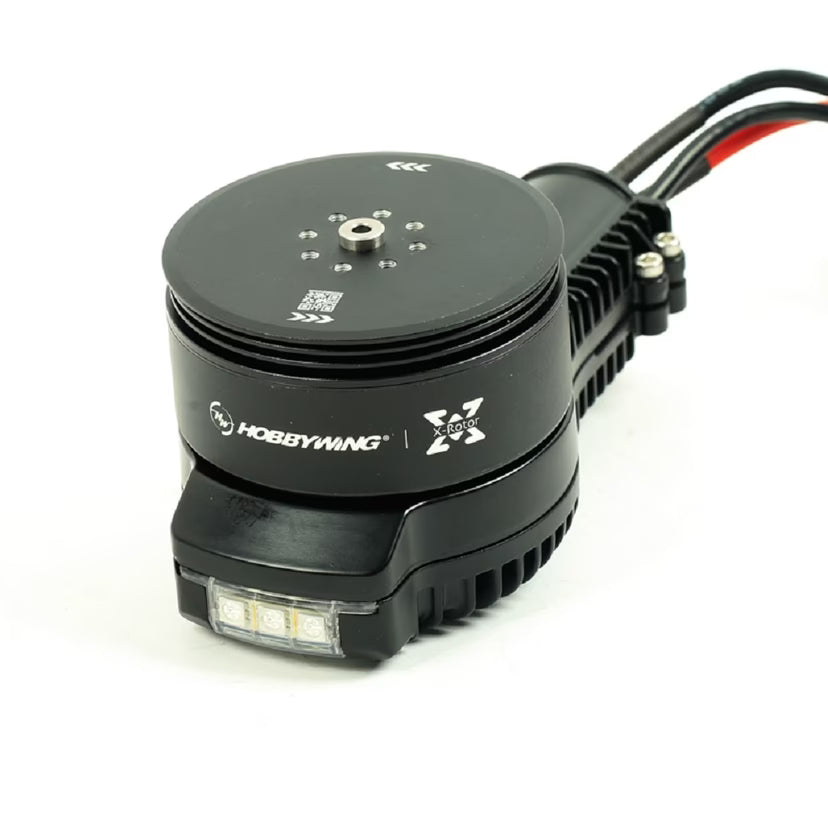

The XRotor X6 brushless power system is a power system capable of carrying a load of 3~5kg (per axis) for agricultural drones. It can provide a thrust of up to 11.9kg and match 28/30mm carbon fibre tube arms. It’s waterproof and dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature, and impact. Hobbywing XRotor X6 Plus also features the algorithm used for optimizing the FOC ESC &motor system and making the system more balanced, multiple protections like power-on self-detection, power-on abnormal voltage, over-current, and motor lock-up, and the real-time data output function.
Note: For more technical details go through Datasheet in the attachment section.
Features:
Simple and convenient: Simple assembly, easy to install and disassemble.
Quality craftsmanship: The shell of this product adopts quality craftsmanship with exquisite workmanship, which is a perfect accessory for your RC toy.
Strong stability: The motor adopts a new design with high endurance, stable connection, and strong stability.
Very stable: The motor is extremely stable and will work with less impact.

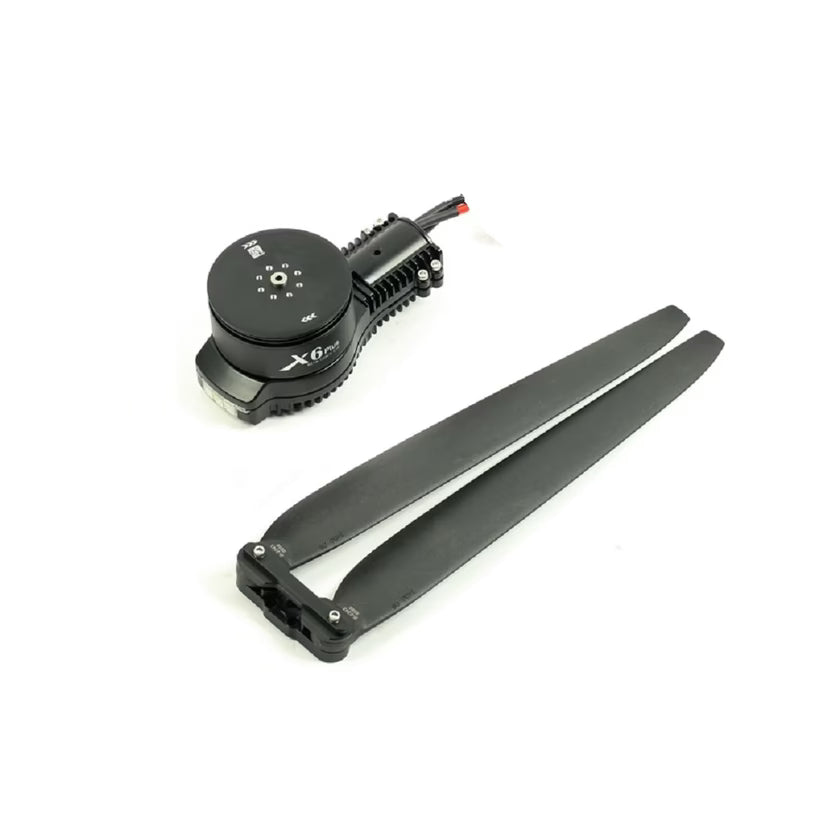

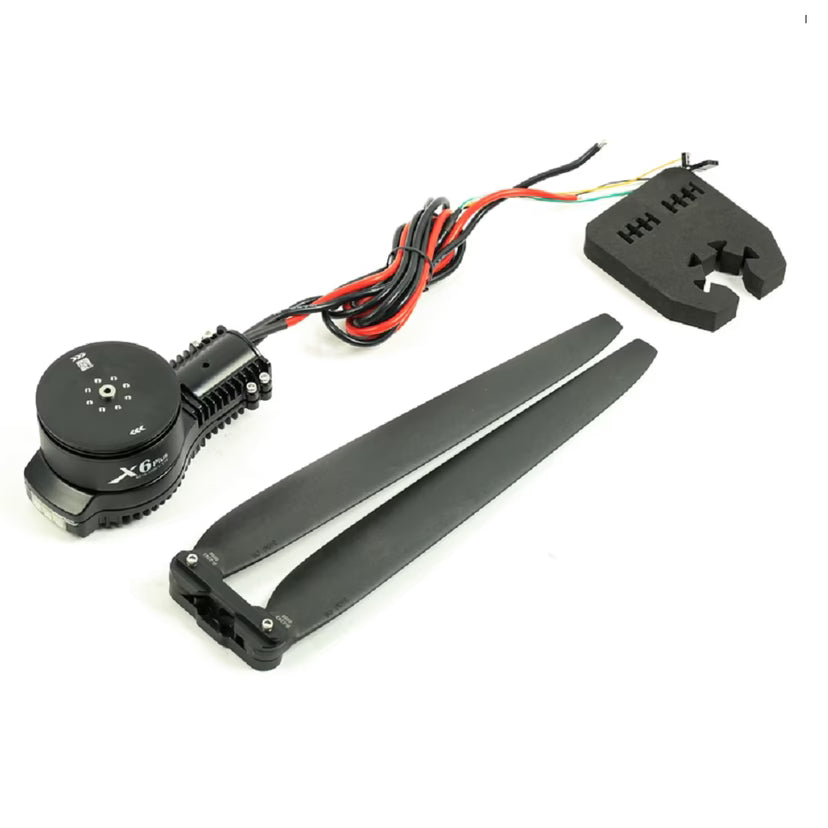

Package Include:
1× Hobbywing XRotor X6 Plus Motor – CW

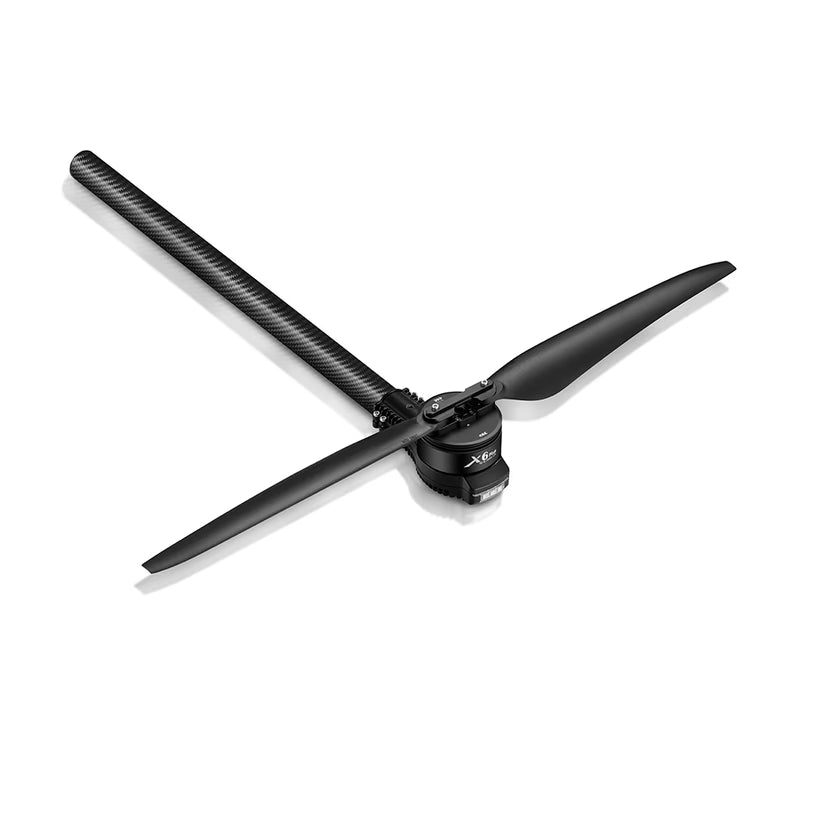

1× HOBBYWING X6 Plus 2388 or 2480 Folding Propeller – CW
Specification:-
Specification | Details |
---|---|
Motor Type | CW |
Thrust Limitation | 11.8kg/Axis (46V, Sea Level) |
Weight Lift | 3.5-5.5kg/Axis (46V, Sea Level) |
LiPo Battery Cell Count | 12-14S |
Motor KV | 150rpm/V |
Stator Size (mm) | 62×18 |
Bearing | Imported from Japan |
Operating Temperature (°C) | -20~50 |
Safety IP Rating | IPX6 |
Compatible Propellers Size (inch) | 2480 |
Shipping Weight | 1.05 kg |
Shipping Dimensions | 30 × 20 × 10 cm |
