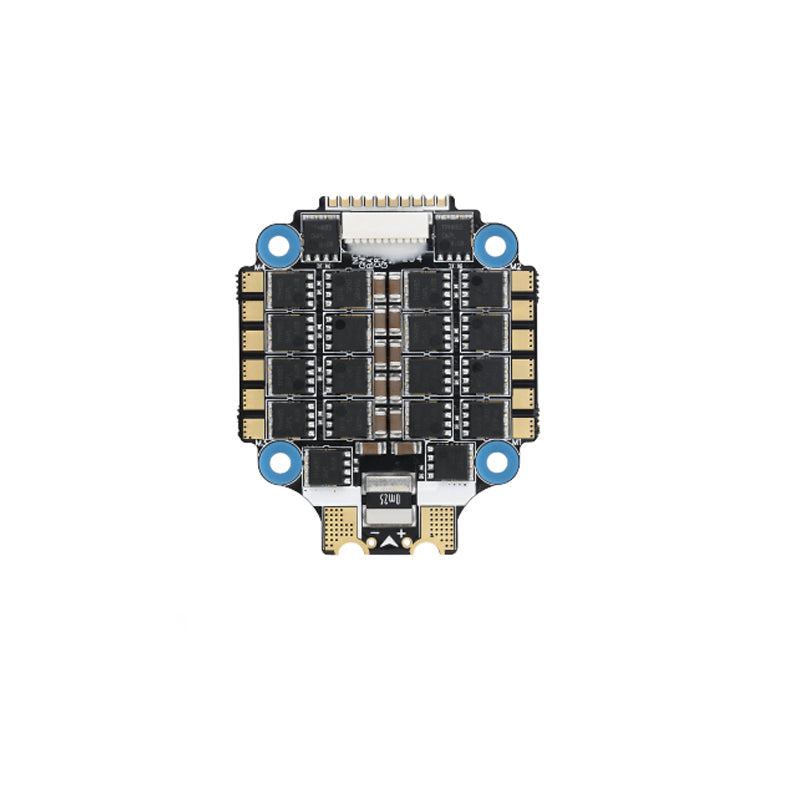

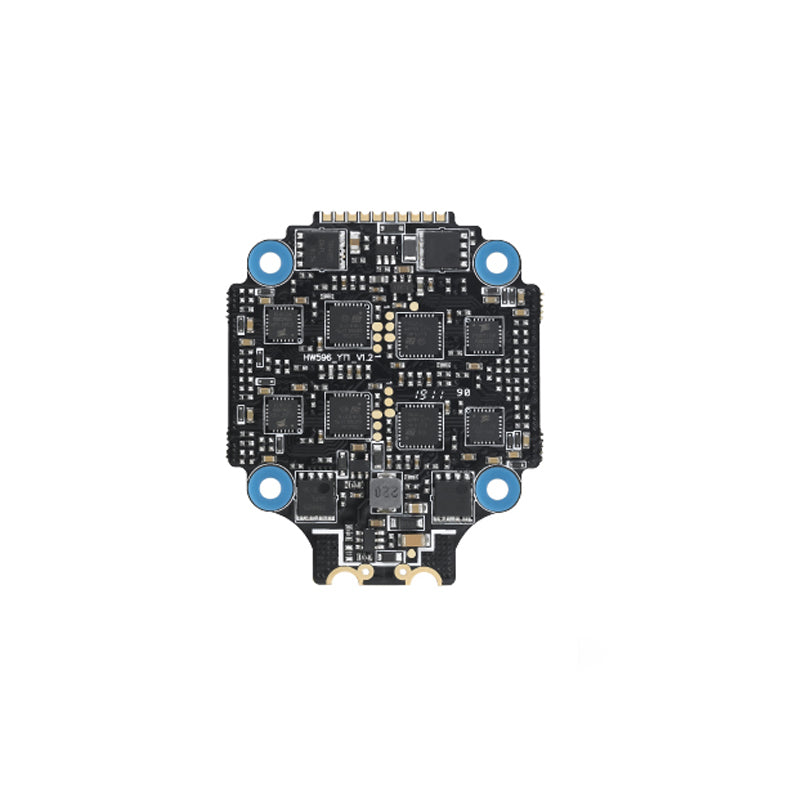

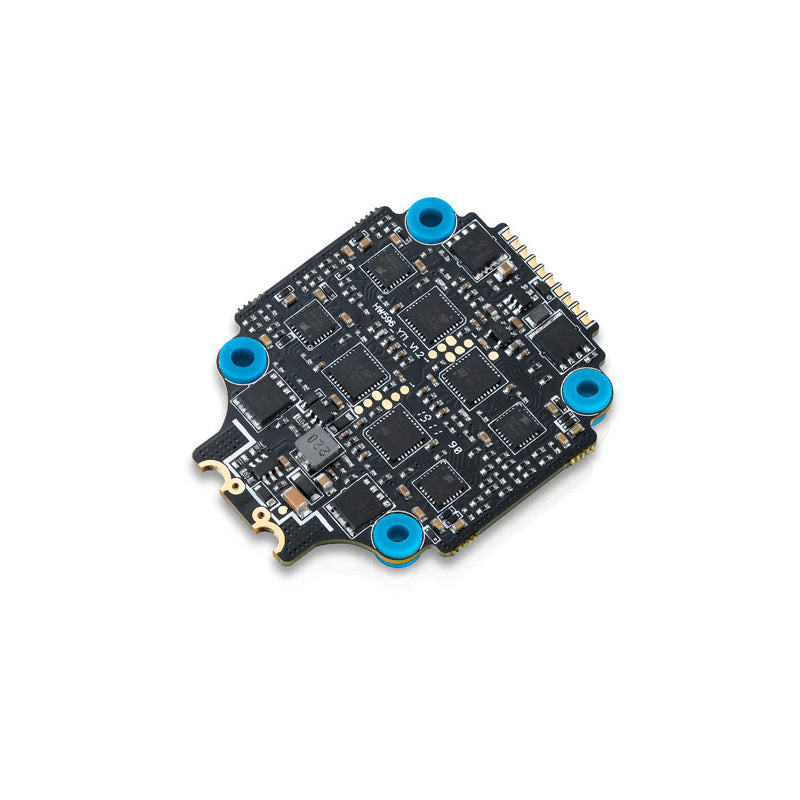

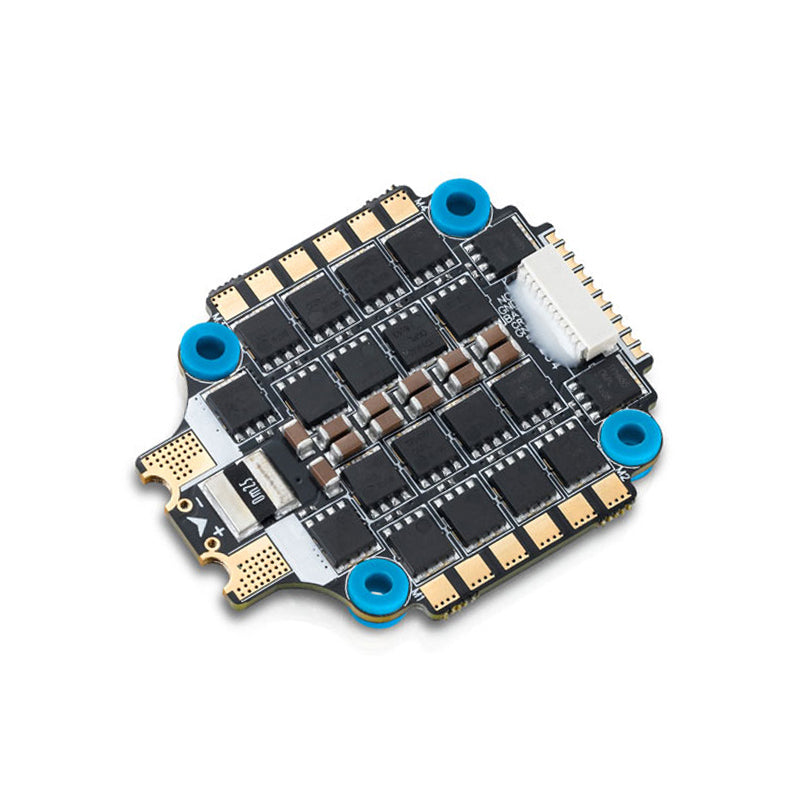

The XRotor FPV G2 65A 4in1 ESC is engineered for high-performance FPV racing drones, offering precision, durability, and cutting-edge control. Powered by a 32-bit ARM F4 microprocessor and AM32 firmware, it delivers ultra-responsive throttle and dynamic 96KHz PWM adjustment. Built with high-quality components such as imported MOSFETs, ceramic capacitors, and 3-ounce copper PCB across 6 layers, it ensures superior heat dissipation and reliability. It features a built-in 5V BEC, a voltmeter, and two connection methods for flexible setup. Designed for serious pilots, this ESC supports DShot300/600 and traditional PWM, ensuring smooth flight and peak responsiveness every time.
Features:
- 65A x 4 ESC with 80A peak current
- 32-bit ARM Cortex-M4 F4 MCU at 120MHz
- Supports 48KHz–96KHz dynamic PWM frequency
- AM32 firmware ready with web parameter tuning
- 5V BEC (0.6A) and integrated voltmeter
- Soft mounting for reduced vibration
Package Includes:

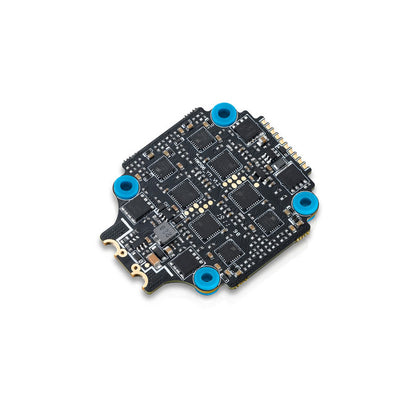

1× Hobbywing XRotor FPV G2 ESC 4 in 1 65A – NEW Version
Specifications:-
| Item Type: |
Electronic Speed Controller |
|---|---|
| Constant Current (A) |
65Ax4 |
| Input wires |
12AWG-130mm (Red/Black) |
| Continuous Current (A): |
60A x 4 |
| Peak Current (A) |
80A x 4 |
| Input Voltage |
3-6S LiPo |
| BEC Output |
5V @ 0.6A |
| Firmware: |
AM32 XROTOR65 F421 |
| PWM frequency |
48KHz – 96KHz Dynamic |
| Length (mm): |
52 |
| Width (mm): |
42 |
| Height (mm): |
6.6 |
| Weight (g): |
15 |
| Shipping Weight | 0.087 kg |
| Shipping Dimensions | 14 × 9 × 4 cm |
