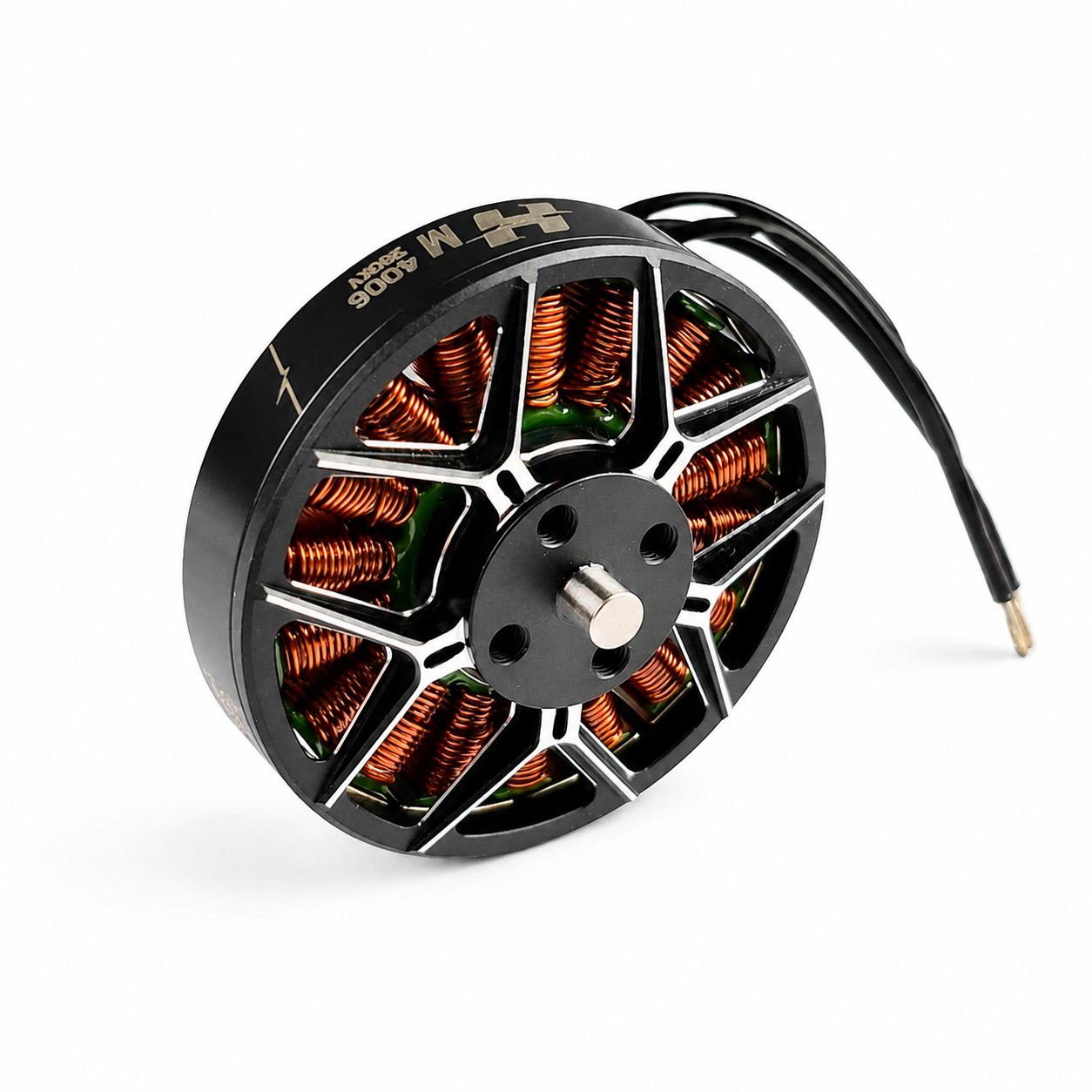

• Hobbywing HM4006 350KV Lightweight Brushless Motor for Industrial Multirotor Drones

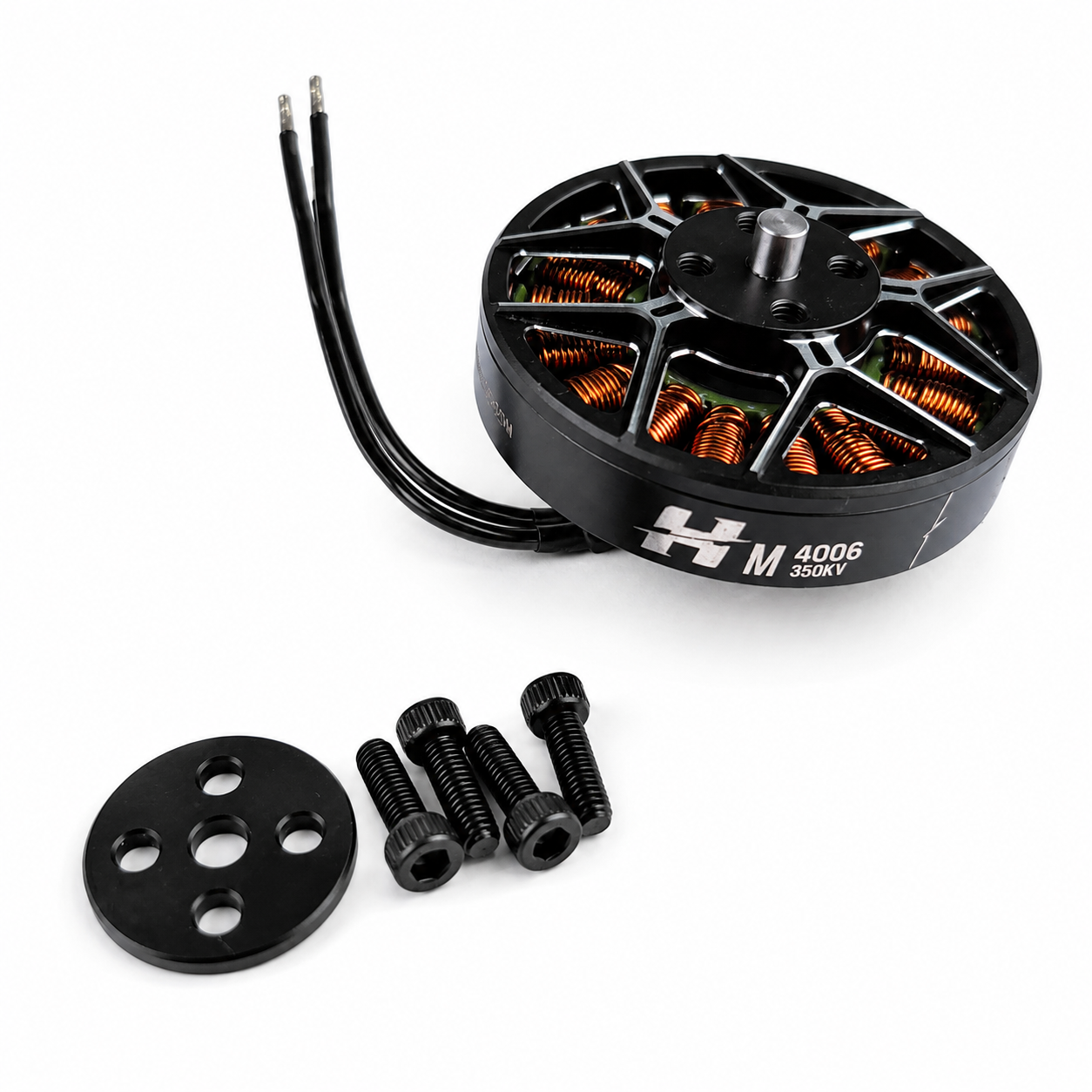

  • Hobbywing HM4006 350KV Brushless Motor with Mounting Hardware

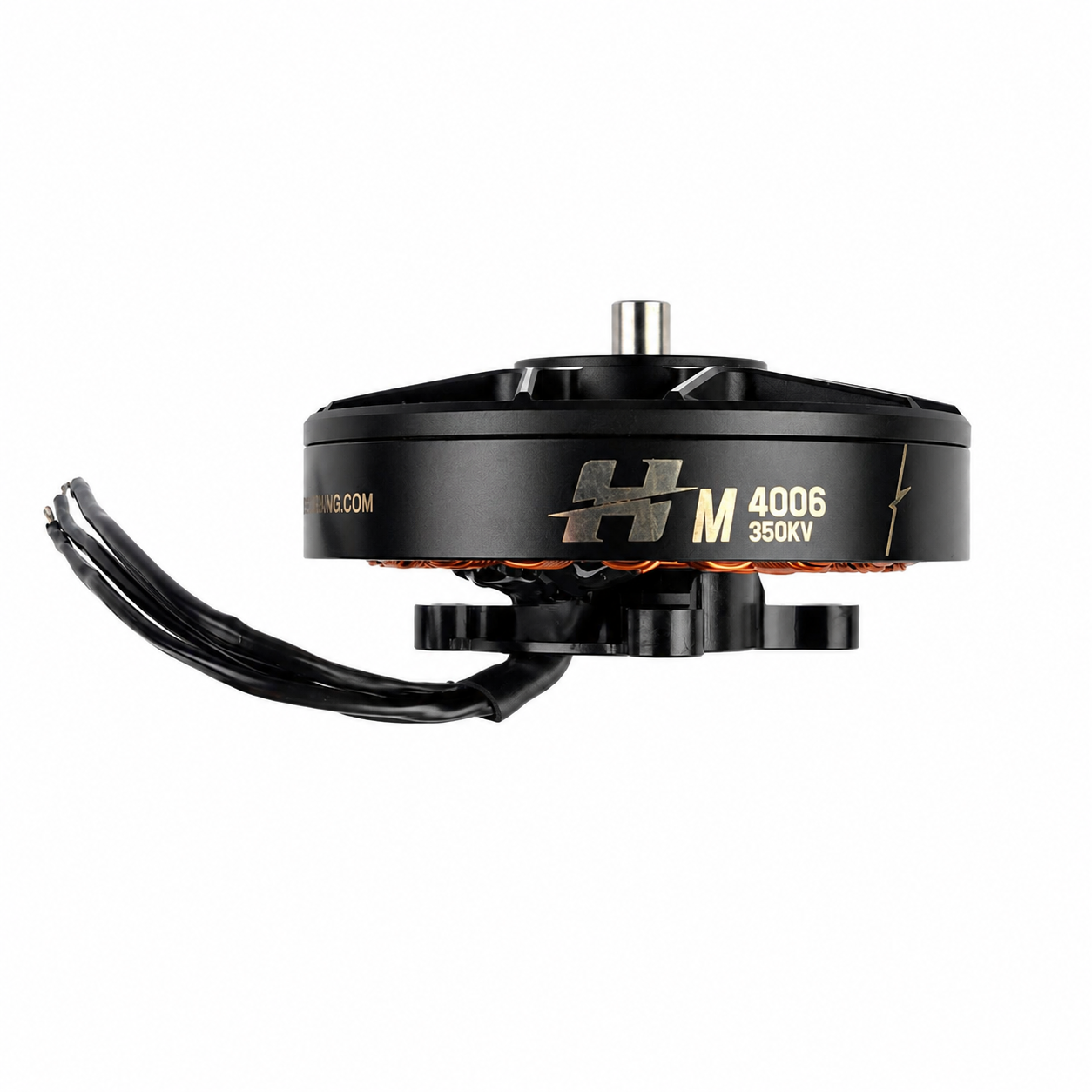

  • Side View of Hobbywing HM4006 350KV Lightweight Brushless Motor

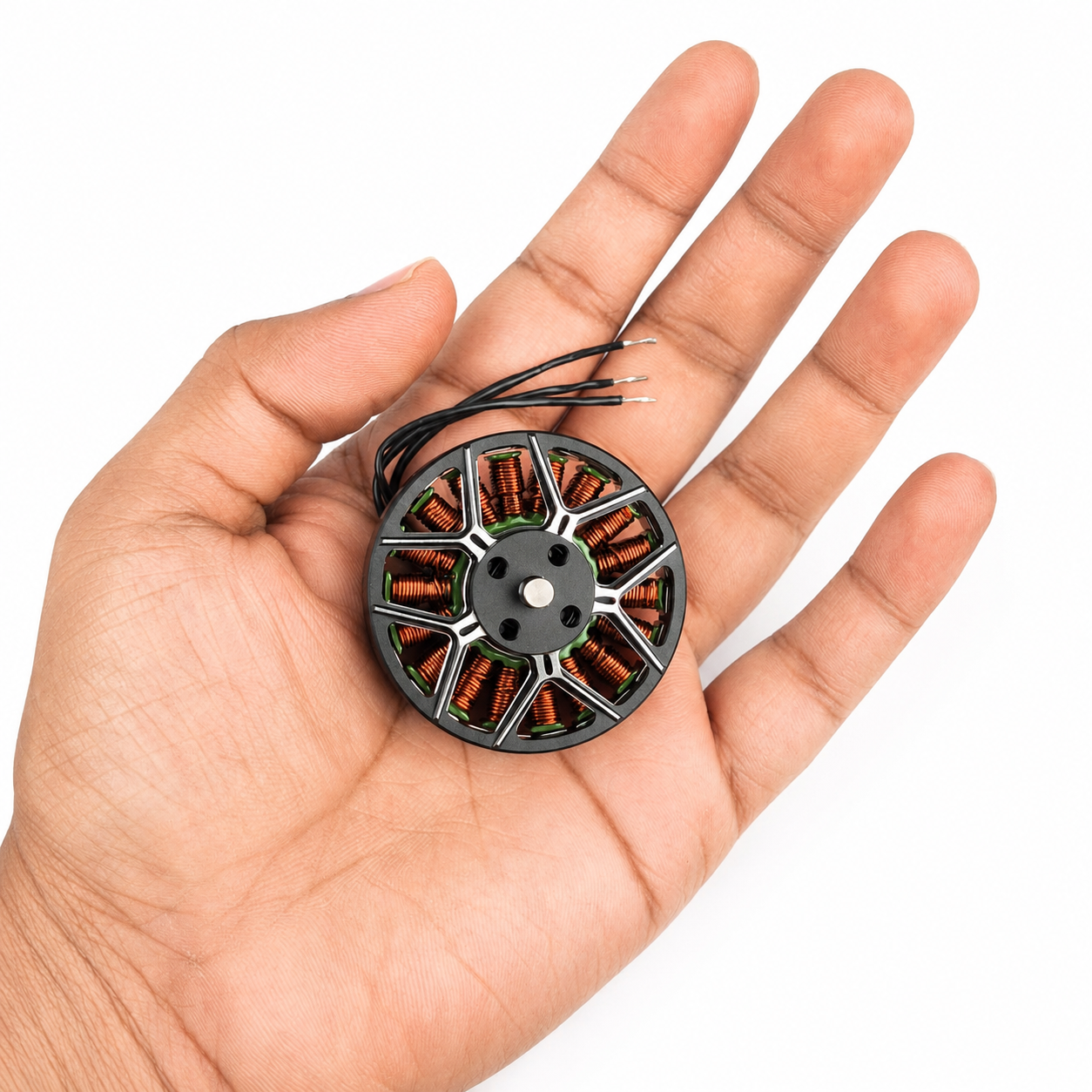

  • Hobbywing HM4006 350KV Brushless Motor Held in Hand Showing Actual Size

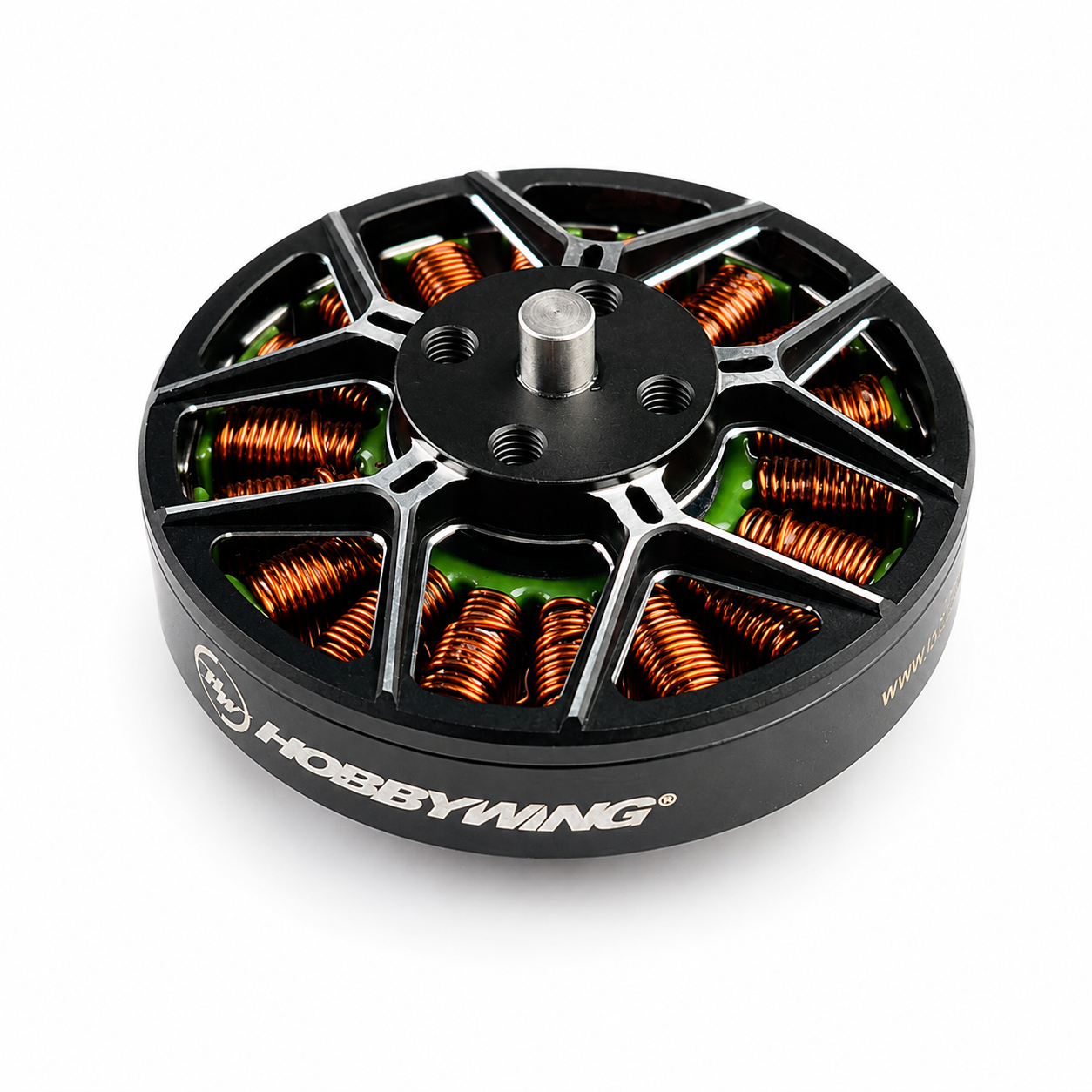

  • Front View of Hobbywing HM4006 350KV Industrial Drone Motor

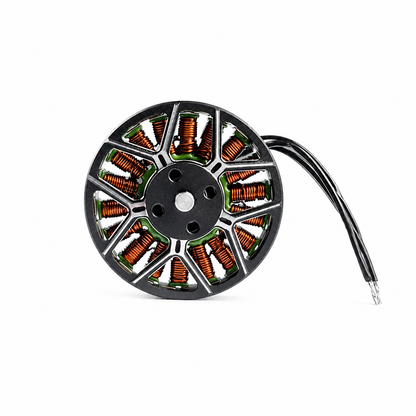

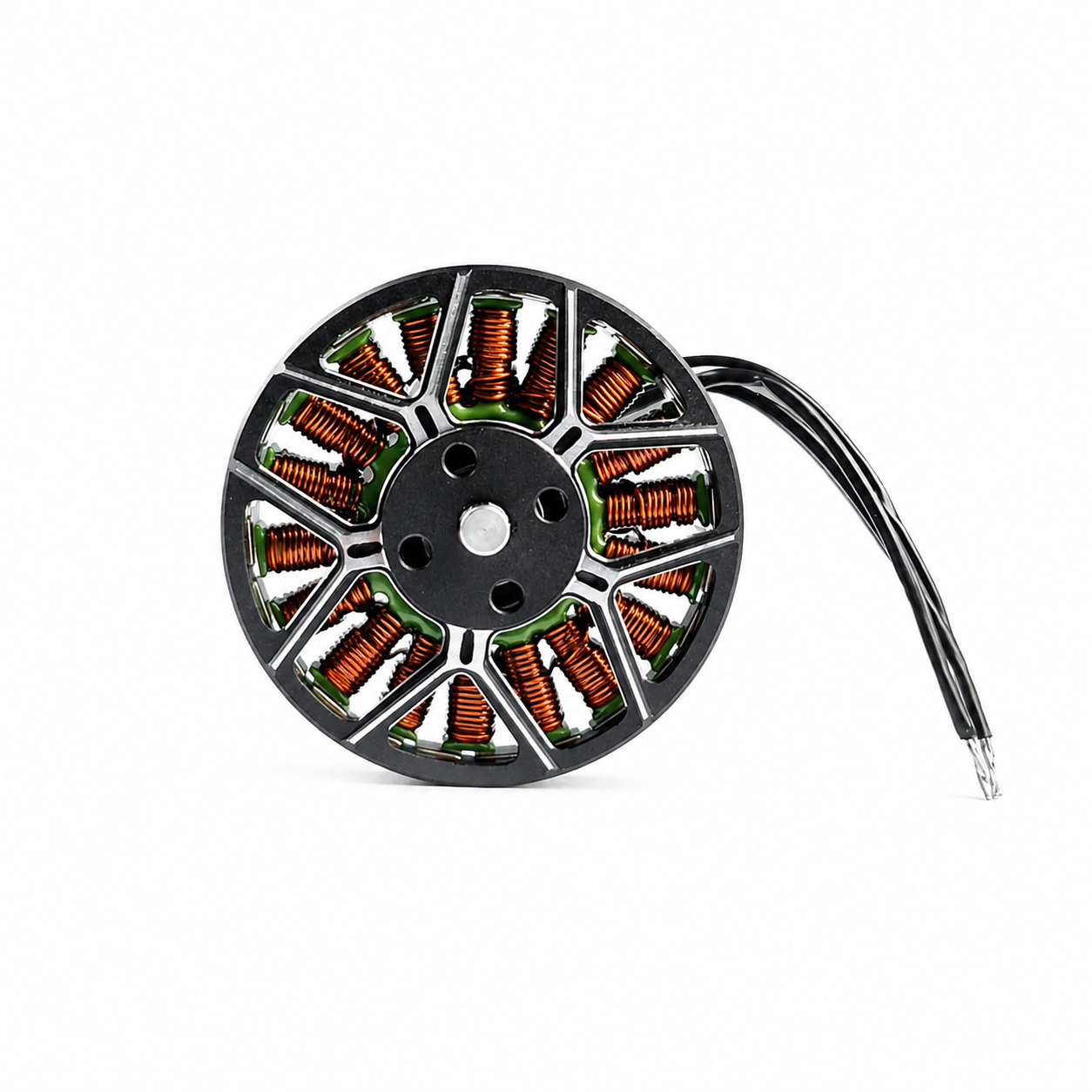

  • Close-Up of Hobbywing HM4006 350KV Motor Copper Windings and Rotor

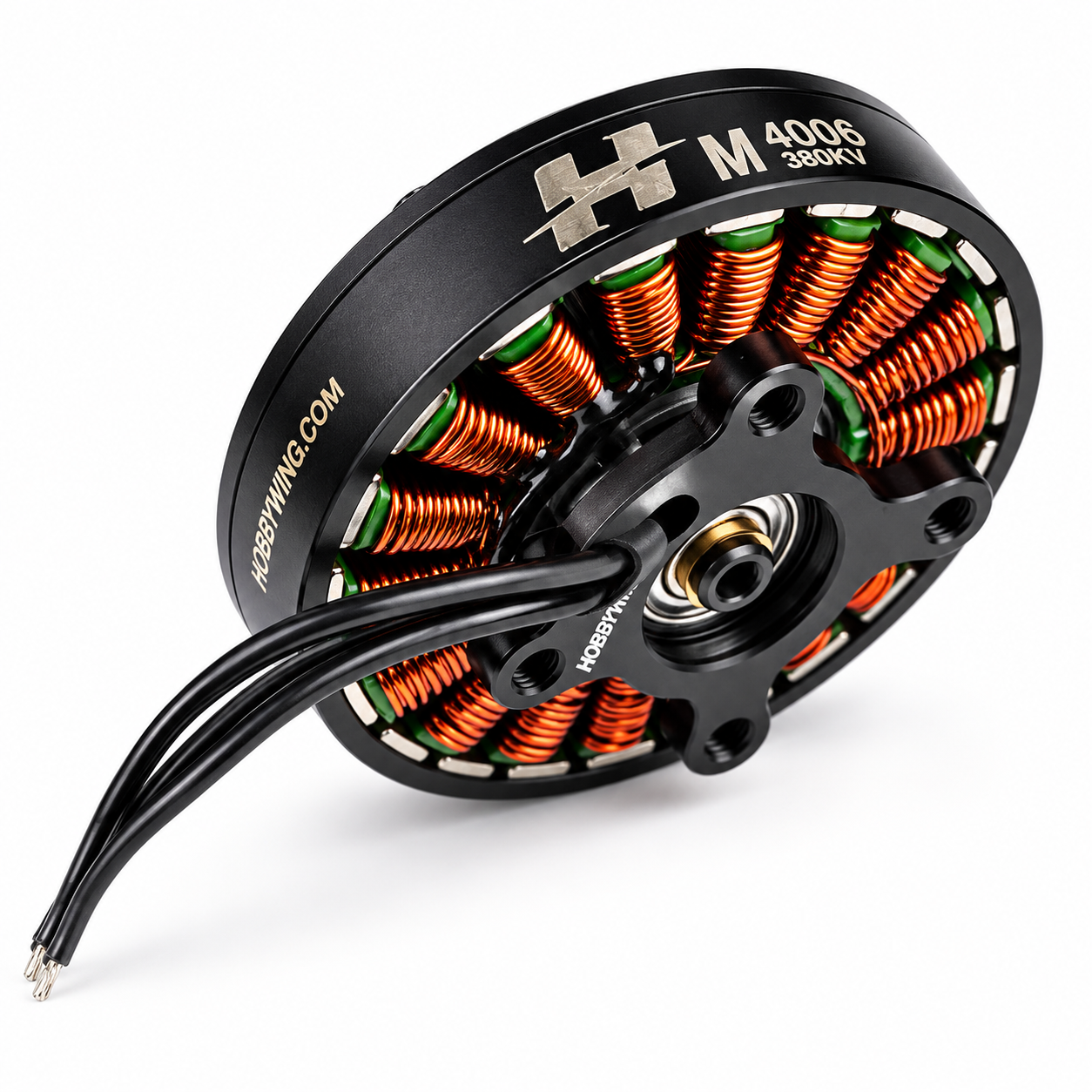

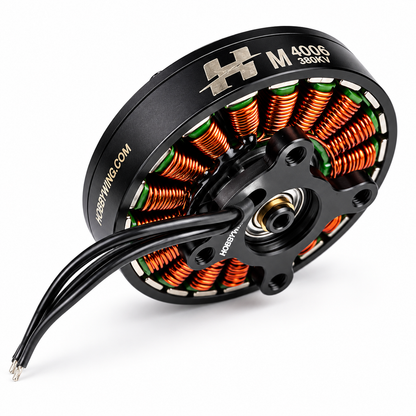

  • Angled View of Hobbywing HM4006 350KV Lightweight UAV Motor

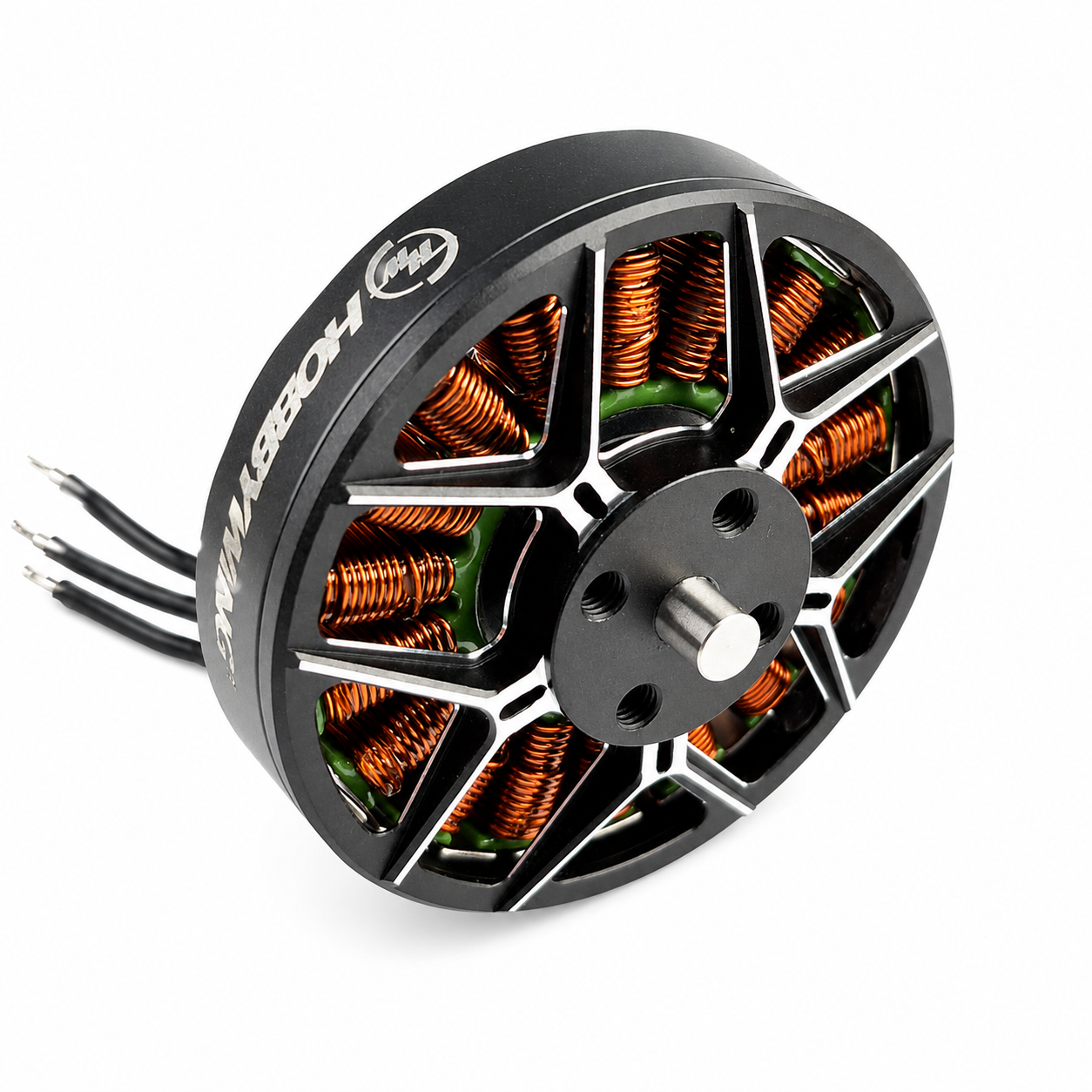

  • Hobbywing HM4006 350KV High Efficiency Brushless Motor for Industrial UAVs

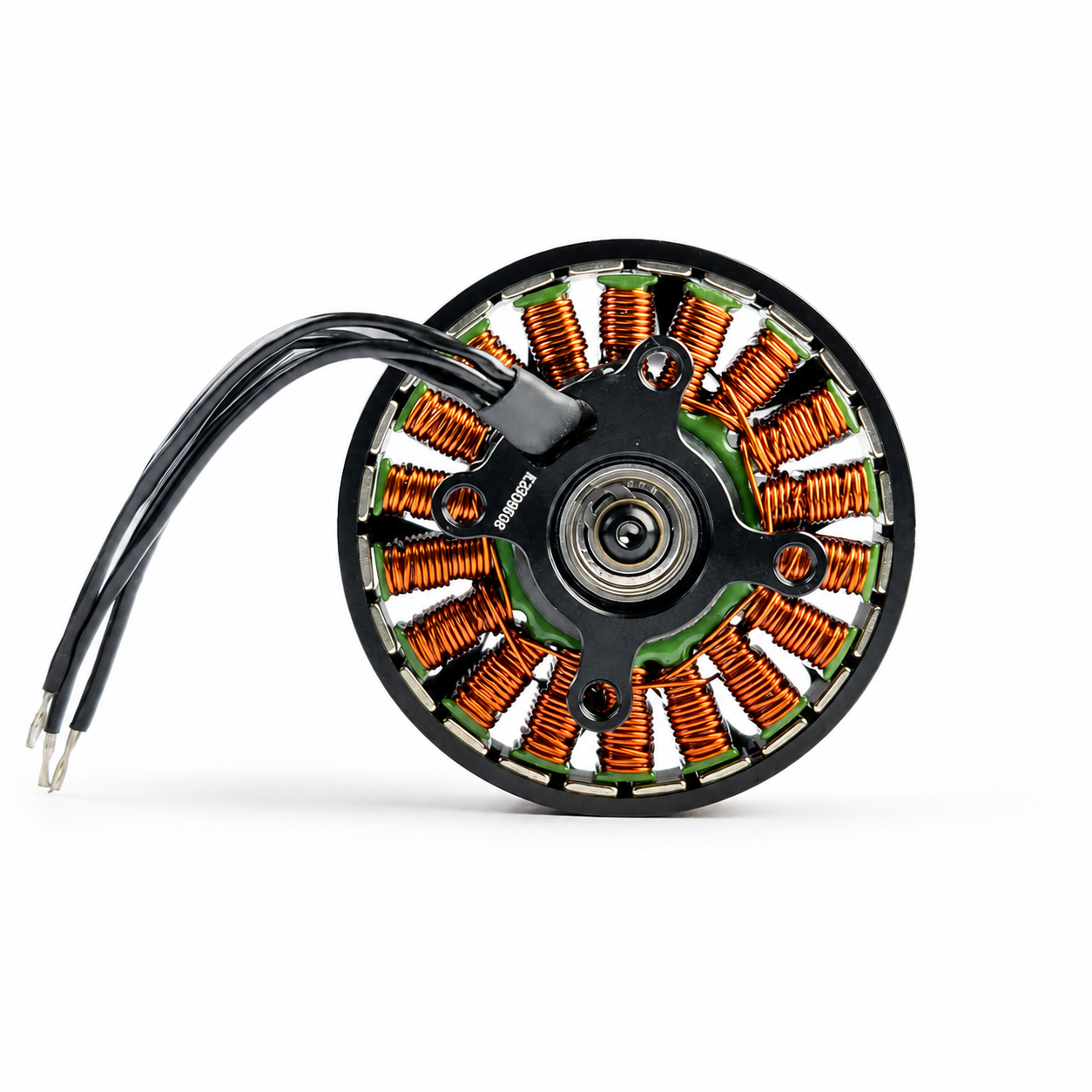

  • Rear View of Hobbywing HM4006 350KV Drone Brushless Motor
1 9

Hi Tech xyz

Hobbywing HM4006 350KV Lightweight Brushless Motor for Industrial Drones

Hobbywing HM4006 350KV Lightweight Brushless Motor for Industrial Drones

030137

Rs. 5,999.00
Rs. 14,204.00 Rs. 5,999.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)
View full details


Motor Specifications
Motor Size ฮฆ44.4 ร— H19.3 mm
Stator Size ฮฆ39 mm
Stator Process High standard silicon steel sheet, rust proof, 180โ„ƒ high temperature resistance paint-coat
Enamelled Wire 220โ„ƒ
Magnet 180โ„ƒ
Isolation Test 500V AC high voltage resistance test
Protection Level IPX5
Slot & Pole 18N 24P
Dynamic Balance โ‰ค 5 mg
Bearing Waterproof bearing
Motor Axle Diameter ฮฆ4 mm
Props Mounting Dimensions 4 ร— M3 @ D12
Motor Mounting Dimensions 4 ร— M3 @ D25
KV 350 KV
Battery LiPo 6S
No-load Current 0.64 A
Maximum Current 17.3 A (Ambient โ‰ค 25โ„ƒ)
Max Power 358 W
Max Thrust 2.2 kg
Resistance 209.7 mฮฉ
Wire Type Enamelled wire outlet
Wire Length 60 mm
Weight (With Wire) 66.1 g
Rated Power Input 95 W
Rated Power Output 80.7 W

M4006 Light 350KV + MSC 16ร—5.4
Thrust Test Data (23V ยท 6S LiPo)
Voltage Propeller Throttle (%) Thrust (g) Current (A) Power Input (W) Speed (RPM) Efficiency (g/W) Torque (Nยทm) Power Output (W) Temperature (โ„ƒ)
23V MSC 16ร—5.4 33% 347 1.0 23.2 2320 15.0 0.07 19.7 71.2
23V MSC 16ร—5.4 35% 374 1.1 25.9 2400 14.4 0.07 22.0 โ€”
23V MSC 16ร—5.4 37% 410 1.3 29.5 2503 13.9 0.08 25.0 โ€”
23V MSC 16ร—5.4 39% 453 1.5 33.8 2621 13.4 0.09 28.7 โ€”
23V MSC 16ร—5.4 42% 529 1.8 41.4 2814 12.8 0.10 35.2 โ€”
23V MSC 16ร—5.4 45% 613 2.2 50.1 3013 12.2 0.12 42.6 โ€”
23V MSC 16ร—5.4 48% 702 2.6 59.9 3209 11.7 0.14 50.9 โ€”
23V MSC 16ร—5.4 51% 793 3.1 70.7 3399 11.2 0.15 60.1 โ€”
23V MSC 16ร—5.4 54% 885 3.6 82.5 3583 10.7 0.17 70.1 โ€”
23V MSC 16ร—5.4 57% 976 4.1 95.1 3758 10.3 0.19 80.8 โ€”
23V MSC 16ร—5.4 60% 1066 4.7 108.5 3926 9.8 0.20 92.2 โ€”
23V MSC 16ร—5.4 63% 1154 5.3 122.6 4087 9.4 0.22 104.2 โ€”
23V MSC 16ร—5.4 66% 1242 6.0 137.4 4241 9.0 0.24 116.8 โ€”
23V MSC 16ร—5.4 69% 1329 6.6 152.9 4389 8.7 0.26 129.9 โ€”
23V MSC 16ร—5.4 72% 1417 7.3 169.1 4532 8.4 0.27 143.7 โ€”
23V MSC 16ร—5.4 75% 1506 8.1 186.2 4670 8.1 0.29 158.3 โ€”
23V MSC 16ร—5.4 78% 1595 8.9 204.2 4803 7.8 0.31 173.6 โ€”
23V MSC 16ร—5.4 81% 1687 9.7 223.2 4931 7.6 0.32 189.7 โ€”
23V MSC 16ร—5.4 84% 1781 10.6 243.3 5053 7.3 0.34 206.8 โ€”
23V MSC 16ร—5.4 87% 1876 11.5 264.3 5170 7.1 0.36 224.7 โ€”
23V MSC 16ร—5.4 90% 1971 12.4 286.3 5283 6.9 0.37 243.4 โ€”
23V MSC 16ร—5.4 100% 2251 15.6 357.8 5618 6.3 0.43 304.1 โ€”
