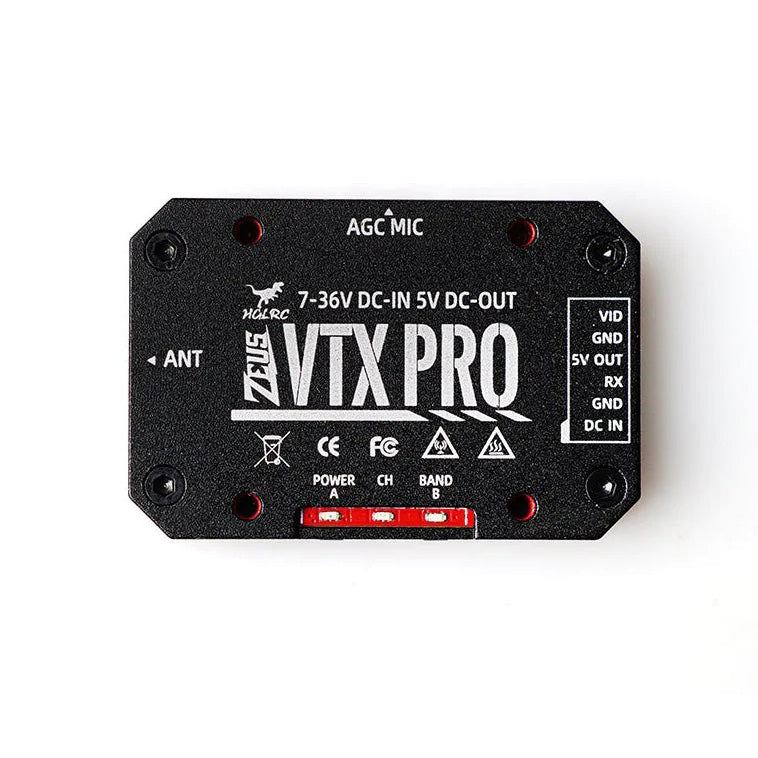

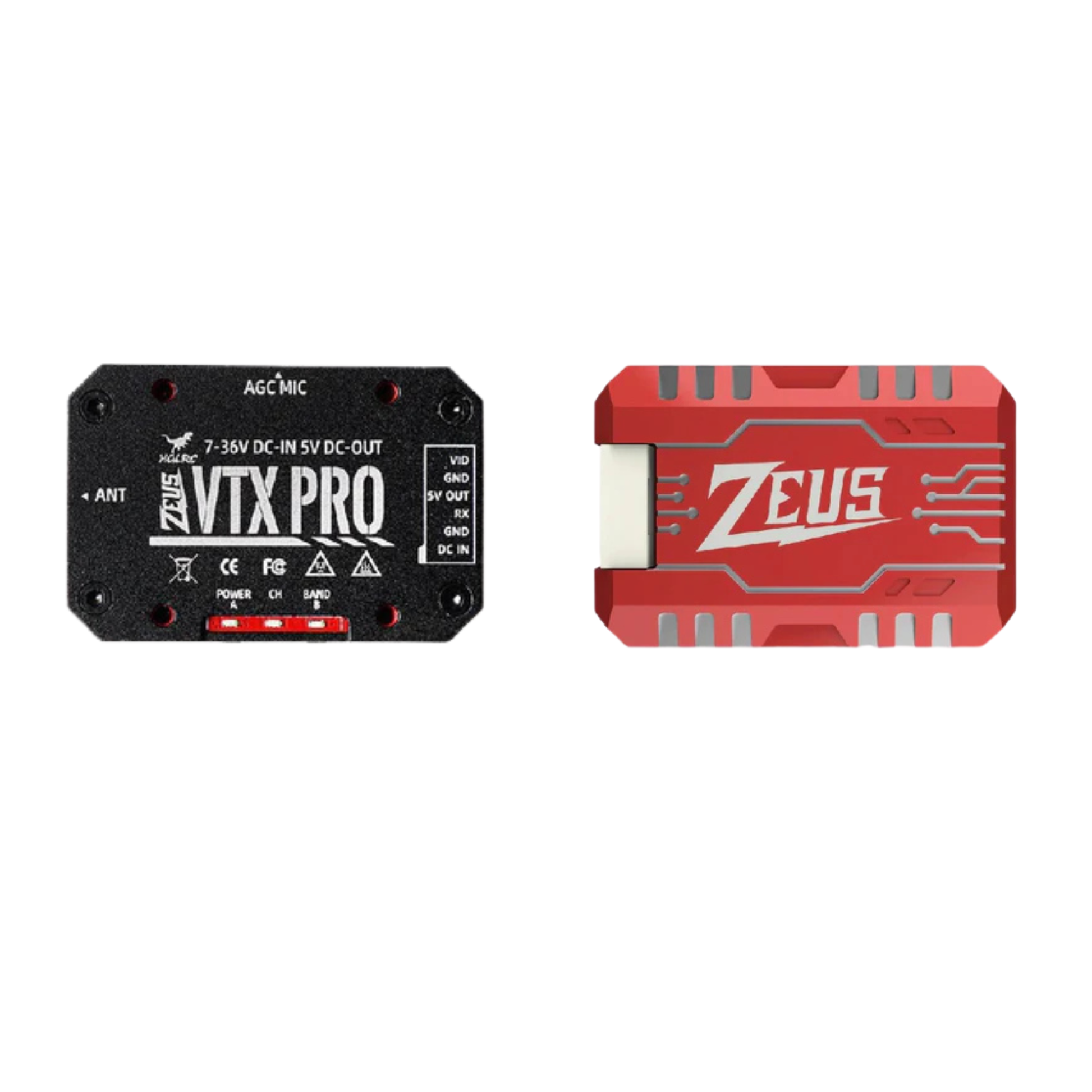

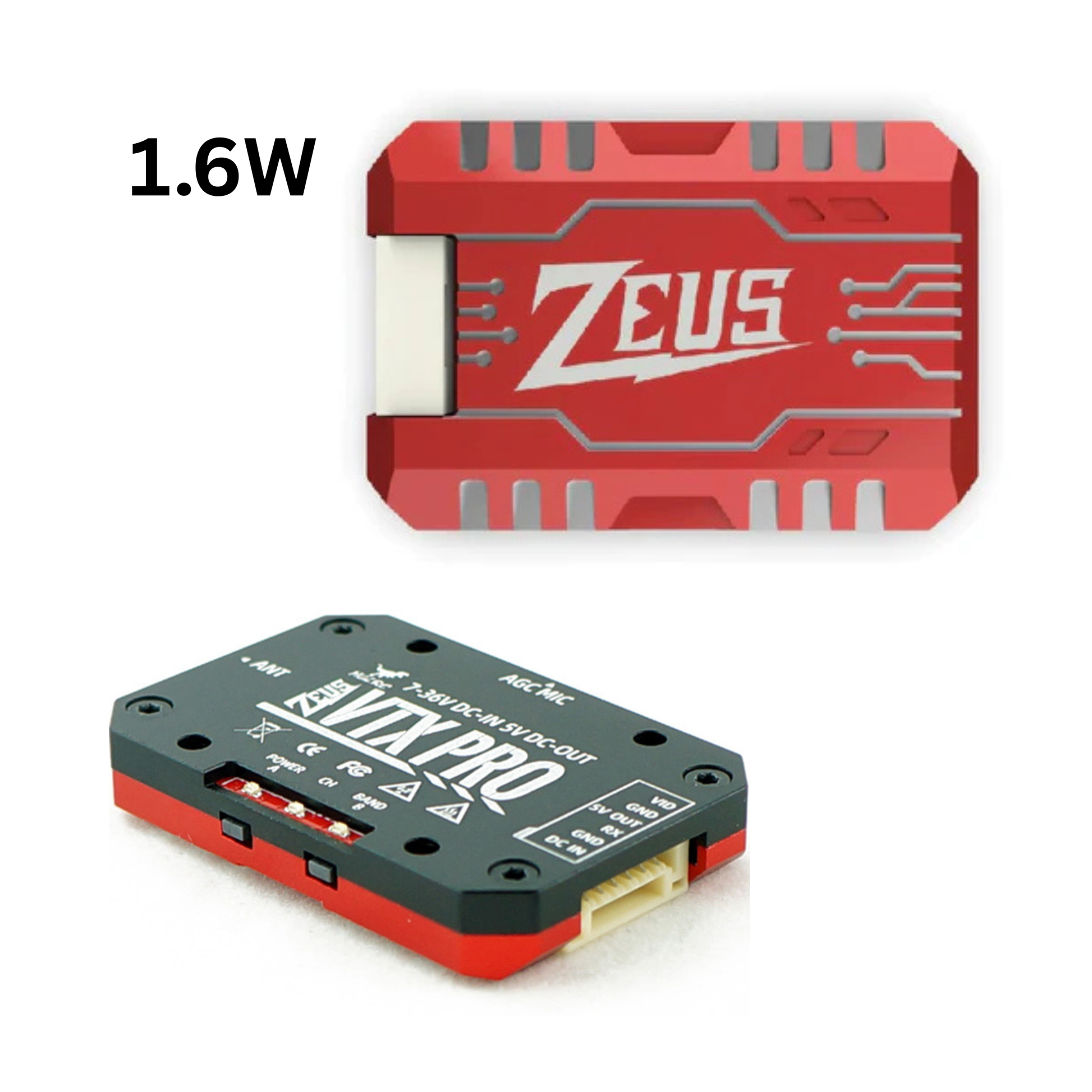

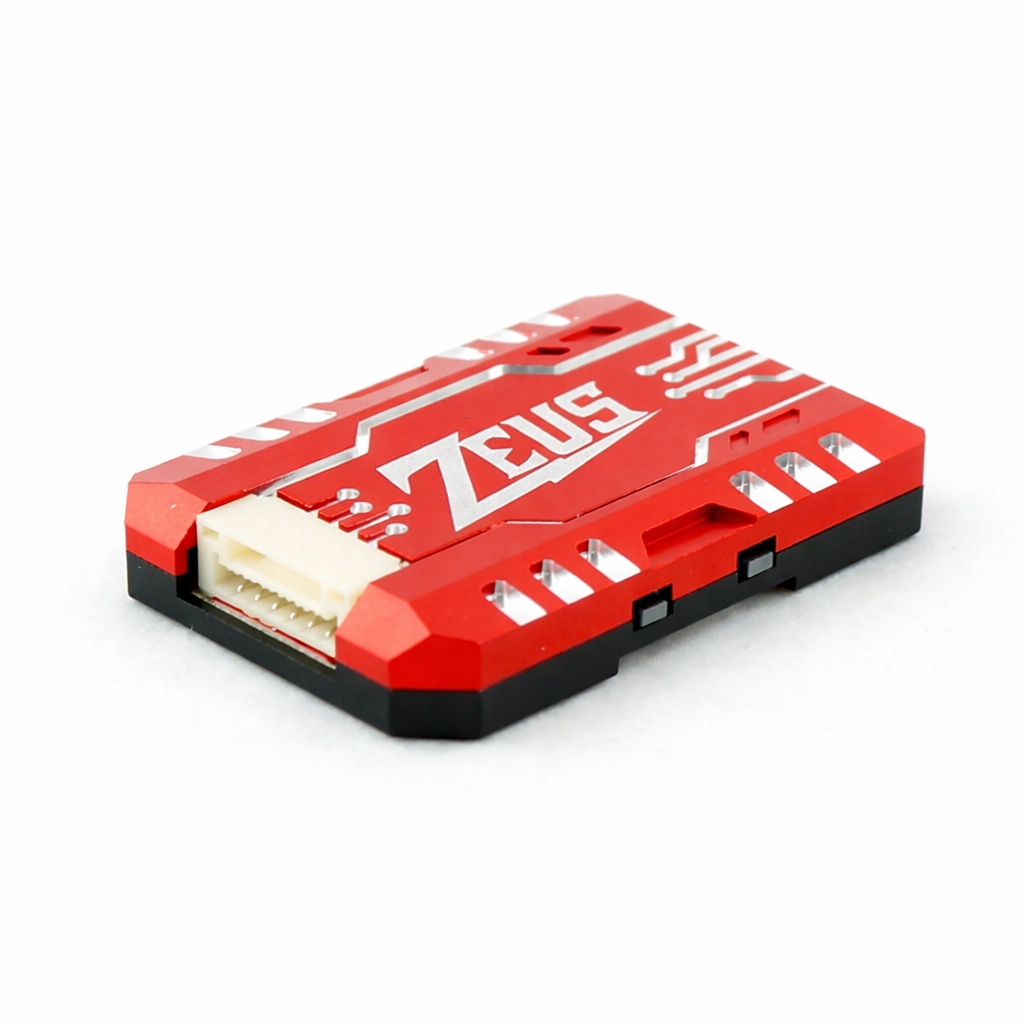

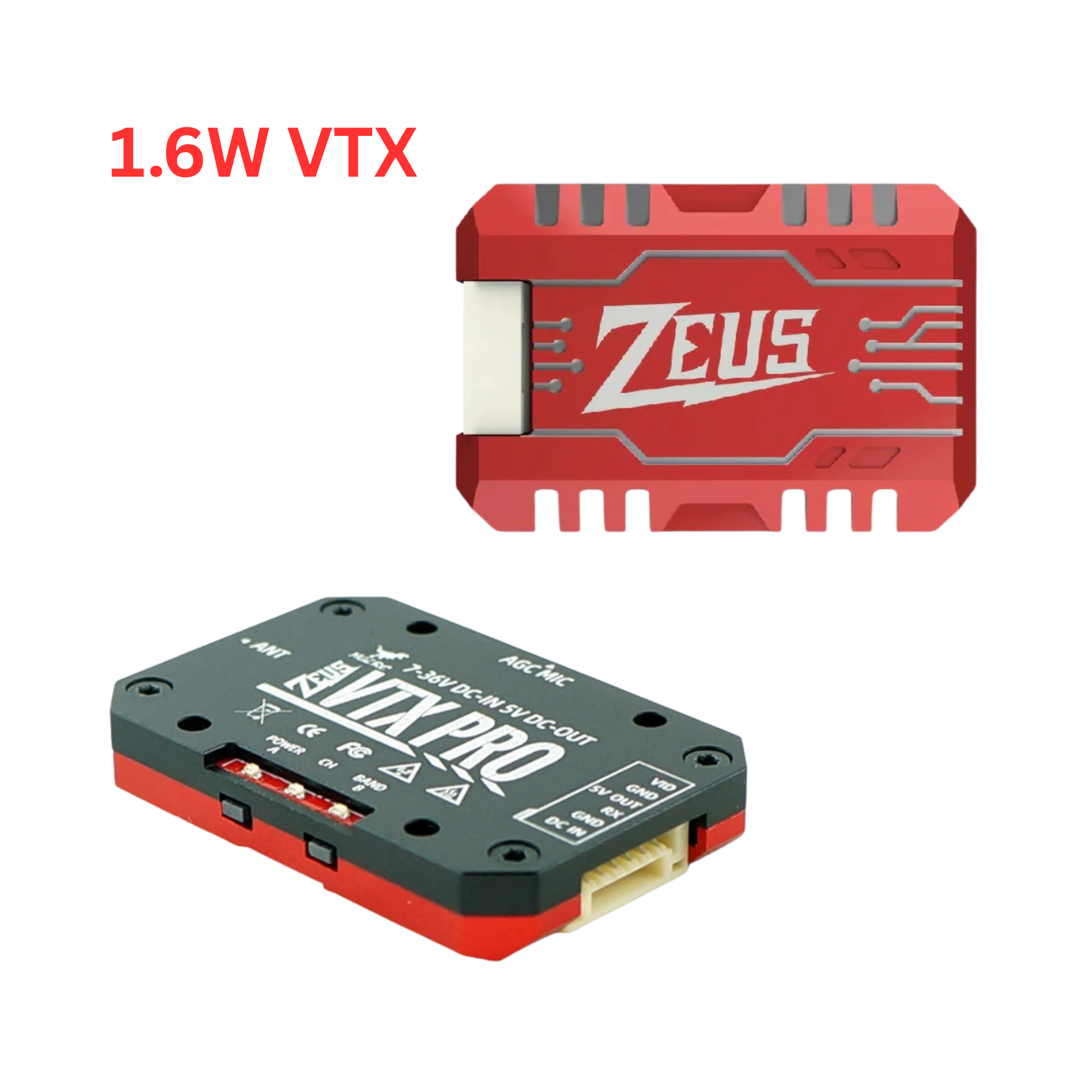

The HGLRC Zeus VTX PRO 1.6W is an advanced video transmitter designed for FPV drones. With an impressive 1.6W output power, it ensures strong and reliable signal transmission over extended distances. Equipped with adjustable power levels and frequency channels, it offers versatile compatibility with various racing environments. The integrated SmartAudio technology enables real-time adjustments via your transmitter. This VTX is a preferred choice for drone enthusiasts seeking exceptional video transmission performance, flexibility, and control during their FPV flights.
Features:
- Powerful 1.6W output power for extended range.
- Adjustable power levels and frequency channels.
- Integrated Smart Audio technology for real-time adjustments.
- Designed for FPV drones and racing environments.
- Provides exceptional video transmission performance and control.

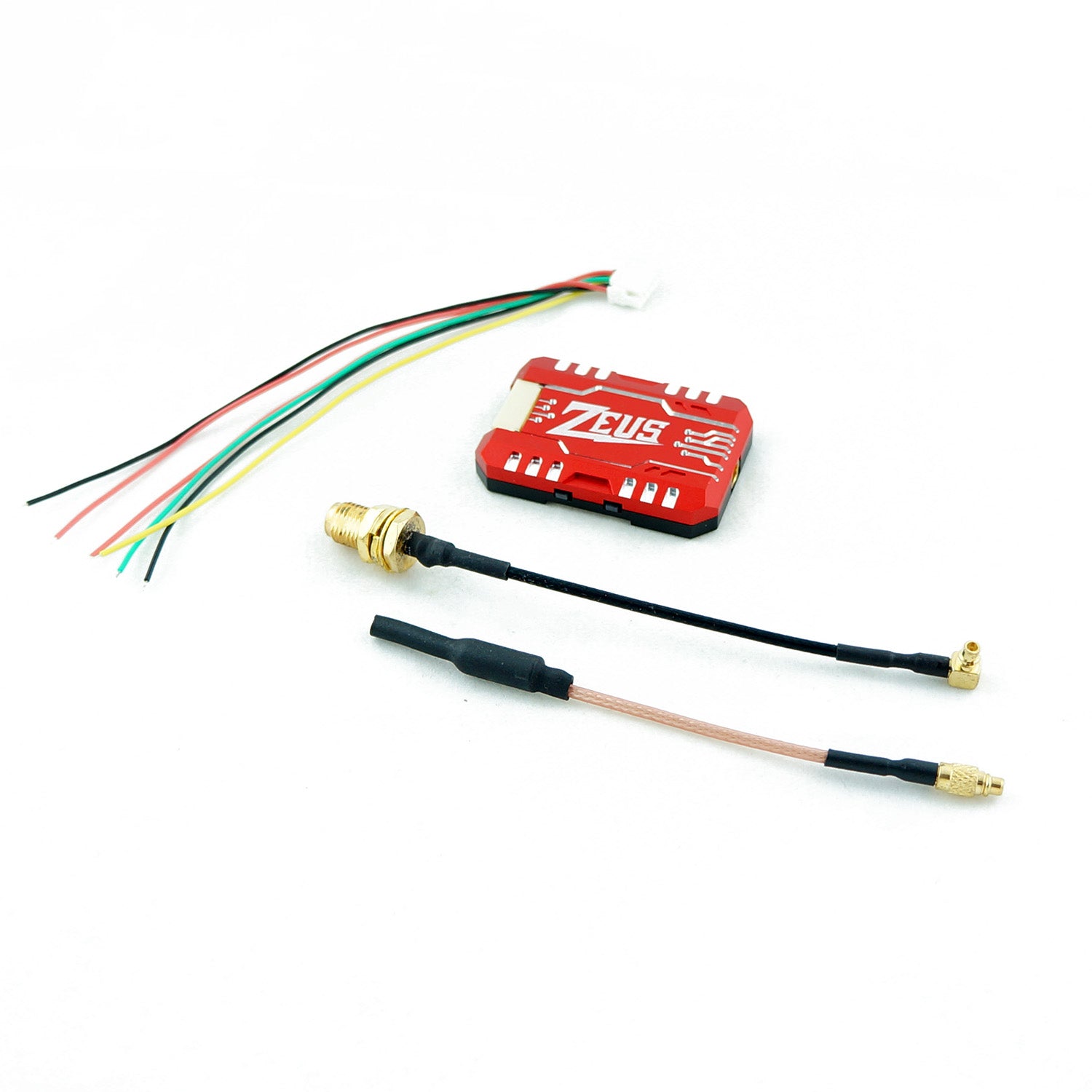

Package Included:
1× Zeus VTX PRO 1.6W
1× 80mm 5.8G MMCX Linear Brass Antenna
1× MMCX to SMA 100mm Adapter Cable
1× GH1.25 6Pin 100mm Cable
Specification:-
| Specification | Details |
|---|---|
| Model | Zeus VTX PRO 1.6W |
| Item Type | Transmitter |
| Built-in Microphone | Yes |
| Input Voltage | DC 7–36V |
| Output Voltage | 5V / 500mA |
| Output Power Levels | PIT 25mW / 13.95dBm 400mW / 26.02dBm 800mW / 29.03dBm 1.6W / 32.04dBm |
| Supported Power Modes | PIT / 25 / 400 / 800 / 1.6W |
| Communication Mode | A/B/E/F/R Frequency Group (40 Channels) |
| Antenna Interface | MMCX |
| Mounting Hole | 20 × 20 mm (M2) |
| Size | 25 × 37 × 6.5 mm |
| Product Weight | 13g |
| Shipping Weight | 0.029 kg |
| Shipping Dimensions | 12 × 11 × 2 cm |
