Features
- Small size, compatible with 2-7 inch traversal Drone on the market
- Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
- Support GPS, Galileo, BDS three-mode positioning, and fast positioning in any area

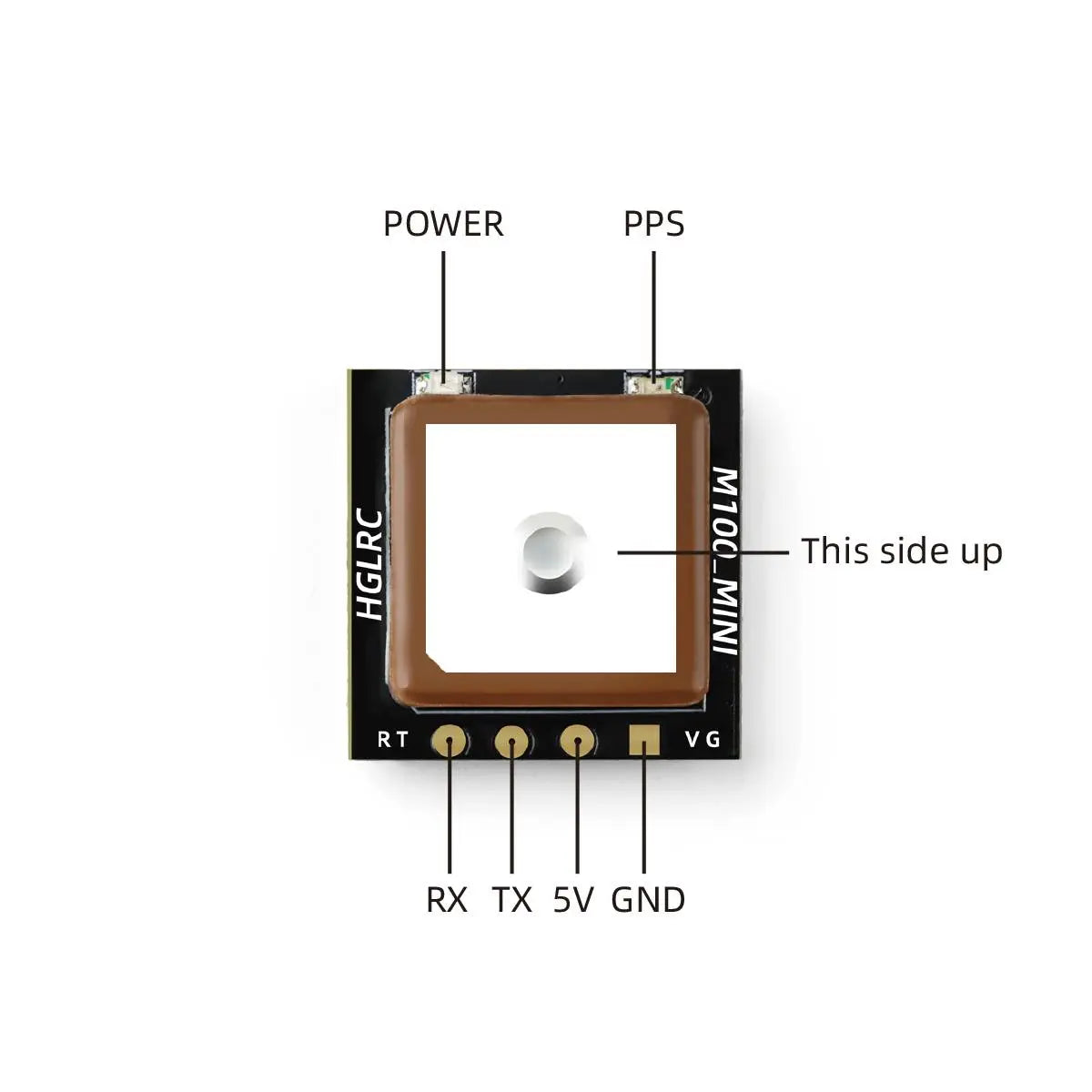

- Onboard POWER and PPS indicator lights, the working status is clear at a glance
- Compatible power supply, support 3.3V-5V DC power input
- Using UBLOX output protocol and 10Hz output frequency
Package Includes:
1× HGLRC M100 Mini GPS Module
| Specifications | |
|
Chip
|
M10(10th Generation Chip) |
| Antenna | Ceramic Antenna |
| Frequency | GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1 |
| Receive Channel | 72ch |
| Baud Rate | 115200bps |
| Output Protocol | UBLOX |
| Output Frequency | 10Hz |
| Input | 3.3V-5V |
| Size | 15x15x5.2mm |
| Weight | 2.6g |
| Speed Accuracy | 0.05m/s |
| Horizontal positioning accuracy | 2D ACC2.0m(Outdoor) |
| Receiver Sensitivity | Trace -166dBm |
| Capture -160dBm | |
| Characteristics | High 50000m |
| Speed | 500m/s， |
| acceleration 4G | |
| Operating temperature | -40°C – +85°C |
| Storage temperature | -40°C – +105°C |
