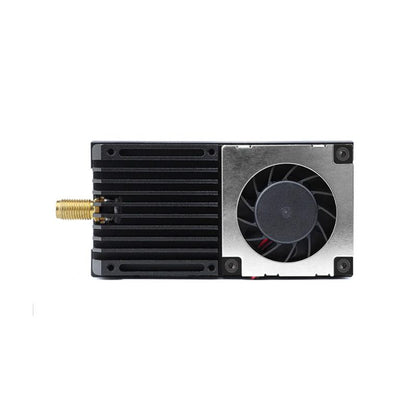

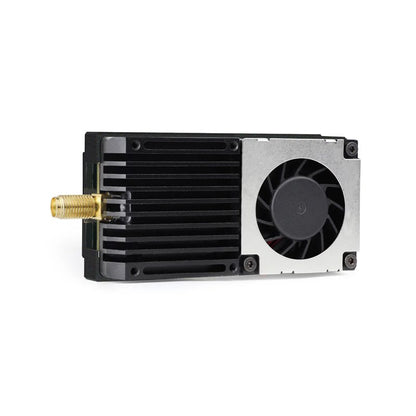

The5.8G 5.5W high power VTX adjustable power aerial photography FPV drone offers powerful performance for long-range FPV flights. With adjustable power levels and superior heat dissipation, it ensures reliable signal transmission over long distances. It features easy-to-use buttons for parameter adjustments and supports wide voltage input, making it highly versatile. Whether you’re a professional pilot or a hobbyist, 5.8G 5.5W high power VTX offers customization options to meet your needs.
Features:
- 5500mW Power Output: Ensures strong and reliable signal for long-range flights.
- Adjustable Power Levels: 6 power settings from PIT/25mW to 5500mW.
- Advanced Cooling System: CNC structure with integrated fan for excellent heat dissipation.
- Easy Adjustments: Three-function buttons and LED indicators for quick setting changes.
- Onboard Microphone: Real-time sound transmission from your aircraft.
- Customizable Frequency: Supports any frequency within 4.9-5.8GHz.
- TBS SmartAudio Protocol: OSD parameter adjustment support.
- Wide Voltage Range: Compatible with 2-8S batteries

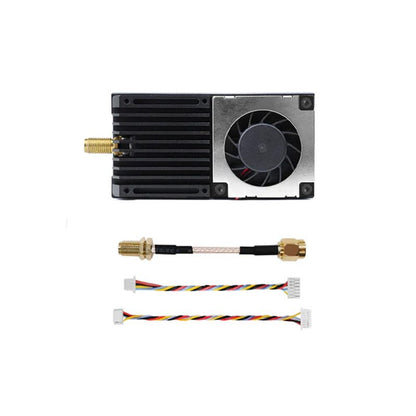

Package Includes:
1× 5.8G 5.5W VTX
1× RG316 SMA to SMA 100mm adapter
1× GH1.25 6Pin 100mm single-ended cable
1× SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
Specification:-
| Item Type: |
video transmitter |
|---|---|
| Model Type: |
HGLRC-5.8G-5.5W |
| Voltage Rating (V): |
7–36 |
| Material: |
Aluminum |
| Compatibility: |
Drones |
| Color: |
Black |
| Lipo Battery |
2S–8S |
| Length (mm): |
70 |
| Width (mm): |
35 |
| Height (mm): |
20 |
| Weight (g): |
69 |
| Shipping Weight | 0.128 kg |
| Shipping Dimensions | 18 × 9 × 4 cm |
