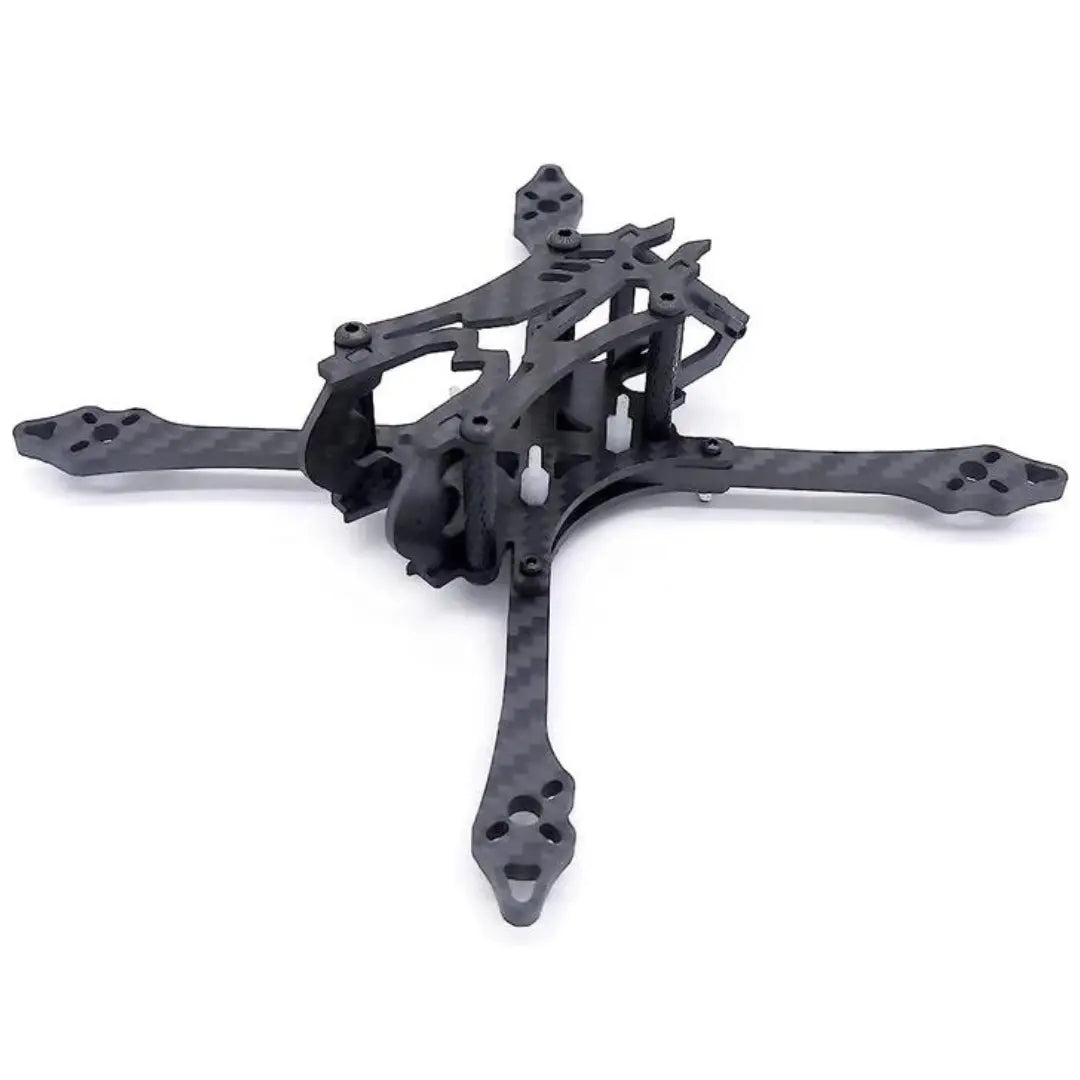

The HF150 150mm 3-inch Carbon Fiber Frame is a small-sized quadcopter frame designed for building lightweight and agile drones, particularly for FPV (First-Person View) racing or freestyle flying. Below is a description of the HF150 150mm 3-inch Carbon Fiber Frame and its key features:
Description:
The HF150 150mm 3-inch Carbon Fiber Frame is designed to provide a compact and lightweight platform for your drone build. Its small size and robust construction make it suitable for acrobatic flying and tight maneuvering, making it a popular choice among FPV enthusiasts.
Features:
Carbon Fiber Construction: The frame is constructed primarily from high-quality carbon fiber material, which is known for its strength and low weight. Carbon fiber provides durability and rigidity while keeping the overall frame weight to a minimum.
Size: The frame is designed to have a diagonal motor-to-motor distance of 150mm, making it a compact and agile choice for 3-inch propellers. This size is well-suited for racing and freestyle applications.
3-Inch Propeller Compatibility: The frame is typically designed to accommodate 3-inch propellers, which are smaller and more agile than larger propellers, enabling rapid maneuvers and high-speed flight.
Motor Mounts: The frame includes motor mounting points that are compatible with commonly used brushless motors. The motor layout is typically configured for a quadcopter setup.
FPV Camera Mount: The frame often includes provisions for mounting FPV cameras, allowing you to attach your preferred camera for real-time video feed during flight.
Battery Mount: A secure battery mount or strap is usually included to hold the LiPo battery securely in place during flight.
Stack Mounting: The frame provides space for stacking electronic components, such as flight controllers, ESCs, and FPV equipment. This arrangement helps maintain a clean and organized build.
Modular Design: Frames like the HF150 are designed with modularity in mind, allowing users to easily replace damaged parts or customize the drone’s configuration.
Durability: Carbon fiber frames are known for their durability and ability to withstand crashes and impacts, ensuring the longevity of your drone.
Weight Distribution: The frame is designed to distribute weight evenly across the frame, contributing to stable flight performance and agility.
Customization: Users can personalize the aesthetics of their drone by choosing from different frame colors and adding additional accessories.
LED Mounts: Some frames may include mounts or provisions for installing LED lights, enhancing visibility and aesthetics, especially for night flying.
Compact and Lightweight: The small size and low weight of the frame make it ideal for tight racing tracks or freestyle acrobatics.
Easy to Transport: Due to its compact size, the HF150 frame is easy to transport, making it convenient for on-the-go flying.
Quality product
HF150 Model
DIY drone frame Kit
Wheelbase: 150mm
Paddle: 3 inch paddle
Flight control hole distance: 20x20mm
Package Include:
1× HF150 150mm 3 inch Carbon Fiber Frame
| SPECIFICATION | |
|---|---|
| Thickness | Arm 4.0mm, other plates 2.0mm |
| Paddle | 3-inch paddle |
| Flight control hole distance | 20x20mm |
| Camera installation width | 19mm |
| Motor | 13xx, 14xx series (9×12) |
| Structure | X-type split |
| Aluminum column height | 25mm |
| Shipment Weight | 0.055 kg |
| Shipment Dimensions | 15 × 12 × 1 cm |
