Hex Pixhawk Cube+ Flight Controller Autopilot

Hex Pixhawk Cube+ Flight Controller Autopilot

SKU:1423657

Regular price Rs. 36,559.00
Regular price Sale price Rs. 36,559.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

NOTE:- We might take 4 to 8 days to ship this product.

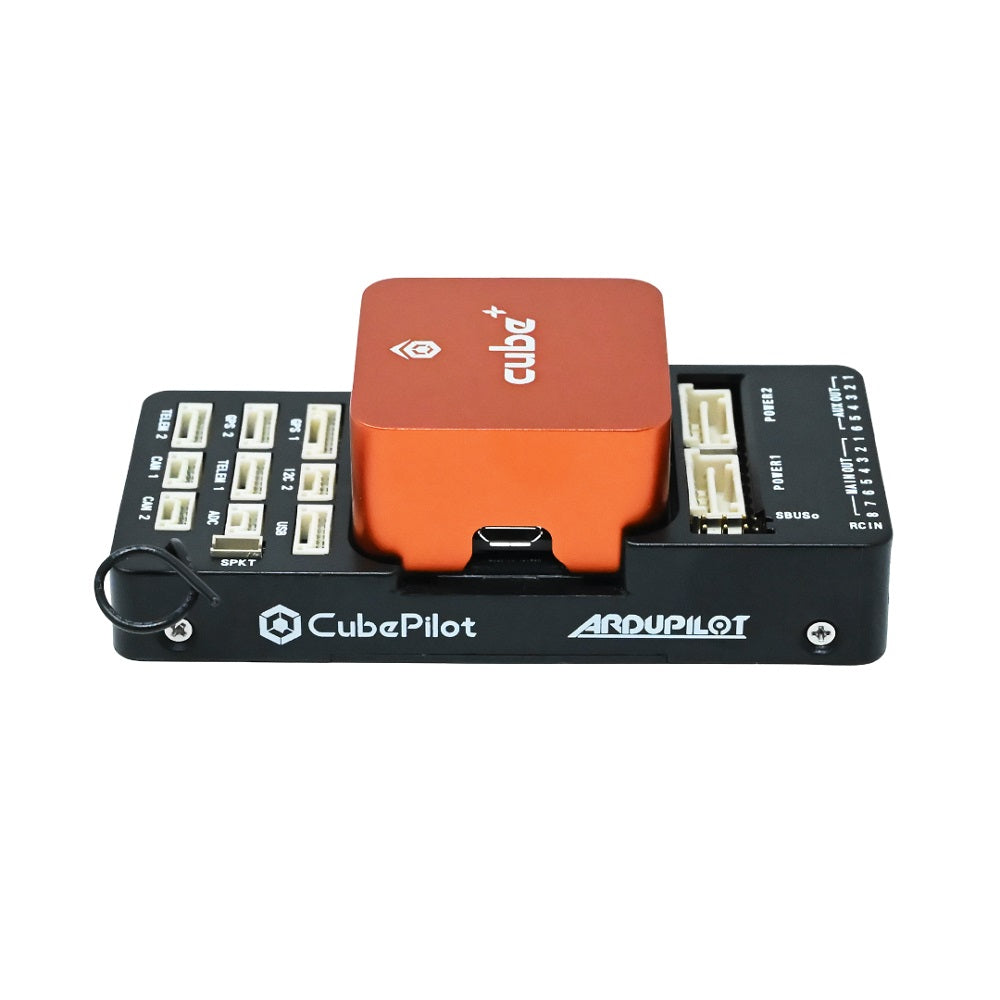

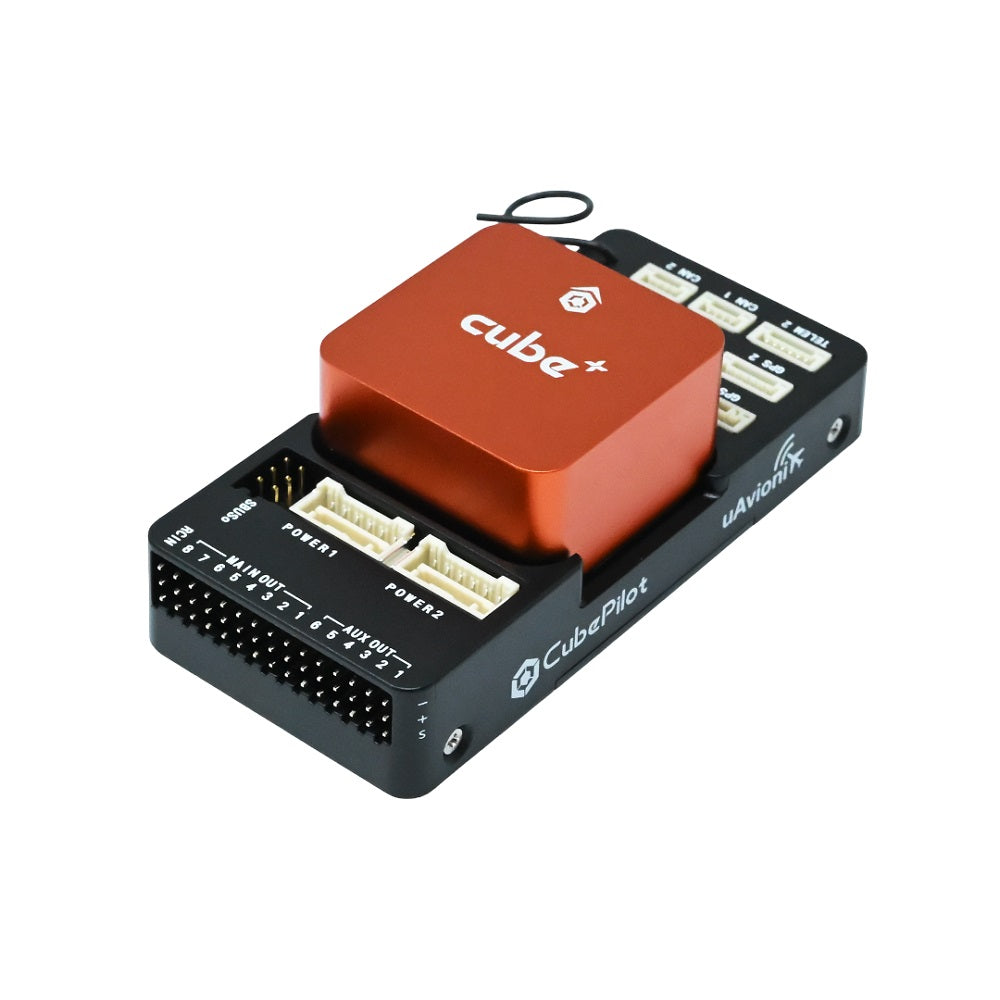

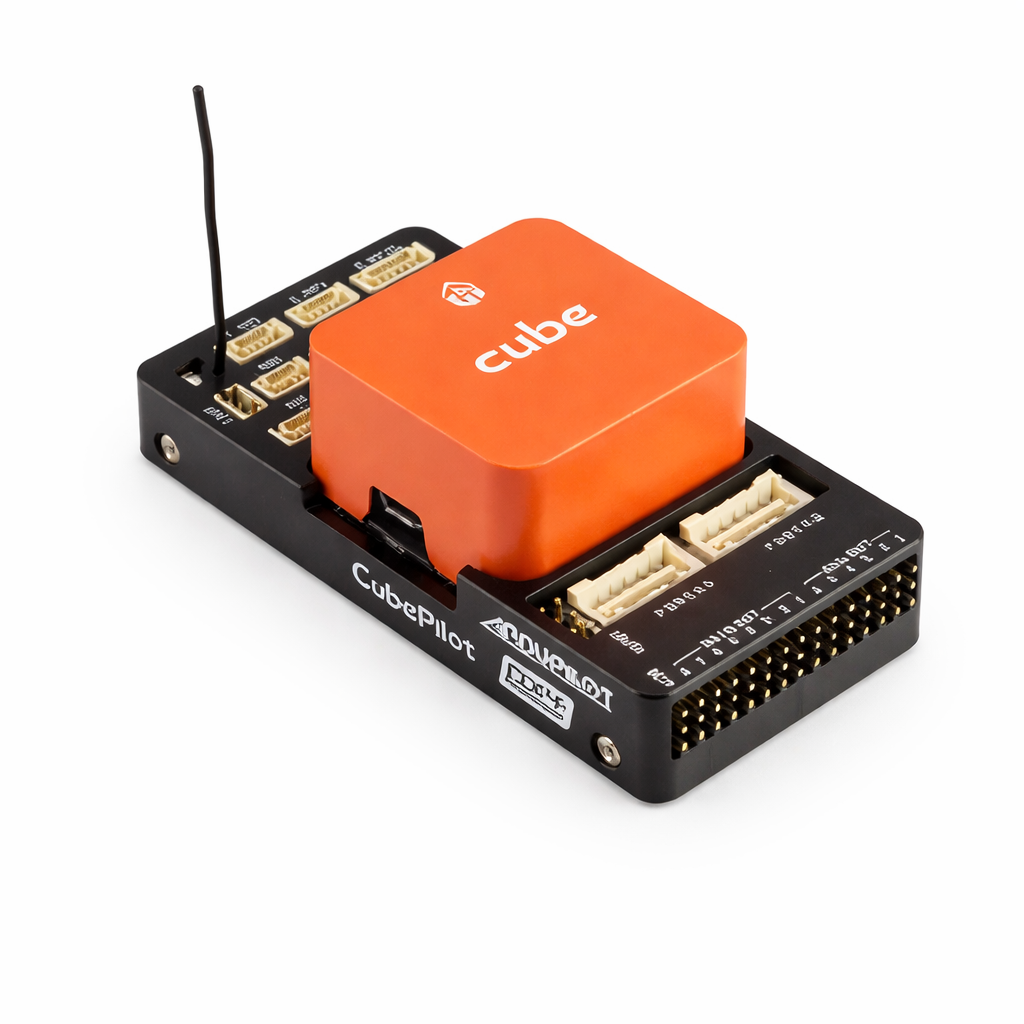

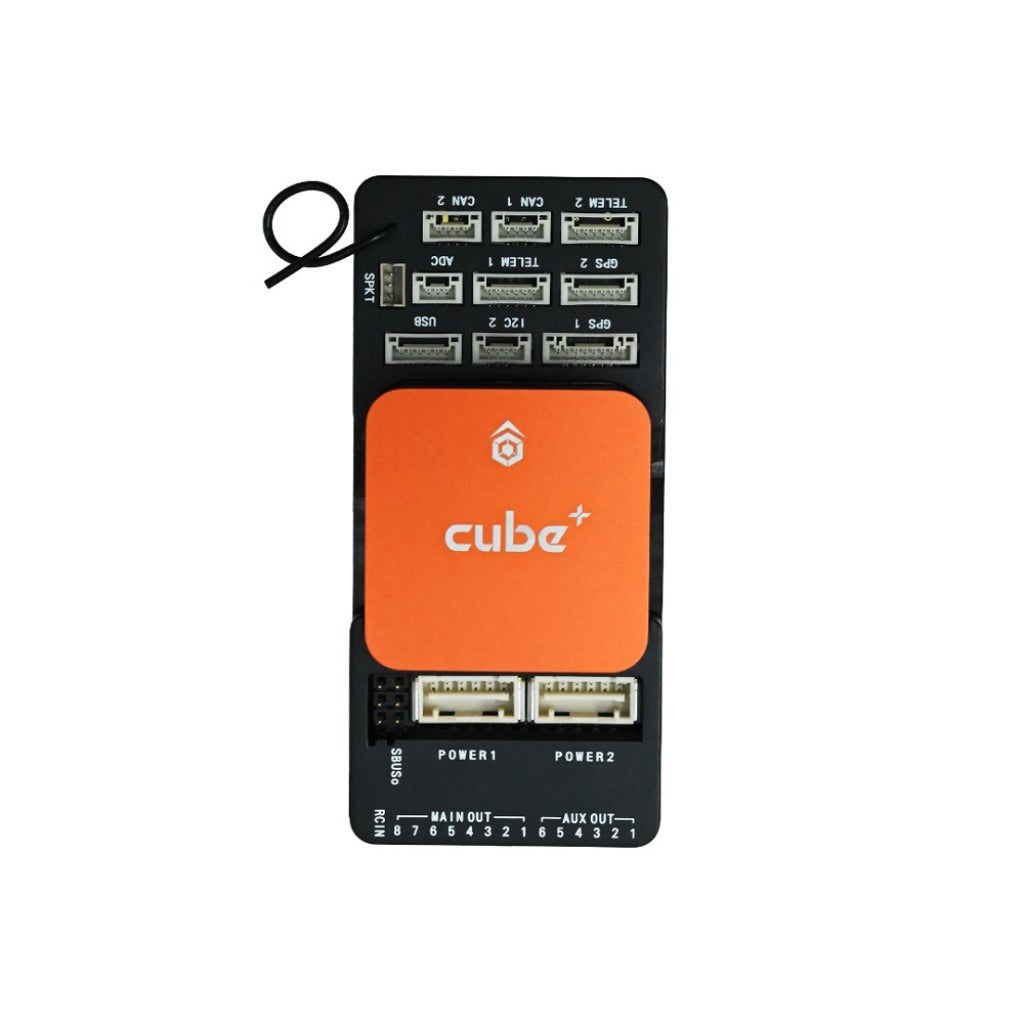

The Cube Orange Standard Set + ADS-B  flight controller comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board!  Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.

Features:

Built-in IMU Heating system, allowing flights at extreme temperatures (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistance
Air-frames: VTOL, Plane, Multi-copter, Traditional Heli, Rover, Boat, Sub, General Robotics

The Cube Orange:

Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter, or multi-rotor vehicle and turn it into a more professional UAV platform.

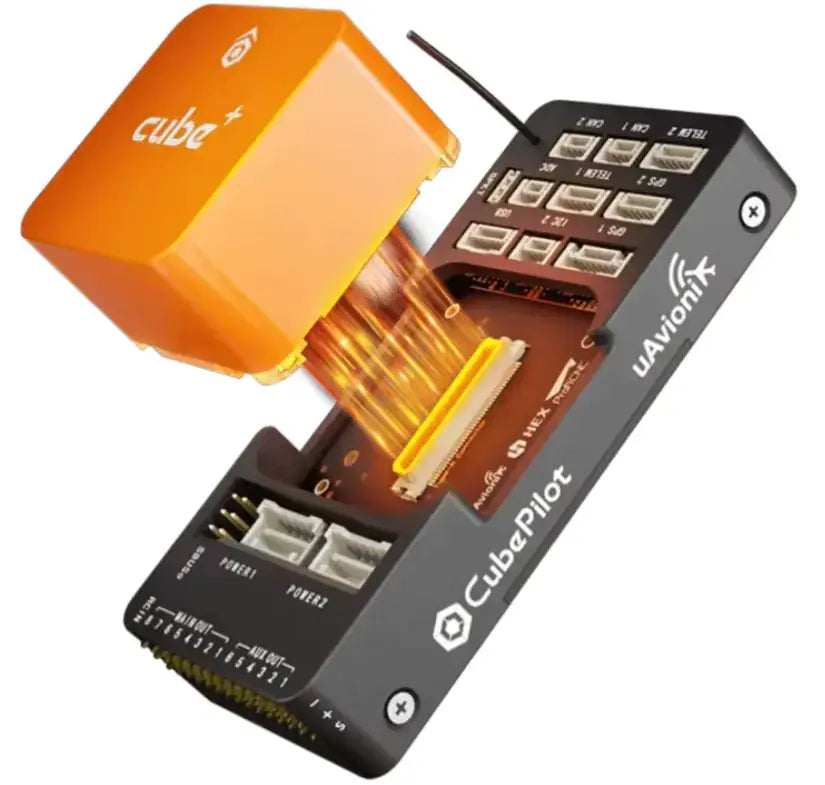

ADS-B Carrier Board

A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you

Package Includes:

1× Hex Pixhawk 2.1 cube PX4 PIX 32 Bit Flight Controller Autopilot

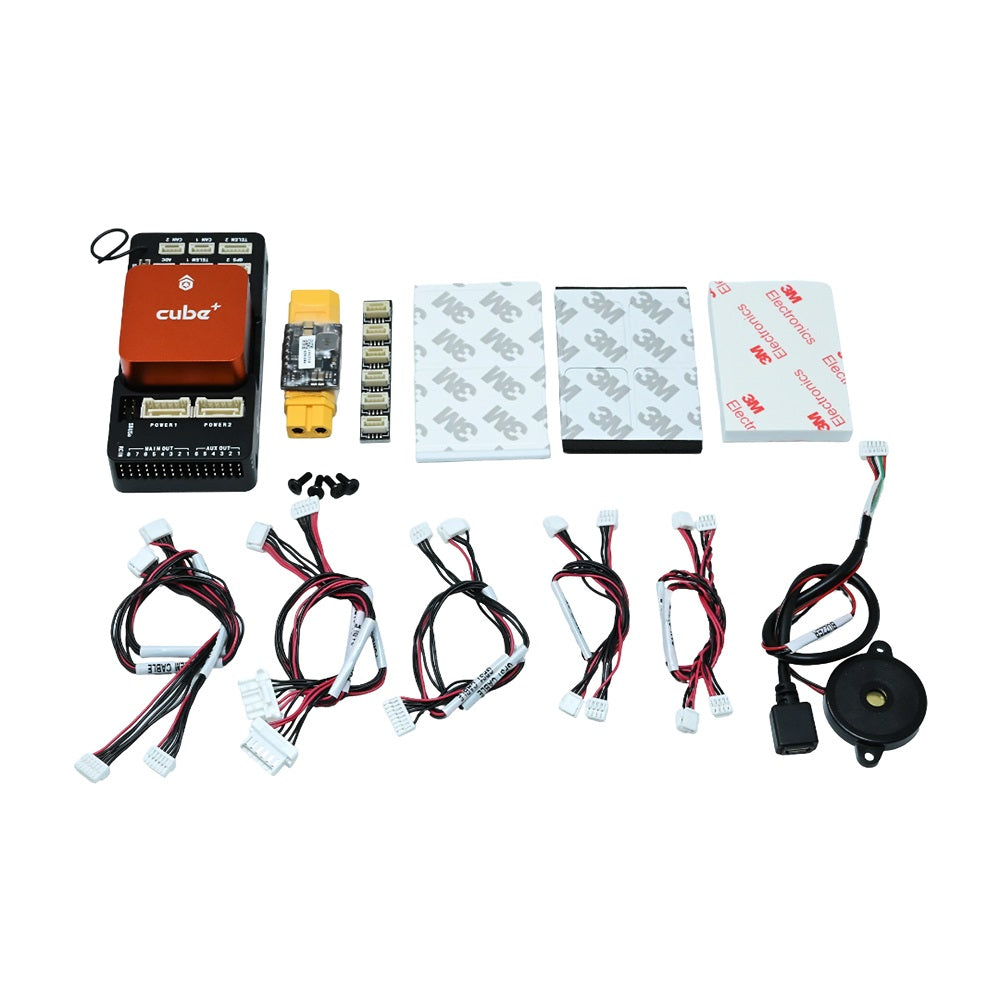

Box Contain:

1× The Cube Orange – the brains behind the operation.
1× A standard carrier board with ADS-B
1× Power Brick (two power bricks can be used for redundant power.)
1× Cable set that allows you to connect to your old Telemetry module, GPS, and sensors

Specification:-

Sensors Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current 4.1-5.7 V / 2.5 A
Power-rated output/input power 14 W
USB port input voltage/rated input current 4-5.7 V / 250 mA
Servo rail input voltage 3.3 V / 5 V
Not Waterproof External waterproof protection is needed
Operation Temperature -10 °C / 55 °C
Cube Orange Housing Material CNC Aluminum Alloy
Standard Carrier Board Housing Material ABS Molding
Shipping Weight 0.343 kg
Shipping Dimensions 17 × 10 × 7 cm
