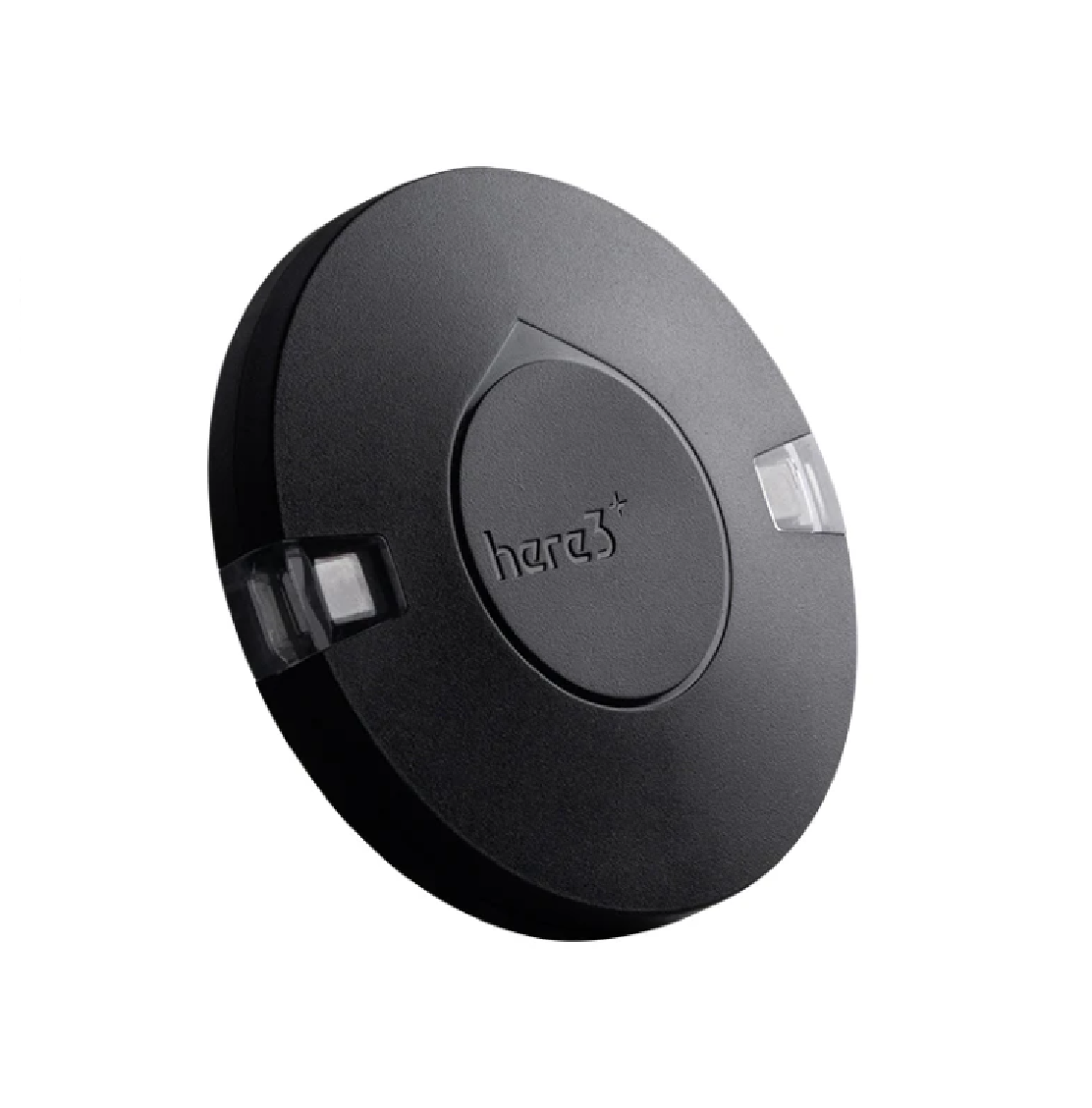

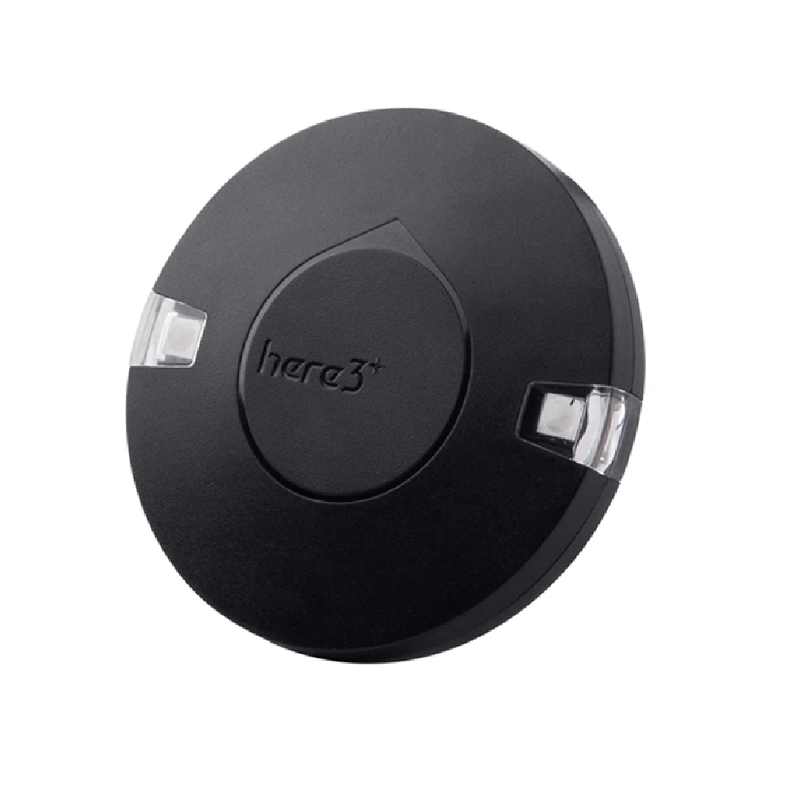

Here3+ GPS is a cost-efficient GNSS system that supports RTK mode with positioning accuracy down to centimeter-level in an ideal environment. See our store for the Here+ Base. Improved dust and water resistance over the original Here+ (not guaranteed to be water-proof). High data rate, upgradeability, noise immunity, and real-time features from the DroneCAN protocol. Here3+ is now moving to DroneCAN 8Mbit bus speed and supports future firmware updates. Here 3 is equipped with the STM32F302 processor while the Here3+ uses the dual core STM32H757 running at 400MHz with 2MByte Flash and 1MByte RAM. Future updates will be available from Mission Planner. Built-in IMU (compass, gyroscope, and accelerometer) for advanced navigation needs.
Features:
- It is made of carbon fiber.
- very lightweight.
- vibration less stand.
- Looked very Attractive.
- Satellite Constellation: GPS L1C/A, GLONASS L1OF, BeiDou B1I
Package Includes:
1× HEX Here3+ CAN GNSS GPS Module

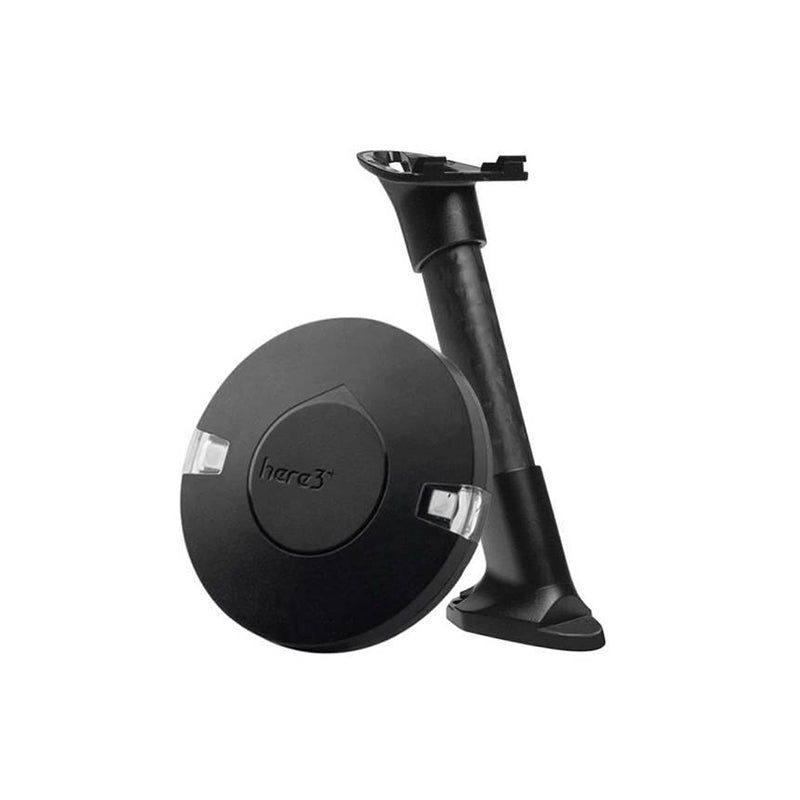

1× iStand
1× Allen key
5× Nuts
5× Bolts
Specifications:-
| Item Type: |
GPS Module |
|---|---|
| Model Name: |
Here3+ |
| Receiver Type |
u-blox high precision GNSS modules (M8P-2) |
| Processor |
STM32H757 |
| Communication Protocol |
DroneCAN 8Mbit/s |
| Operating Temperature (°C): |
-40 to 85 |
| Length (mm): |
68 |
| Width (mm): |
68 |
| Height (mm): |
16 |
| Weight (g): |
51.8 |
| Shipping Weight | 0.185 kg |
| Shipping Dimensions | 12 × 12 × 5 cm |
