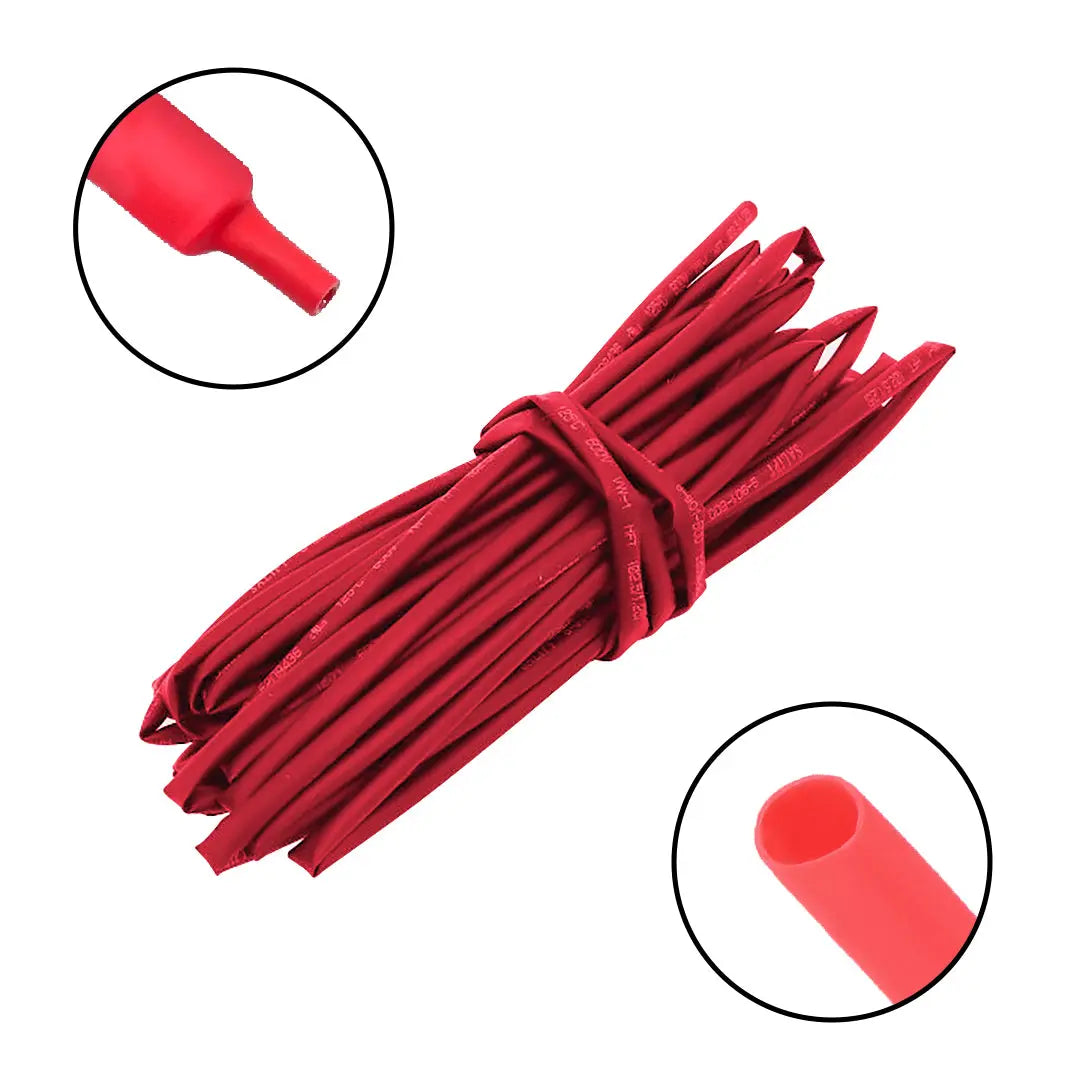

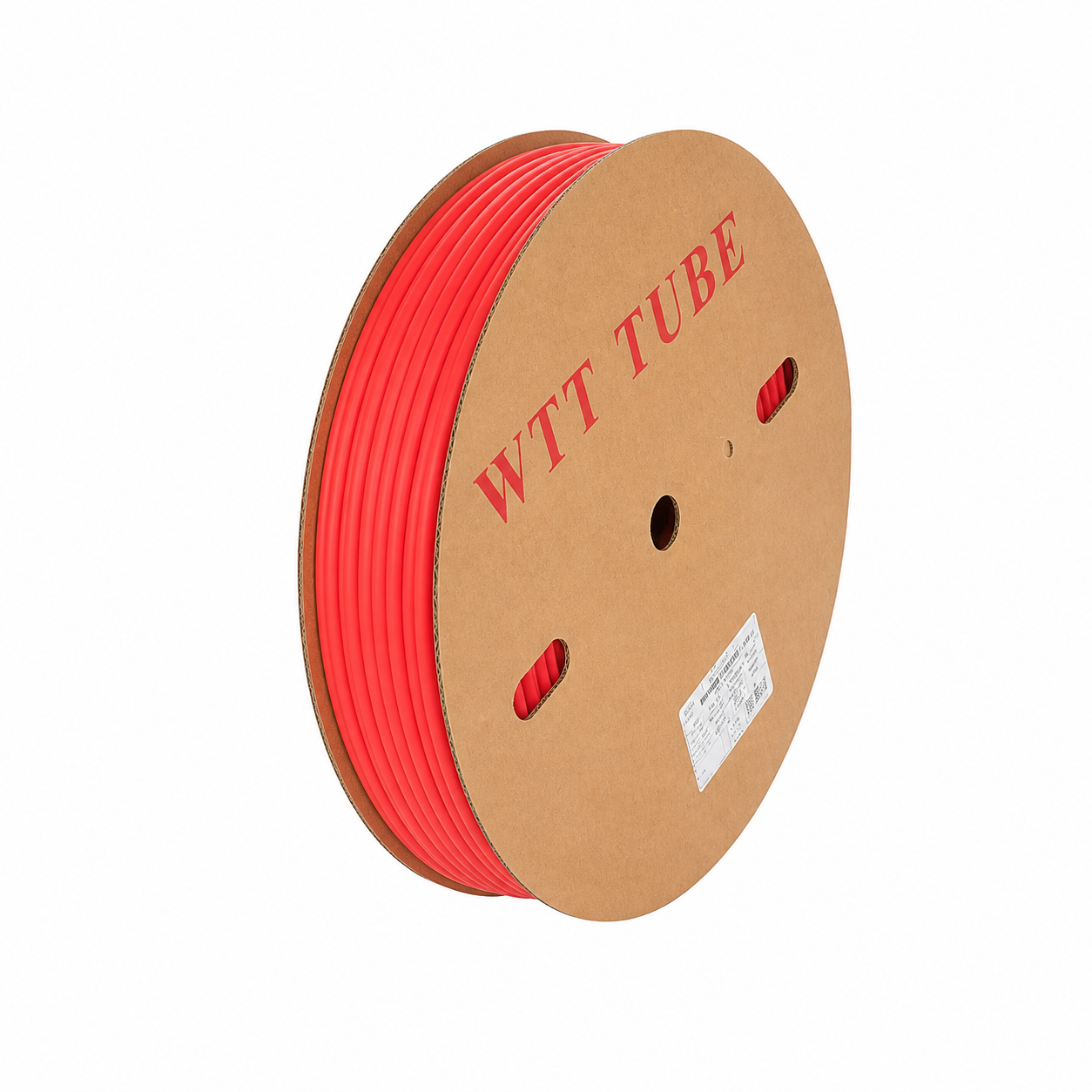

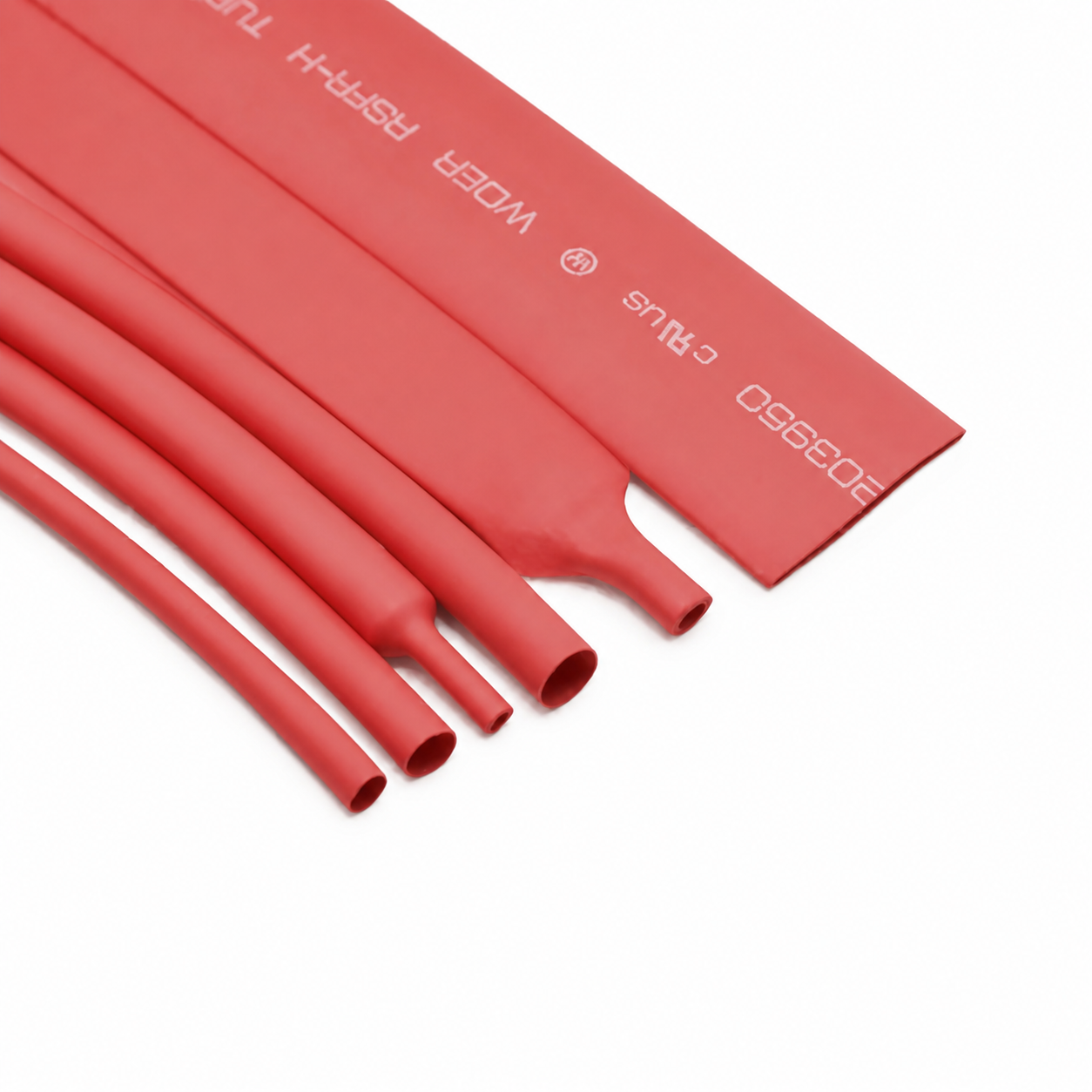

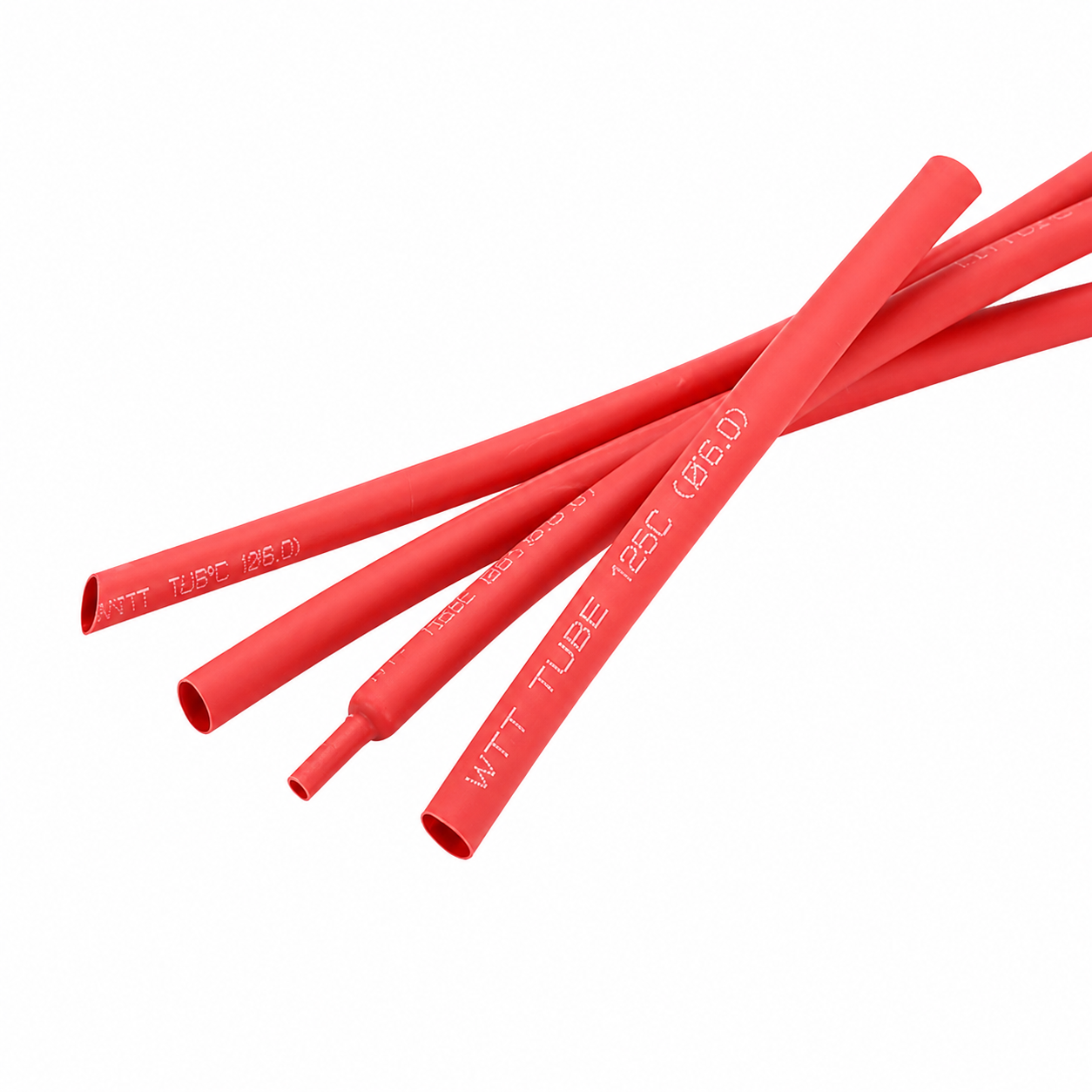

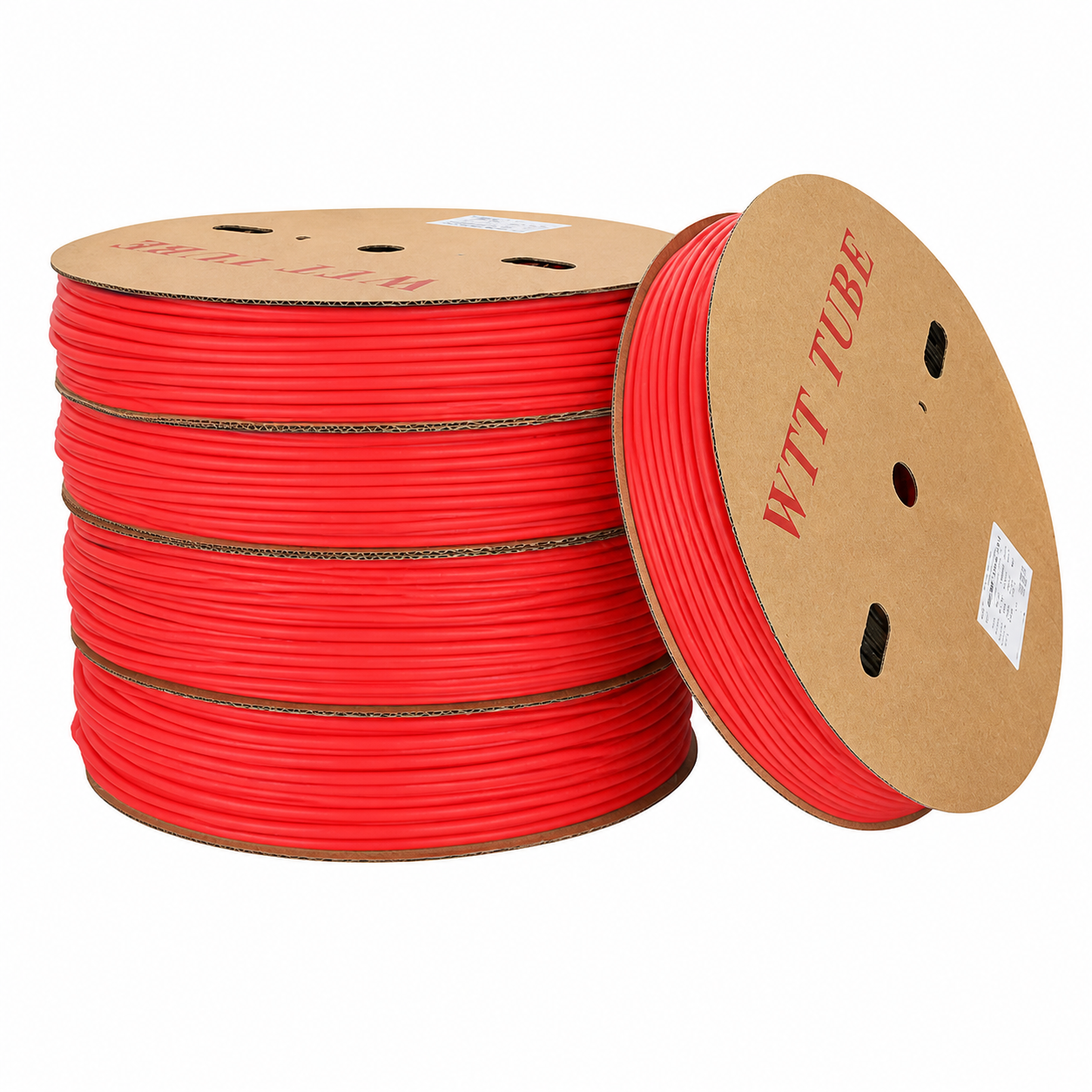

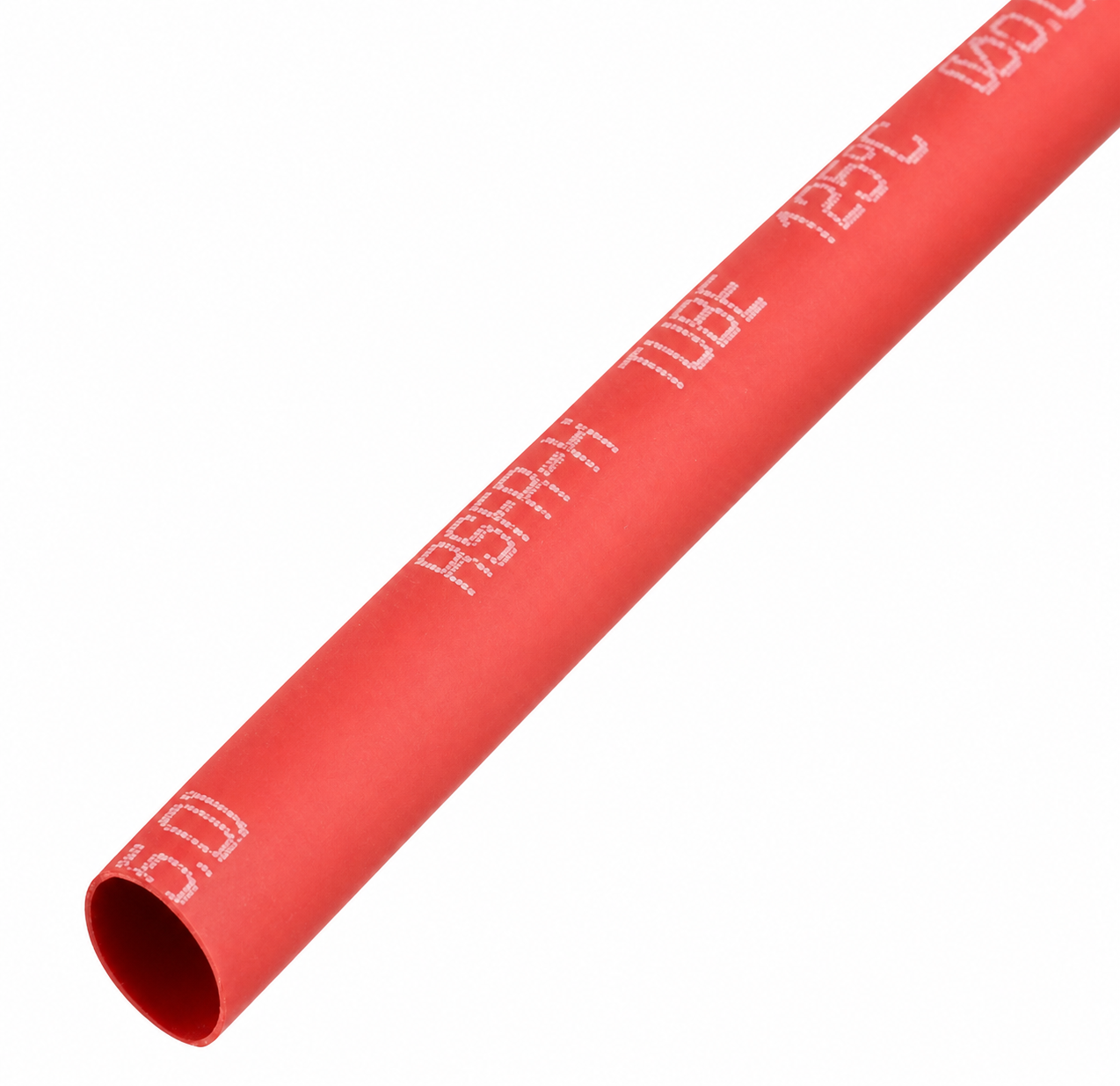

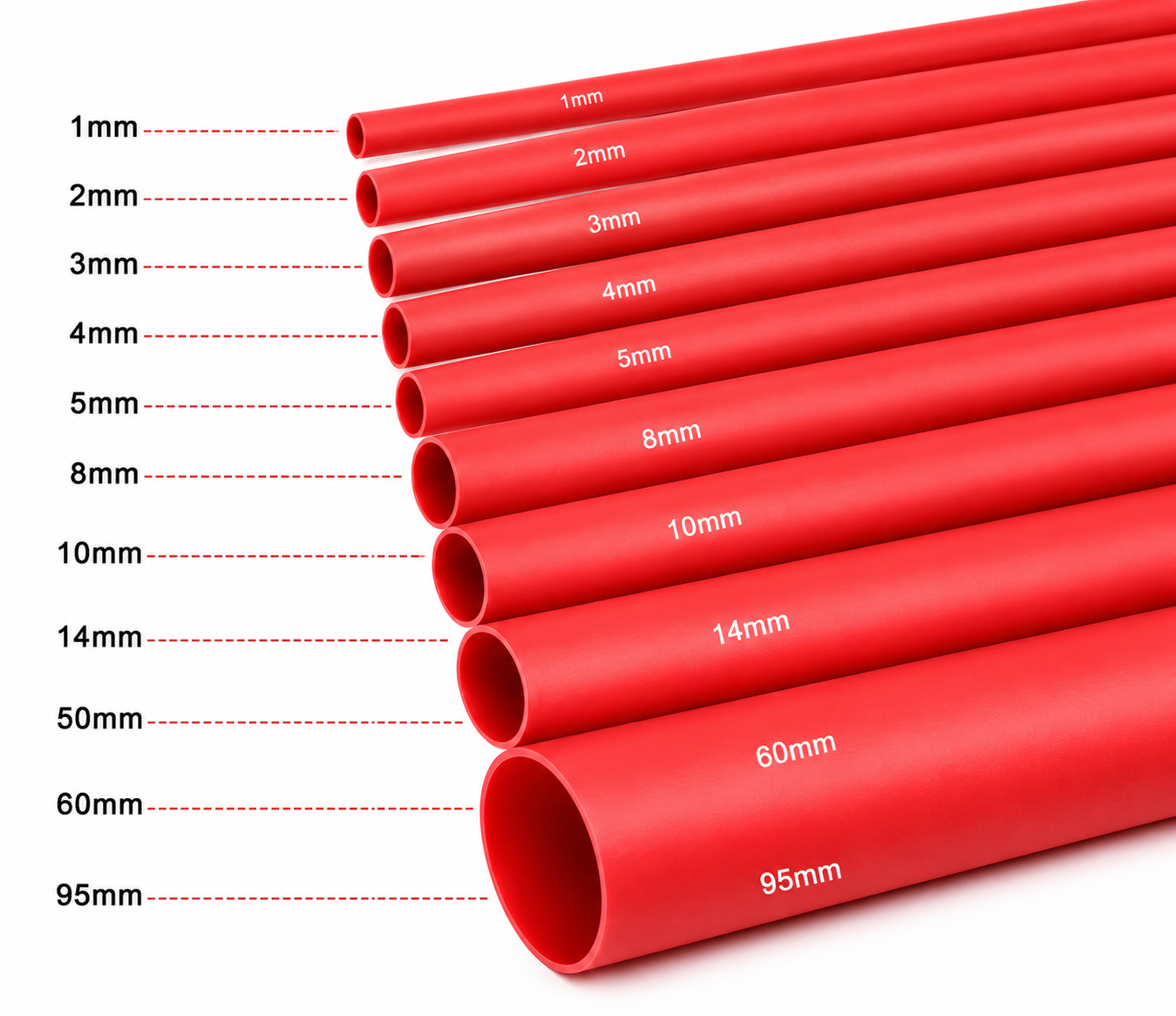

A heat shrink sleeve is a tubular piece of material that, when heated, shrinks in size to tightly wrap around an object, providing protection, insulation, and other functionalities. Here is a description of a hypothetical “Heat Shrink Sleeve 2mm Red 1 meter”:
- Size: The heat shrink sleeve you’re describing has a diameter of 2 millimeters (mm) and a length of 1 meter. This means that when it’s in its expanded state, it has a 2mm inner diameter and can cover objects up to 1 meter in length.
- Color: The sleeve is red, which can be helpful for color-coding purposes or simply for aesthetic reasons.
- Material: Heat shrink sleeves are typically made from materials like polyolefin, PVC, or other thermoplastic polymers. The specific material would depend on the manufacturer and product specifications.

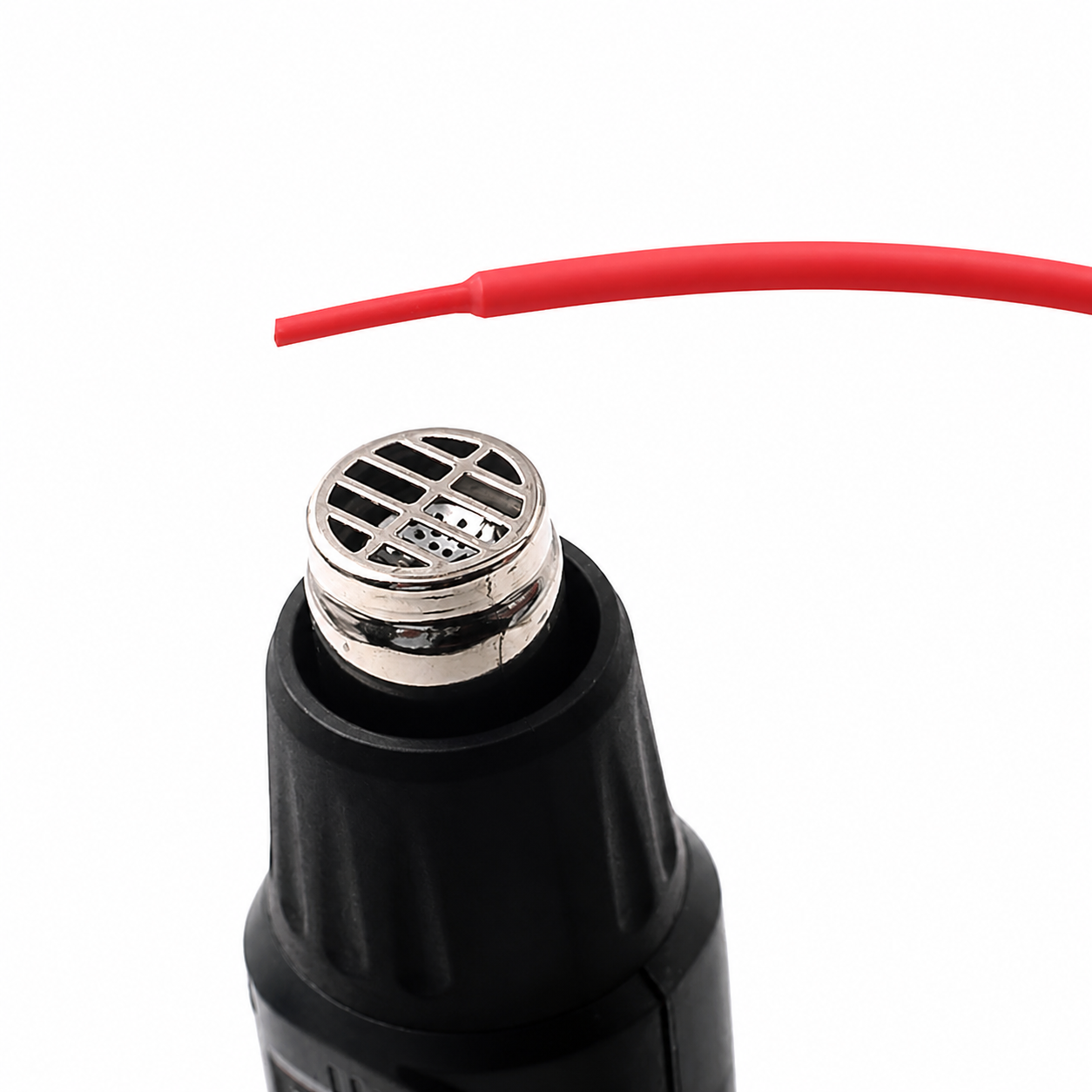

- Shrinking Mechanism: To use this heat shrink sleeve, you would apply heat (usually with a heat gun or open flame) to it. As it heats up, the sleeve will shrink in diameter, creating a snug and secure fit around the object it’s placed on. This is often used for electrical insulation, cable bundling, or even for protecting and labeling wires or components.
- Temperature Rating: The heat shrink sleeve should have a specified temperature rating. This indicates the temperature at which it will begin to shrink. It’s important to choose a heat shrink sleeve with a temperature rating suitable for the intended application.
- Versatility: Heat shrink sleeves are versatile and can be used in various applications, including electrical wiring, cable management, automotive repair, and more.
- Durability: Depending on the material and quality, heat shrink sleeves can offer resistance to chemicals, moisture, and abrasion. High-quality sleeves are designed to provide long-lasting protection.

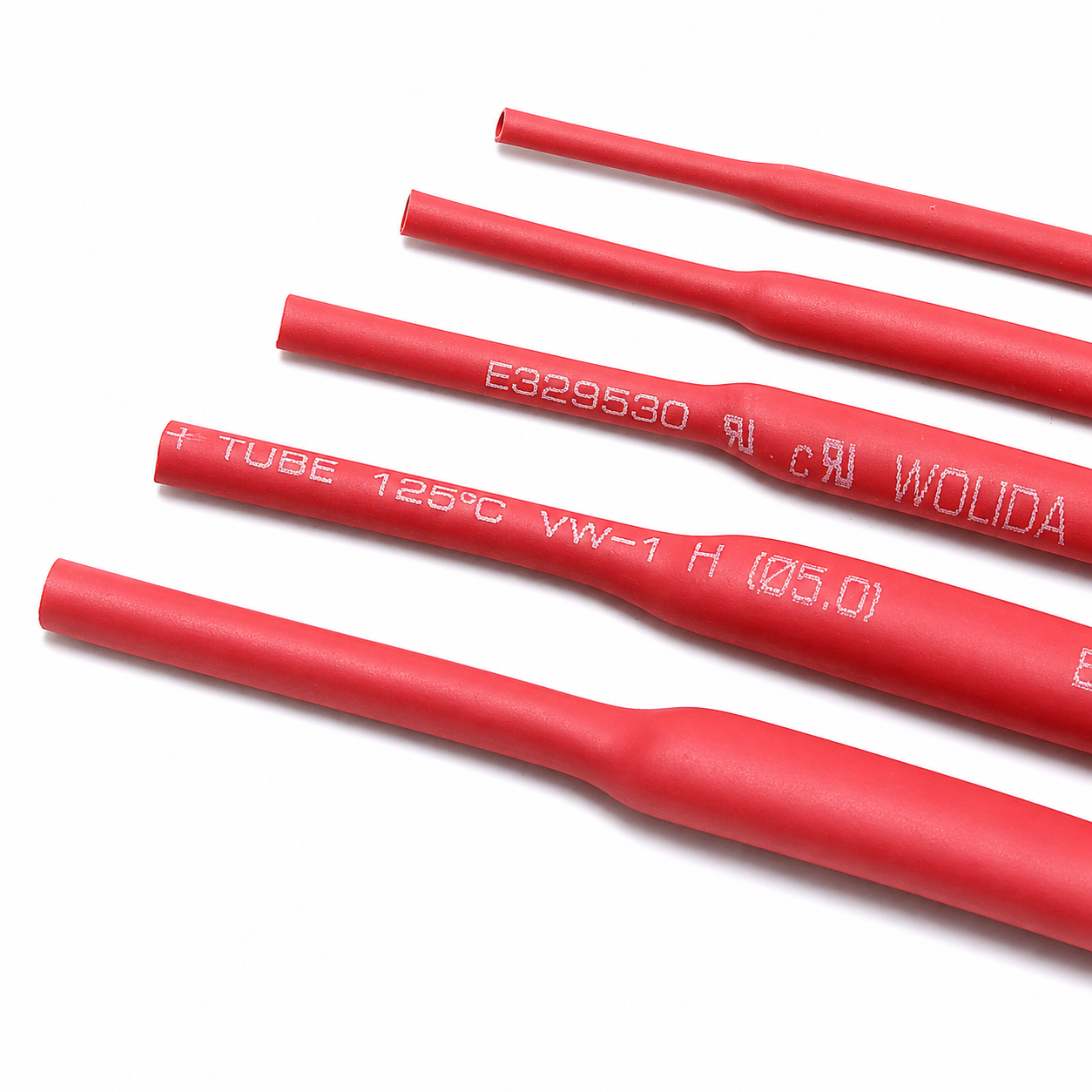

- Ease of Use: These sleeves are relatively easy to use, requiring only a heat source and some basic instructions. Most will also have markings to indicate the original (expanded) size, which can be helpful for sizing and application.
- Applications: Heat shrink sleeves are commonly used for insulating electrical connections, sealing cables, protecting wire splices, bundling wires together neatly, and providing strain relief to cables and connectors.
- Compliance: Depending on the application, some heat shrink sleeves may need to meet specific industry standards and regulations, such as UL (Underwriters Laboratories) standards for electrical insulation.
Remember that the specific features and characteristics of a heat shrink sleeve can vary depending on the manufacturer and intended use. Always refer to the product’s datasheet or instructions for detailed specifications and usage guidelines.
Package Includes:
1x Heat Shrink Sleeve 2mm Red 1meter
Specification:
| Item Type: | CB-HFT |
| Color: | Red |
| Diameter (mm): | 2 |
| Length (mm): | 1000 |
| Shrink Temperature (°C) | 90 |
| Operating Temperature (°C) | -40 to 125 |
| Tensile Strength (MPa): | ≥10.4 |
| Shrink Ratio: | 2:01 |
| Elongation Ratio | ≥200% |
| Radial Shrinking Ratio | ≥50% |
| Dielectric Strength | ≥15 kV/mm |
| Corrosion of Bare Copper | No Corrosion |
| Heat Shock | No Cracking |
| Cold Bend | No Cracking |
| Flammability | VW-1 |
| Concentricity | ≥65% |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 7 × 4 cm |
