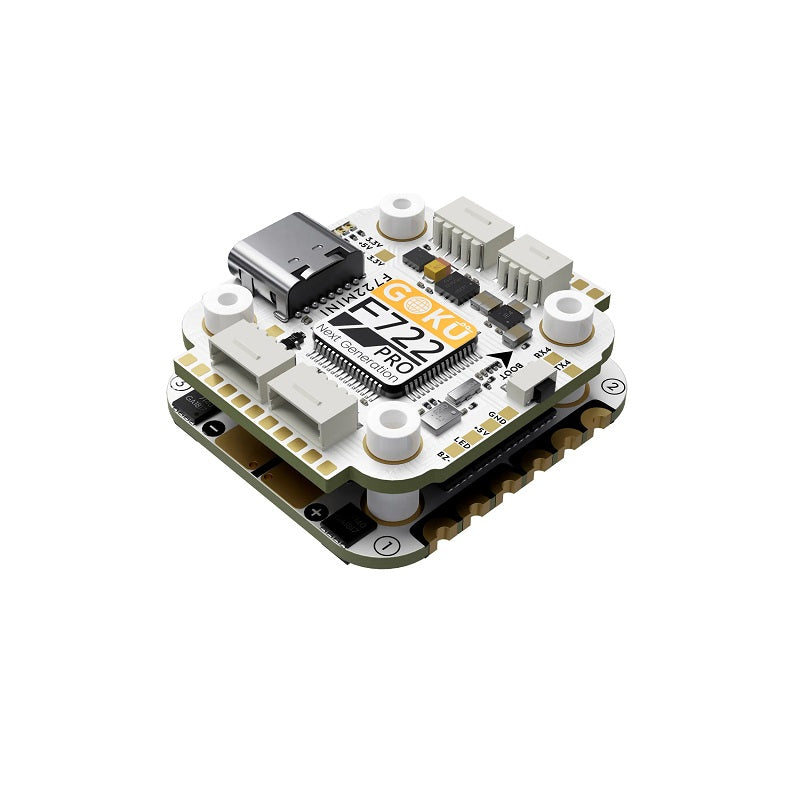

The new generation F722 PRO V2 flight controller from FLYWOO not only offers a standard 30.5mm size, high-performance STM32 F722 main control, and MPU6000 gyroscope, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.
It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.
Features:
- High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
- Precision gyroscope: Features the MPU6000 gyroscope for improved control precision and enhanced flight stability.
- Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
- Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
- Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.
- Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
Specifications:-
- INAV Firmware: GOKU F722PRO
- MCU: STM32F722
- Gyroscope: MPU6000
- OSD: AT7456E
- Barometer: DP310
- Black Box: 16MB
- UARTS: 1/2/3/4/5/6
- Input Voltage: 7.4V-26V/2-6S LiPo
- BEC: 10V3A/5V3A
- Flight Controller Size: 37mm x 37mm x 8mm
- Mounting Holes: M3 30.5×30.5mm
Package Includes:
1× GOKU F722 Pro V2 55A 32Bit 128K Stack (30×30)（BL32)
Specification:-
| Item Type: |
Other Accessories |
|---|---|
| Shipping Weight | 0.0 kg |
