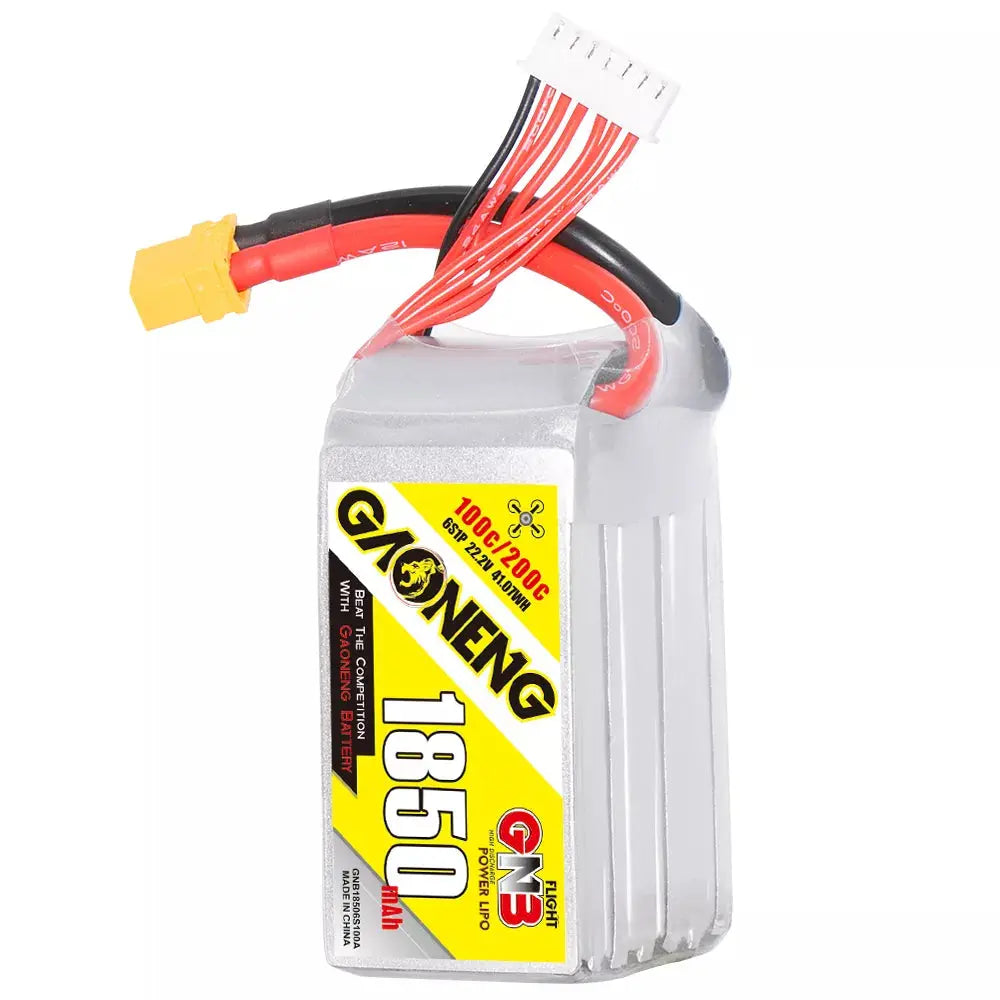

GNB 6S 22.2V 1850mAh 100C XT60 LiPo Battery.

GNB 6S 22.2V 1850mAh 100C XT60 LiPo Battery.

065044

Rs. 4,669.00
Rs. 4,669.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)
View full details

The GNB 6S 22.2V 1850mAh 100C XT60 LiPo Battery is likely a rechargeable lithium-polymer (LiPo) battery designed for use in various remote-controlled vehicles and other applications that require a high-performance power source.

Features:

  1. Voltage (Nominal): 22.2 volts - This indicates the average voltage of the battery during normal operation.

  2. Capacity: 1850mAh - This represents the battery's storage capacity, indicating how much energy it can store and deliver.

  3. C Rating: 100C - The C rating denotes the maximum continuous discharge rate of the battery. A higher C rating generally means the battery can deliver more power consistently.

  4. Cell Configuration: 6S - This indicates that the battery has six individual cells connected in series. Each cell typically has a nominal voltage of 3.7 volts.

  5. Connector Type: XT60 - XT60 is a popular type of connector used in radio-controlled models. It provides a secure and reliable connection.

  6. LiPo Chemistry: Lithium Polymer (LiPo) batteries are known for their high energy density, lightweight design, and ability to deliver high currents.

  7. Application: The battery is likely designed for use in high-performance RC vehicles such as drones, airplanes, cars, or boats.

  8. High Discharge Rate: The 100C rating indicates that the battery can discharge at a high rate without significant voltage drop.

  9. Balancing Connector: LiPo batteries often come with a balancing connector, allowing for individual cell monitoring and balancing during charging.

  10. XT60 Connector: The XT60 connector is a standard connector type with low resistance, suitable for high-current applications.

This Graphene LiPo is compatible with 180-330mm Brushless FPV, 5 to 6 inch Drone, GEPRC MARK5, MARK4, Crocodile5 Baby, DJI FPV, Nazgul5, TITAN XL5, Chimera5, Evoque F5D/F5X, Nazgul Evoque F6X/F6D, Racing Pilot FPV, Airplane, Quads, QuadCopter, HeliCopter, MultiCopter Freestyle Drone, UAV, Aerial Model, DIY FPV etc.



Detail Sepcifications

Model No.: GNB18506S100A

Capacity: 1850mAh

Voltage: 22.2V

Cells Configuration: 6S1P

Pack Dimension: 57*34*79mm (H*W*L)

Net Weight: 273g (+/-6g)

Discharge Rate: 100C

Charge Rate: 1C to 5C

Discharge Connector: XT60
