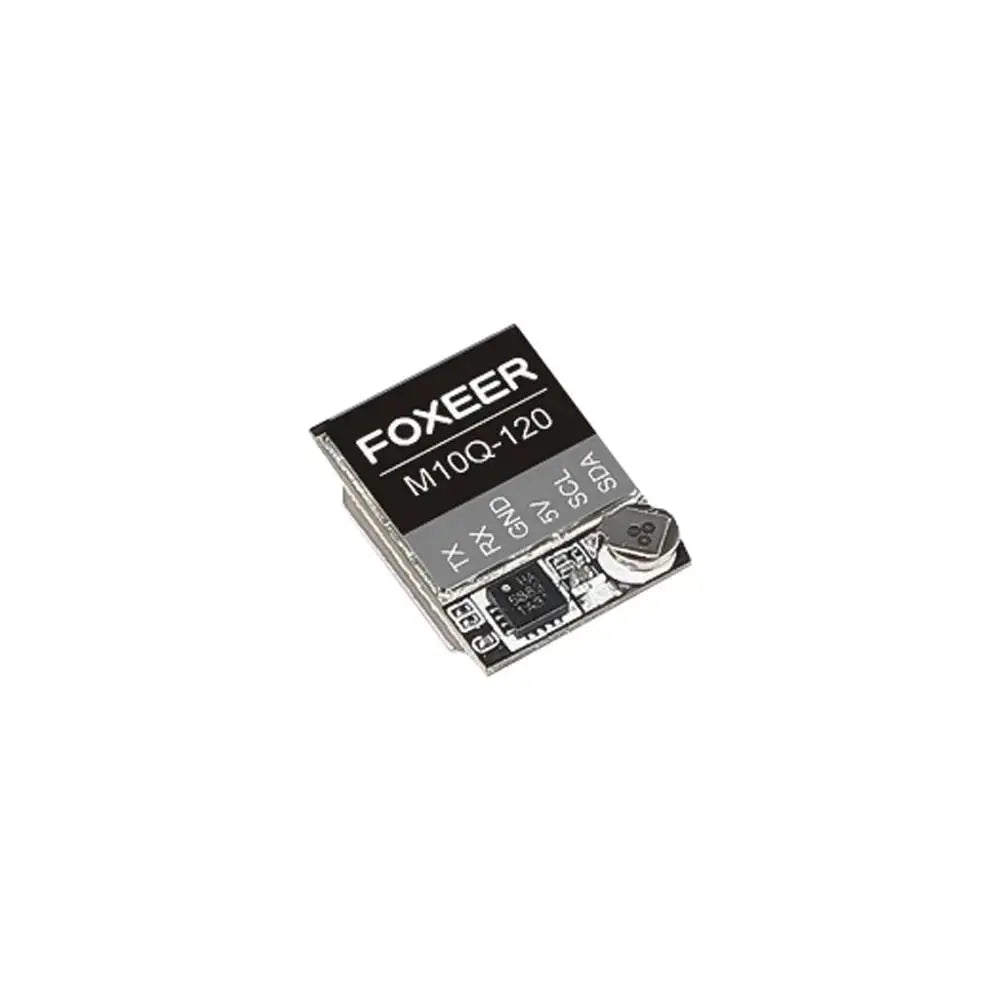

Foxeer M10Q-120 GPS W/ 5883 Compass.
Foxeer M10Q-120 GPS W/ 5883 Compass.
SKU:040045
Regular price
Rs. 2,999.00
Regular price
Sale price
Rs. 2,999.00
Unit price
per
(Including GST)
Enhance your drone’s navigation with the Foxeer M10Q-120 GPS. This compact GPS receiver boasts a powerful 10th-generation chip and support for multiple satellite systems, ensuring precise and dependable positioning. Its lightweight design and broad operating temperature range make it an ideal choice for FPV enthusiasts.
Features
- Broad Operating Range
- Compact Design
- Multi-Frequency
- High Sensitivity
- 10th Gen Chip
Specifications
- Chip: M10 (10th Generation Chip)
- Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1
- Input Voltage: 5V
- Antenna: Ceramic Antenna
- Channel: 72
- Battery: Built-in
- Compass: QMC5883
- Compass Orientation: Plug facing the direction of flight with the antenna up, BF: CW 180° Flip
- Baud Rate: 115200bps
- Protocol: Dual NMEA/UBLOX
- Output Frequency: 1Hz-10Hz (10Hz default)
- Speed Accuracy: 0.05m/s
- Horizontal Positioning Accuracy: 2D ACC 1.5m (outdoor)
- Receiver Sensitivity: Trace -166dBm; Capture -160dBm
- Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +105°C
- Weight: 2.7g
- Size: 12.5 x 17 x 5mm
Includes
- 1x Foxeer M10Q-120 GPS w/ 5883 Compass
