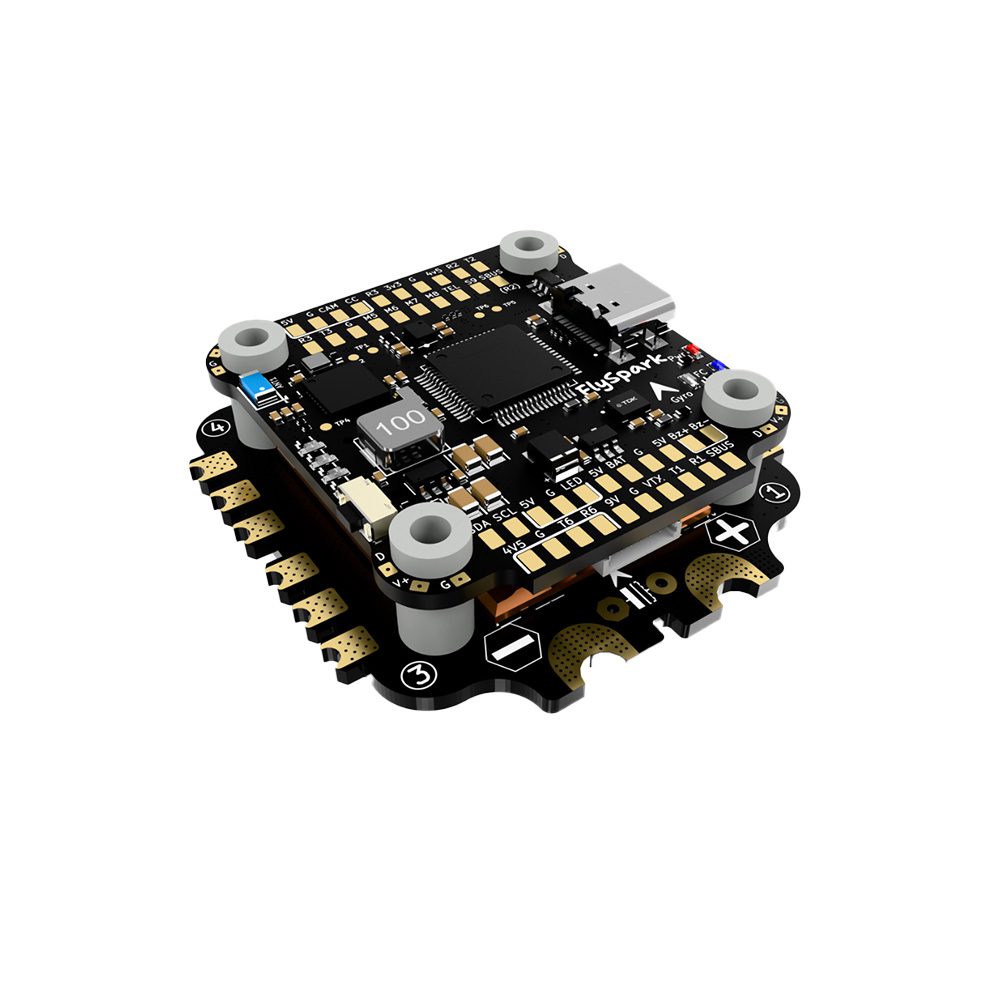

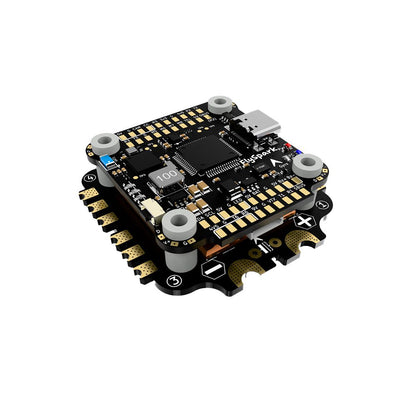

The FlySpark F4 V1 BLS 60A Stack is a complete flight controller and ESC solution for high-performance drones. Featuring the FlySpark F4 V1 Flight Controller with AI-powered capabilities and broad firmware compatibility (BetaFlight, INAV, Ardupilot, EMU-Flight), paired with the BLS 60A 4-in-1 ESC, it offers unmatched control and power efficiency. Designed with Bluetooth connectivity, robust hardware, and seamless DJI Air Unit support, this stack is perfect for drone shows, racing, and professional builds. Proudly made in India, it combines innovation, durability, and precision.
Specification :-
| Category | Details |
|---|---|
| Product Name | FlySpark F4 V1 BLS 60A Stack |
| Flight Controller MCU | STM32F405 |
| Flight Controller IMU | ICM-42688-P |
| ESC Firmware | BLHeli_S J-H-40 |
| Continuous Current (ESC) | 60A * 4 |
| Burst Current (ESC) | 80A (10 sec) |
| PC Configurator Link | ESC Configurator |
| USB Port Type | Type-C |
| Barometer | Built-in DPS310XTSA1 |
| OSD Chip | MAX7456EUI+ |
| Bluetooth | Supported (for configuration via MSP on UART4 at Baud rate 115200) |
| DJI Air Unit Connection | 6-pin connector or direct soldering (compatible with DJI O3, RunCam Link, Caddx Vista, etc.) |
| Power Input | 3-6S LiPo |
| Power Output (ESC) | VBAT |
| External Capacitor | 1000uF Low ESR Capacitor (included in package) |
| ESC Telemetry | Not supported |
| ESC Protocol | DSHOT300/600 |
| ESC Signal | M1-M4 (bottom side), M5-M8 (front side) |
| Mounting Dimensions | 30.5 x 30.5mm (4mm hole diameter) |
| Flight Controller Dimensions | 41.6(L) x 39.4(W) x 7.8(H)mm |
| ESC Dimensions | 47.8(L) x 47.5(W) x 8(H)mm |
| Weight (Stack Total) | 34g |
| Firmware Support |
BetaFlight (default), INAV, EMU-Flight, Ardupilot, SkyBrsh |
|
Warranty |
1-Year |
Papackage Include :-
1× FlySpark F4 V1 BLS 60A Stack
