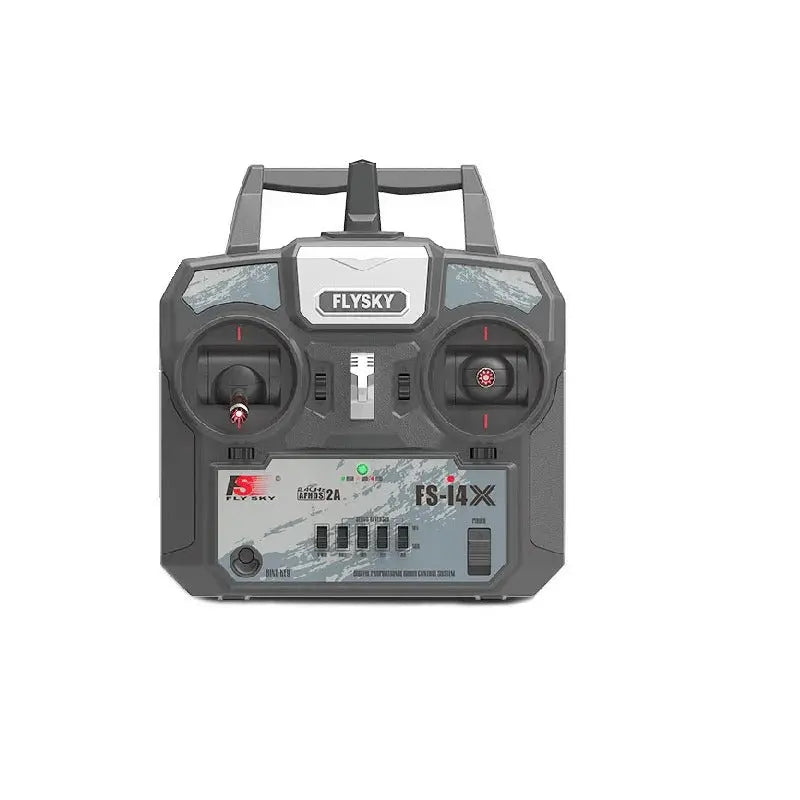

Flysky FS i4x 2.4GHz 4CH Transmitter With FSA6 Receiver.

Flysky FS i4x 2.4GHz 4CH Transmitter With FSA6 Receiver.

060061

Rs. 2,599.00
Rs. 2,599.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)
View full details
When using a drone, a transmitter is one of the most important components. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver, which is connected to an aircraft or multirotor that is being remotely controlled.

This Flysky FS i4x 2.4GHz 4CH Transmitter With FSA6 Receiver Receiver radio system uses a high gain and high-quality multi-directional antenna, it covers the whole frequency band. Associated with a high-sensitivity receiver, this radio system guarantees a jamming-free long-range radio transmission. This Transmitter supports AFHDS 2A which ensures 2 or more radios can operate at the same time without interfering with each other’s respective aircraft. Each transmitter has a unique ID when binding with a receiver, the receiver saves that unique ID and can accept only data from the unique transmitter, this avoids picking another transmitter signal and dramatically increases interference immunity and safety.

With strong initiative and passive anti-interference ability, the V-MIX mix control system is compatible with many models. According to your own needs, you can DIY expansion channel, this item can be expanded to 10CH. Works in the frequency range of 2.405 to 2.475GHz. This brand has been divided into 140 independent channels. This radio system uses low-power electronic components and a sensitive receiver chip. The RF modulation uses intermittent signals thus reducing even more power consumption.

AFHDS2A has built-in multiple channel coding and error correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance

Transmitter:

  1. Item Name: FS-i4X(Latest Released Model)
  2. Default Mode: Mode 2   (Mode 1: Right-Hand Throttle, Mode 2: Left-Hand Throttle)
  3. Band Range: 2.4055-2.475GHz
  4. Bond Amount: 140
  5. No. of Channel: 4
  6. Model Type: RC Airplane/Glider/Helicopter
  7. RF Power: <20dBm
  8. Bandwidth: 500KHz
  9. 2.4GHz System: AFHDS 2A / AFHDS
  10. Modulation Type: GFSK
  11. Stick Resolution: 1024
  12. Low Voltage Warning: <4.2V
  13. DSC Port: PS2 PPM
  14. Antenna Length: 26mm *2
  15. Weight: 335g
  16. Power: 6V DC 1.5AA*4(Not included)
  17. Display: LED Indicators

Receiver:

  1. Item Name: FS-A6
  2. No. of Channels: 6
  3. Model Type: Fixed-Wing/Glider/ Helicopter
  4. RF Range: 2.4055-2.475GHz
  5. RF Channel: 140
  6. RF Receiver Sensitivity: -105dBm
  7. Bandwidth: 500KHz
  8. 2.4GHz System: AFHDS 2A
  9. Modulation Type: GFSK
  10. Power: 4.0-6.5V DC
  11. Antenna Length: 26mm

Package Includes:

1× FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter.
1× FS-A6 Receiver.
1× User Manual.
