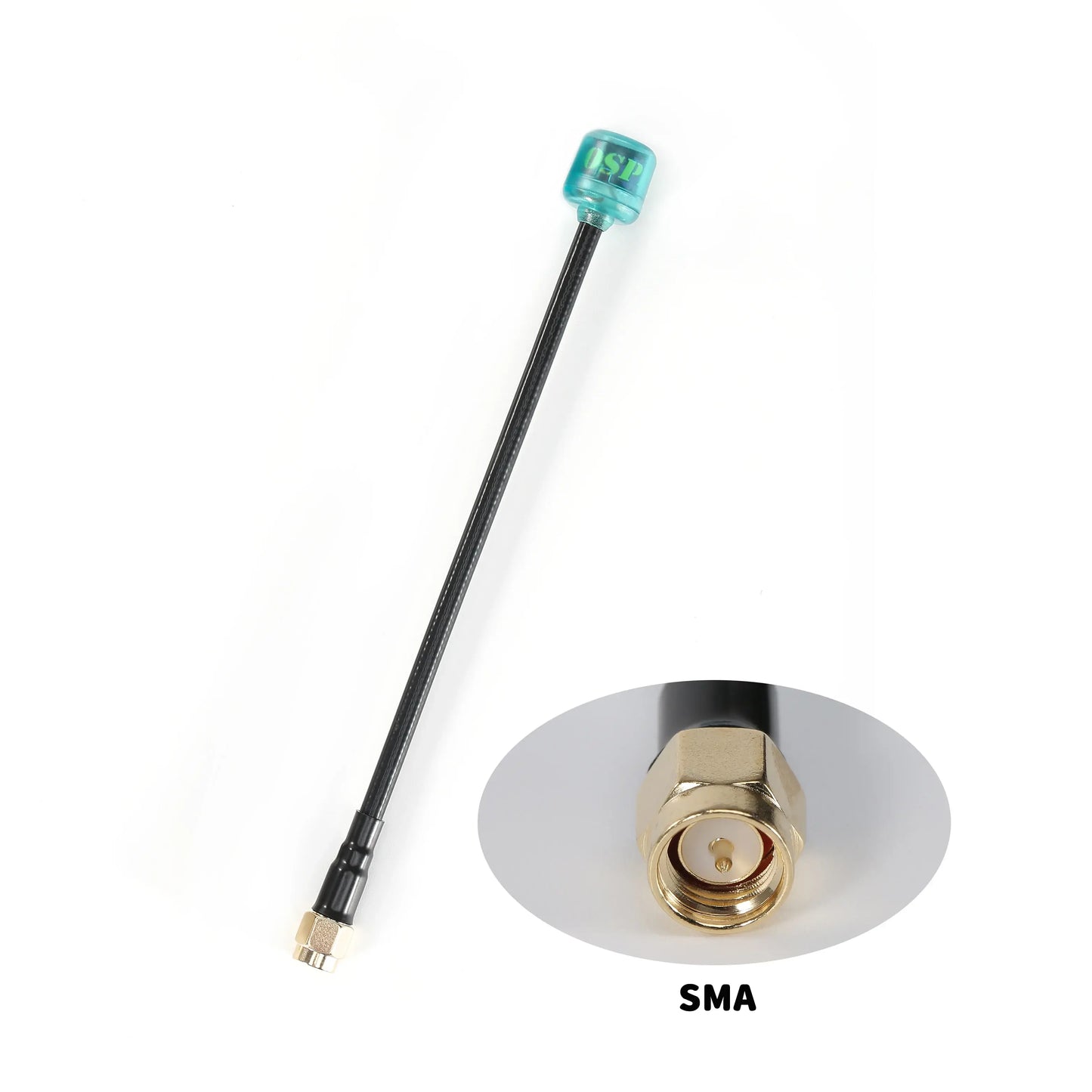

With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it’s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
Specifications：
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: ≤1.2:1
Radiation Efficiency: 99%
Polarization: RHCP
Connector: Gold plated SMA
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 150mm
Cable: Resilient RG141 coax.
Colors: Cyan
Weight:11.29g
Packages Includes:
1× FlyFishRC Osprey 5.8Ghz RHCP – SMA Antenna 150mm (Cyan)
| Specification | Details |
|---|---|
| Product Name | FlyFishRC Osprey 5.8GHz RHCP Antenna |
| Frequency | 5.8GHz |
| Polarization | RHCP (Right-Hand Circular Polarization) |
| Connector | SMA |
| Length | 150mm |
| Color | Cyan |
| Gain | 2.5dBi |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 ohms |
| Application | FPV (First-Person View) for drones |
| Weight | 12g |
| Material | Durable plastic and copper |
