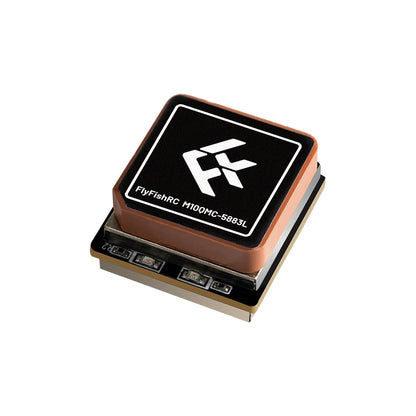

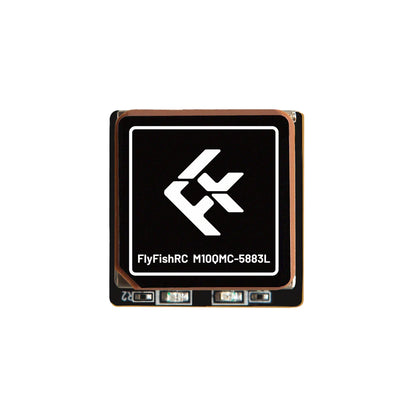

The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing.Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.
Specs:
GPS module: FlyFishRC M10QMC-5883L GPS Module
Frequencies: 72 channel
Refresh Rate: 10 Hz
Compass module: QMC5883L
Baud Rate：4800bps-115200bps (Default – 9600bps)
Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Cold start: <24s
Hot start: <2s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Input Voltage: 3.3V-5V，current 25mA
Output Connector: SH1.0-6P
Weight: 8.8g

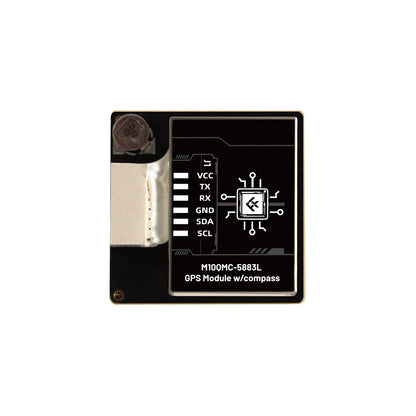

GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GPS patch antenna size: 18 x 18 mm

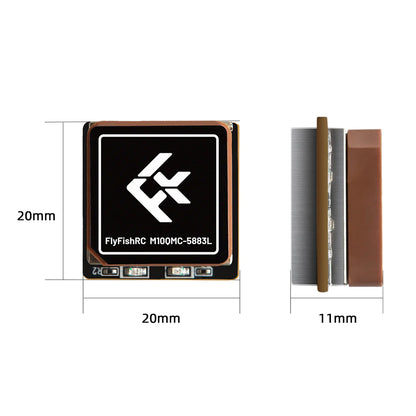

Total dimensions：20 x 20 x 11 mm
Features:
-72 channel 10 Hz Refresh rate
-Built-in TCXO crystal and farad capacitor for faster hot start
-High sensitivity 18x18mm GPS patch antenna
-SH1.0-6Pin terminal design, no soldering required.
-QMC5883L Magnetometer chip， Precise pointing
Package Includes:
1× FlyFishRC M10QMC GPS Module
1× SH1.0-6Pin Cable
1× SH1.0 Connector
1× GPS Manual
Manual Detail Click
