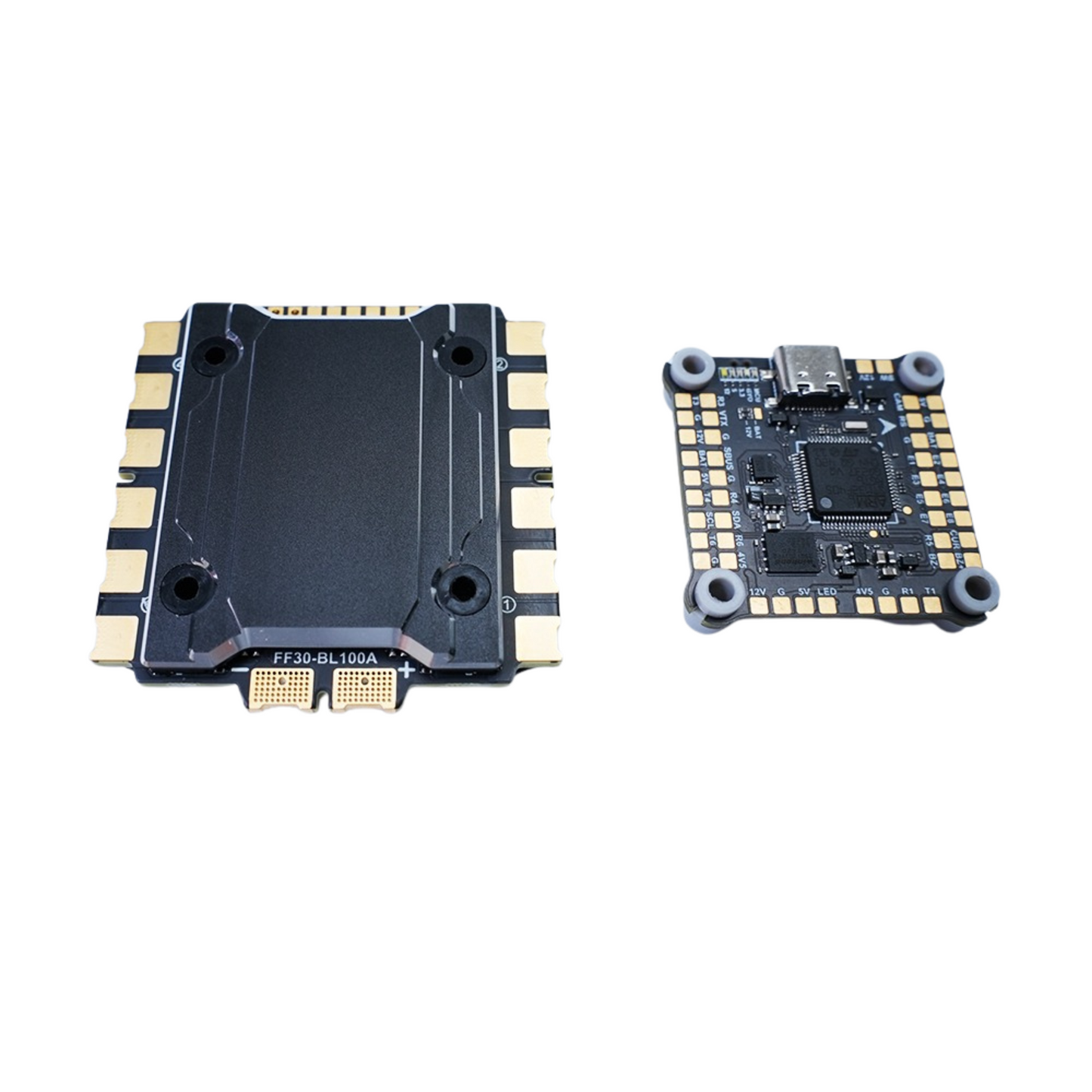

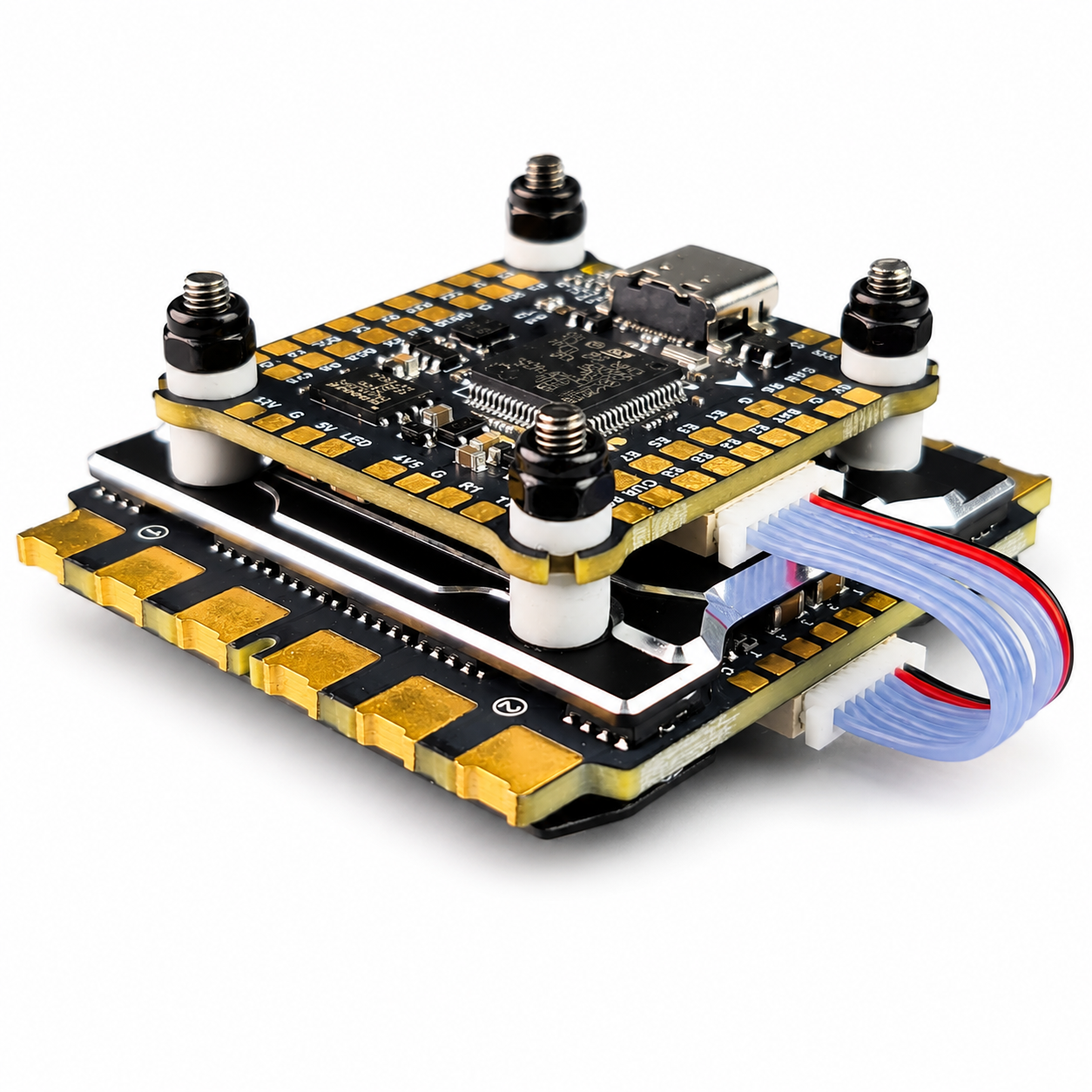

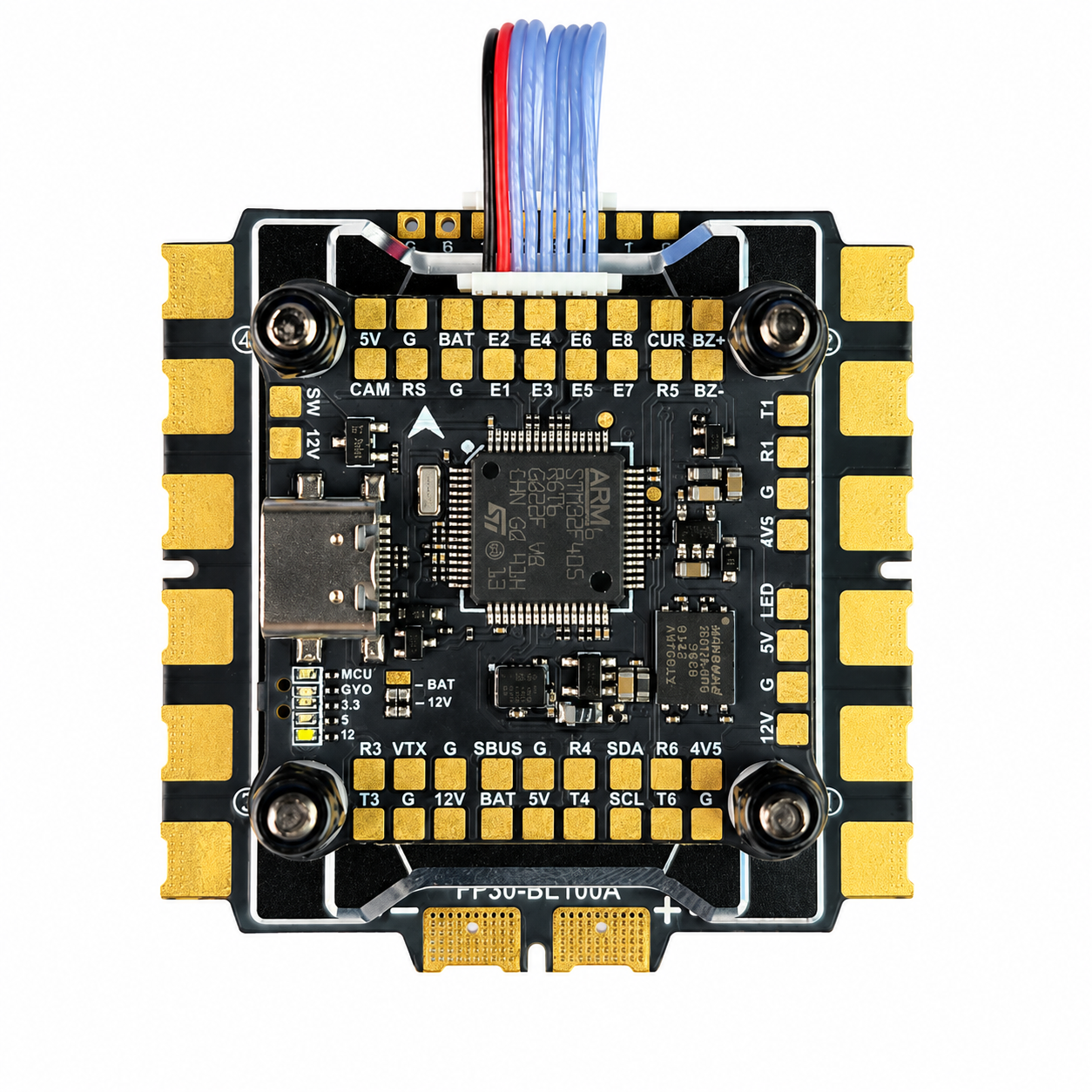

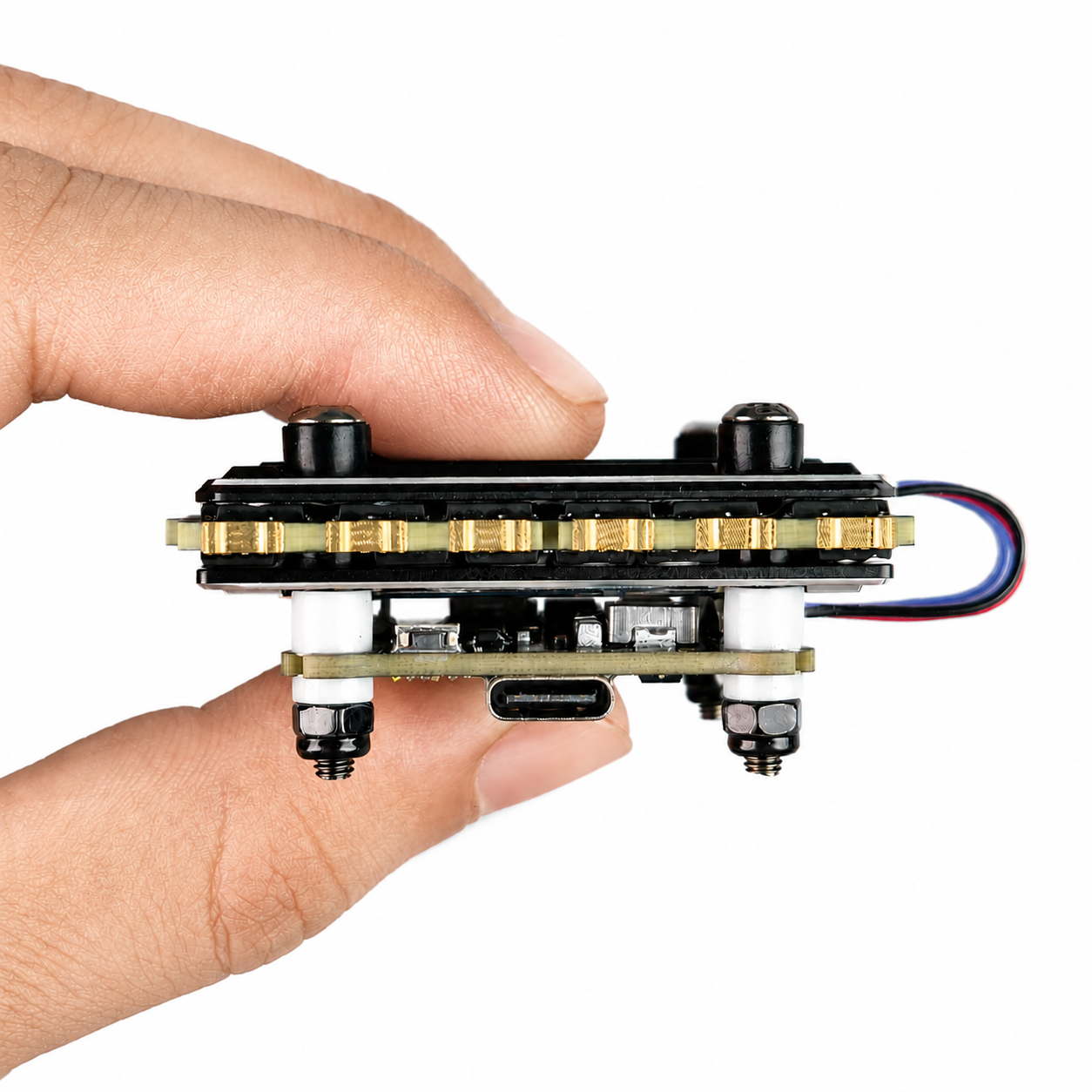

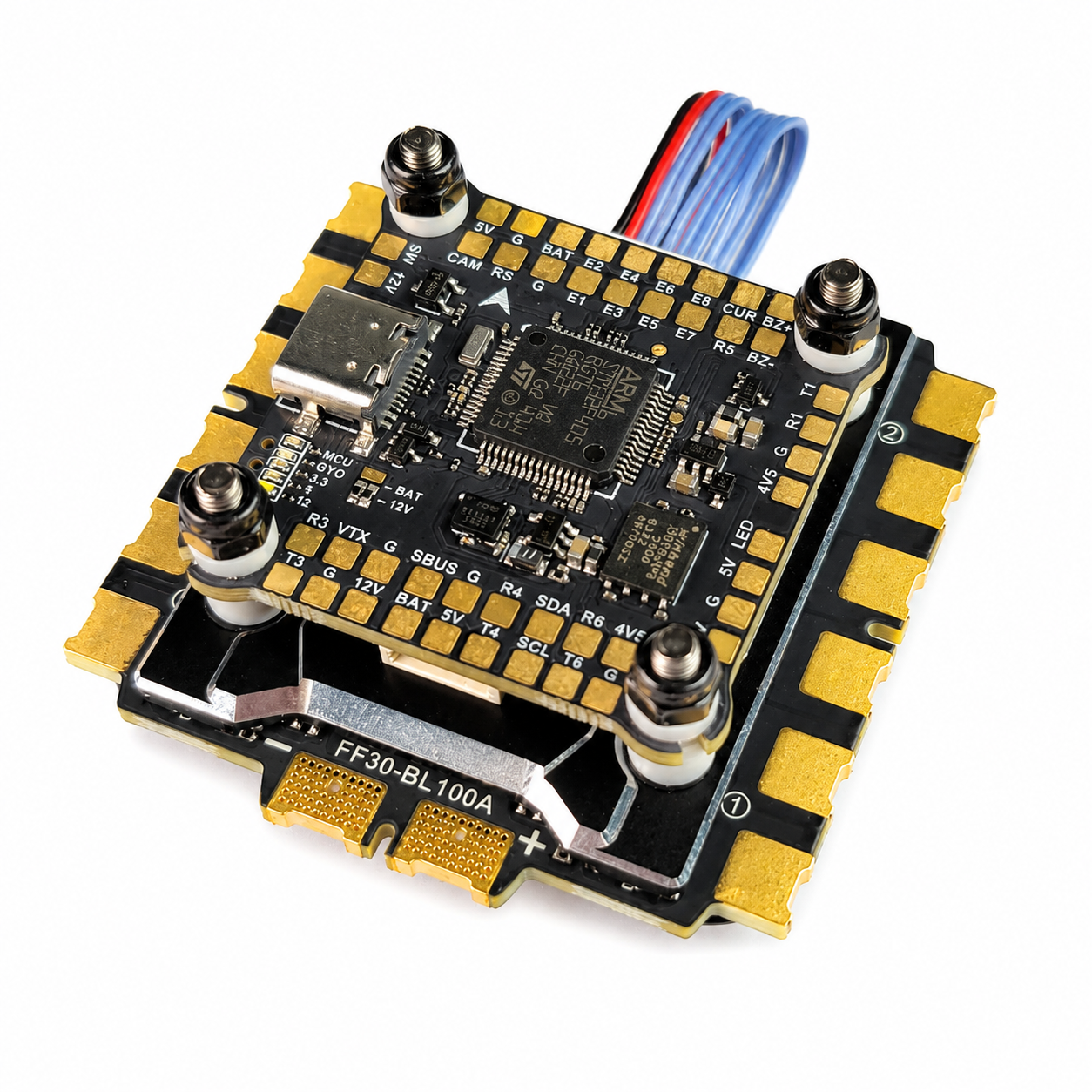

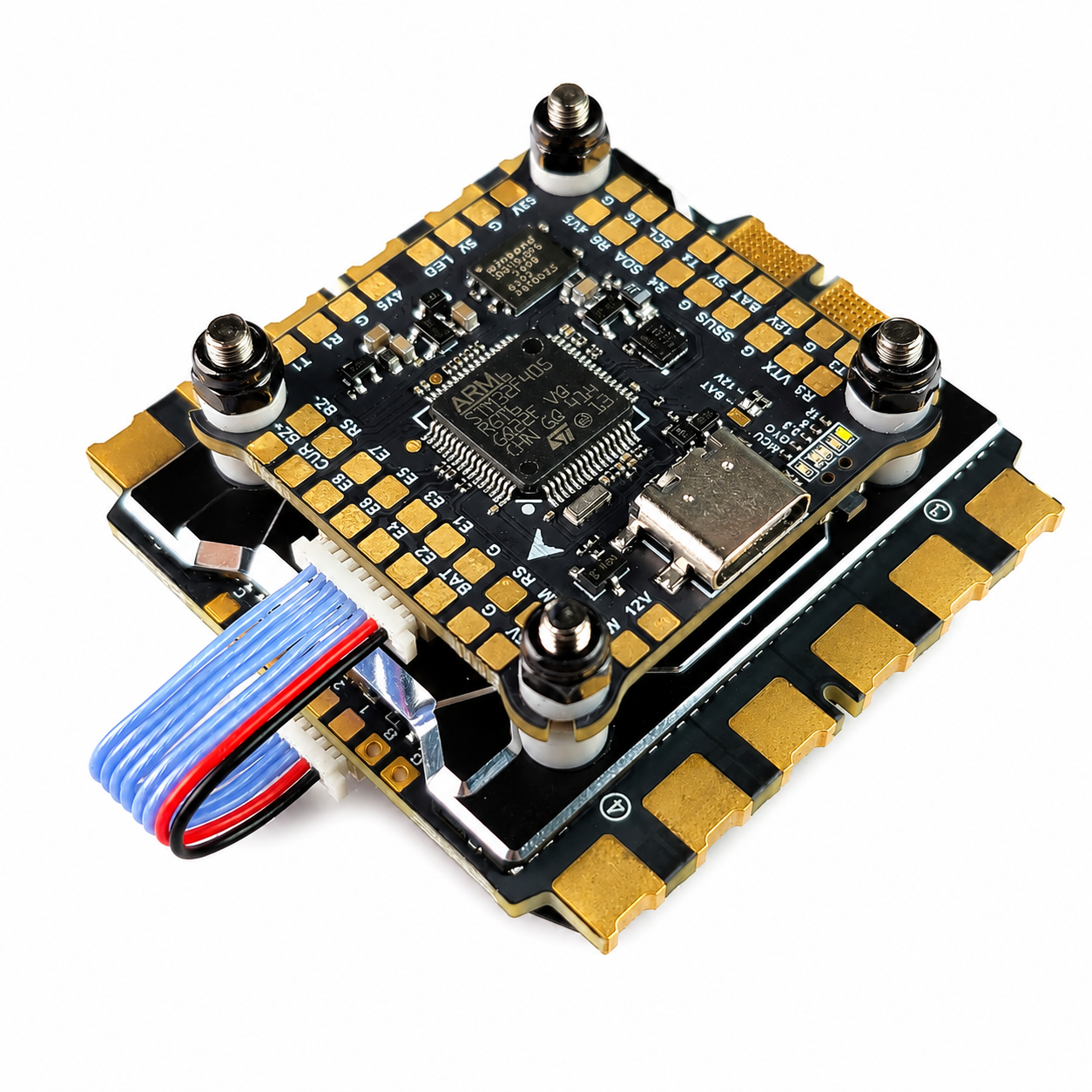

FlyfishRC F405 + 100A FC & ESC Stack – Power Meets Precision!
Unleash the Beast in Your Build! Whether you're into freestyle bashing or high-speed racing, the FlyfishRC F405 + 100A Stack is built to dominate the skies. Engineered with precision, raw power, and next-gen features – this is the ultimate combo your drone deserves!

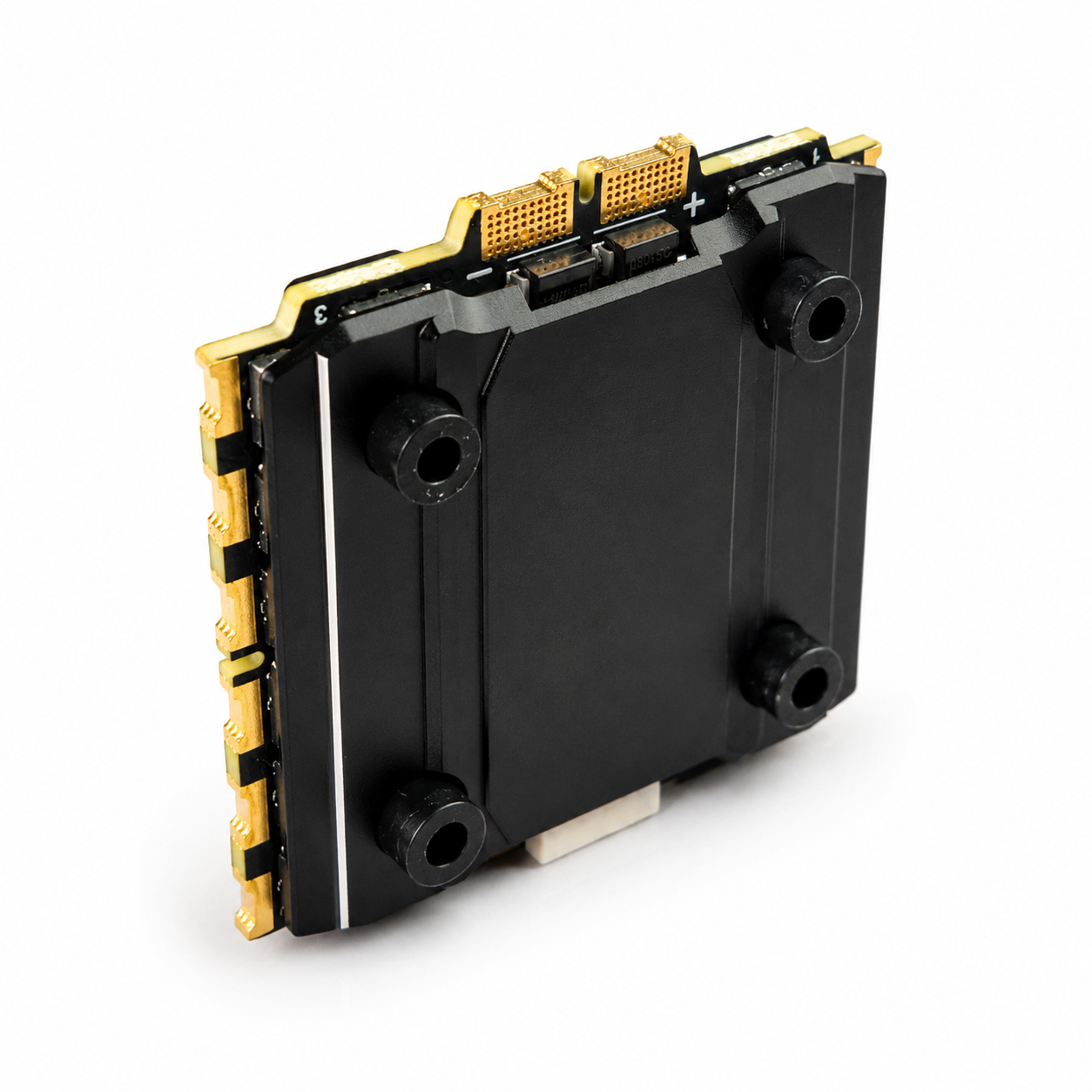

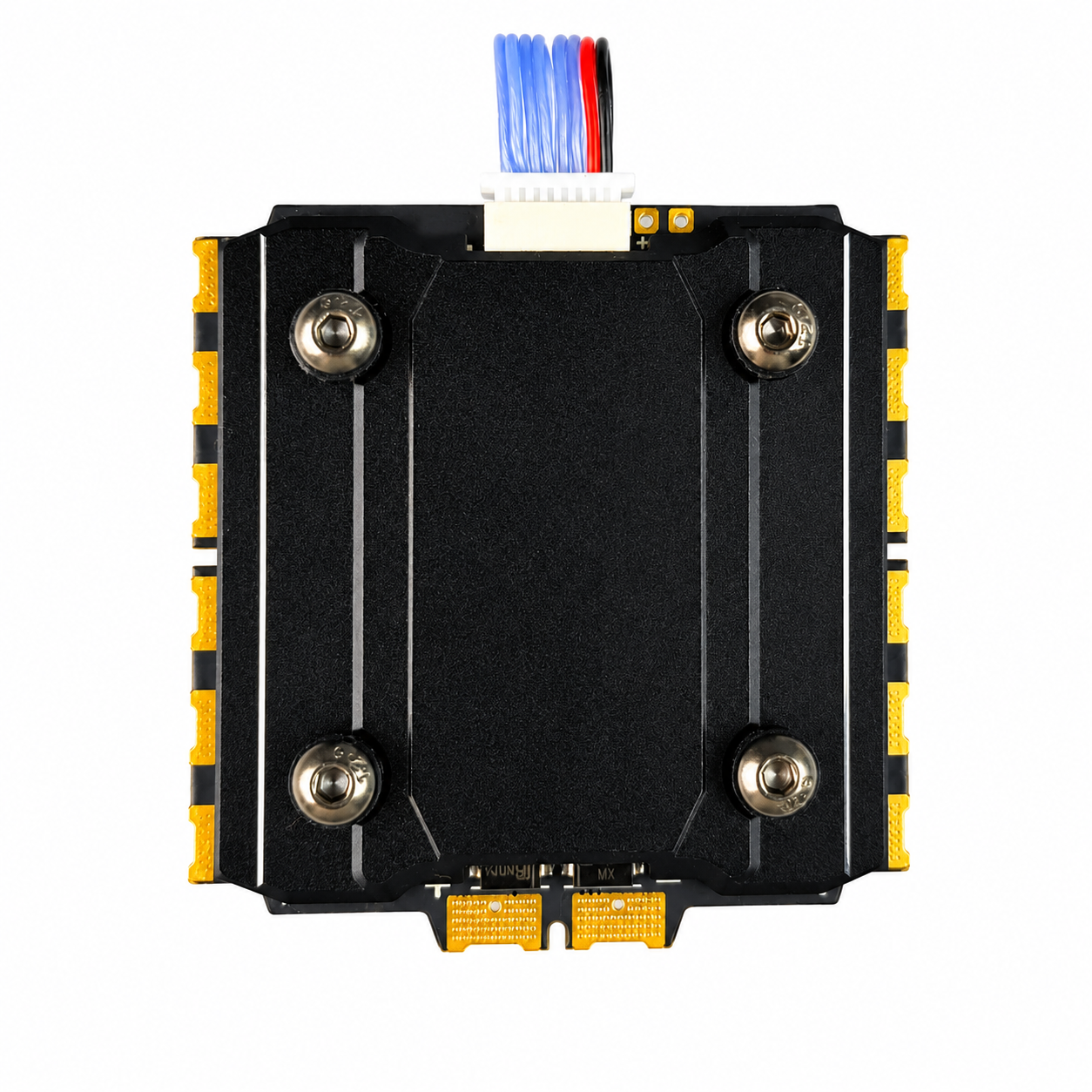

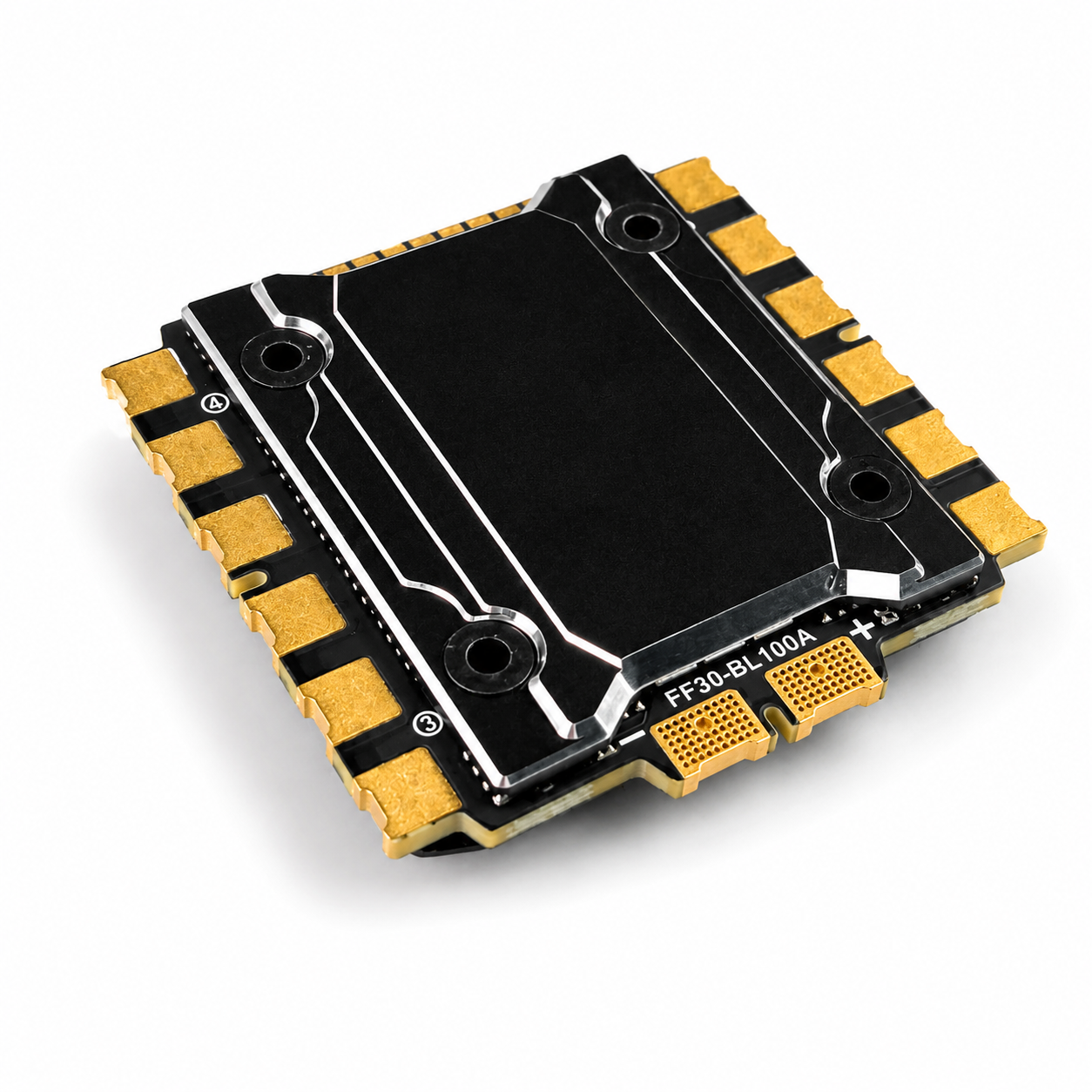

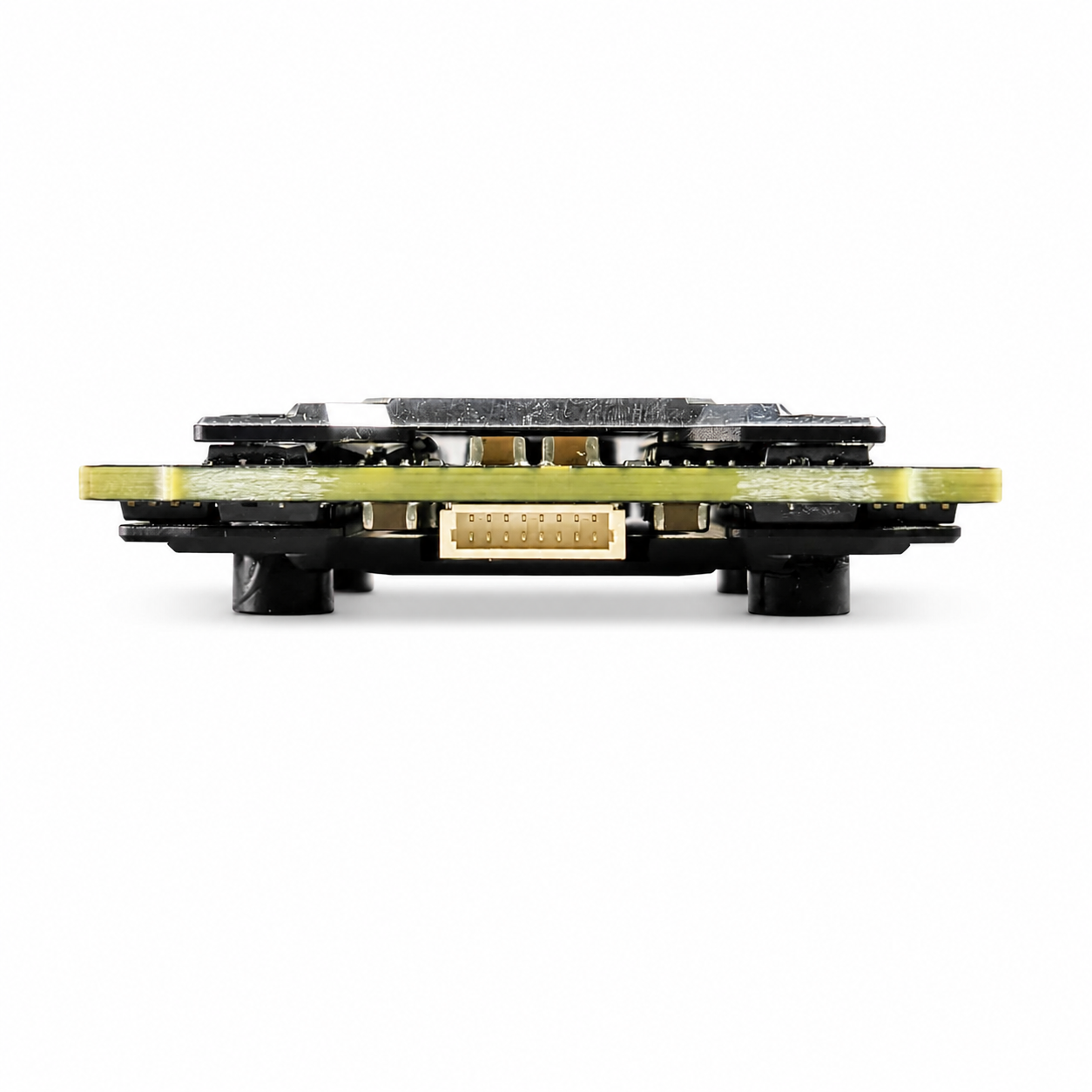

ESC: FlyfishRC 100A 4-in-1 Monster
- Input Voltage: 7-36V (2S to 8S Lipo)
- Output Current: 100A Continuous, 110A Peak
- MCU: EFM8BB21
- MOSFET: G009N04 – High Efficiency & Low Heat
- Protocol Support: DShot150 / 300 / 600 / PWM
- Mounting: 30.5×30.5mm / M3
- Weight: Just 9.6g
Whether you're running powerful motors or hungry builds – this ESC handles it all with cool confidence and zero throttle delay.

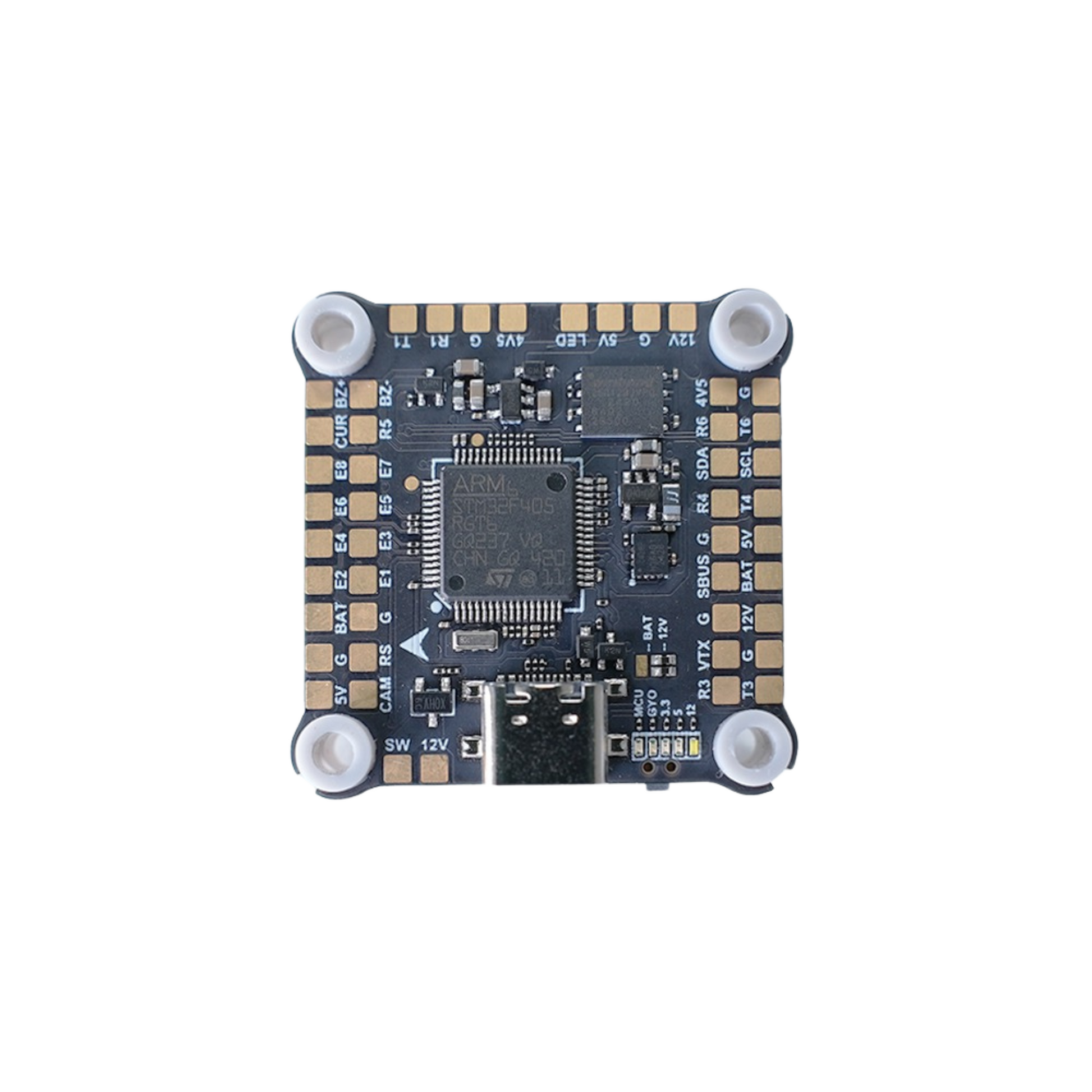

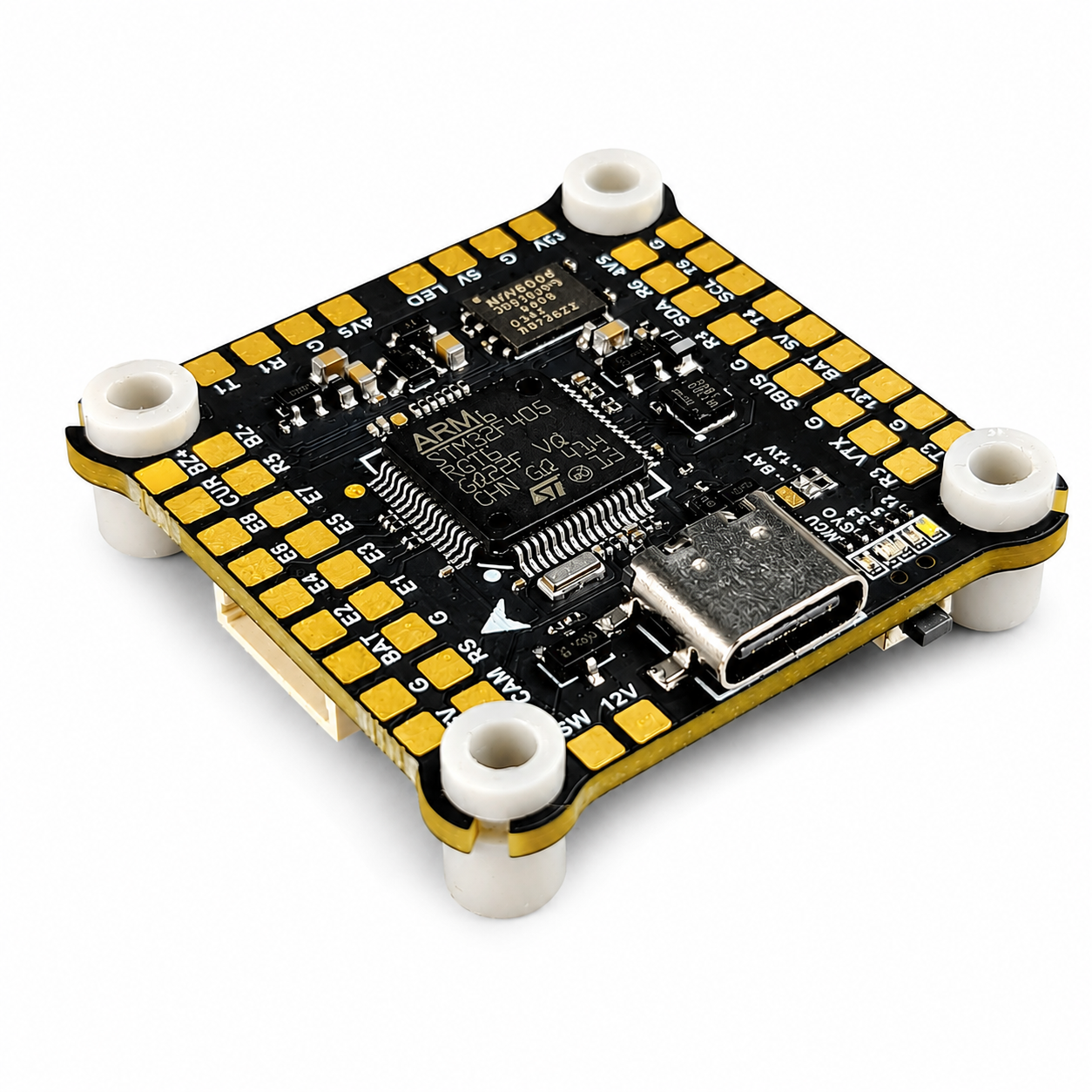

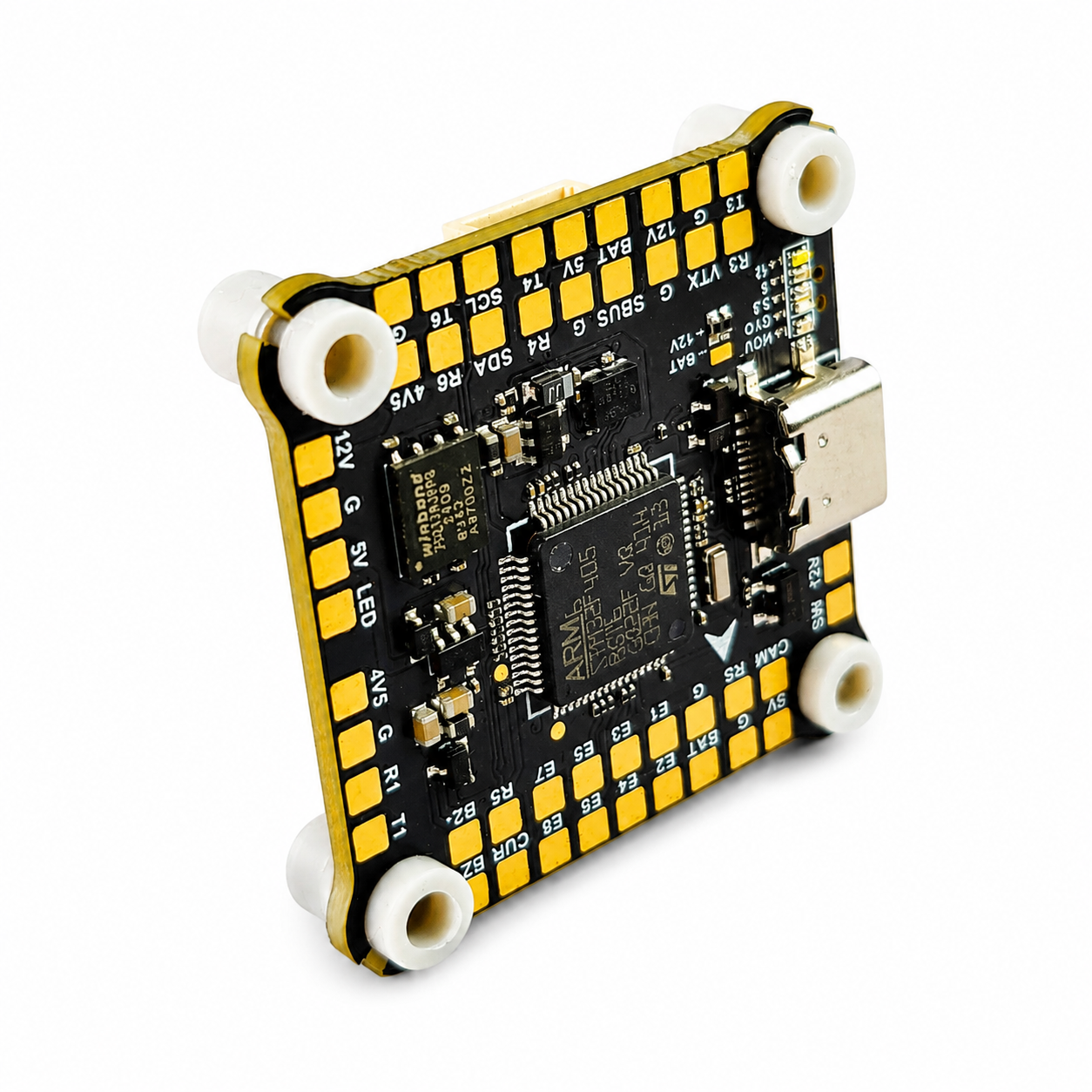

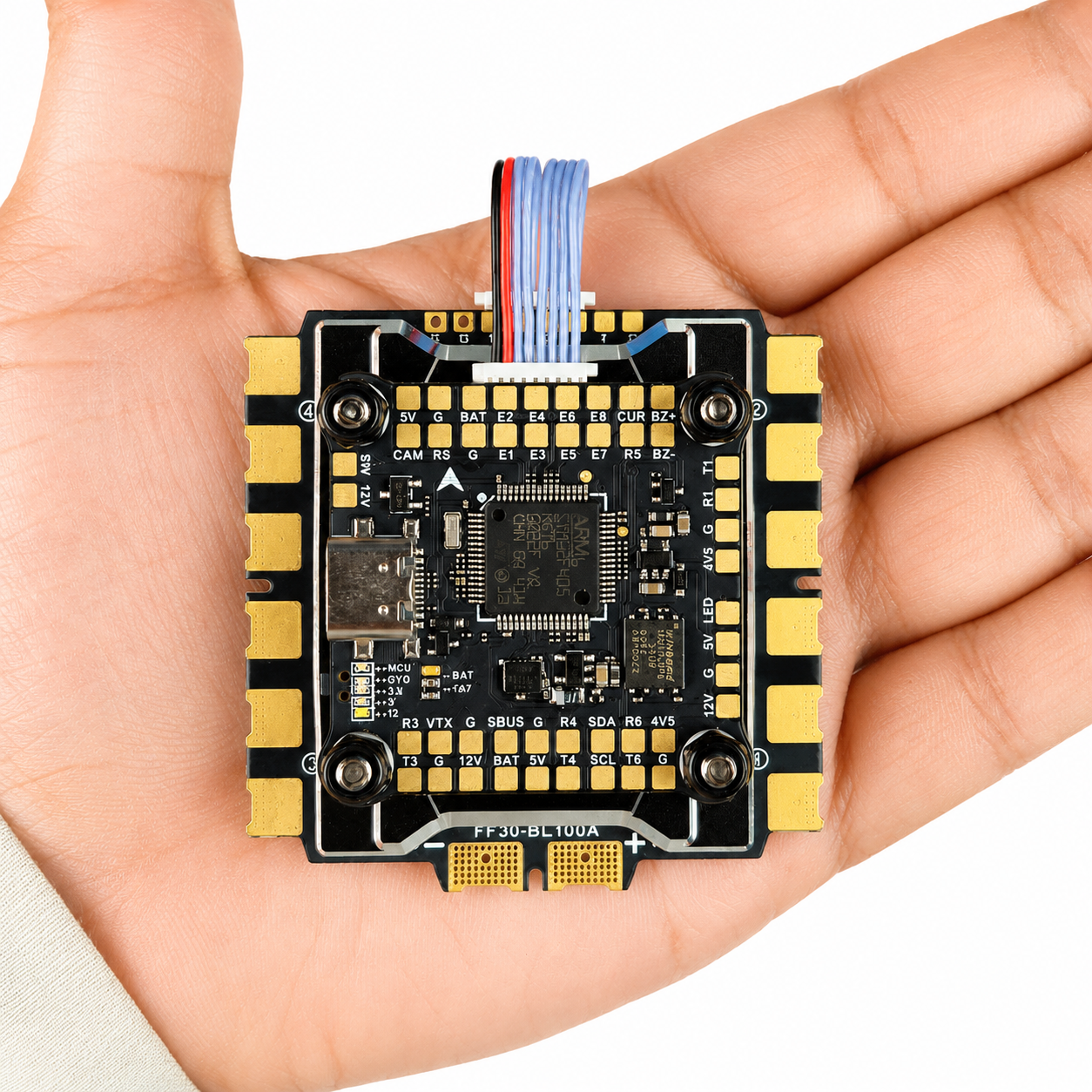

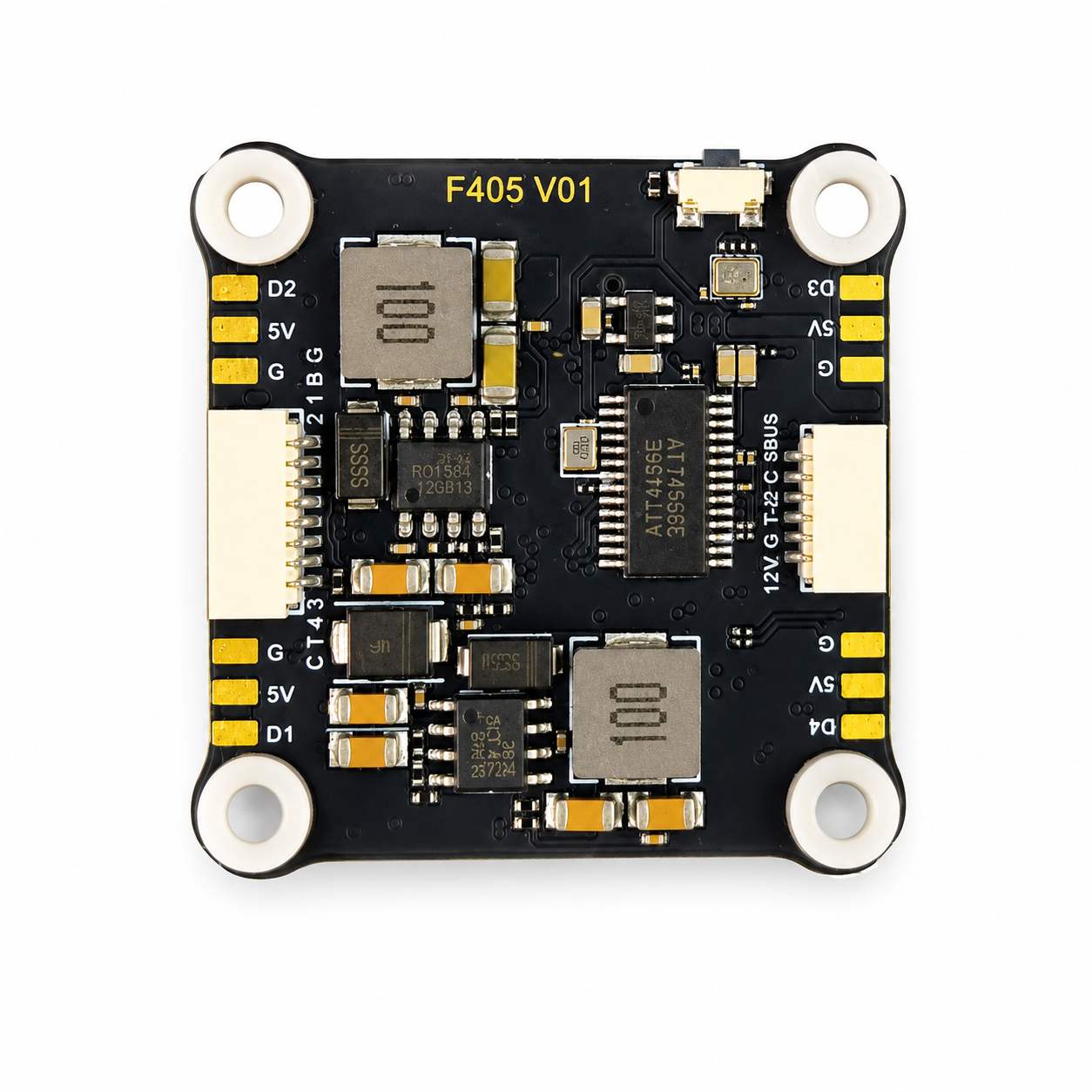

FC: FlyfishRC F4 Flight Controller – Brain of the Beast
- Processor (MCU): STM32F405RGT6 @ 168MHz
- Gyro: ICM42688 – Ultra Low Noise
- OSD: AT7456E – Full Betaflight OSD support
- Blackbox: 16MB Flash – Save those juicy flight logs
- Receiver Support: CRSF / SBUS / IBUS / DSM
- Uarts: 6 Ports (USB uses UART2)
- Input Voltage: 2-8S Lipo (7.4V - 33.6V)
- BEC 1: 5V/3A | BEC 2: 12V/3A
- Buzzer / LED / CURR / I2C Pads: Yes – Ready for everything
- DJI O3 / O4 Air Unit Plug & Play: YES
- TVS Protection: Built-in
- Mounting: 30.5×30.5mm / M3
- Weight: 9.6g
- Firmware: Betaflight Supported
Why Choose the FlyfishRC Stack?
- Extreme Power Handling (Up to 100A!)
- 8S Ready – More Voltage = More Thrust
- Premium Components – Built for Hardcore Use
- DJI FPV System Compatible
- Lightweight Yet Rugged
- Ideal for Freestyle, Cinematic & Racing Builds

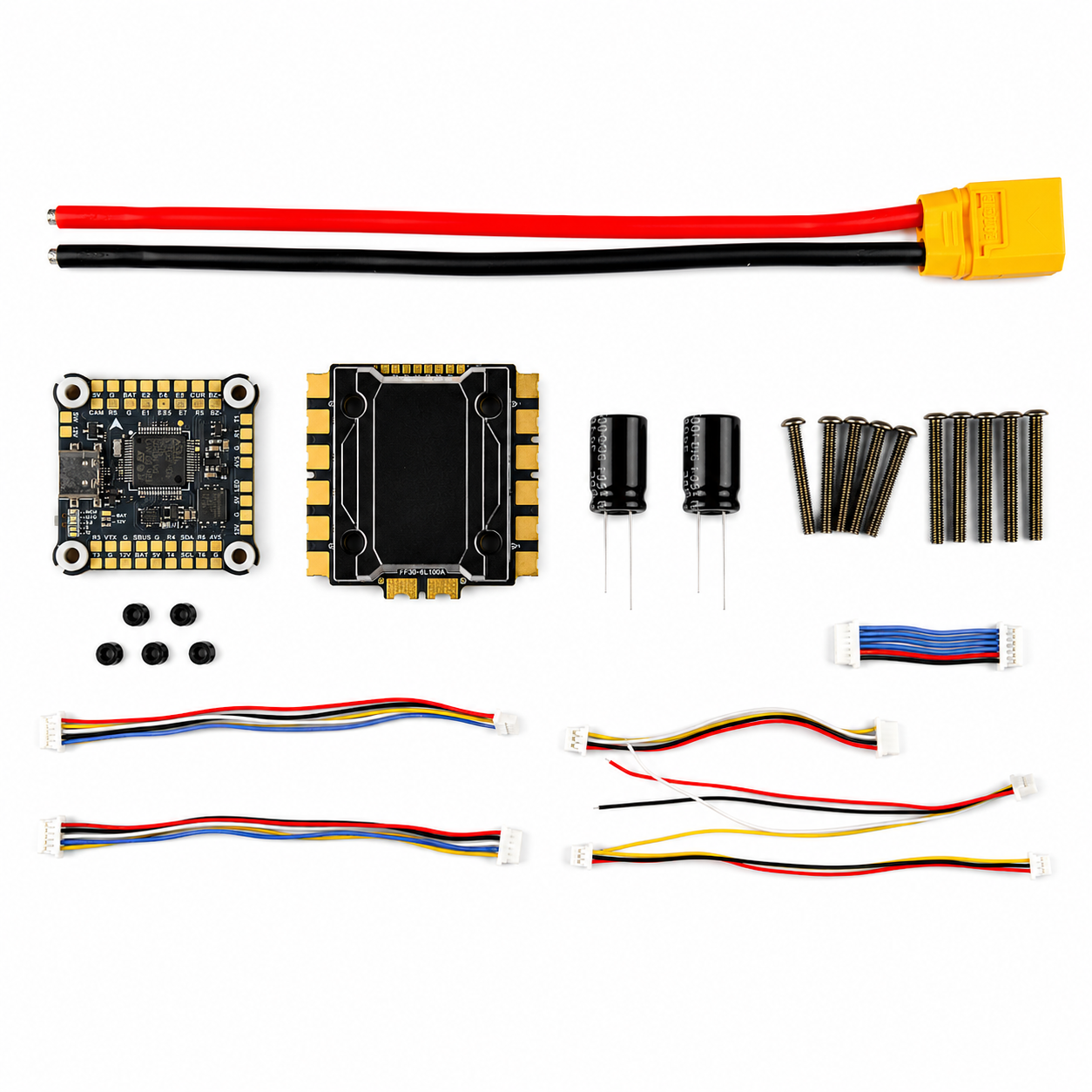

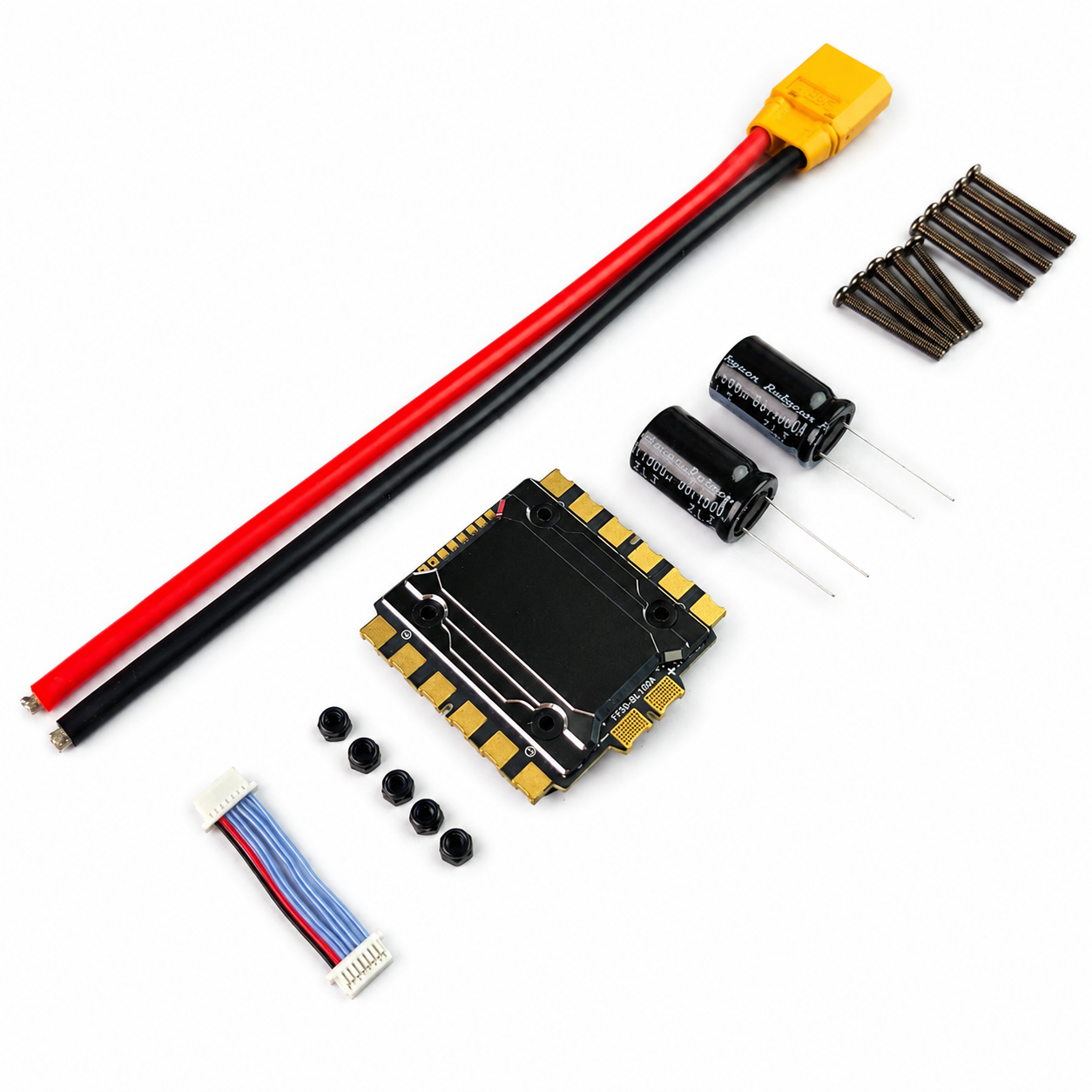

Package Includes:
1× 100A ESC
1× F405 FC
2× Capacitor
3× Some Cables
4× Screws & Nuts
1× XT90 Connector with Wire
