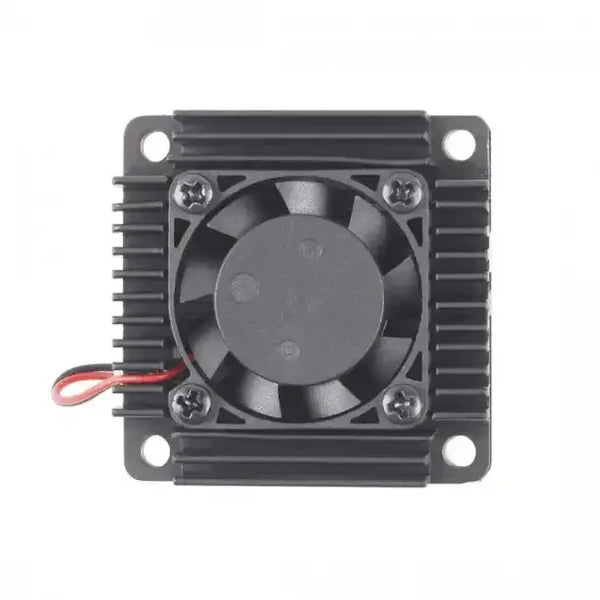

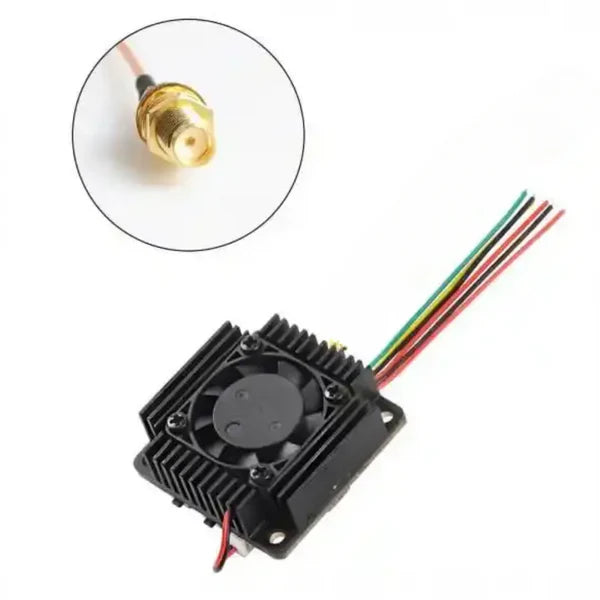

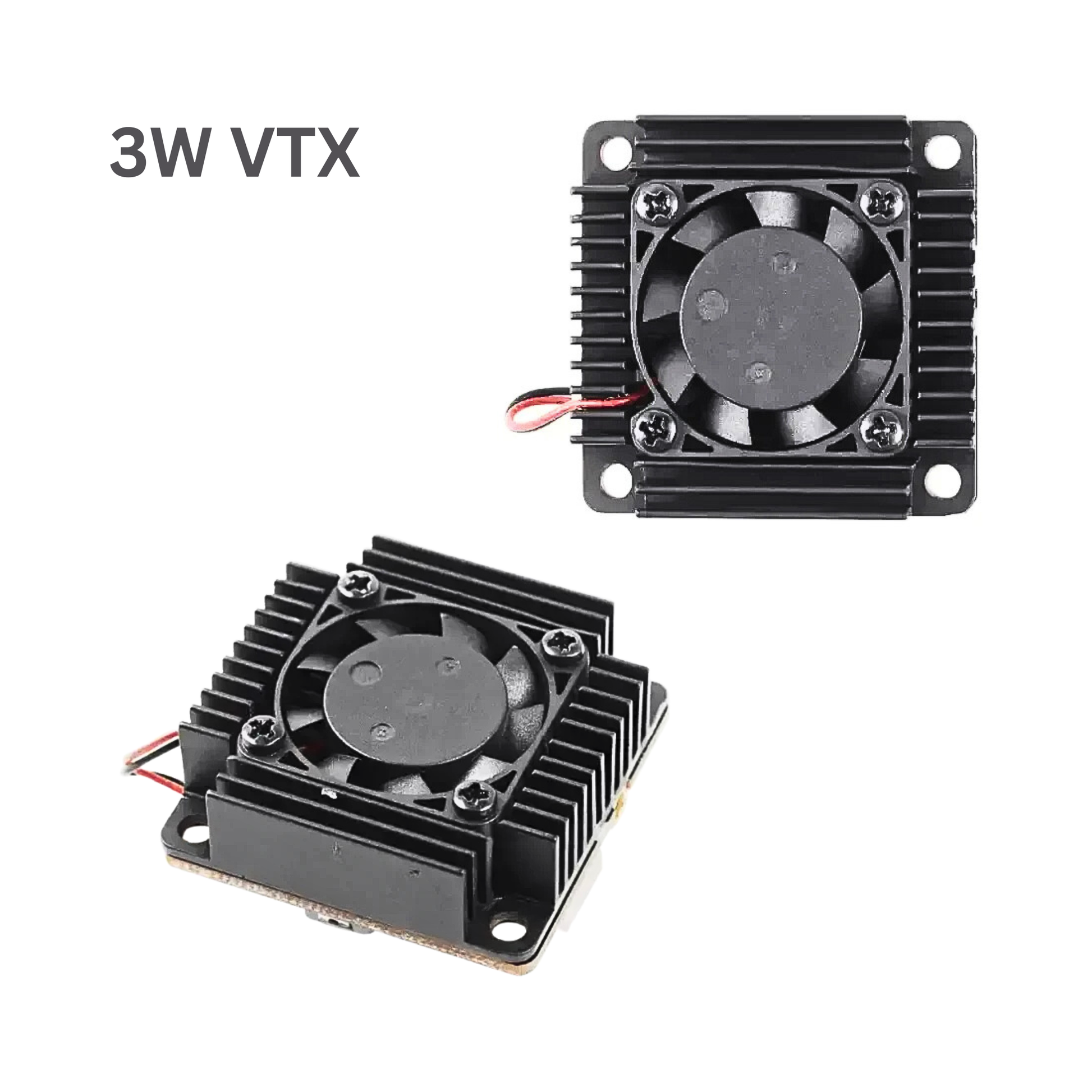

Fast Transmission Long Range 5.8G 3W VTX – Ultimate Power for FPV
Take your FPV setup to the next level with the 5.8G 3W Video Transmitter, engineered for high-performance long-range transmission and maximum reliability in extreme flight conditions.
Key Features:
- Ultra High Output Power – Switchable between 25 / 200 / 500 / 1000 / 2000 / 3000mW for unmatched flexibility and range
- Smart Audio Support – Fully configurable via OSD using Smart Audio for effortless control
- Built-in Cooling Fan – Actively cooled for stable, extended use even at max power
- Wide Input Voltage – Operates reliably from 14.6V to 28V with 5V Camera Output Support
- One-Button Setup – Easily change Channel, Band, and Power with intuitive button control
- Pit Mode Ready – Safe for race events and indoor testing without signal interference
- Slow Power-On Protection – Built-in 5-second delay to prevent damage from power surges
- Compact & Lightweight – Only 25g with a 36×36mm footprint, compatible with most drone frames
Tech Specs:
- Output Power: 25 / 200 / 500 / 1000 / 2000 / 3000 mW
- Input Voltage: 14.6V – 28V
- Camera Output: 5V @ <500mA
- Audio: Smart Audio Supported
- Cooling: Integrated high-speed fan
- Connector Type: SMA (Antenna), JST 6-Pin (Cable)
- Dimensions: 36mm × 36mm (30.5×30.5mm mounting holes)
- Weight: 25g (excluding antenna)
Package Includes:
- 1× 5.8G 3W VTX
- 1× Cable
