The F450 Quadcopter Frame typically includes top and bottom plates as essential components. This frame is part of DJI’s Flame Wheel series and is widely used for building quadcopters and other multirotor drones. Here’s a description of the top and bottom plates of the F450 frame and their key features:
Description: The top and bottom plates of the F450 Quadcopter Frame are structural components that form the core of the frame structure. These plates are designed to provide a rigid and stable platform for mounting various drone components, such as motors, electronic speed controllers (ESCs), flight controllers, battery, and other accessories. The top plate is usually designed to hold the flight controller and other peripherals, while the bottom plate supports the motors and ESCs.
Features:
Material: The plates are typically made of lightweight yet durable materials, such as glass fiber or plastic, to provide a good balance between strength and weight.
Precise Cutouts and Mounting Holes: Both the top and bottom plates feature precise cutouts and mounting holes for securing components like motors, ESCs, and landing gear. These cutouts and holes are strategically placed to facilitate easy installation.
Modular Design: The frame often has a modular design, allowing users to easily customize and configure their drone setup based on their specific needs. The modular nature simplifies component replacement and maintenance.
Integrated Power Distribution: Some frames may include an integrated power distribution board (PDB) on the bottom plate, simplifying the wiring and distribution of power to the motors and other components.
Wire Routing Channels: The plates may have channels or routes for neatly organizing and securing wires and cables, which helps reduce clutter and interference.
Stability: The plates are designed to provide a stable and balanced platform for the quadcopter’s components, ensuring smooth and controlled flight.
Lightweight: The materials used for these plates are chosen to keep the frame’s overall weight low, which is essential for achieving optimal flight performance and flight time.
Compatibility: The F450 frame is specifically designed to be compatible with various accessories and add-ons, such as camera gimbals, landing gear, and GPS modules.
Assembly: Assembling the frame is generally straightforward and typically doesn’t require advanced technical skills. The plates are designed for easy attachment and disassembly.
Expandability: The F450 frame can often be expanded to include additional features or components as needed, making it a versatile platform for both beginners and experienced drone enthusiasts.
Aesthetics: Some users appreciate the sleek and clean design of the F450 frame, which contributes to a professional and finished look for their quadcopters.
When using the F450 frame or similar frames, it’s essential to follow the manufacturer’s instructions and guidelines for proper assembly and configuration. Additionally, consider the payload capacity, flight characteristics, and overall design goals when selecting components and accessories to complete your quadcopter build.
Package Included:

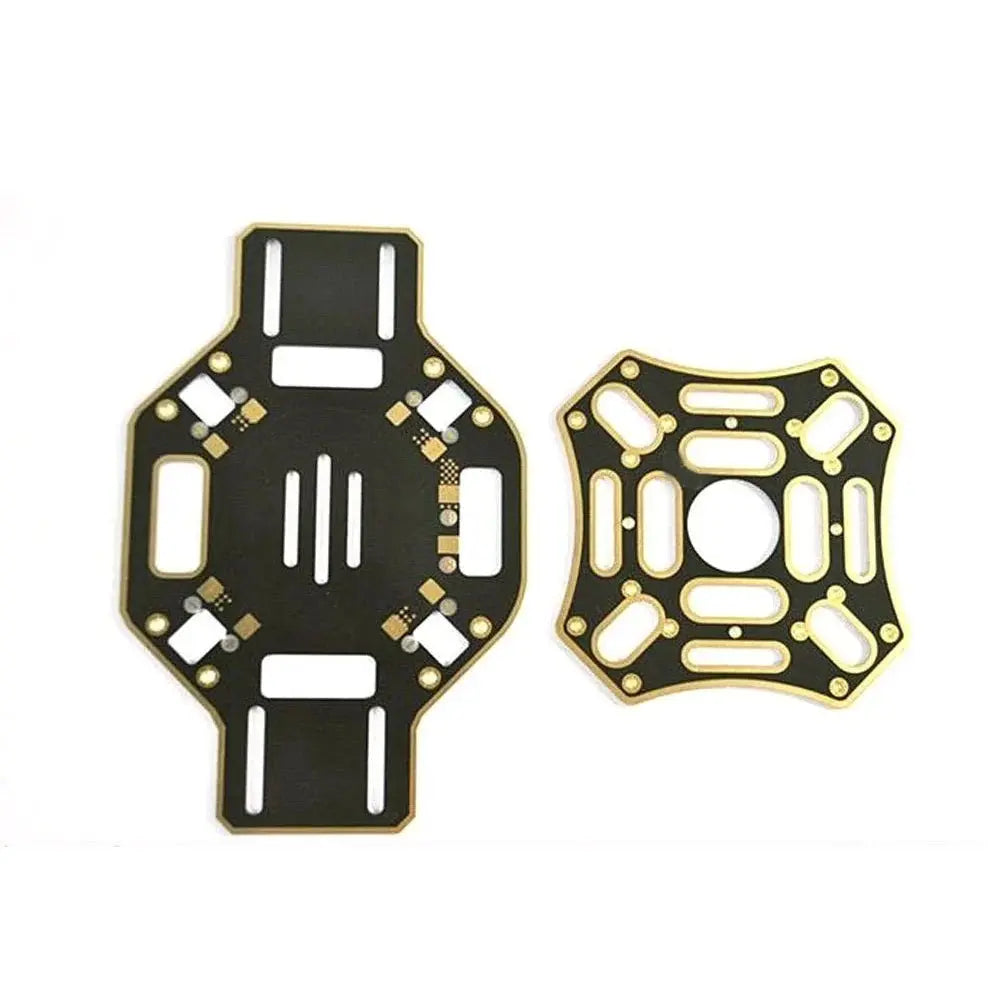

1× F450 Quadcopter Frame PCB Top Board.
1× F450 Quadcopter Frame PCB Bottom Board.
NOTE : Product Images are shown for illustrative purposes only and may differ from actual product.
