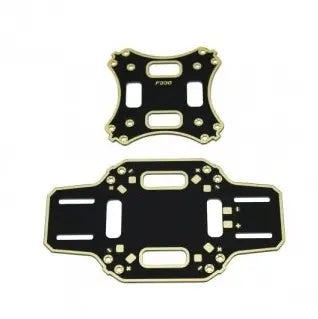

F330 Quadcopter frame Top & Bottom plates.

The F330 Quadcopter Frame typically consists of top and bottom plates, which form the main structure of the frame. These plates are designed to provide support and mounting points for various components of a quadcopter build. Here is a description of the top and bottom plates of an F330 Quadcopter Frame along with their features:

Description:

The top and bottom plates of an F330 Quadcopter Frame are key components that make up the main structure of the frame. These plates are typically made of lightweight materials like carbon fiber or glass fiber, which offer a balance of strength and weight savings. They are designed to provide a rigid and stable platform for mounting motors, electronics, and other components necessary for quadcopter operation.

Features:

Material: The plates are often made of carbon fiber or glass fiber, which are known for their strength-to-weight ratio. These materials provide durability while keeping the frame relatively lightweight.

Size: The plates are designed to fit within a specific motor-to-motor distance, which defines the frame’s size. In the case of an F330 frame, the plates are sized for a 330mm motor-to-motor distance.

Motor Mounting: The bottom plate typically features four motor mounting holes, one at each corner, allowing for the secure attachment of brushless motors. These holes are usually spaced to accommodate common motor sizes.

Propeller Size: The frame is designed to accommodate propellers in a specific size range, such as 8 to 9 inches, depending on the intended use and flight characteristics.

Mounting Points: Both the top and bottom plates include various mounting points and holes for attaching components such as the flight controller, electronic speed controllers (ESCs), power distribution boards, and additional accessories.

Stacking Space: The plates are often designed with ample space between them to allow for the stacking of electronic components. This stacking space ensures a clean and organized build.

Camera Mount: Some frames have provisions for mounting cameras, including FPV (First-Person View) cameras or action cameras. These mounts are typically located on the top plate and may be adjustable to achieve the desired camera angle.

Battery Mount: The bottom plate usually includes a battery mount or strap to securely hold the LiPo battery in place during flight.

Modularity: F330 Quadcopter Frames are designed with modularity in mind, allowing users to easily replace damaged plates or customize the frame according to their preferences.

Durability: The plates are constructed to withstand impacts and crashes, ensuring the frame’s longevity during flight.

Weight Distribution: The frame is designed to distribute the weight of components evenly across the plates, optimizing flight performance and stability.

Customization: Users can often choose from different frame colors or styles to personalize the aesthetics of their quadcopter.

The top and bottom plates of an F330 Quadcopter Frame play a crucial role in providing the structure and mounting points for the drone’s components. These plates, along with the other frame components, contribute to the overall performance and durability of the quadcopter. They allow for flexibility in component placement and customization, making them essential for building a functional and reliable quadcopter.

Package Includes :

1× F330 Quadcopter frame Top & Bottom plates
