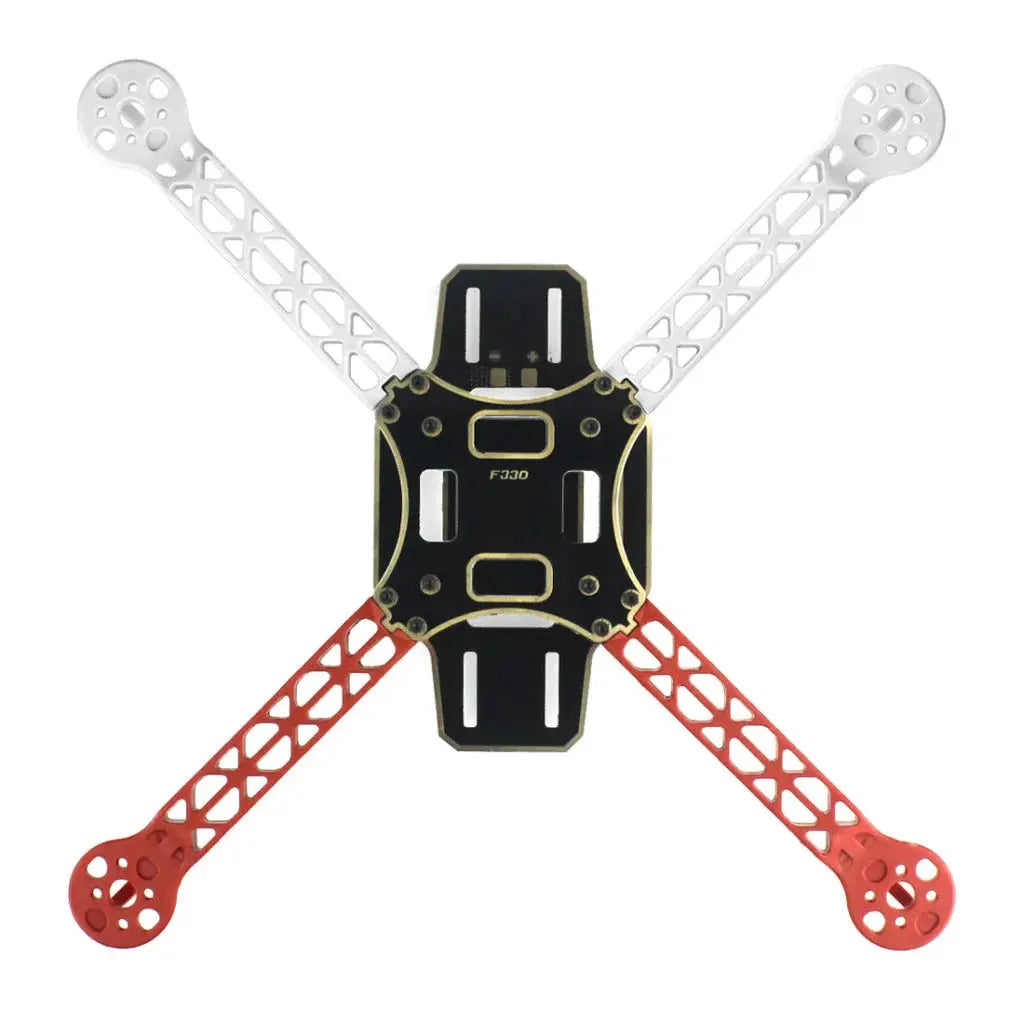

F330 Quadcopter Drone Frame With Integrated PCB.

The F330 Quadcopter Drone Frame with Integrated PCB is a versatile and popular quadcopter frame designed for building small to medium-sized drones. This frame features an integrated printed circuit board (PCB) that simplifies the wiring and electronics setup, making it an excellent choice for both beginners and experienced drone builders. Below is a description of the F330 Quadcopter Drone Frame with Integrated PCB and its key features:

Description:
The F330 Quadcopter Drone Frame with Integrated PCB is designed to provide a stable and robust platform for quadcopter builds. It is a versatile frame that can be used for various applications, including aerial photography, FPV racing, and drone experimentation. The integrated PCB simplifies the wiring and electronic connections, reducing the complexity of the build process.

Features:

Integrated PCB: The most distinctive feature of this frame is its integrated PCB. This PCB typically includes power distribution, solder pads for ESCs (Electronic Speed Controllers), and often a voltage regulator for stable power output to various components.

Compact Size: The F330 frame is designed for 330mm motor-to-motor distance, which is considered a compact and manageable size for quadcopters. This size is well-suited for both indoor and outdoor flying.

Lightweight Construction: The frame is usually constructed from lightweight materials like carbon fiber or glass fiber, which helps reduce the overall weight of the quadcopter for improved flight performance.

Motor Mounts: There are typically four motor mounts on the frame, one at each corner, to attach the brushless motors. These mounts should be compatible with common motor sizes, such as 2204 or 2206 motors.

Propeller Size: The frame is designed to accommodate 8 to 9-inch propellers, allowing for a balance of thrust and stability.

Camera Mount: The frame often includes provisions for mounting a camera, such as an action camera or FPV camera, depending on the intended use.

Battery Mount: There is typically a designated area or strap for securing the LiPo battery, ensuring it stays in place during flight.

Stack Mounting: The integrated PCB and frame structure provide space for stacking electronic components, such as flight controllers, ESCs, and FPV equipment, for a clean and organized build.

Modular Design: F330 frames are designed with modularity in mind, allowing for easy replacement of damaged parts and customization of the drone’s configuration.

Durability: The frame is built to withstand crashes and impacts, thanks to the choice of durable materials.

Easy Assembly: The integrated PCB simplifies the assembly process, making it accessible for both beginners and experienced builders.

Compatibility: Ensure that the frame is compatible with the specific components you plan to use, such as motors, flight controllers, and cameras.

Customization: Users can personalize their quadcopter’s aesthetics by choosing from different frame colors and adding additional accessories.

The F330 Quadcopter Drone Frame with Integrated PCB is a versatile and user-friendly option for building quadcopters with integrated power distribution and wiring convenience. It is suitable for a wide range of applications and can be an excellent choice for those looking to build their own drones with ease.

Package Included:
1×Top and Bottom with Integrated PCB.
2× F330 arms Red
2× F330 arms White1x set of Screws for Frame and Motor

Specification:-
