Hi Tech xyz

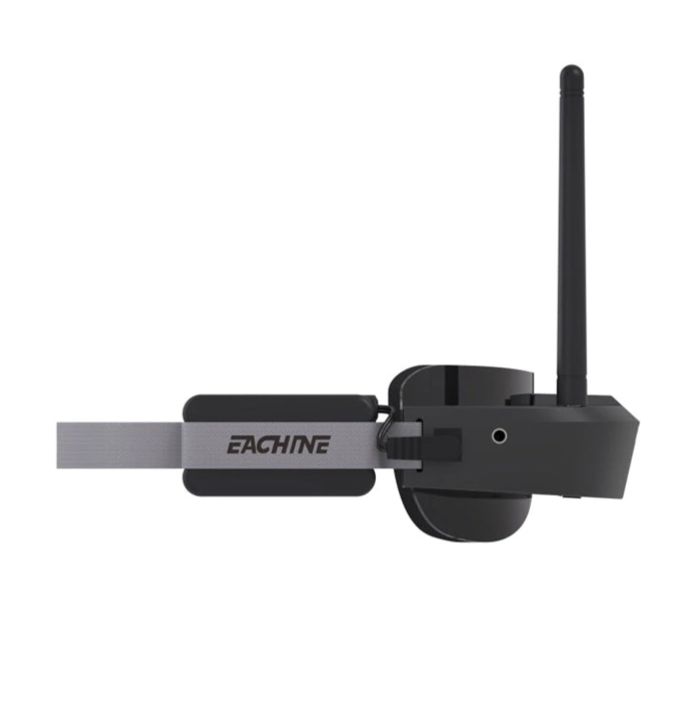

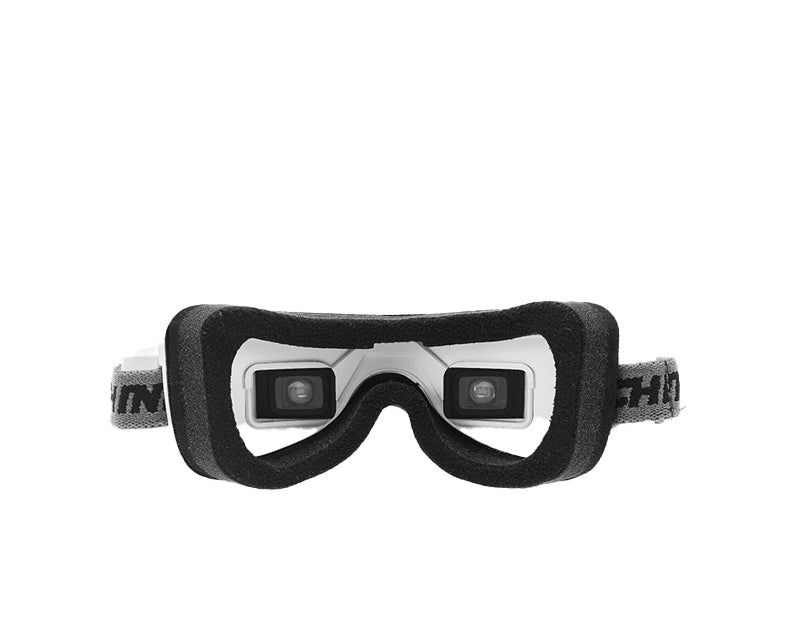

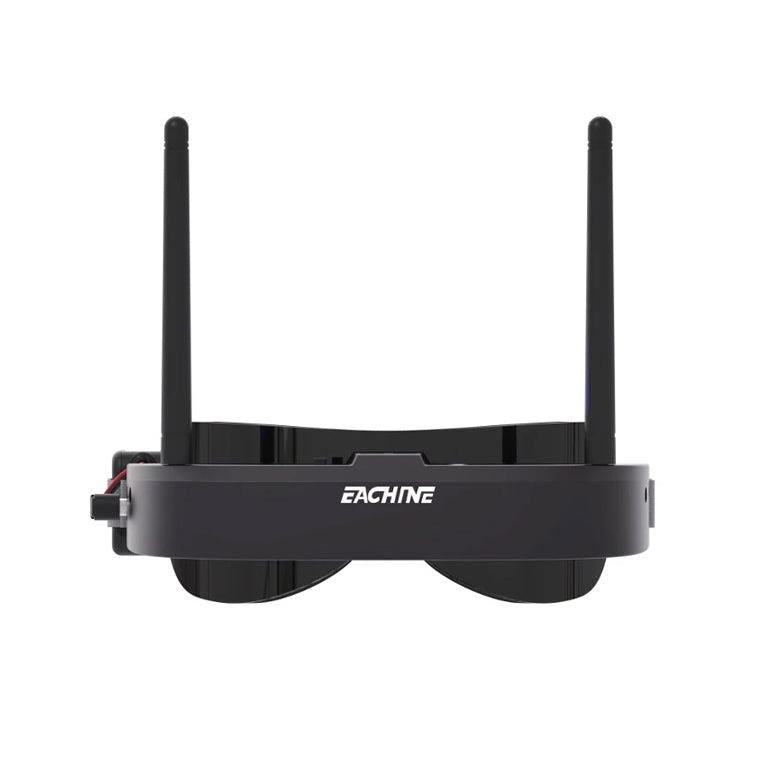

Eachine EV100 720 × 540 5.8G 72CH FPV Goggles With Dual Antennas Fan.

Eachine EV100 720 × 540 5.8G 72CH FPV Goggles With Dual Antennas Fan.

SKU:055171

Regular price Rs. 19,499.00
Regular price Sale price Rs. 19,499.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

The Eachine EV100 FPV goggles are engineered for drone enthusiasts who crave an immersive flying experience. With a blend of comfort, functionality, and advanced features, these goggles are suitable for both beginners and experienced pilots.

Eachine 1508817407 22


Features:

  1. Auto Search Function: Automatically finds the strongest signal.
  2. AV Input and Output Support: Connects to external devices and DVRs.
  3. External HDMI to AV Module Support: Broadens compatibility with various devices.
  4. Adjustable Settings: Customizable focal length, brightness, and contrast.
  5. Debug Mode: Advanced options for compatible VTX.

Specifications:

  • Display Resolution: 720 x 540 pixels
  • Field Of View (FOV): 28° diagonal
  • Aspect Ratio: 4:3
  • IPD Visual Range: 58mm to 68mm
  • Focal Length (mm): -400 degrees myopia and +150 degrees hyperopia
  • Frequency: 5.8GHz (5333MHz – 5945MHz)
  • Sensitivity (dB): =-93dB
  • Antenna Impedance: 50Ω
  • Antenna Gain (peak) (dBi): 3dBi
  • Antenna Connector: RP-SMA
  • Video Format Supported: NTSC/PAL
  • Power Input: 7.4V
  • Low Voltage Warning: 6.8V
  • Battery: 2S 7.4V 1000mAh
  • Charging: USB Cable(not included)
  • Operating Temperature (°C): -10℃ to +40℃

Package Includes:

1× Eachine EV100 5.8G 72CH FPV Goggles
2 RP-SMA 3dBi Antenna
