A coaxial cable typically consists of a central conductor, an insulating layer, a metallic shield, and an outer insulating layer. Here's a breakdown of these components:
-
Central Conductor: This is a wire that carries the electrical signals. In the context of a camera cable, it would transmit video signals and possibly power.
-
Insulating Layer: Surrounding the central conductor, there is usually an insulating material that prevents the central conductor from coming into contact with the outer layers. This helps to maintain the integrity of the signals being transmitted.
-
Metallic Shield: A coaxial cable often has a metallic shield that surrounds the insulating layer. This shield serves to protect the signals from external electromagnetic interference and also contains and prevents leakage of the signals.
-
Outer Insulating Layer: The entire cable is encased in an outer insulating layer, which provides further protection and insulation.
Features:
Fits the DJI O3 Air Unit HD Camera
Length: 200mm
Includes:

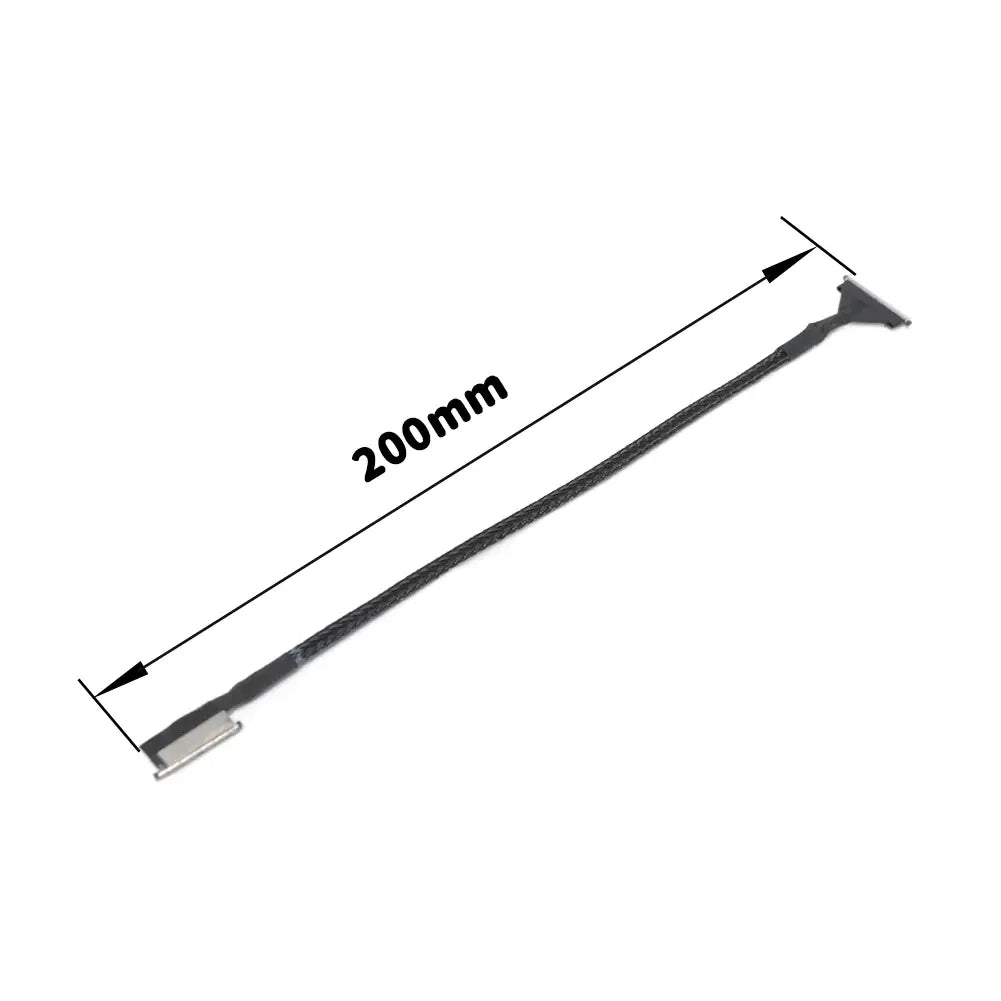

1× DJI O3 Coaxial Camera Cable (200mm)
| Specification | Details |
| Model | DJI O3 Coaxial Camera Cable (200mm) |
| Type | Coaxial Cable |
| Cable Length | 200 mm |
| Connector A | Specific connector for DJI O3 Camera |
| Connector B | Specific connector for DJI O3 Camera |
| Cable Gauge | Typically 26 AWG (for coaxial) |
| Cable Material | PVC insulated or similar |
| Impedance | 50 ohms |
| Shielding | Yes, to reduce interference |
| Temperature Range | -20°C to +85°C |
| Max Voltage | 50V |
| Current Rating | 1A |
| Weight | Approximately 30 g |
| Dimensions | Diameter of coaxial cable and length 200 mm |
| Compatibility | DJI O3 Camera and associated components |
| Usage | Connecting camera to the flight controller |
| Connector Housing Material | Plastic or metal |
