DJI NAZA M V2 Flight Controller With GPS For Drone & Multirotor

Features:
• All-in-one Design
• Nine Types of Multi-rotors Supported
• Free Ground Station Function
• New Assistant Software for Smartphone
• Independent PMU with amazing function extension
• Enhanced Failsafe Mode
• Two Levels of Low Voltage Protections
• Multi-rotor One-power Output Fail Protection
• Advanced & Improved Attitude Stabilization Algorithm
• Multiple Flight Control Modes/Intelligent Switching
• New Assistant Software & Firmware Online Update
• GPS Module Available/Accurate Position Hold
• iOSD mini supported
• Intelligent Orientation Control
• Motor Arm and Motor Dis-arm
• PPM, S-BUS & Ordinary Receiver Supported
• Independent LED Module
• Built-in Gimbal Stabilization Function
• Remote Gain Adjustment

Basic Performance:
• Supported Multi-Rotor: Quad-rotor I4, X4, Hex-rotor I6, X6, IY6, Y6, Octo-rotor I8，V8，X8
• Supported ESC Output: 400Hz refresh frequency
• Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
• Working Voltage Range: MC:4.8V~5.5V, VU Input: 7.4V ~ 26.0 V (recommend 2S ~ 6S LiPo) Output(V-SEN port red wire): 3A@5V
• Power Consumption: MAX 1.5W(0.3A@5V)& Normal0.6W(0.12A@5V)
• Operating Temperature: -10°C ~ 50°C
• Assistant Software System Requirement: Windows XP sp3 / Windows 7 / Windows 8 / windows 10 with win drive installer

Flight Performance:
• Hovering Accuracy (GPS Mode) Vertical: ±2.6′ / ±0.8 m
• Horizontal: ±8.2′ / ±2.5 m
• Max Angular Speed 200°/s
• Max Tilt Angle 35°
• Ascent/Descent Ascent: 19.7 ft/s / 6 m/s
• Descent: 14.8 ft/s / 4.5 m/s

Built-In Functions:
• Multiple Autopilot Control Mode
• Enhanced Fail-safe
• Low Voltage Protection
• S-Bus Receiver Support
• PPM Receiver Support
• Independent PMU Module
• 2-axle Gimbal Support

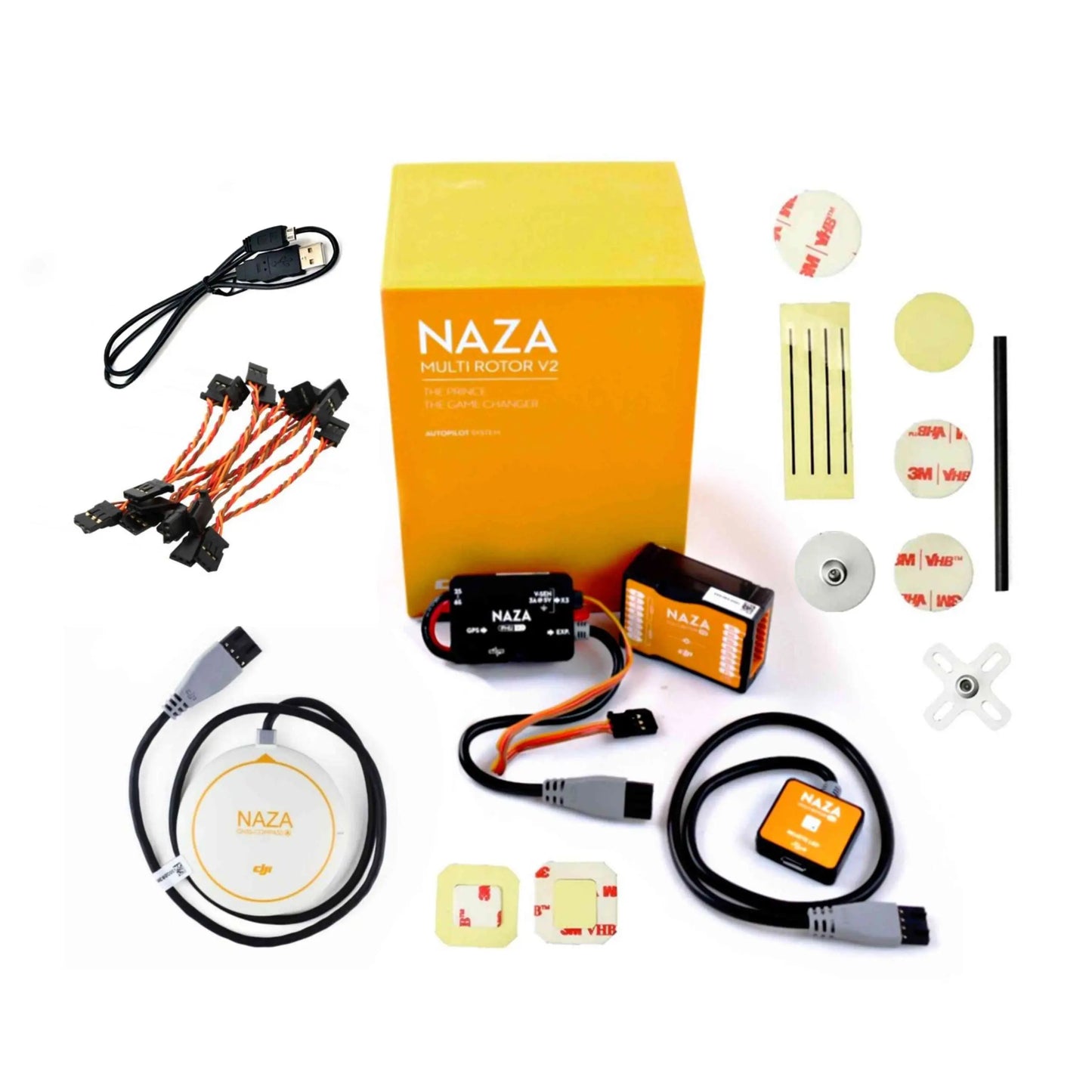

Package Includes:
1 x Main Controller Unit
1 x Power Management unit
8 x Servo cable
1 x LED Module
1 x Micro USB Cable
2 x Adhesive Tape
1 x GPS Module
