The DJI Inspire 3 marks a significant advancement in aerial cinematography, offering seamless integration with DJI’s latest remote control innovation, the RC Plus. This cutting-edge drone elevates operational flexibility to new heights with its dual-control mode functionality. This feature distinctively allows for a collaborative operation where one individual can exclusively manage the cinema camera’s intricate movements and settings, while another pilot focuses on navigating the drone, utilizing a dedicated front-facing first-person view (FPV) camera. The FPV system boasts a remarkable 161-degree ultra-wide lens, strategically paired with a 1/1.8-inch sensor equipped for night vision, ensuring clear and expansive visual coverage even in low-light conditions. The system is designed for efficiency, requiring only a minimal 90ms transmission delay to project crisp, live footage onto the RC Plus’ vibrant 7-inch screen, which shines brightly at 1,200 nits. This synergy between drone and controller not only enhances the precision and quality of aerial cinematography but also significantly improves the ease of use and control for filmmakers, offering an unparalleled flying experience that pushes the boundaries of what’s possible in aerial videography.
DJI Inspire 3 Drone: 6K/8K Dual-Control Cinematic Powerhouse
6K/8K Video Resolution: Delivers ultra-high-definition footage for cinematic quality. Ideal for professional filmmakers seeking the highest level of detail and clarity in their aerial shots.
Large CMOS Sensor: Guarantees superior image quality, capturing exceptional detail and dynamic range, even in challenging low-light conditions. Essential for night shoots or dusk landscapes.
Interchangeable Lens System: Provides flexibility in shooting styles, from wide-angle landscapes to detailed close-ups. Supports various focal lengths and apertures to adapt to any shooting scenario.
Advanced Image Processing: Enables support for RAW and ProRes formats, offering unparalleled post-production flexibility. Facilitates high-quality outputs suitable for professional film and television projects.
Extended Flight Time: Advanced battery technology extends flight times, reducing the need for frequent landings and battery changes, enhancing productivity on shooting days.
Increased Speed and Agility: Reaches high speeds, offering rapid response to control inputs and swift movement across locations, perfect for tracking fast-moving subjects.
Robust Wind Resistance: Ensures stable flight and smooth footage even in challenging weather conditions, making it reliable for use in diverse environmental settings.
Advanced Obstacle Sensing: Provides a multi-directional obstacle avoidance system, enhancing safety by preventing collisions with unseen obstacles during complex maneuvers.
Precision Remote Controller: Features high-quality controls with customizable buttons and dials for nuanced flight and camera operation, ensuring precise shots.
HD Video Transmission: Offers a crystal-clear, lag-free live video feed to the controller, enabling precise framing and real-time decision-making from a distance.
Intelligent Flight Modes: Automates complex flight paths and camera movements, allowing solo operators to execute complicated shots that would typically require a crew.
Power and Reliability:
Intelligent Flight Batteries: Feature advanced power management and a detailed status report, ensuring optimal performance and reliability during critical shooting moments.
360° Pan and Tilt Boost
The Inspire 3 introduces enhanced manoeuvrability with options for 360° Pan and Tilt Boost, allowing for comprehensive aerial shots. Notably, Tilt Boost facilitates shooting at an upward angle of 80°, ensuring obstacle-free capture. This capability significantly broadens the creative possibilities for aerial cinematography, offering unparalleled shooting angles and perspectives.
O3 Pro Video Transmission
Boasting an impressive maximum transmission range of 15 kilometers, the drone ensures consistent, low-latency live feeds in both 1080p at 60 fps and 4K resolution. This advanced capability is complemented by a dual control mode, enhancing operational flexibility and allowing for precise, collaborative control of the drone’s flight and camera systems.
DJI PRO Ecosystem Support
The Inspire 3 supports a suite of advanced accessories including the DJI High-Bright Remote Monitor, DJI Master Wheels, and DJI Three-Channel Follow Focus. This integration significantly enhances operational coordination, offering filmmakers precision control and seamless interaction with the drone’s systems for a highly synchronized aerial cinematography experience.
Self-Heating Technology: Batteries equipped with self-heating technology maintain optimal performance and reliability in cold temperatures, expanding the drone’s operational range.
Modular Design: Simplifies setup and transportation. The quick-release propellers and foldable design make it easy to transition between locations and flight readiness.
High-Grade Construction: Utilizes carbon fiber components to strike the perfect balance between durability and lightweight design, ensuring both resilience and ease of maneuverability.
Comprehensive App Support: Provides a unified platform for adjusting flight settings, editing captured content, and streaming live footage, enhancing the user experience and workflow efficiency.
Integrated Live Streaming: Facilitates real-time broadcasting of aerial footage to online platforms, engaging audiences with dynamic perspectives and enhancing event coverage.
Easy Content Sharing: Streamlines the workflow for transferring footage to devices and platforms, enabling rapid sharing of content with audiences or clients for feedback or promotion.
Automatic Return to Home: This feature intelligently navigates the drone back to its launch point in case of signal loss or critical battery level, ensuring the safety of the equipment.
Geo-Fencing: A crucial feature for responsible flying, helping pilots avoid unintentionally entering sensitive or restricted airspace, thereby promoting safe and legal drone operation.
AirSense Technology: Enhances situational awareness by receiving real-time ADS-B signals from nearby manned aircraft, reducing the risk of air collisions and fostering coexistence in shared airspace.

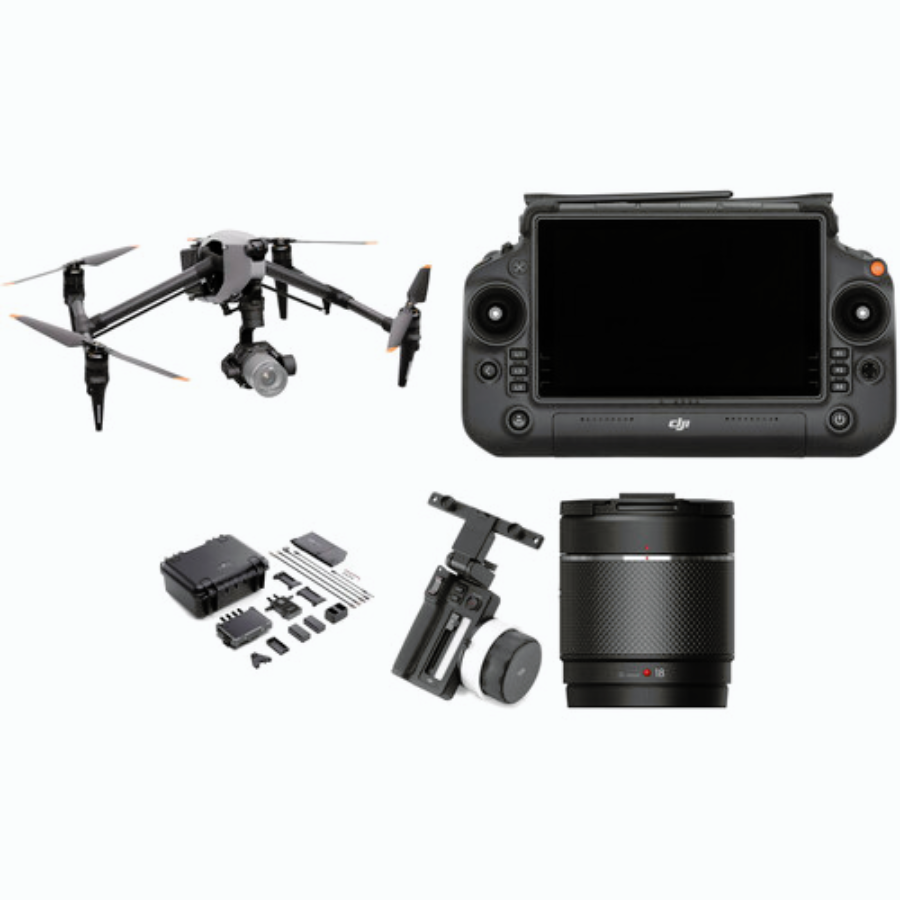

Custom Carrying Case: Specifically designed for the drone and its components, offering optimal protection and organization for transportation and storage, ensuring the gear remains in top condition.
Comprehensive Manuals and Online Support: Provides in-depth operational guidance and troubleshooting advice, supplemented by a community of experienced users and experts for peer support and tips.
Specification:
Aircraft
|
|
Model | |
T740 | |
Aircraft Weight | |
Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers) | |
Max Takeoff Weight | |
Approx. 4,310 g | |
Hovering Accuracy Range | |
Vertical | |
±0.1 m (with vision positioning) | |
±0.5 m (with GNSS positioning) | |
±0.1 m (with RTK positioning)Horizontal | |
±0.3 m (with vision positioning) | |
±0.5 m (with GNSS positioning) | |
±0.1 m (with RTK positioning) | |
RTK Positioning Accuracy (RTK fix) | |
1 cm + 1 PPM (horizontal) | |
1.5 cm + 1 PPM (vertical) | |
Max Angular Velocity | |
Pitch | 200°/s |
Roll | 200°/s |
Yaw | 150°/s |
Max Tilt Angle | |
N Mode | 35° |
S Mode | 40° |
A Mode | 35° |
T Mode | 20° |
Emergency Brake | 55° |
Max Ascent Speed | |
8 m/s | |
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. | |
Max Descent Speed | |
Vertical | 8 m/s |
Tilt | 10 m/s |
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. | |
Max Horizontal Speed | |
94 kph | |
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. | |
Max Service Ceiling Above Sea Level | |
Standard Propellers | 3800 m |
High-Altitude Propellers | 7000 m |
Measured in an environment with light wind with the gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. | |
Max Wind Resistance | |
Takeoff/land | 12 m/s |
In-flight | 14 m/s |
Measured when flying at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. | |
Max Hovering Time | |
Approx. 25 minutes | |
Measured when hovering in a windless environment at sea level with gimbal camera and lens attached to the aircraft and without other accessories, with landing gear raised, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app. | |
Max Flight Time | |
Approx. 28 minutes (landing gear lowered) | |
Approx. 26 minutes (landing gear raised) | |
Measured when flying forward at a constant speed of 36 kph in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app. | |
Motor Model | |
DJI 3511s | |
Global Navigation Satellite System | |
GPS + Galileo + BeiDou | |
Propeller Model | |
Standard Propellers | DJI 1671 |
High-Altitude Propellers | DJI 1676 |
Operating Temperature | |
-20° to 40° C (-4° to 104° F) | |
Diagonal Distance | |
Landing Gear Raised | 695 mm |
Landing Gear Lowered | 685 mm |
Travel Mode Dimensions | |
Height | 176 mm |
Width | 709.8 mm |
Length | 500.5 mm |
Gimbal Camera
|
|
Sensor | |
35mm full-frame CMOS | |
Max Resolution | |
Photo | 8192×5456 |
Video | 8192×4320 |
Video Resolution | |
View detailed list | |
Supported Lenses | |
DL 18 mm F2.8 ASPH Lens | |
DL 24 mm F2.8 LS ASPH Lens | |
DL 35 mm F2.8 LS ASPH Lens | |
DL 50 mm F2.8 LS ASPH Lens | |
Photo Format | |
JPG, DNG | |
Video Format | |
MOV, CinemaDNG | |
Operation Mode | |
Capture, Record, Playback | |
Exposure Mode | |
P, A, S, M | |
Shutter Type | |
Electronic shutter | |
Shutter Speed | |
8-1/8000 s | |
White Balance | |
AWB | |
MWB (2000K-10000K) | |
ISO Range | |
Photo | |
ISO | 100-25600Video |
EI | 200-6400 |
Anti-flicker | |
Capture Mode | Auto, 50 Hz, 60 Hz, OFF |
Angular Vibration Range | |
Hovering | ±0.002° |
Flying | ±0.004° |
Installation Method | |
Quick release | |
Mechanical Range | |
Tilt | |
-128° to +110° (landing gear lowered) | |
-148° to +90° (landing gear raised) | |
Roll | -90° to +230° |
Pan | ±330° |
Controllable Range | |
Tilt (landing gear lowered) | |
Before gimbal tilt limit extension | -90° to +30° |
After gimbal tilt limit extension | -115° to +100° |
Tilt (landing gear raised) | |
Before gimbal tilt limit extension | -90° to +30° |
After gimbal tilt limit extension | -140° to +75° |
Roll | ±20° |
Pan | ±300° |
Max Control Speed | |
With DJI RC Plus | |
Tilt | 120°/s |
Roll | 180°/s |
Pan | 270°/sWith DJI Master Wheels |
Tilt | 432°/s |
Roll | 432°/s |
Pan | 432°/s |
Weight | |
Approx. 516 g (without lens) | |
Video Transmission
|
|
Video Transmission System | |
O3 Pro | |
Live View Quality | |
FPV Camera | Up to 1080p/60fps |
Gimbal Camera | Up to 1080p/60fps, 4K/30fps |
Max Live Video Bitrate | |
50 Mbps | |
Max Transmission Distance | |
Single Control Mode | |
FPV Camera | approx. 15 km (FCC), 8 km (CE/SRRC/MIC) |
Gimbal Camera (1080p/60fps live feeds) | approx. 13 km (FCC), 7 km (CE/SRRC/MIC) |
Gimbal Camera (4K/30fps live feeds) | approx. 5 km (FCC), 3 km (CE/SRRC/MIC)Dual-Control Mode |
FPV Camera | approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC) |
Gimbal Camera (1080p/60fps live feeds) | approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC) |
Gimbal Camera (4K/30fps live feeds) | approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC) |
Measured in an unobstructed outdoor environment free of interference, with gimbal camera and lens attached to the aircraft and without other accessories. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to reminders in the app. | |
Lowest Latency | |
FPV Camera | 90 ms |
Gimbal Camera | 90 ms |
The lowest latency of the gimbal camera was measured when recording 4K/60fps ProRes RAW video. The lowest latency of the FPV camera was measured with strong video transmission signals. | |
Operating Frequency | |
2.4000-2.4835 GHz | |
5.150-5.250 GHz (CE | 5.170-5.250 GHz) |
5.725-5.850 GHz | |
In some countries and regions, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. | |
Transmitter Power (EIRP) | |
2.4 GHz | <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) |
5.1 GHz | <23 dBm (CE) |
5.8 GHz | <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE) |
Battery | |
Model | |
TB51 Intelligent Battery | |
Capacity | |
4280 mAh | |
Nominal Voltage | |
23.1 V | |
Type | |
Li-ion | |
Chemical System | |
LiCoO2 | |
Energy | |
98.8 Wh | |
Weight | |
Approx. 470 g | |
Operating Temperature | |
-20° to 40° C (-4° to 104° F) | |
Charging Temperature | |
-20° to 40° C (-4° to 104° F) | |
If the temperature of the battery is lower than 10° C (50° F), the battery will trigger an auto-heating function. Charging in a low-temperature environment below 0° C (32° F) may shorten battery life. | |
Max Charging Power | |
411 W | |
Charge via Aircraft | |
Not supported | |
Remote Controller
|
|
Model | |
RM700B | |
Operating Time | |
Built-in Batteries | approx. 3.3 hours |
Built-in Batteries Plus External Battery | approx. 6 hours |
Operating Frequency | |
2.4000-2.4835 GHz | |
5.725 GHz-5.850 GHz | |
In some countries and regions, 5.1GHz and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. | |
Video Output Port | |
HDMI | |
Power Supply | |
Built-in batteries or external battery | |
Coordinated Operation | |
Supports dual controls and coordination between multiple operators | |
Power Consumption | |
12.5 W | |
Operating Temperature | |
-20° to 50 °C (-4° to 122° F) | |
Storage Temperature | |
-30° to 45° C (-22° to 113° F) (within one month) | |
-30° to 35° C (-22° to 95° F) (one to three months) | |
-30° to 30° C (-22° to 86° F) (three months to one year) | |
Battery | |
Built-in Battery | 3250mAh-7.2V (a set) |
External Battery | WB37 Intelligent Battery |
Wi-Fi Protocol | |
Wi-Fi 6 | |
Wi-Fi Operating Frequency | |
2.4000-2.4835 GHz | |
5.150-5.250 GHz | |
5.725-5.850 GHz | |
Wi-Fi Transmitter Power (EIRP) | |
2.4 GHz | <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) |
5.1 GHz | <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) |
5.8 GHz | <26 dBm (FCC/SRRC), <14 dBm (CE) |
Bluetooth Protocol | |
Bluetooth 5.1 | |
Bluetooth Operating Frequency | |
2.4000-2.4835 GHz | |
Bluetooth Transmitter Power (EIRP) | |
< 10 dBm | |
Battery Charging Hub
|
|
Input | |
100-240 V AC, max 8 A | |
Output | |
26.4 V, 7.8 A | |
Total Rated Output | |
476 W, including 65W PD fast charging of USB-C port | |
Charging Time | |
Fast Mode | Approx. 35 minutes to 90% |
Standard Mode | Approx. 55 minutes to 100% |
Silent Mode | Approx. 80 minutes to 100% |
Tested at a room temperature of 25° C (77° F) and in a well-ventilated environment. In Fast mode, each battery pair is charged to 90% in sequence, and then eight batteries are charged together to 100%. | |
Charging Temperature | |
-20° to 40° C (-4° to 104° F) | |
Weight | |
Approx. 1,680 g | |
Memory Card
|
|
Memory Card Type | |
DJI PROSSD 1TB | |
Sensing
|
|
Forward | |
Measurement Range | 1.5-48 m |
Effective Sensing Speed | ≤15 m/s |
FOV | |
Horizontal 90°, Vertical 103° (landing gear raised) | |
Horizontal 72°, Vertical 103° (landing gear lowered) | |
Backward | |
Measurement Range | 1.5-48 m |
Effective Sensing Speed | ≤15 m/s |
FOV | Horizontal 90°, Vertical 103° |
Lateral | |
Measurement Range | 1.5-42 m |
Effective Sensing Speed | ≤15 m/s |
FOV | Horizontal 90°, Vertical 85° |
Upward | |
Measurement Range | 0.2-13 m |
Effective Sensing Speed | ≤6 m/s |
FOV | Front and Back 100°, Left and Right 90° |
Downward | |
Measurement Range | 0.3-18 m |
Effective Sensing Speed | ≤6 m/s |
FOV | Front and Back 130°, Left and Right 160° |
Operating Environment | |
Forward, Backward, Left, Right, and Upward | surfaces with discernible patterns and adequate lighting (lux >15) |
Downward | surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people); adequate lighting (lux >15) |
Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered. | |
ToF Infrared Sensor Measurement Range | |
0-10 m | |

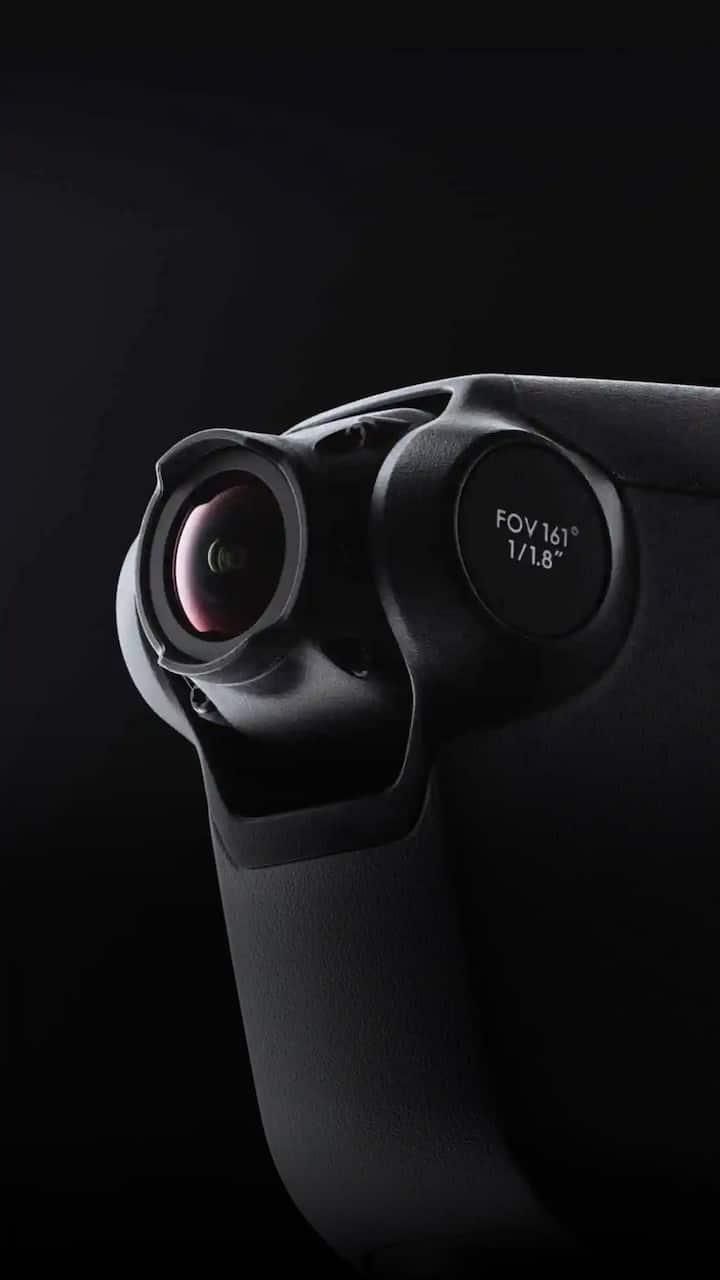

FPV Camera
|
|
FOV | |
161° | |
Resolution | |
1920×1080@60fps |
