Note: Product Images/videos are shown for illustrative purposes only and may differ from the actual product.

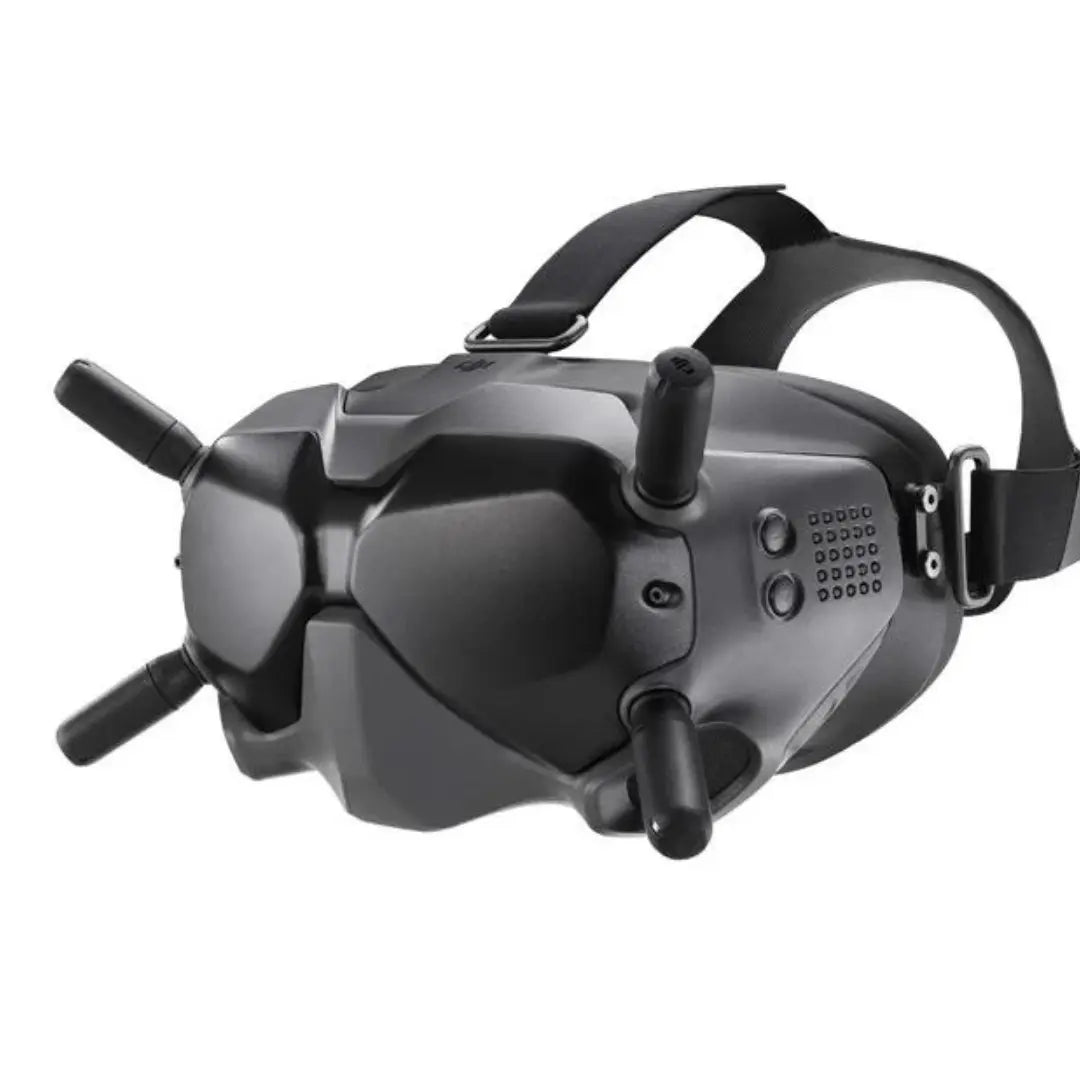

The DJI FPV Goggles V2 with DJI O3 image transmission features high definition, low latency, long-distance transmission, and strong anti-interference capabilities. The DJI FPV Goggles Battery in the box supports up to 110 minutes of flight when fully charged.
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Package Includes:
1 x DJI Digital FPV Goggles V2
| Specifications | |
| Weight | Approx. 420 g (headband and antennas included) |
| Dimensions | 184×122×110 mm (antennas excluded) |
| 202×126×110 mm (antennas included) | |
| Screen Size | 2-inches (×2) |
| Screen Refresh Rate | 144 Hz |
| Communication Frequency | 2.400-2.4835 GHz |
| 5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz |
| FCC | ≤ 28.5 dBm |
| CE | ≤ 20 dBm |
| SRRC | ≤ 20 dBm |
| MIC | ≤ 20 dBm |
| 5.725-5.850 GHz | |
| FCC | ≤ 31.5 dBm |
| CE | ≤ 14 dBm |
| SRRC | ≤ 19 dBm |
| Communication Bandwidth | 40 MHz (Max.) |
| Live View Mode | Low-Latency Mode |
| High-Quality Mode | 810p/60fps ≤ 40ms* |
| * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.” | |
| Max Video Bitrate | 50 Mbps |
| Transmission Range | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Video Format | MP4 (Video format |
| Supported Video and Audio Playback Formats | MP4, MOV, MKV (Video format |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Power Input | Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries. |
| FOV | 30° to 54°; Image size |
| Interpupillary Distance Range | 58-70 mm |
| Supported microSD | Cards microSD (up to 256 GB) |
| DJI FPV Goggles Battery | |
| Capacity | 1800 mAh |
| Voltage | 9 V (Max.) |
| Type | LiPo 2S |
| Energy | 18 Wh |
| Charging Temperature | 0° to 45° C |
| Max Charging Power | 10 W |
| Battery Life | Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level) |
