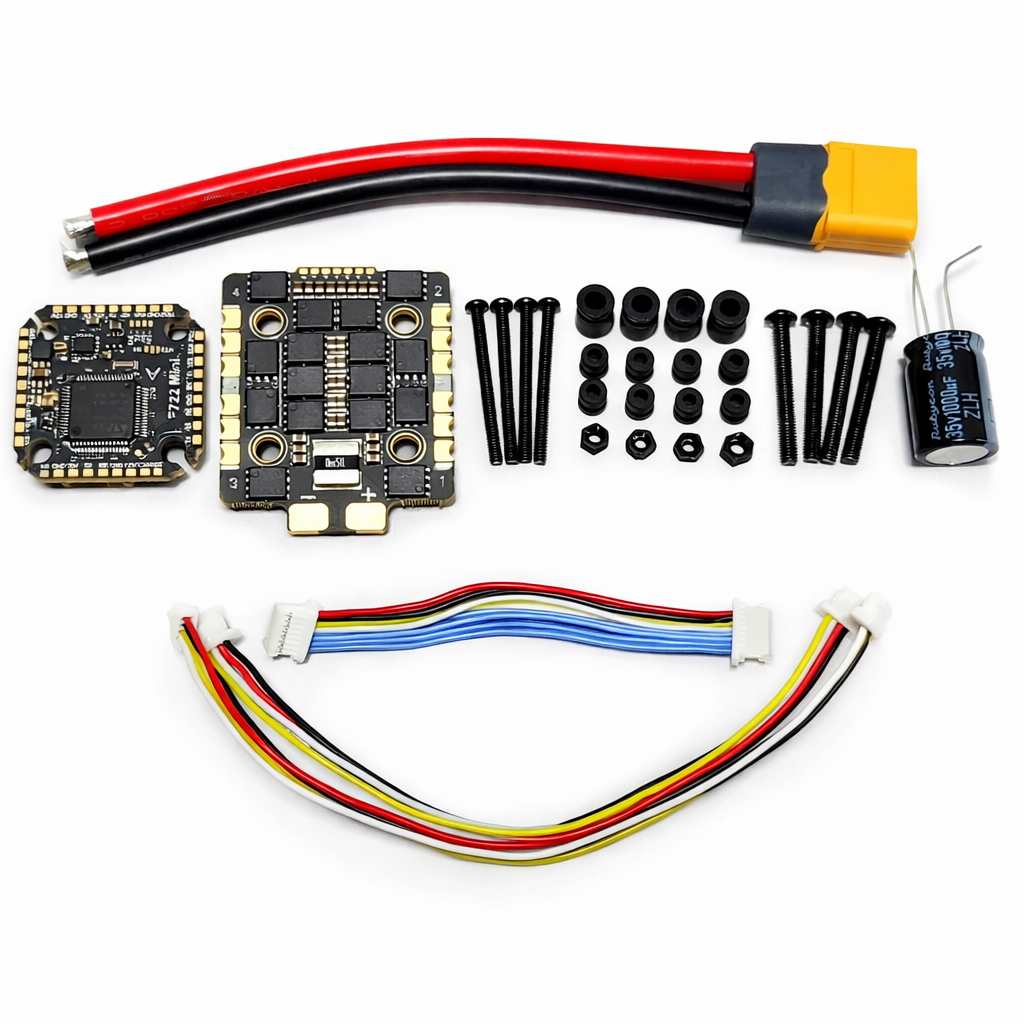

DAKE Mini F722 Flight Controller & Mini 60A 4-in-1 ESC Stack

The DAKE Mini F722 FC & Mini 60A 4-in-1 ESC Stack is a compact 20×20 stack designed for FPV drone builds requiring stable flight control, multiple UART support, and reliable power handling. This stack is suitable for freestyle and racing setups using 3–6S LiPo batteries.

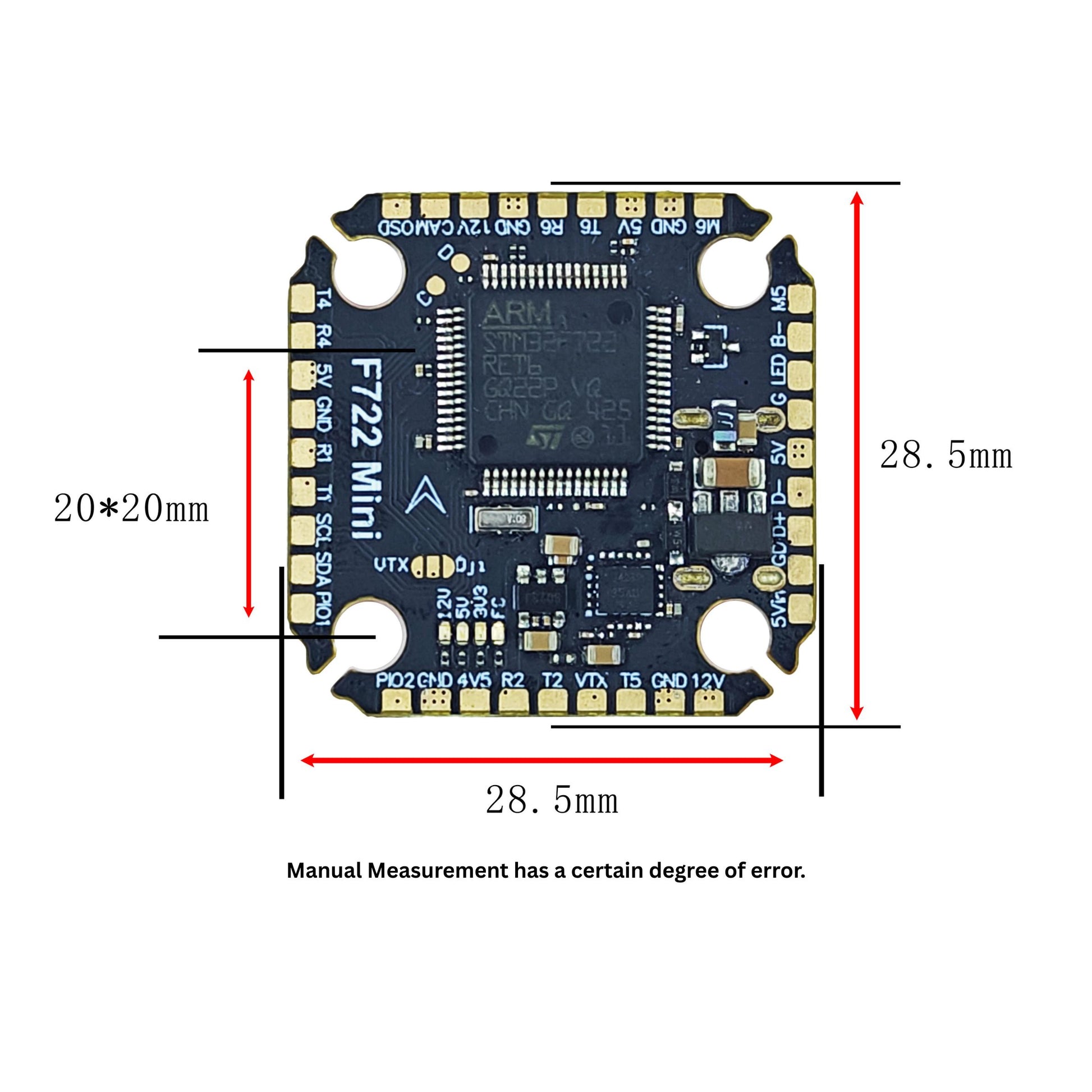

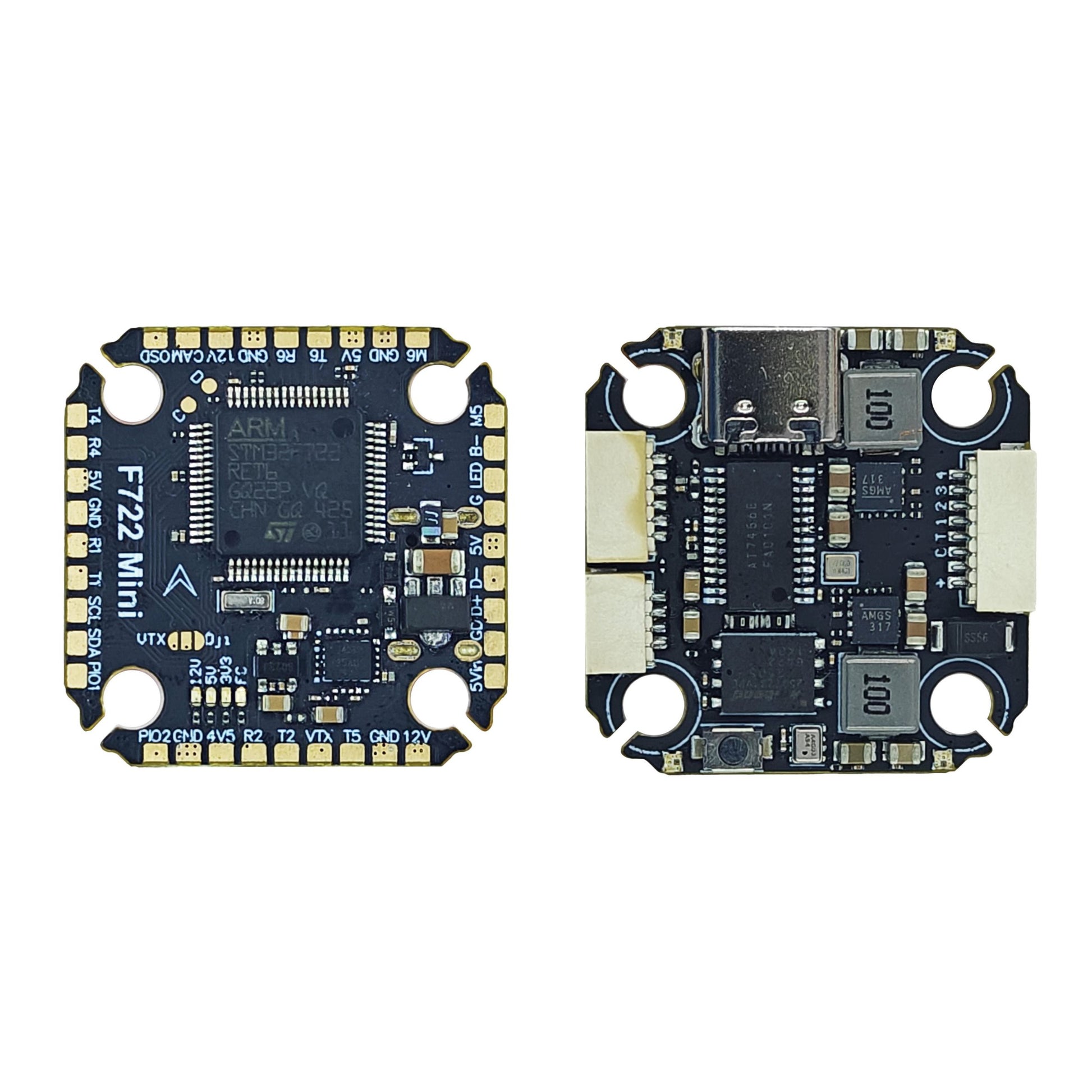

Flight Controller – DAKE Mini F722

• MCU: STM32F405RGT6
• Gyro: ICM42688P
• OSD Chip: AT7456E
• Firmware Support: Betaflight / INAV / ArduPilot
• USB Port: Type-C
• Blackbox Flash: 16MB
• UARTs: 6
• Receiver Support:
  ELRS, CRSF, SBUS, FrSky, Futaba, FlySky, TBS Crossfire, DSMX
• LED Output: Supports up to 8g LED
• Buzzer: Supported
• Mounting Pattern: 20 × 20 mm (M4)
• Board Size: 29 × 29 mm
• Power Outputs:
  3.3V, 5V (2.5A), 12V (3A)

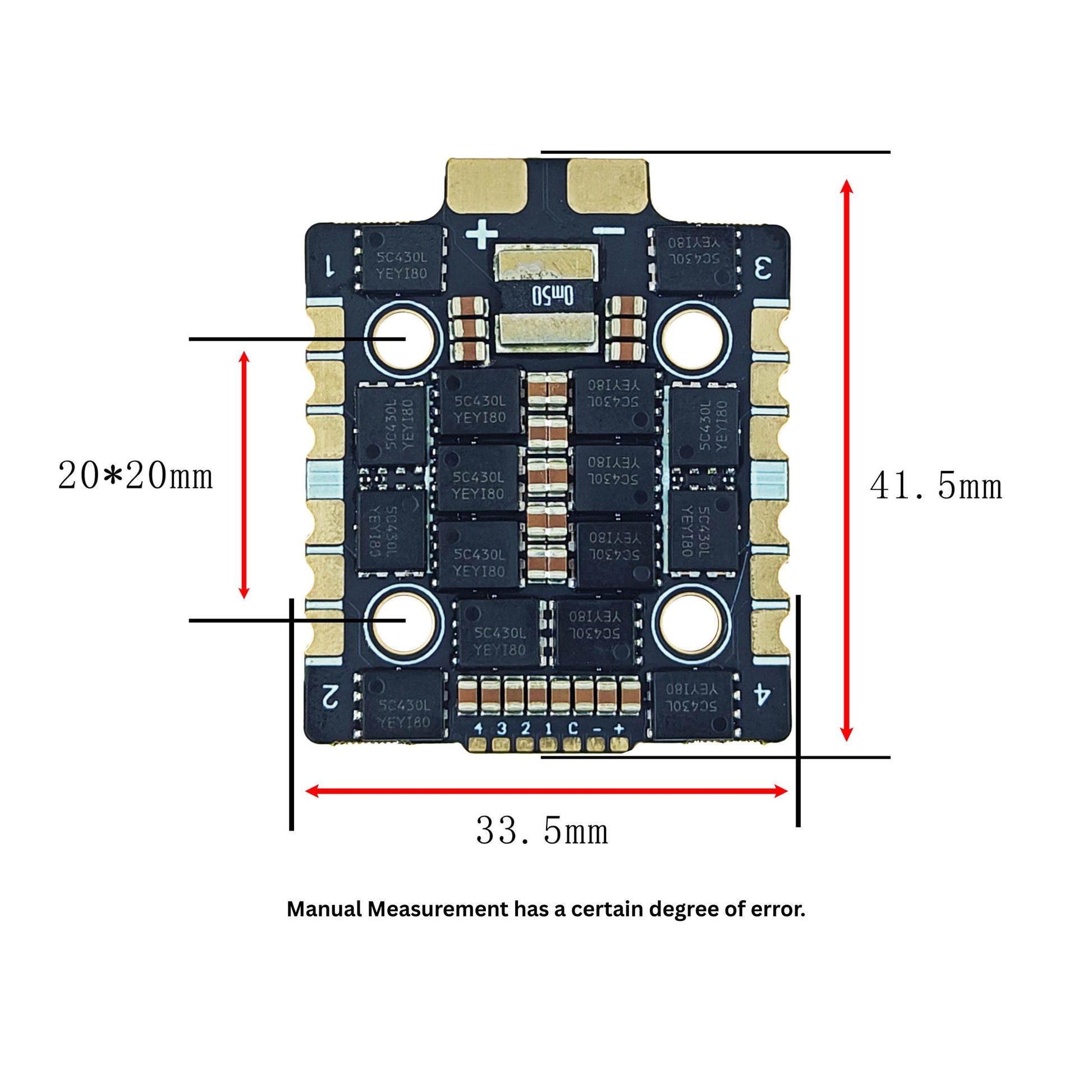

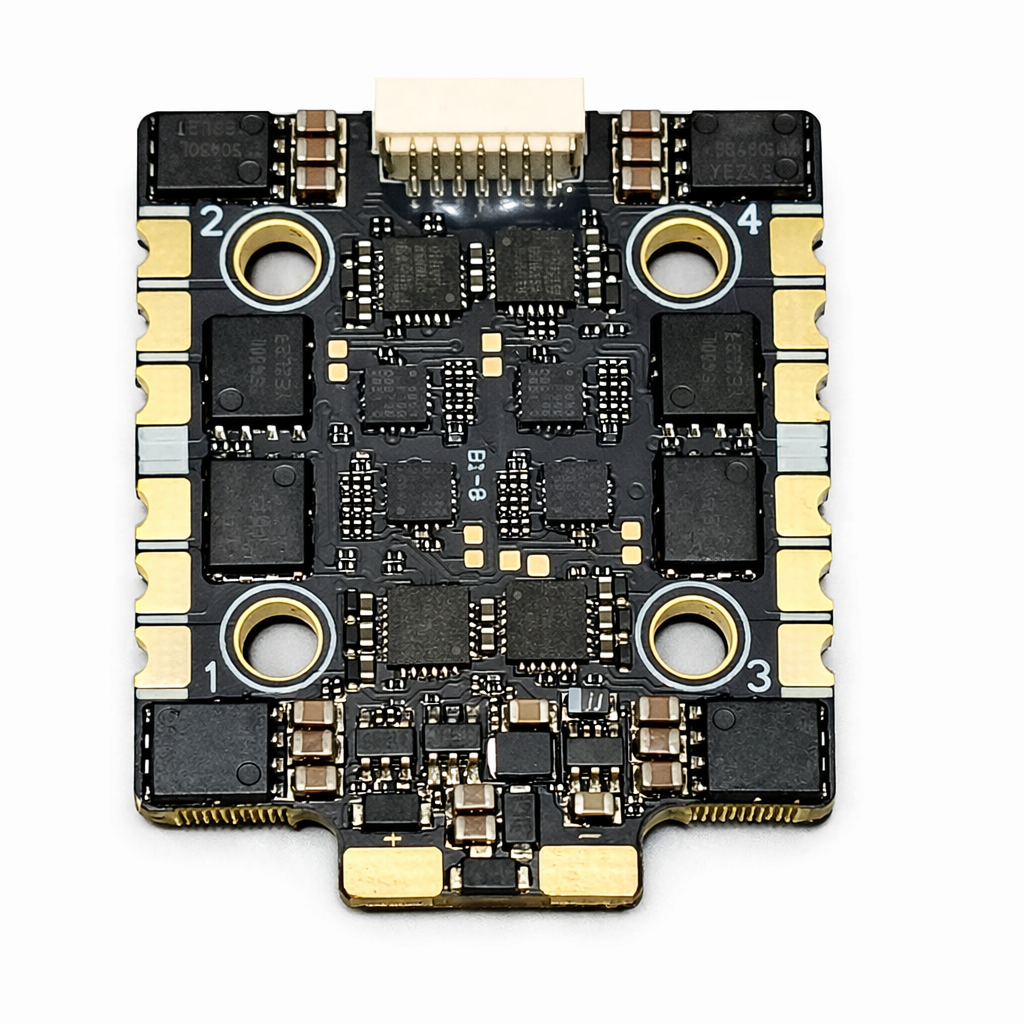

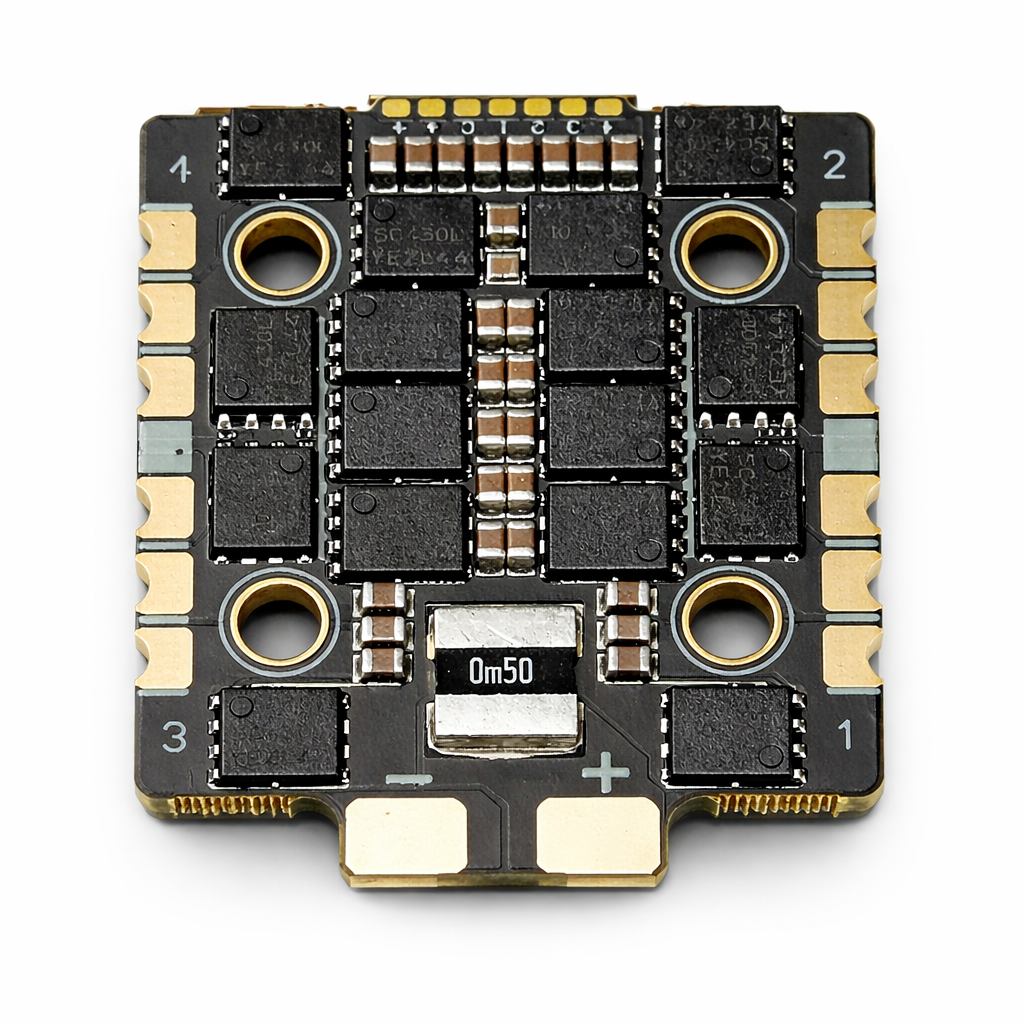

ESC – Mini 60A 4-in-1 ESC

• ESC Firmware: BLHeli_S / Bluejay
• Firmware Version: B_X_30_24_v0.19.2
• MCU: EFM8BB51F16-C-QFN20
• MOSFET: 5C430
• Continuous Current: 60A × 4
• Input Voltage: 3–6S LiPo

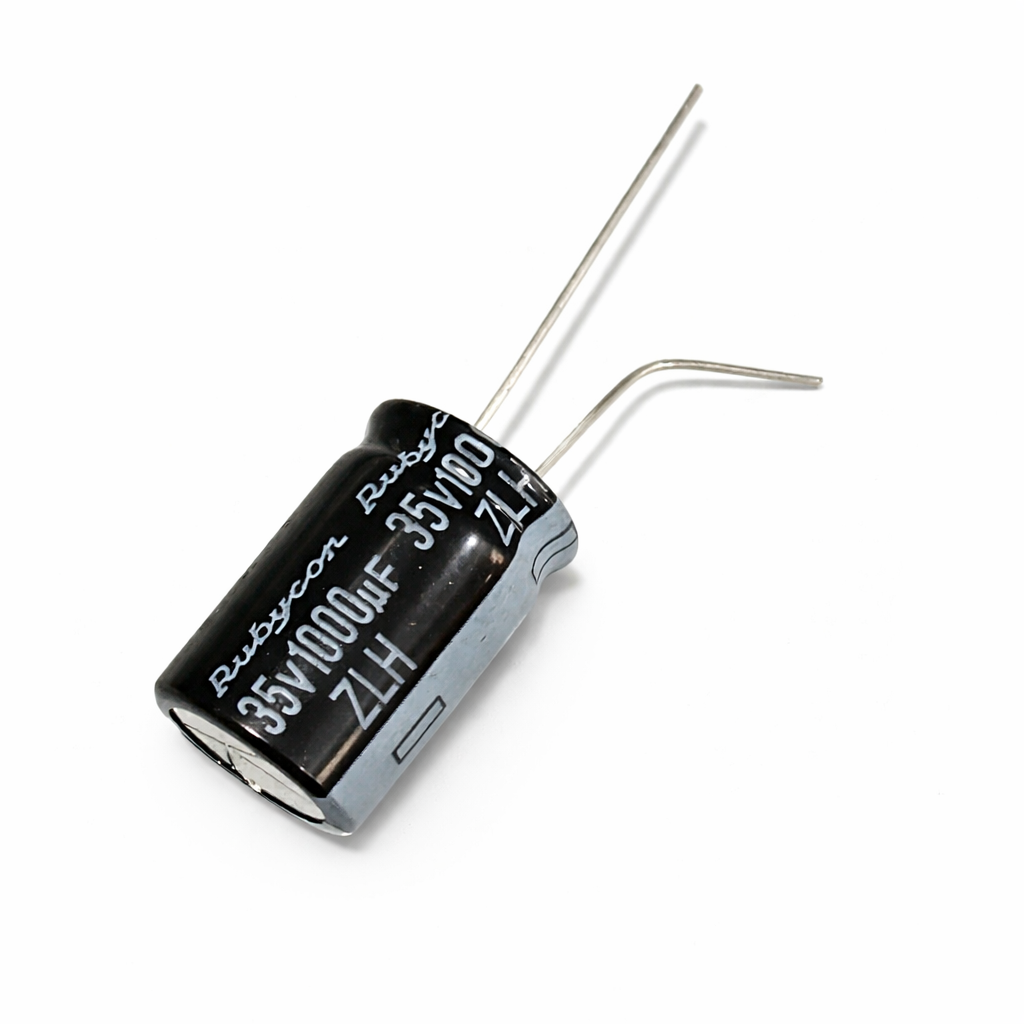

• Capacitor: 35V 1000µF Low ESR
• ESC Protocols:
  PWM, DShot300, DShot600, Bi-directional DShot
• Current Sensor: Supported (Up to 120A)
• Power Output: VBAT
• Board Size: 34 × 42 × 6.5 mm
• Weight: 12 g
• Mounting Pattern: 20 × 20 mm
• Operating Temperature: 20°C – 70°C
• Working Humidity: 20% – 95%

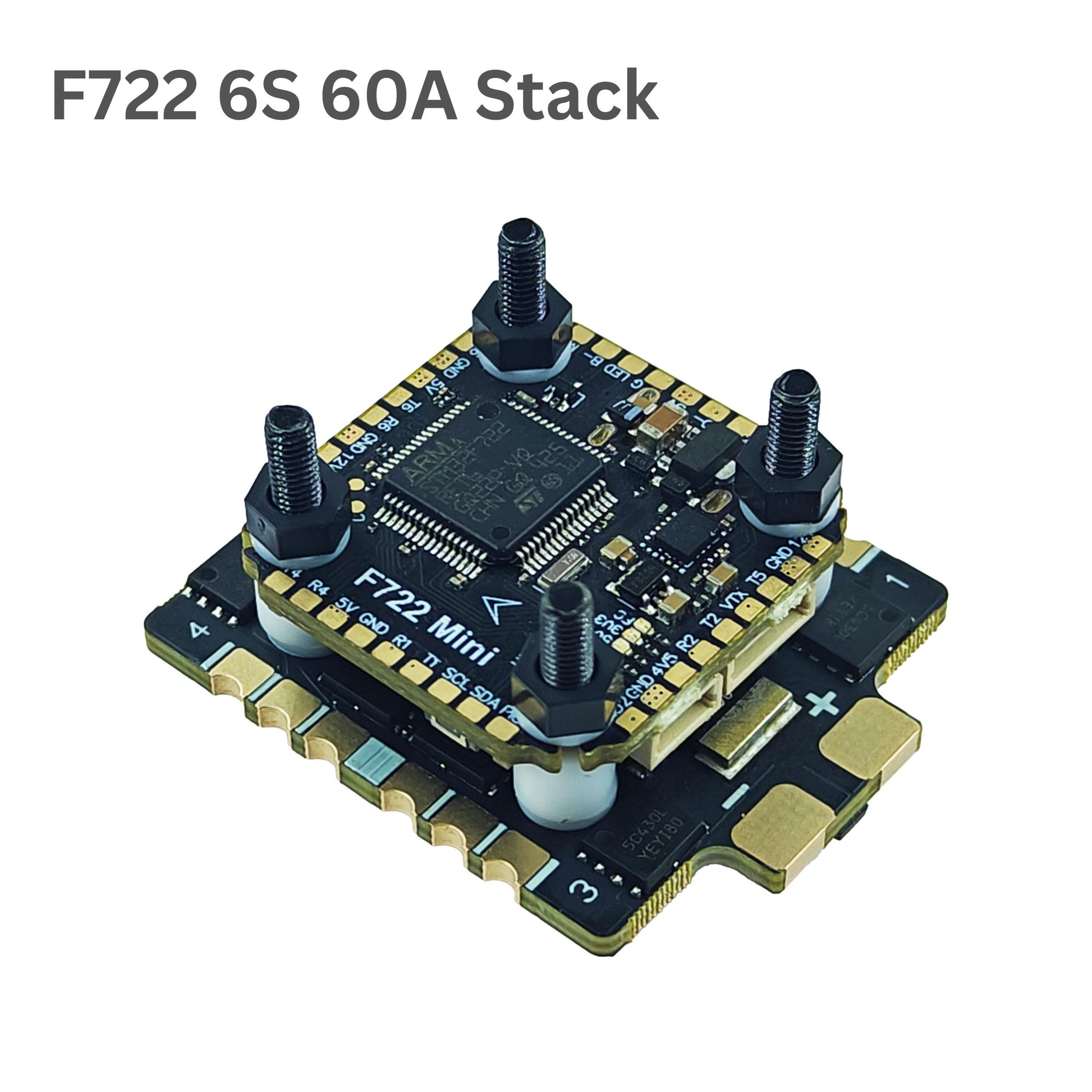

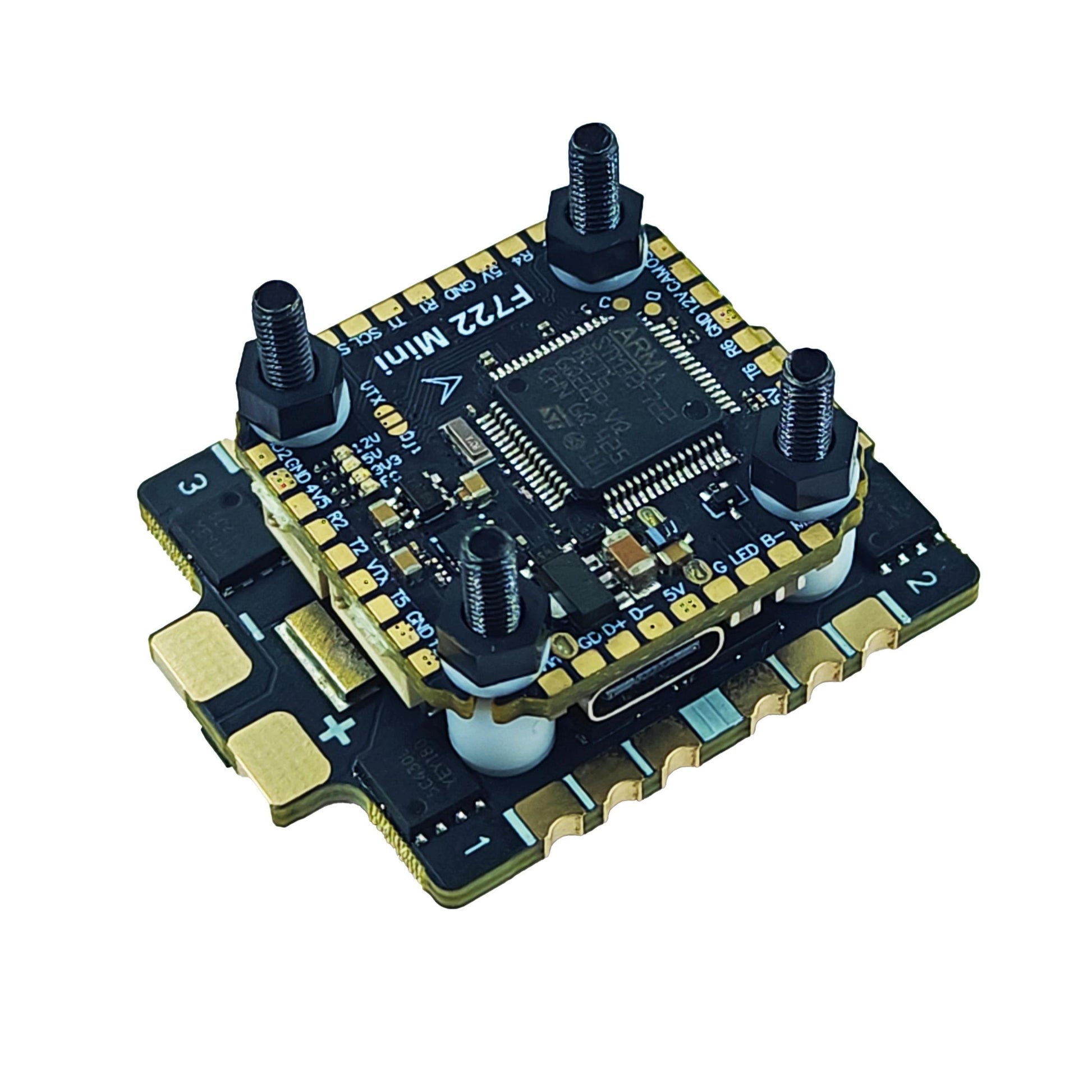

Stack Summary

• Compact 20×20 mounting suitable for mini FPV frames
• F722 flight controller with multiple firmware compatibility
• 60A 4-in-1 ESC supporting 3–6S LiPo batteries
• Multiple UARTs for receiver, GPS, VTX, and other peripherals

This stack offers a balanced combination of size, power handling, and compatibility for modern FPV drone builds.

If you want to program the flight controller with iNav, please use firmware 9.1.0 and the iNav Configurator 9.1.0 only.
The firmware link provided is for version 9.1.0.
DAKEFPV has updated the flight controller, so this firmware and configurator version are required for proper compatibility.

Firmware: https://drive.google.com/drive/folders/1yqCZz2WrlmZRvV2nRh3wffdvj9dLIu1q?usp=drive_link
