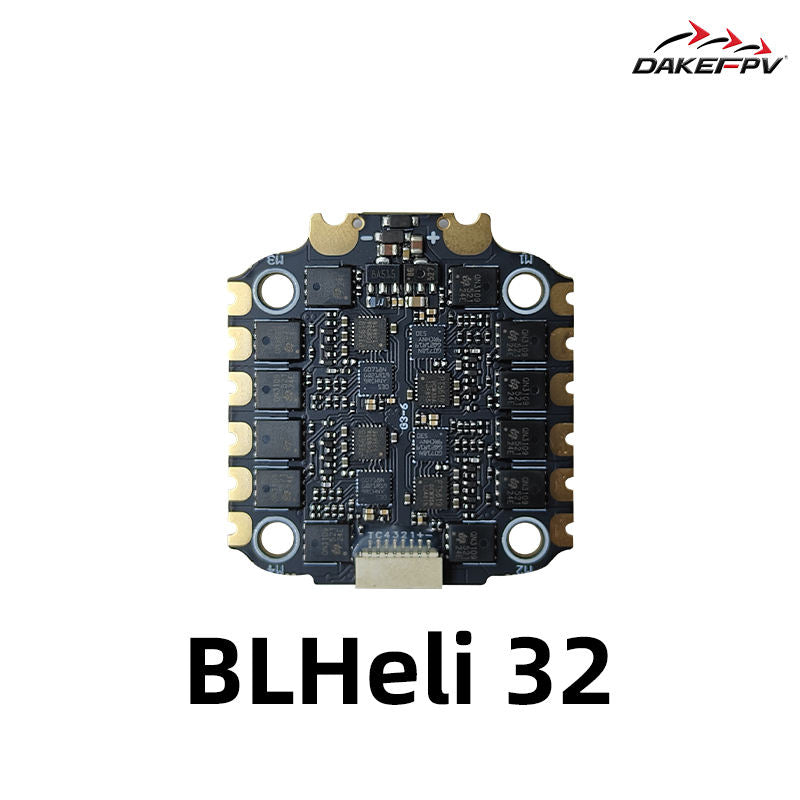

DakeFPV BLHeli_32 60A 4-in-1 ESC (3–8S) – Product Description
The DakeFPV BLHeli_32 60A 4-in-1 ESC is a high-performance electronic speed controller designed for FPV racing, freestyle, long-range, and professional UAV applications. Built with the powerful AT32F421K8U7 MCU and BLHeli_32 firmware, this ESC delivers smooth throttle response, reliable motor control, and excellent efficiency. It supports 3S to 8S LiPo batteries, making it suitable for demanding drone builds.
With a continuous current rating of 60A per channel and 65A peak current, the ESC easily handles high-power brushless motors. It features ON5C430NL MOSFETs, integrated TVS protection, and a 35V 1000µF Low ESR capacitor for improved voltage stability and protection against voltage spikes.
Supporting DShot300, DShot600, PWM, and Bidirectional DShot, this ESC provides fast communication and RPM telemetry compatibility for modern flight controllers. The built-in current sensor (120A scale) ensures accurate current monitoring, making it ideal for Betaflight, INAV, and ArduPilot-based drone systems.
Designed with a 30.5 × 30.5mm (M4) mounting pattern and weighing only 12g, the ESC is compact, lightweight, and easy to integrate into a wide range of FPV frames.
Key Features
- BLHeli_32 Firmware (Version 31.9)
- Powerful AT32F421K8U7 32-bit MCU
- 60A Continuous Current × 4 Channels
- 65A Peak Current × 4 Channels
- Supports 3S–8S LiPo Batteries
- ON5C430NL High-Efficiency MOSFETs
- DShot300, DShot600, PWM & Bidirectional DShot Support
- Built-in Current Sensor (120A Scale)
- Integrated TVS Protection
- 35V 1000µF Low ESR Capacitor Included
- VBAT Output for Flight Controller
- Lightweight Design – Only 12g
- Standard 30.5 × 30.5mm M4 Mounting Pattern
Specifications
| Specification | Details |
|---|---|
| Firmware | BLHeli_32 |
| Firmware Version | BLHeli_32 v31.9 |
| MCU | AT32F421K8U7 |
| Continuous Current | 60A × 4 |
| Peak Current | 65A × 4 |
| Battery Input | 3S–8S LiPo |
| MOSFET | ON5C430NL |
| Motor Protocols | DShot300, DShot600, PWM, Bidirectional DShot |
| Current Sensor | Supported (Scale: 120) |
| TVS Protection | Yes |
| Capacitor | 35V 1000µF Low ESR |
| Power Output | VBAT |
| Mounting | 30.5 × 30.5mm (M4) |
| Dimensions | 56 × 59 × 7mm |
| Weight | 12g |
| Operating Temperature | 20°C to 70°C |
| Operating Humidity | 20%–95% |

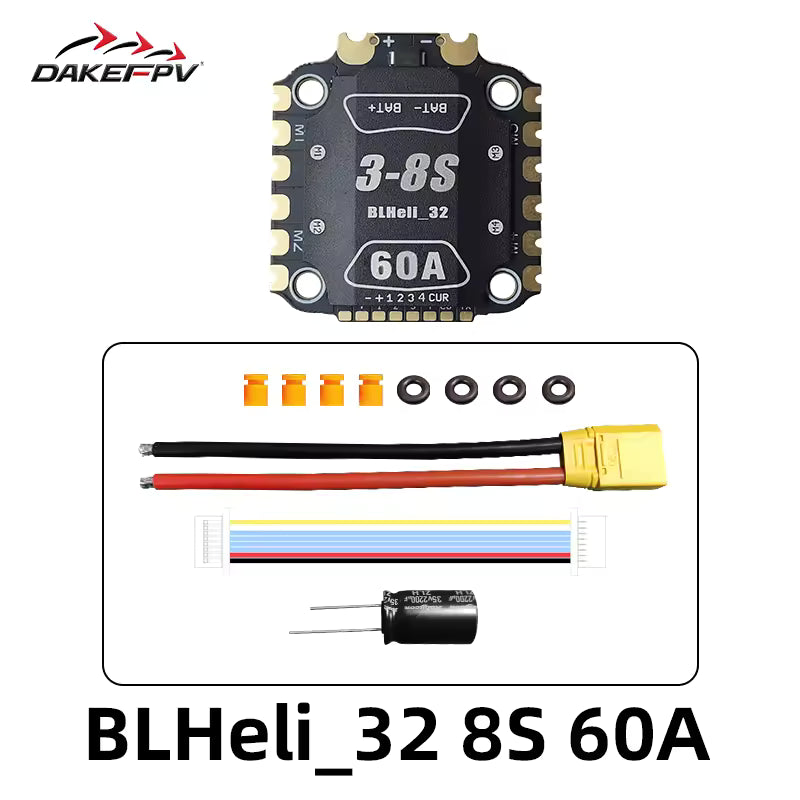

Package Includes
- 1 × DakeFPV BLHeli_32 60A 4-in-1 ESC
- 1 × 35V 1000µF Low ESR Capacitor
Applications
- FPV Racing Drones
- Freestyle FPV Builds
- Long-Range Drones
- Cinematic FPV
- ArduPilot & INAV UAV Projects
- High-Power Brushless Drone Builds
