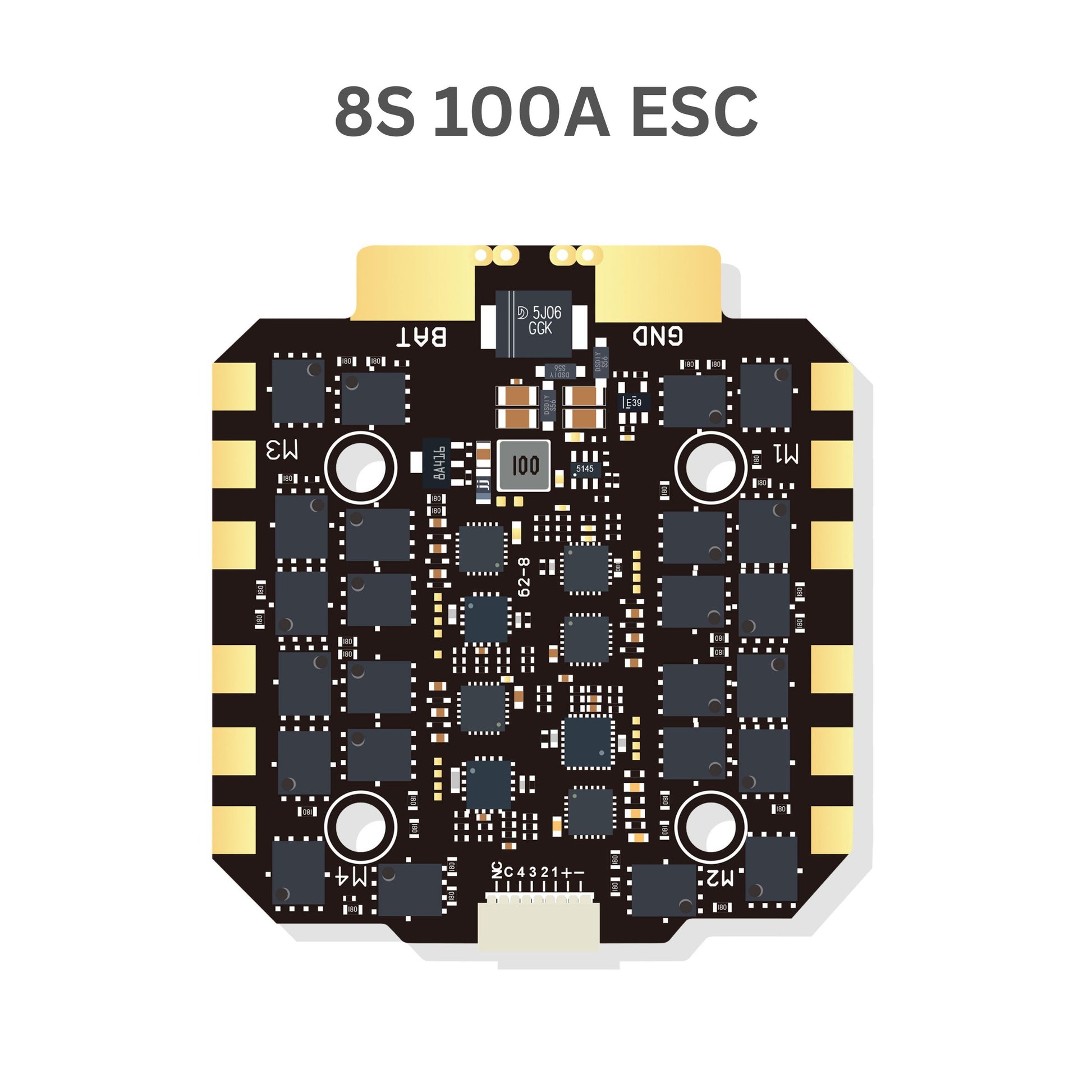

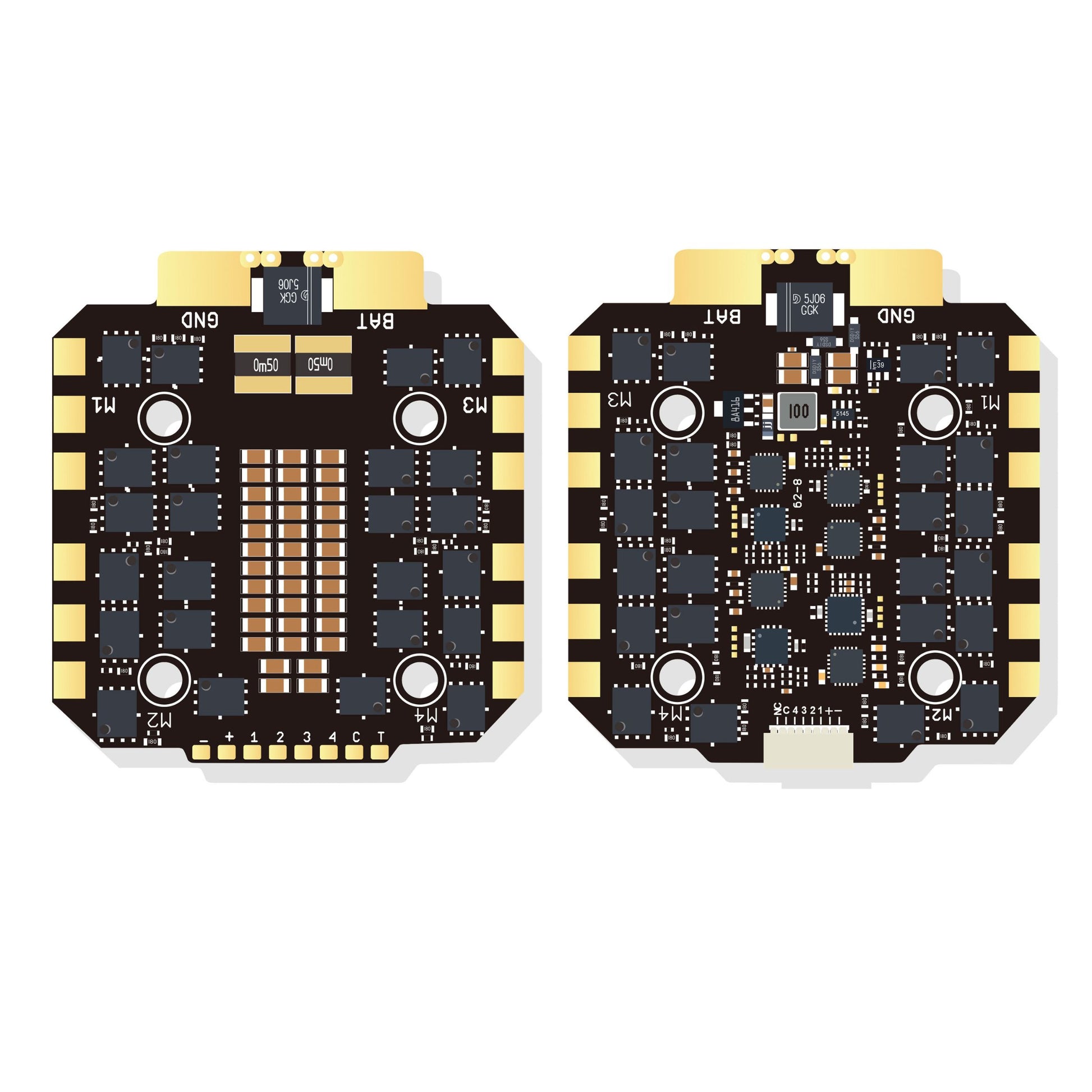

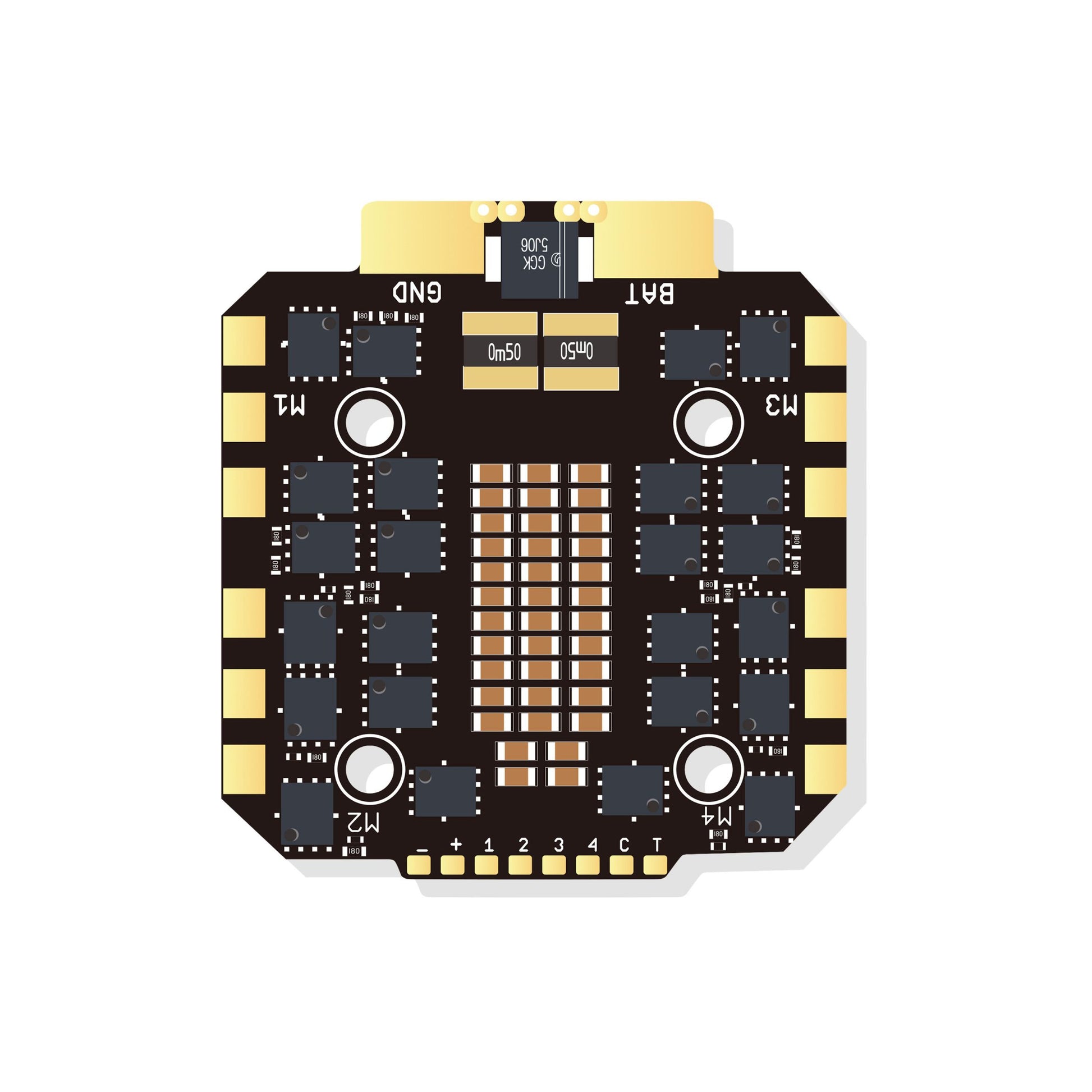

BLHeli_32 8S 100A 4-in-1 ESC – High-Performance Brushless Speed Controller
Apne drone ko next level power aur stability dene ke liye yeh 8S 100A ESC ek perfect choice hai. BLHeli_32 firmware par based hone ke kaaran yeh ESC ultra-smooth throttle response, behtar efficiency aur modern flight features support karta hai. High-quality MOSFETs, reliable capacitor design aur 8S (33.6V) tak battery support ke saath yeh ESC heavy-lift, FPV, cine-lifting aur industrial drones ke liye ideal hai.
Key Features
BLHeli_32 Firmware
- Latest BLHeli_32.9 version
- Smooth motor control aur advanced tuning options
Strong MCU for Reliable Performance
- STM32G071G8U6 32-bit MCU
- Fast signal processing for improved stability
Powerful MOSFET Design
- ON5C410NL MOS tube
- 100A continuous × 4 ESC
- 105A peak × 4 (10 seconds)
- High-efficiency power handling suitable for demanding builds
Wide Battery Compatibility
- 3S to 8S LiPo input
- Perfect for high-performance drones
Motor Signal Support
- DShot300
- DShot600
- PWM
- Bidirectional DShot (RPM telemetry)
Safety & Stability Components
- Built-in TVS protection
- 2 × 35V 1000µF Low ESR capacitors for low noise & voltage protection
Ammeter Support
- Supported
- Ammeter ratio: 120
Physical Specifications
- Size: 56mm × 59mm × 7mm
- Mounting holes: 30.5mm × 30.5mm (M4)
- Weight: 30g
- Operating temperature: 20°C to +85°C
- Humidity tolerance: 20% – 95%
- Power Output Pad: VBAT
