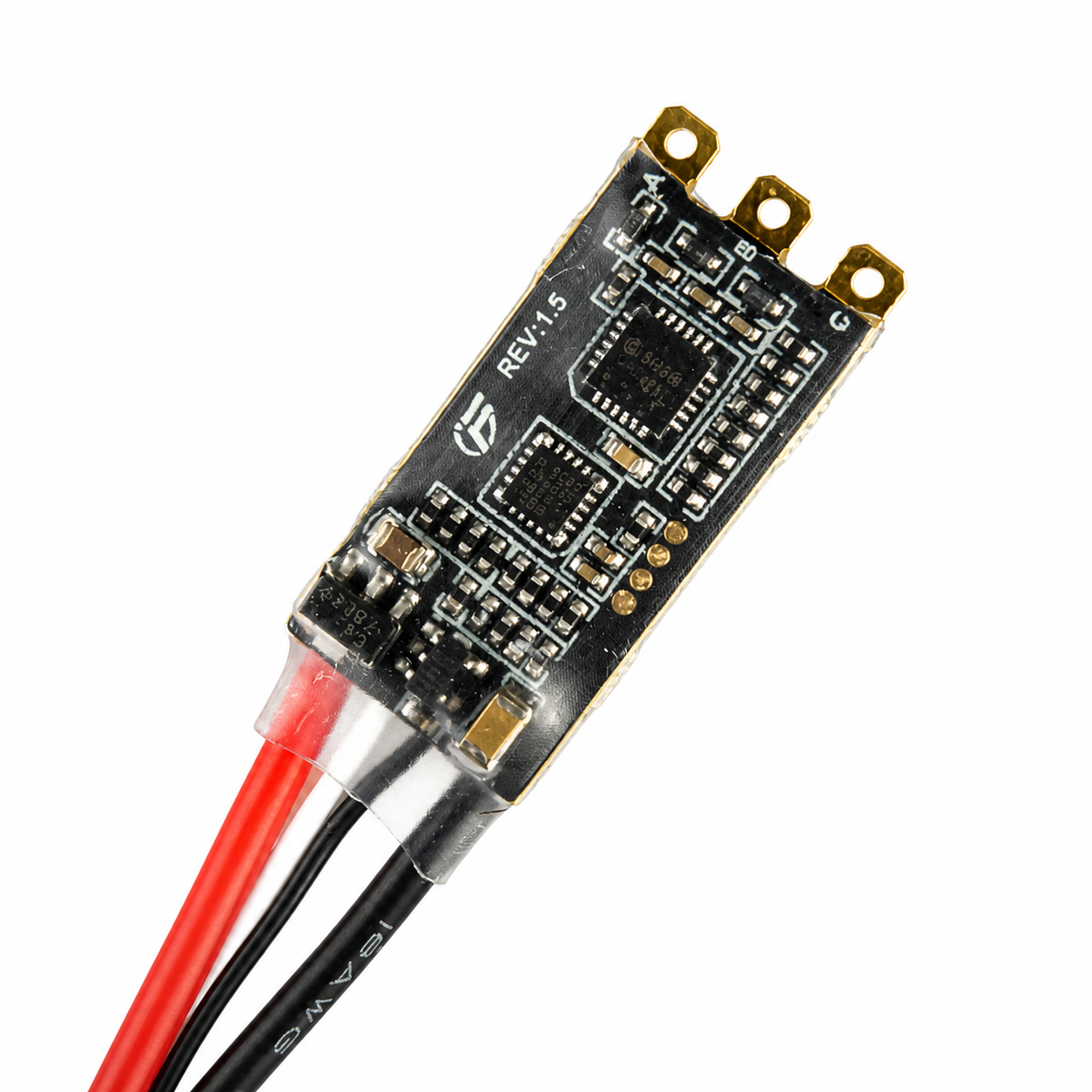

A 6-layer, 3-ounce copper-thick, and high-quality PCB are adopted, and the layered layout of large current and small control signal is adopted to enhance the anti-jamming ability. The gold plating process on the PCB surface can effectively improve the current resistance and heat dissipation ability of electric regulation. Integrated RGB multi-color bright LED night light, night flight is even more dazzling. It supports BLHeli-S and DShot 150/300/600 digital throttle. It has a strong anti-jamming ability and quick response.
By default, the hardware PWM is turned on and the Damped Light hardware PWM drives the motor. The noise is low and the throttle response is smoother. Damped Light mode, and regenerative braking function, make motor deceleration more sensitive and effect
Features:
- Gold plated PCB
- Regenerative braking function
- Strong anti-jamming ability and quick response.
Package Includes:

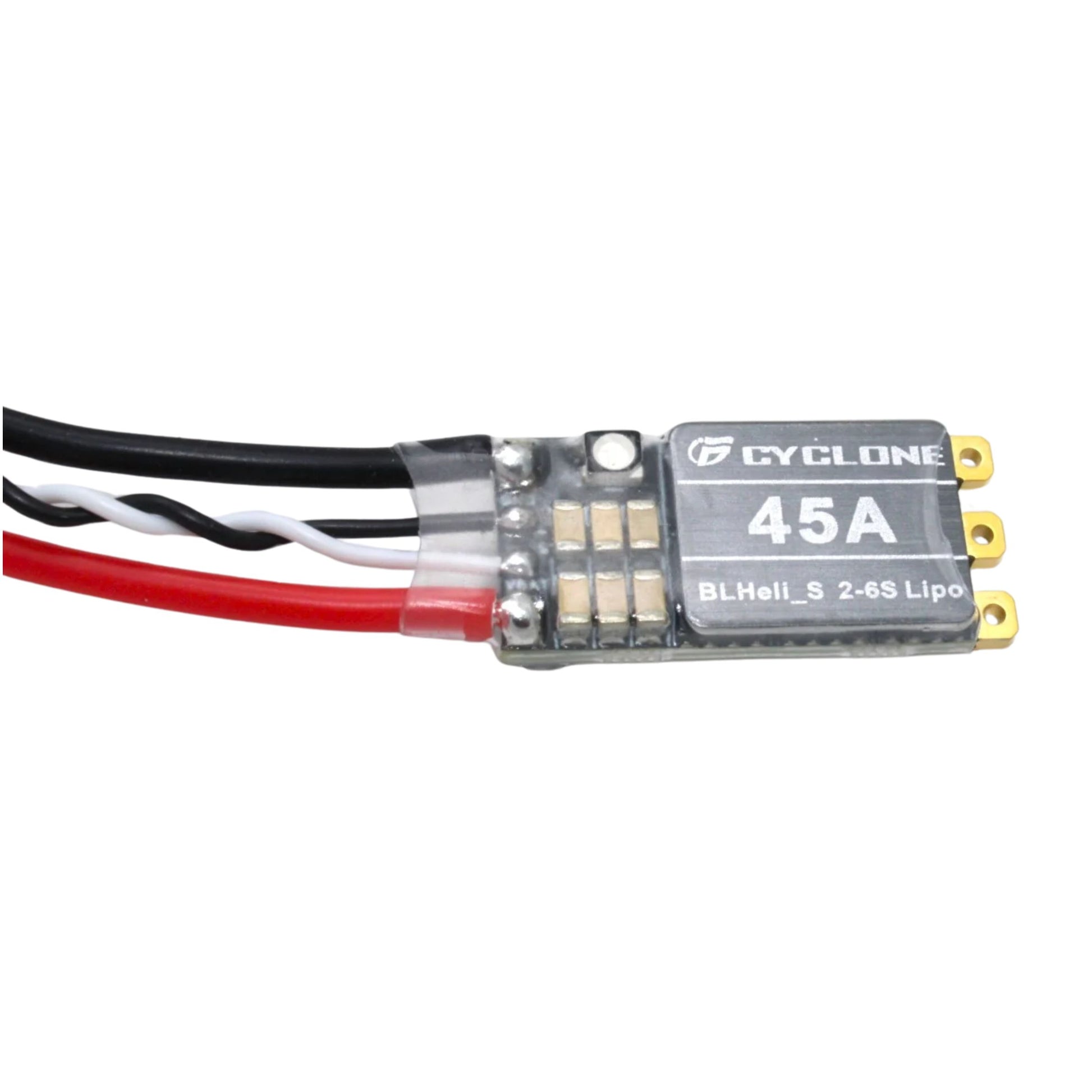

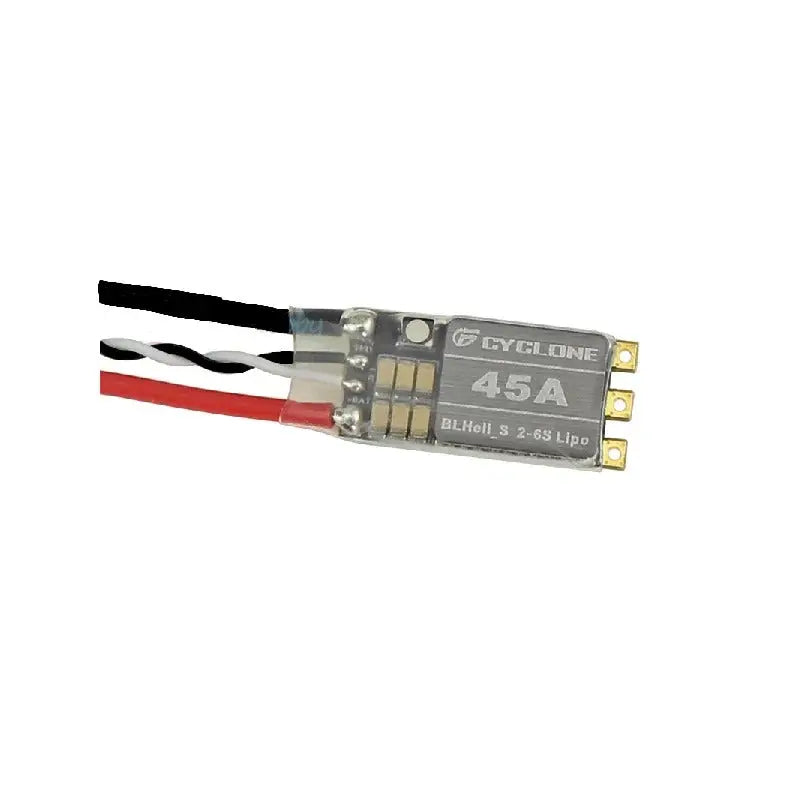

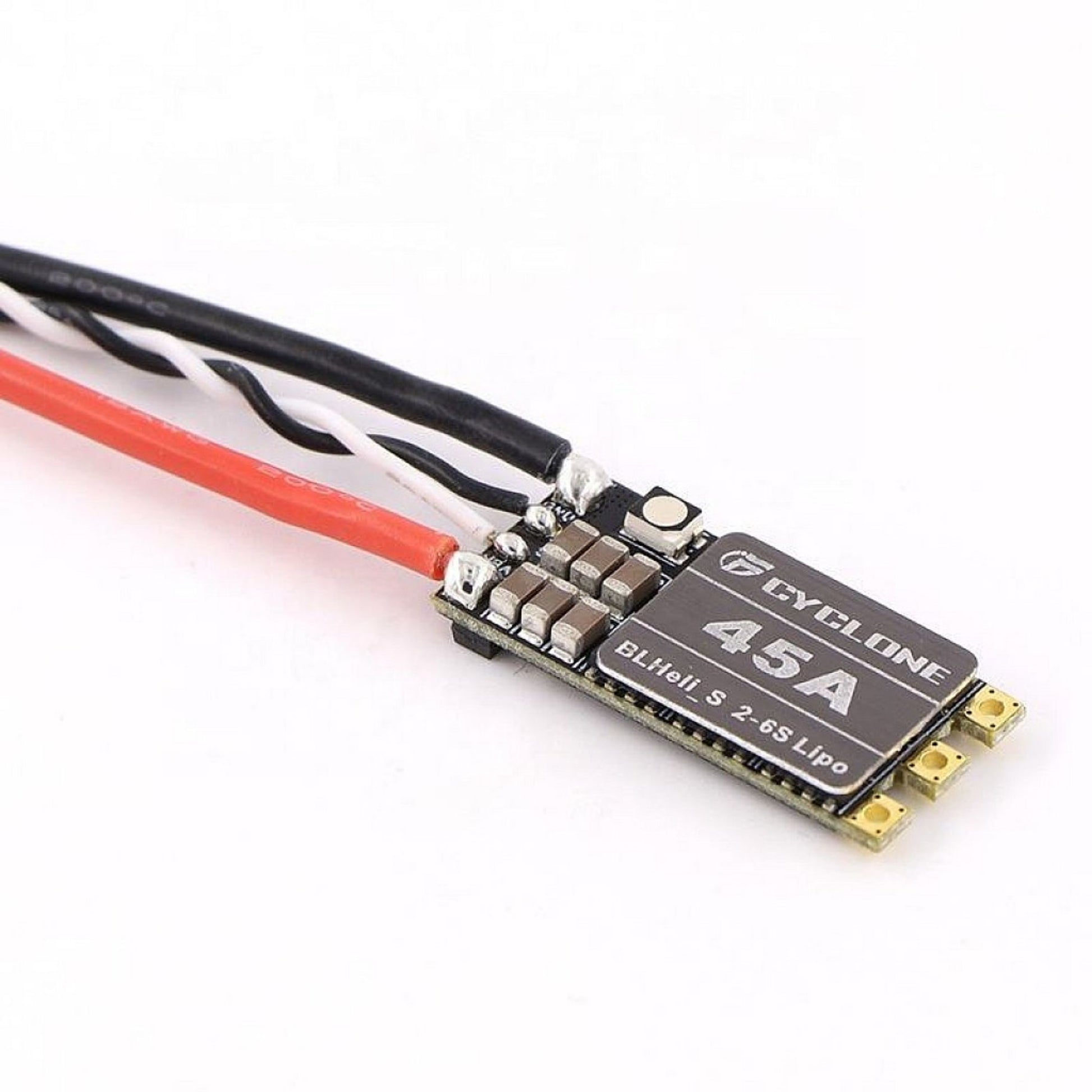

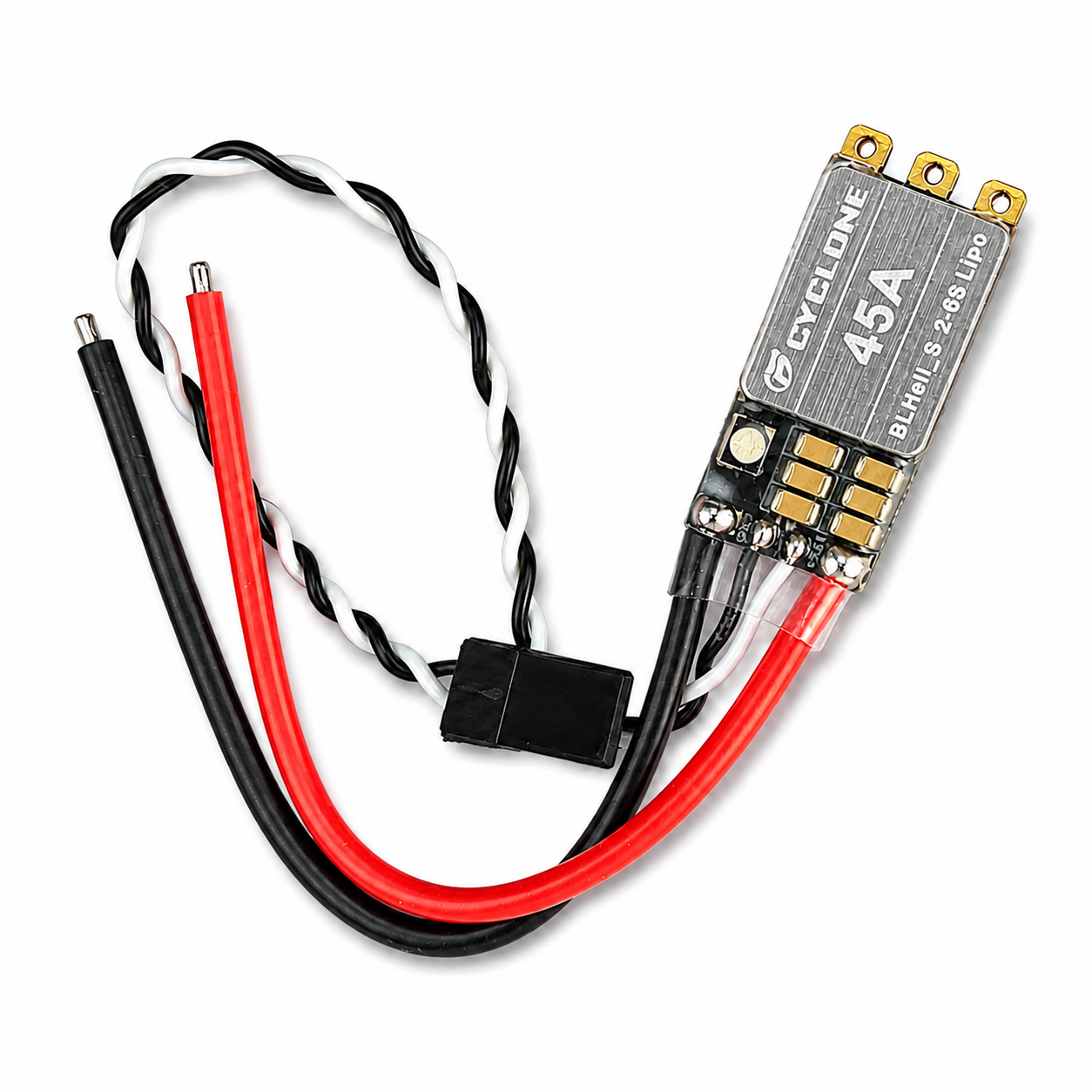

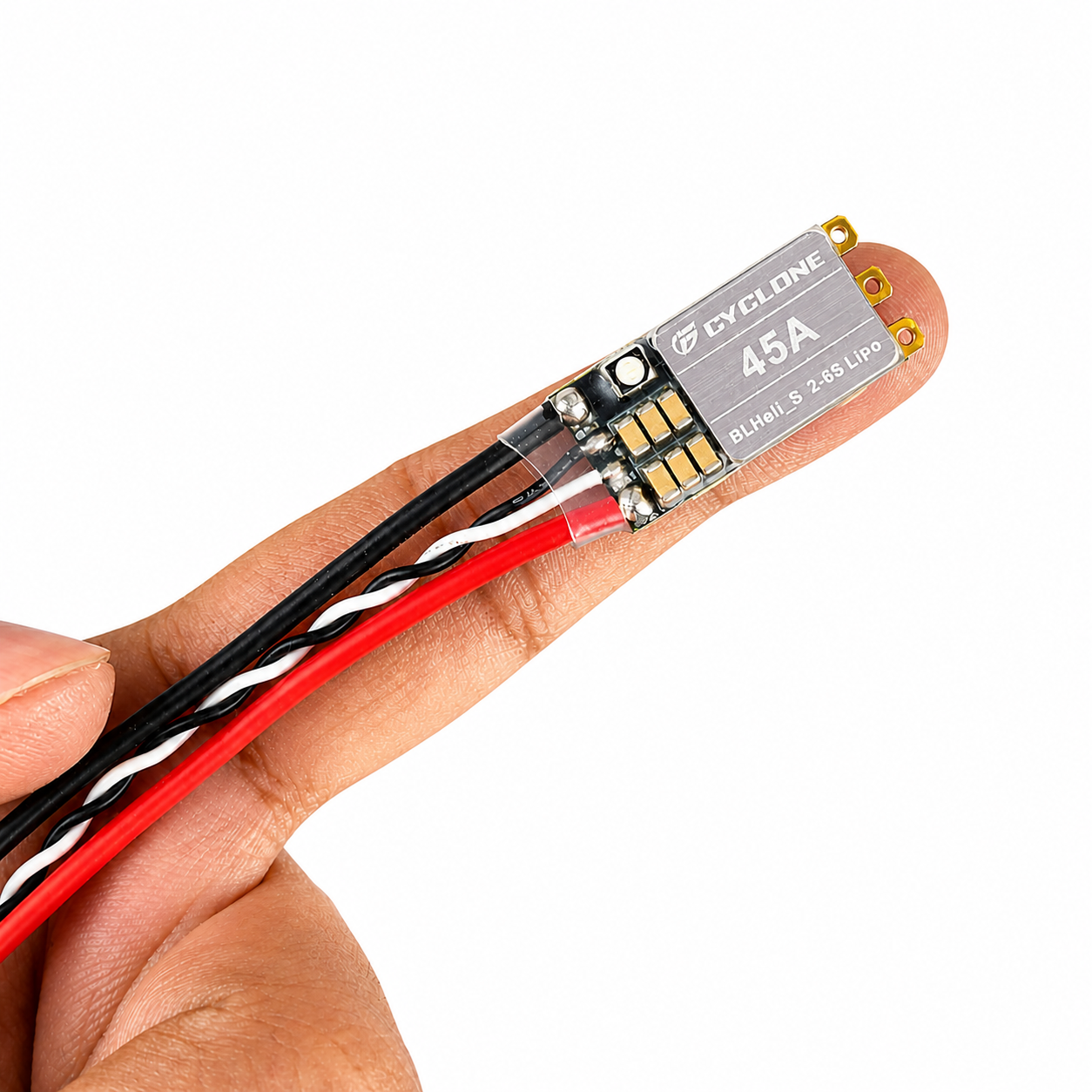

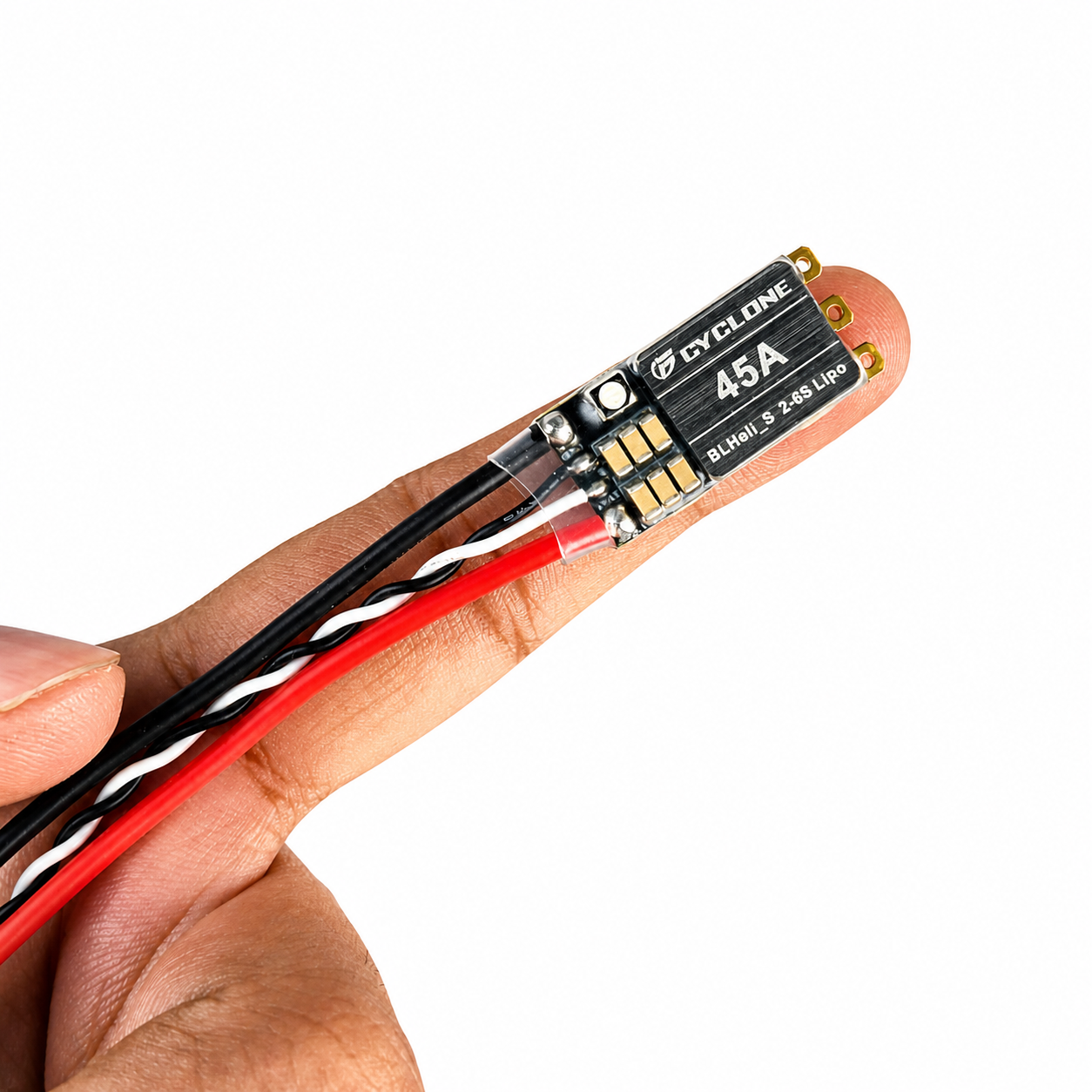

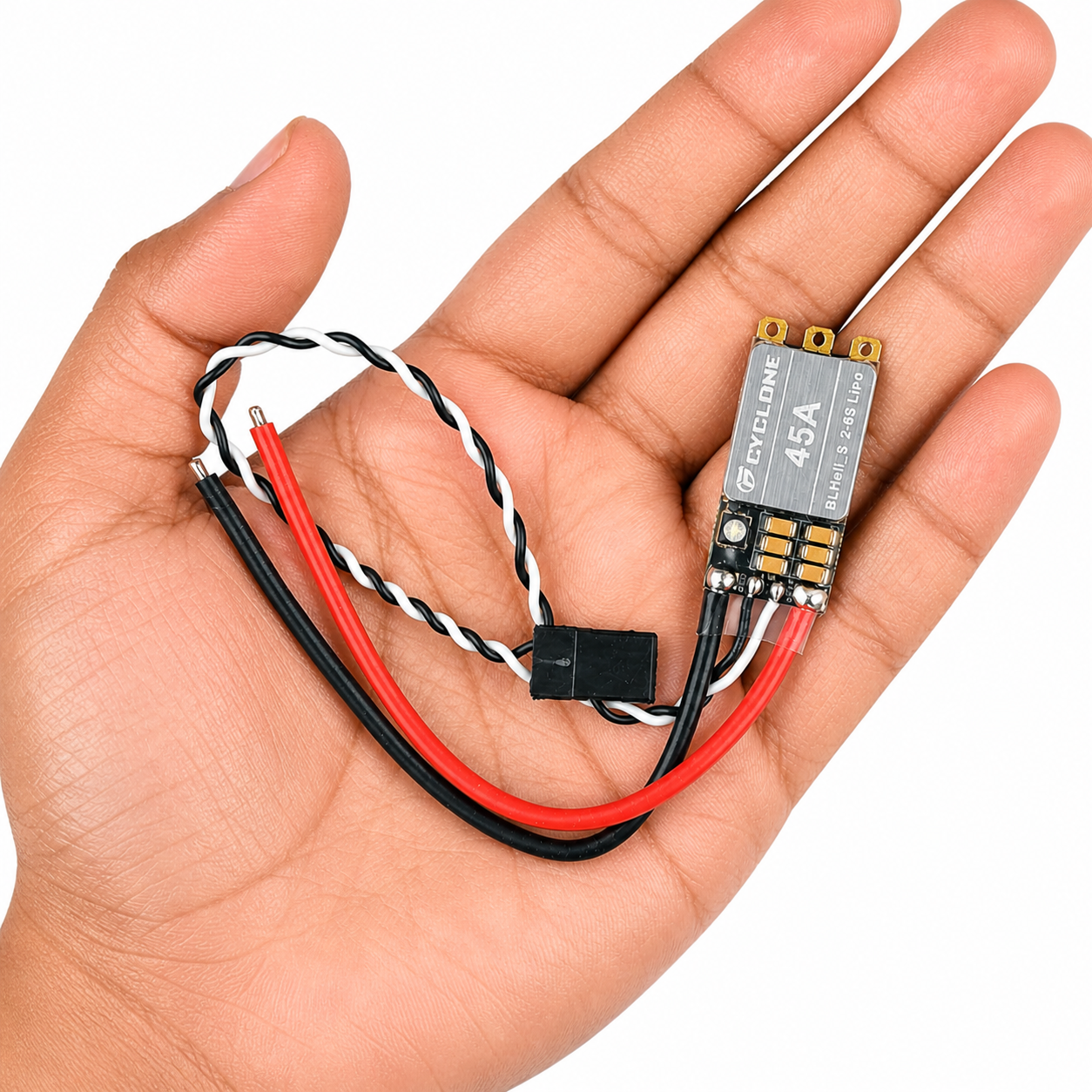

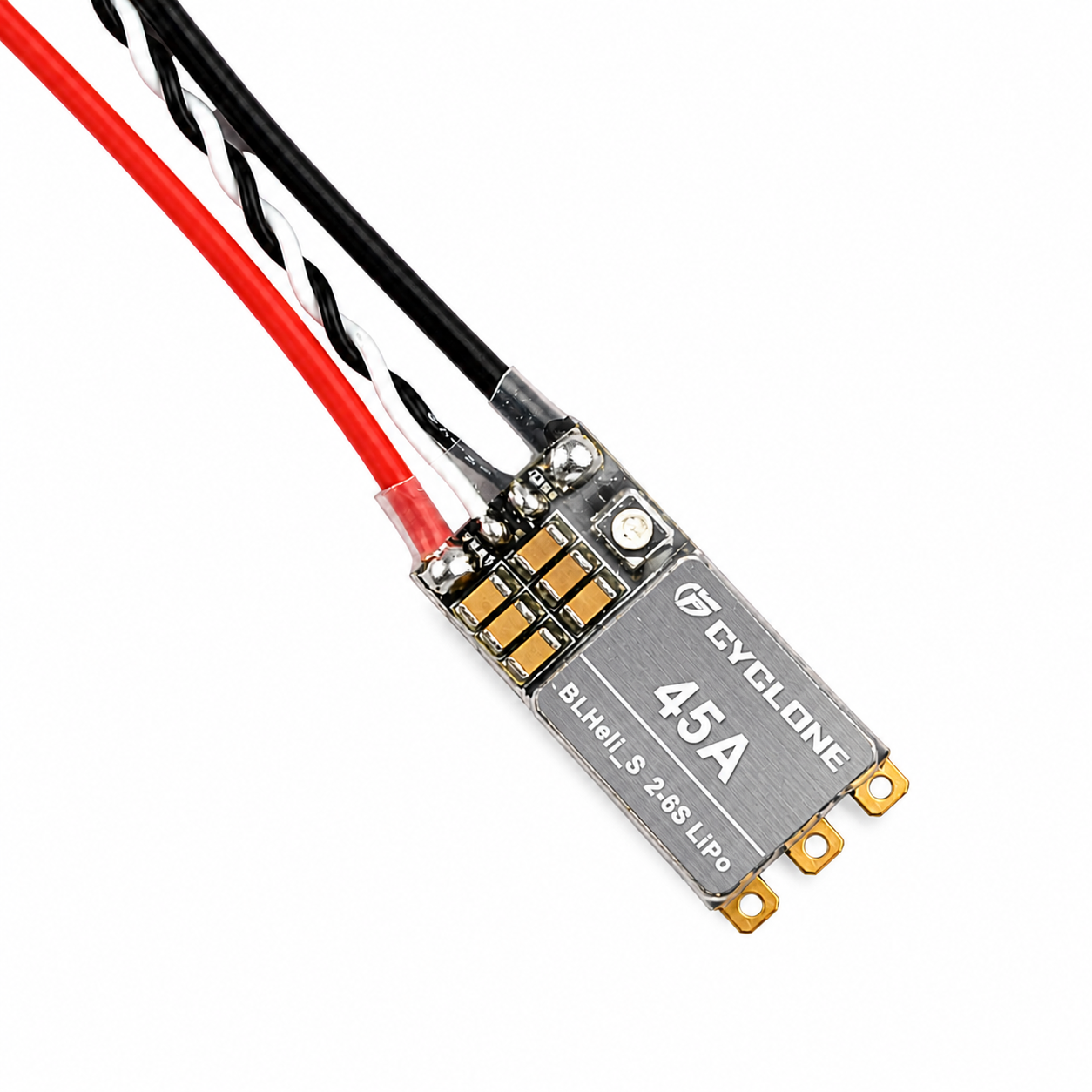

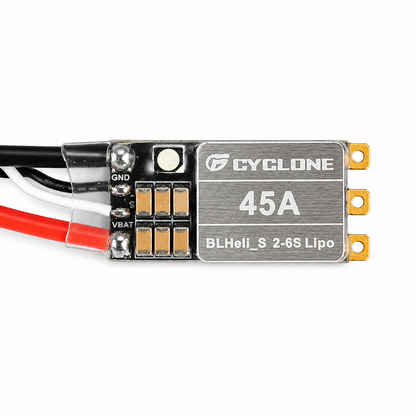

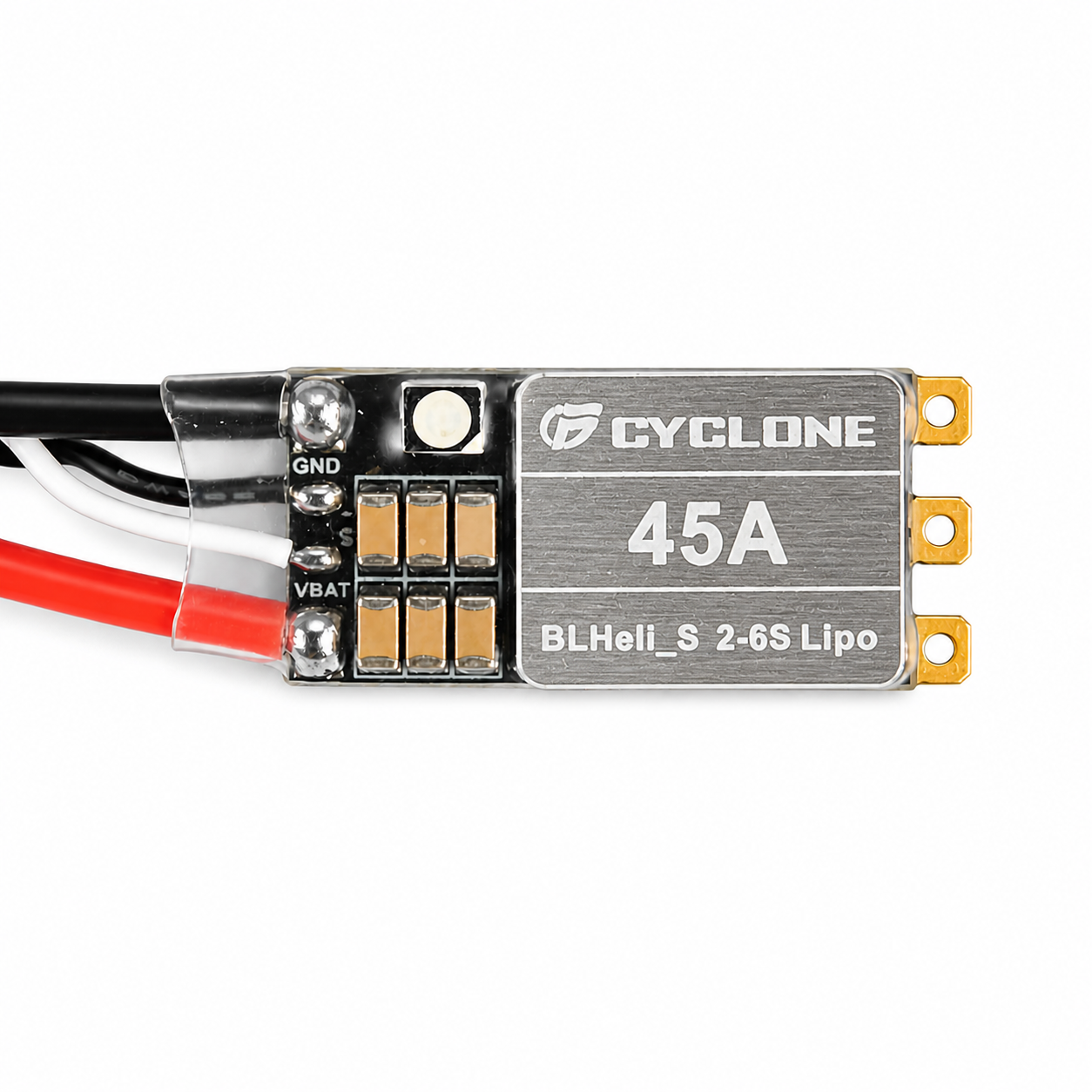

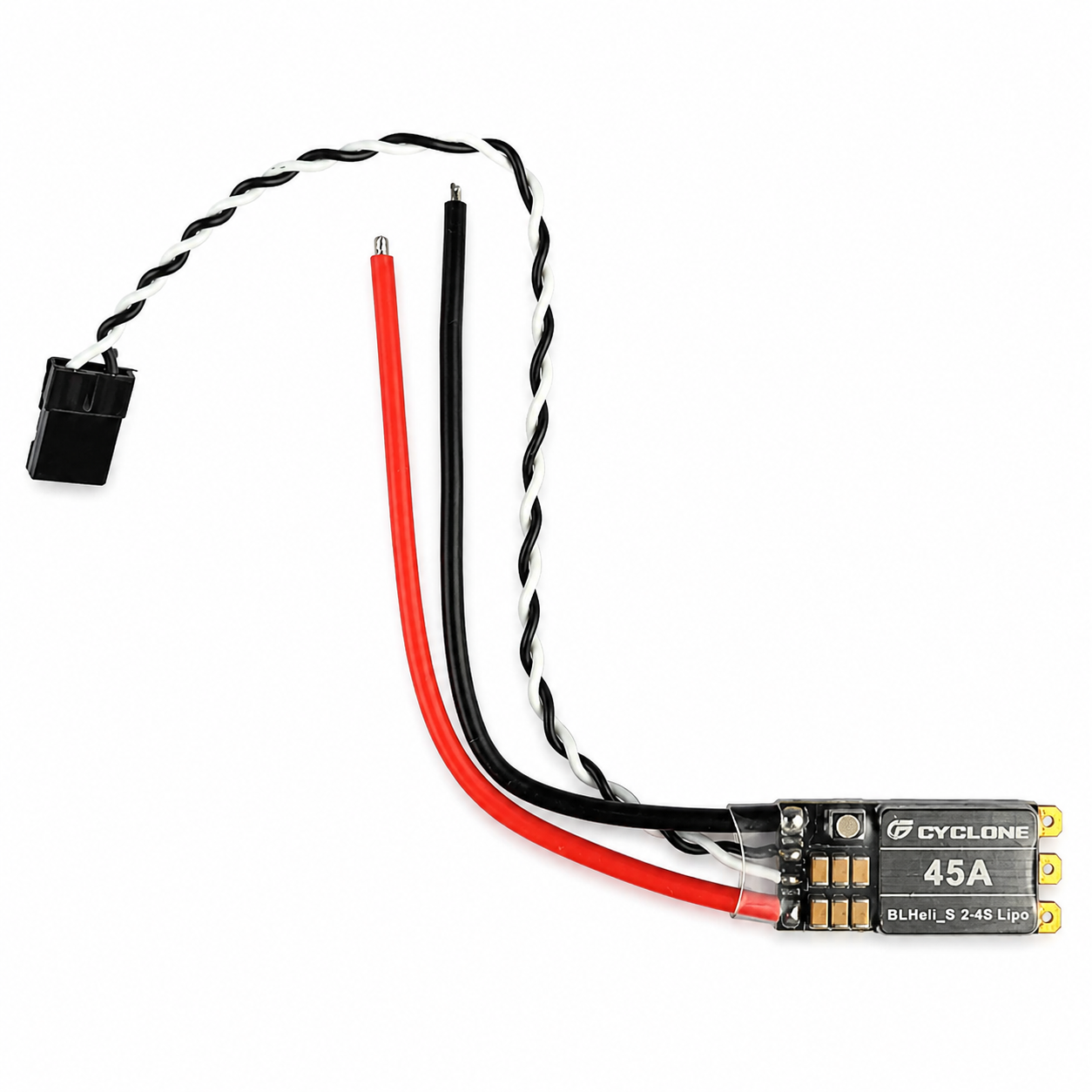

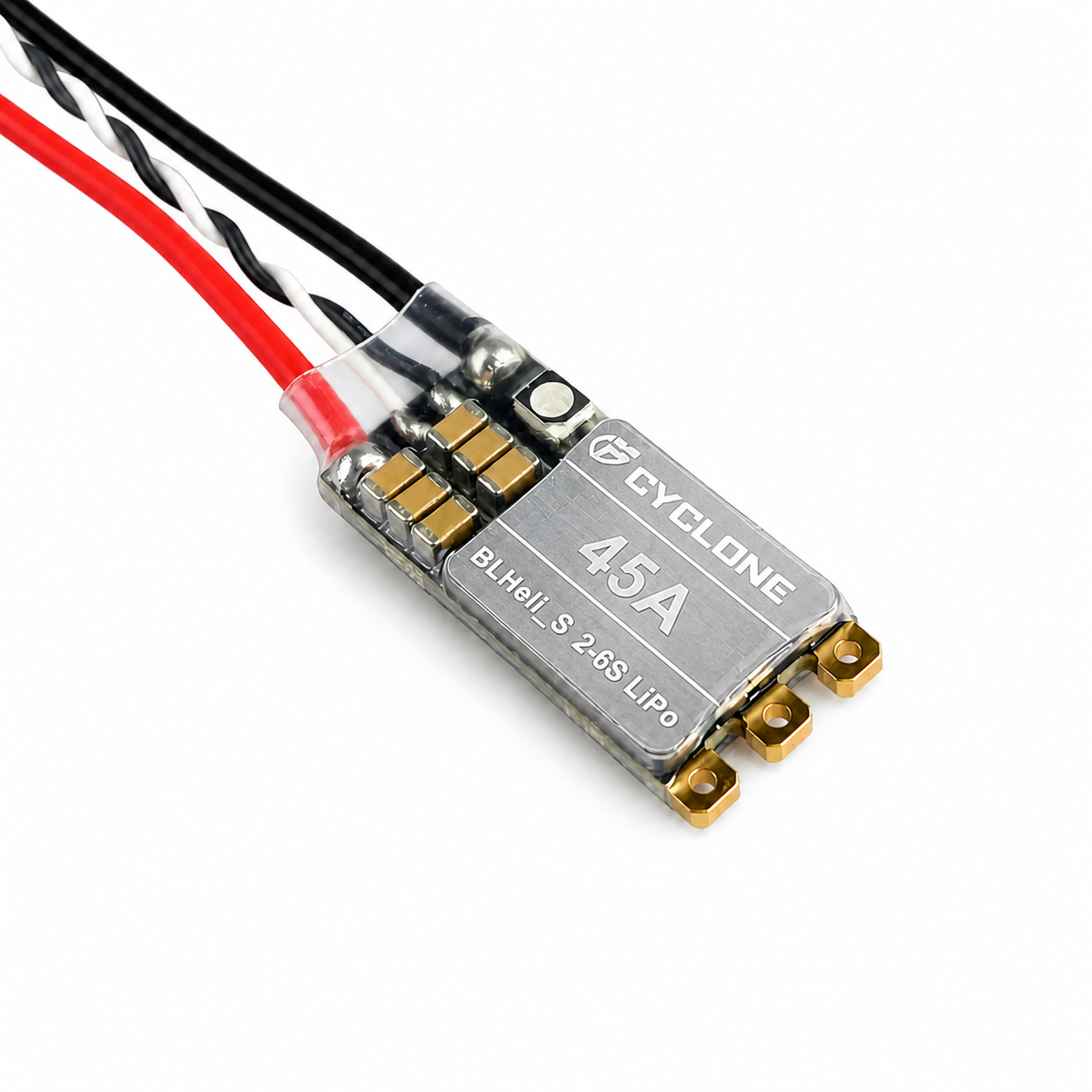

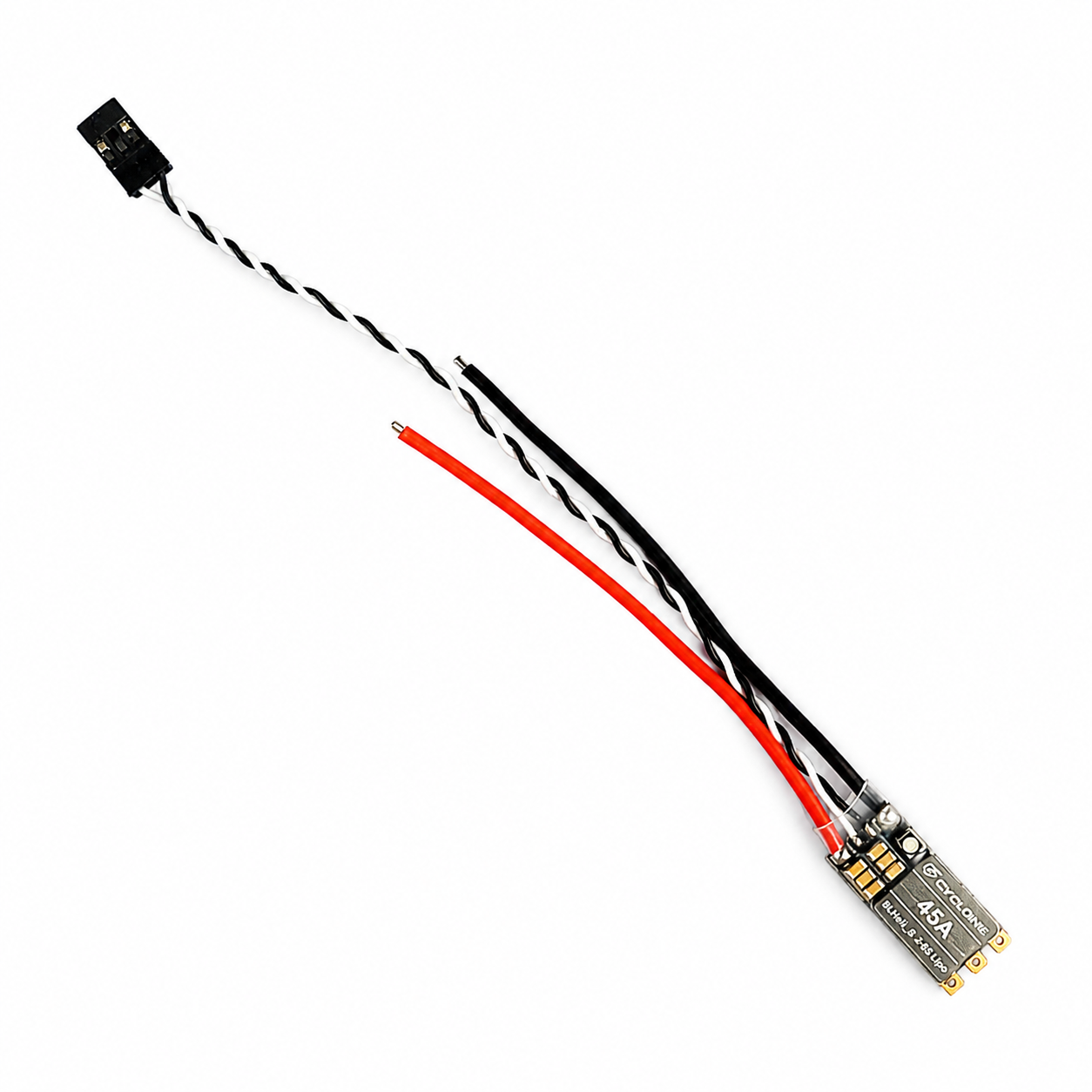

1× Cyclone 45A BLHeil_S ESC
| Specification | Details |
| Brand | Cyclone |
| Model | 45A BLHeli_S ESC |
| Type | Electronic Speed Controller (ESC) |
| Current Rating | 45A continuous, 60A burst |
| Voltage Range | 3-6S LiPo (11.1V to 22.2V) |
| Firmware | BLHeli_S |
| Protocol | PWM, Oneshot125, Oneshot42, DSHOT (depends on firmware version) |
| BEC (Battery Eliminator Circuit) | None (OPTO version, no BEC) |
| Input Connector | 2-pin JST or similar |
| Output Connector | 4-pin for motor connections |
| Supported Motor Types | Brushless motors |
| Size (L x W x H) | Typically around 30mm x 30mm x 10mm |
| Weight | Lightweight, approximately 20-30 grams |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Typically mounted with double-sided tape or screws |
| Wire Gauge | 12 AWG or 14 AWG (varies by model) |
| Cooling | Heatsink or aluminum casing |
| Certifications | CE, RoHS (if applicable) |
| Additional Features | - High-performance with fast response |
| - Reliable operation with multiple protocols | |
| - Suitable for high-performance drone builds |
