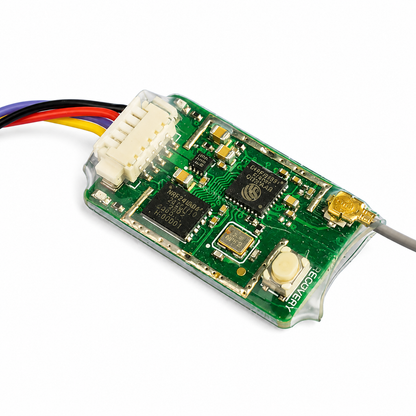

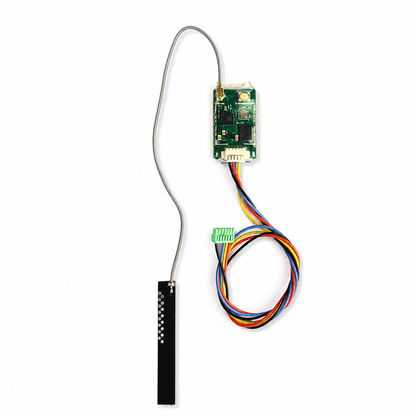

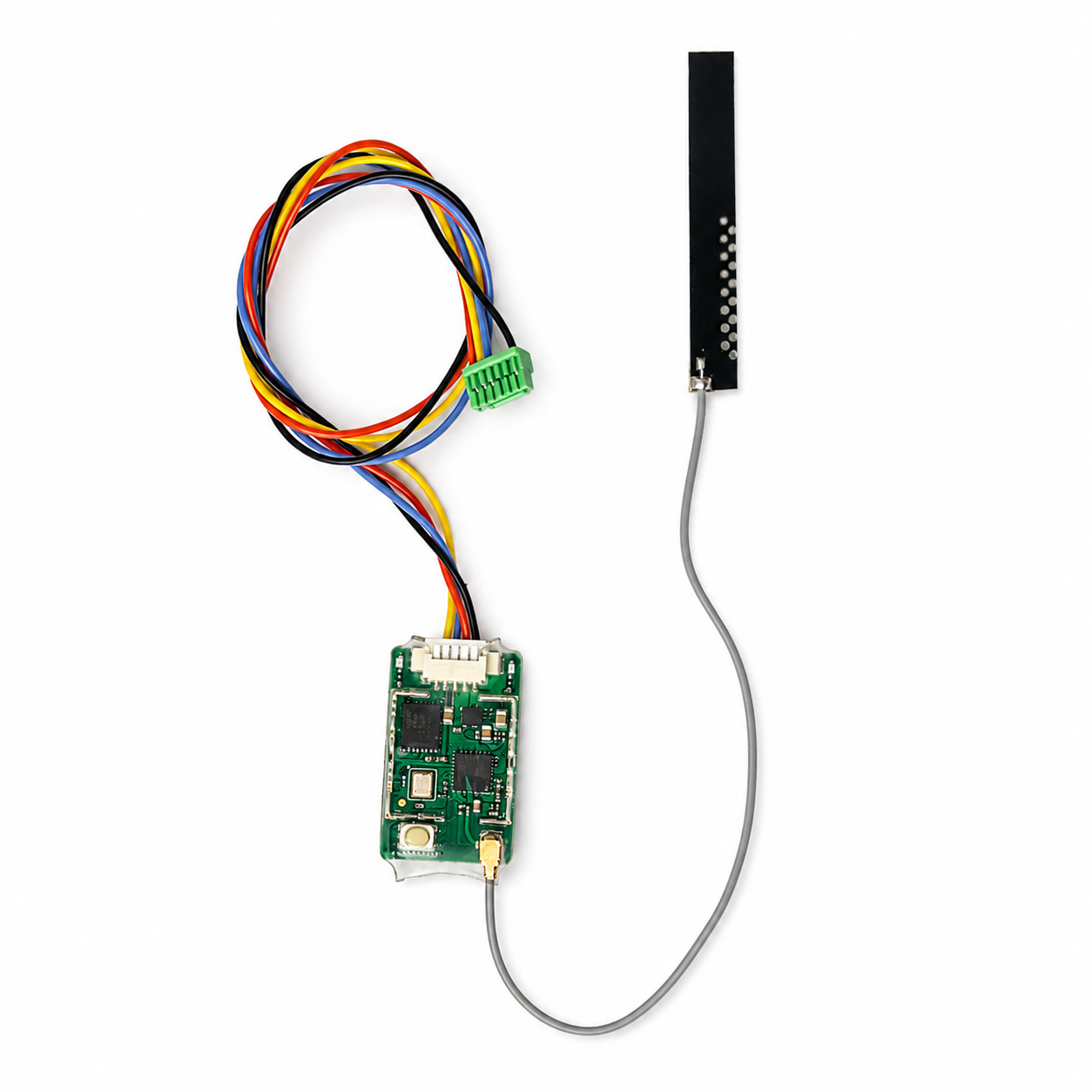

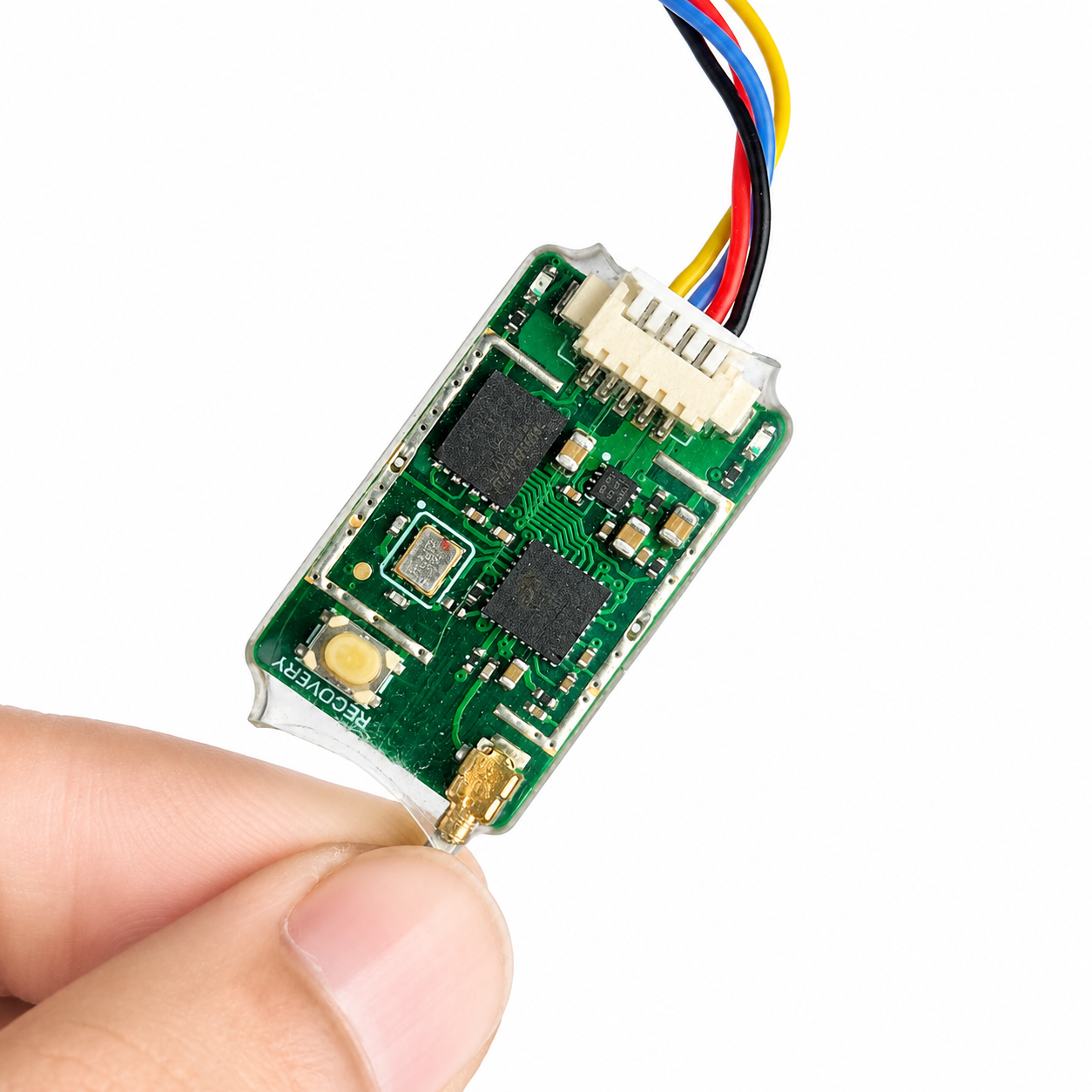

CUAV V2 PW-Link Drone Data Telemetry Introduction
PW-Link data telemetry is a 2.4 GHz wireless data transmission module with a transmission distance of approximately 200 meters. Using the computer-ground station Mission Planner to conduct long-term connection tests, the average stability of the data transmission signal is maintained above 90%. Due to its features of small volume, long transmission distance. stable data and convenient connection, it is very suitable for the use of various calibration and adjustment parameters in short distances, as well as the data transmission and reception mode of small unmanned aerial vehicles in short distances
CUAV V2 PW-Link Drone Data Telemetry Features
- ESP8266 high-performance network communication processor
- Simple and Fast UDP broadcast communication mode with low overhead;
- Mobile phones, computers, and other devices can wirelessly connect to unmanned aerial vehicles through WiFi modules.
- It is applied to various ground station software that supports UDP communication.
- PW LINK can connect to the flight control for parameter tuning and setting only through the Wi-Fi of a computer or a mobile phone
- You can set the WlFl name and password through the CUAV groundstation Hflight.
- Compatible with computer ground stations: Mission PlannerQGroundcontrol
- Mobile Ground Control Station: Tower, CUAV Hflight, and QGc (official CUAV site APP:http://fw.cuav.net/apk/HFlight.apk)
CUAV V2 PW-Link Drone Data Telemetry Connection Method

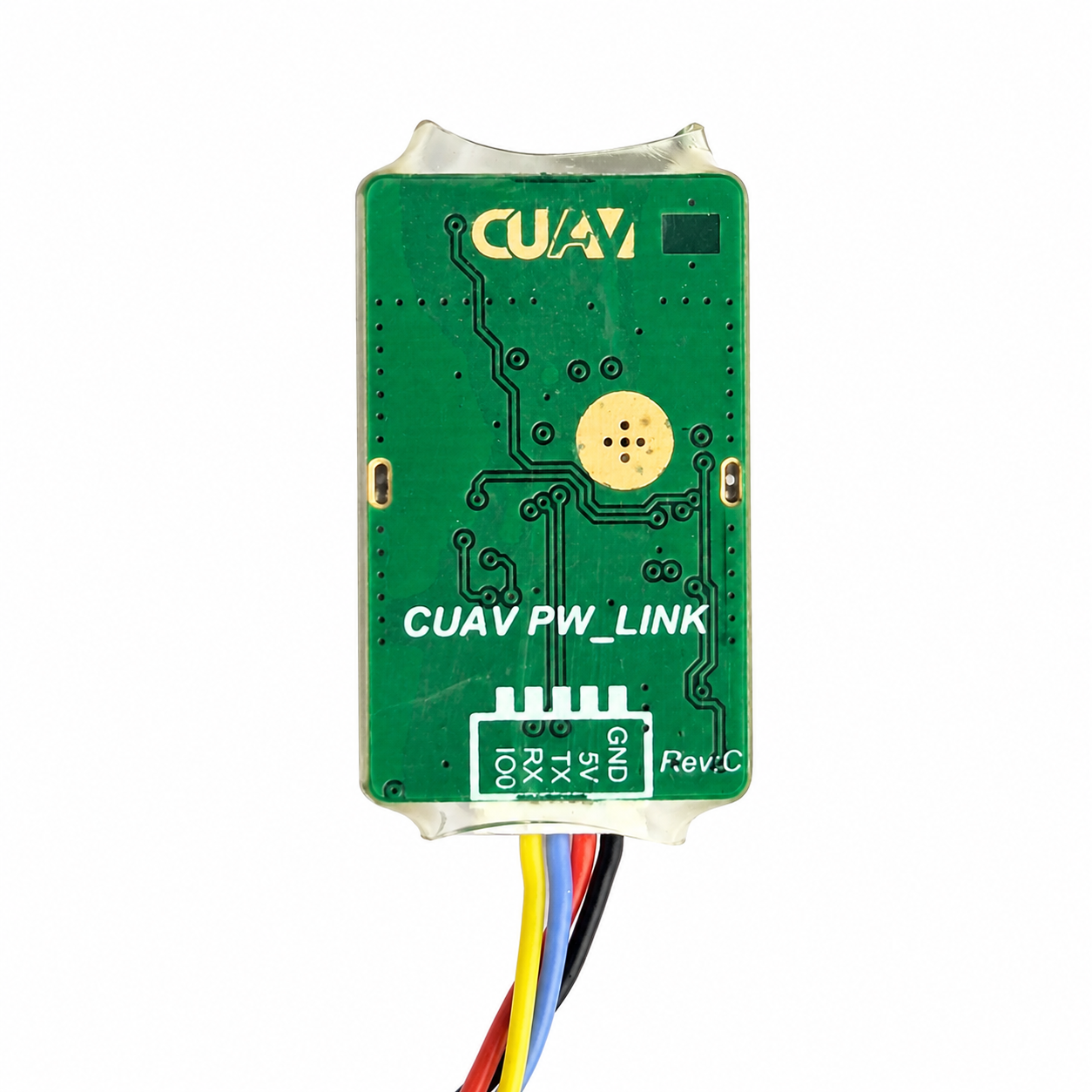

1. Flight controller connect the TELEMI/TELEM2/Radio interface
2. Connect to the Wi-Fi using a mobile phone or computer,
wifi name: CUAVWlink XXXXXX, wifi password: cuavwlink
| Specification | |
| Range | 200m |
| Wireless standards | IEEE802.11g、IEEE802.11b |
| Wireless speed | 11g:Maximum 54Mbps、11b:Maximum 11Mbps |
| Channel range | 1-13(default 11 channels) |
| Frequency range | 2412-2472MHz |
| Transmit power | 18DBM |

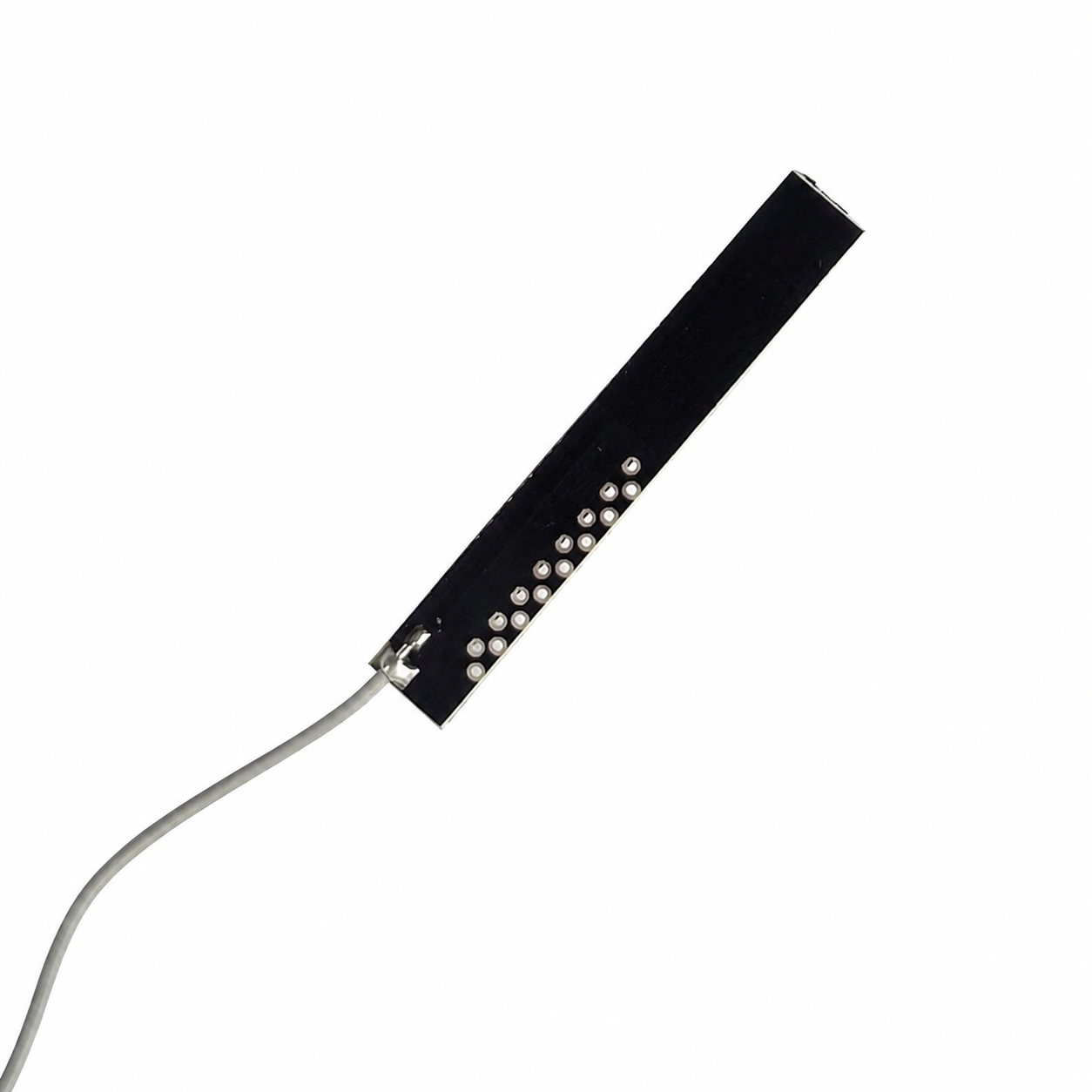

| Antenna type | Internal Antenna |
| Wireless security | WPA/WPA2 Security mechanism |
| Serial speed | Serial port Baud rate 115200/57600(adaptive) |
| Protocol and port | UDP 14550 |
| Working voltage | 5V+-0.25V |
| Working current | 100MA |
| Working temperature | -20-50℃ |
| Woking humidity | 10%-90%RH(noncondensing) |
| Storage temperature | -40-80℃ |
| Storage humidity | 5%-90%RH(noncondensing) |

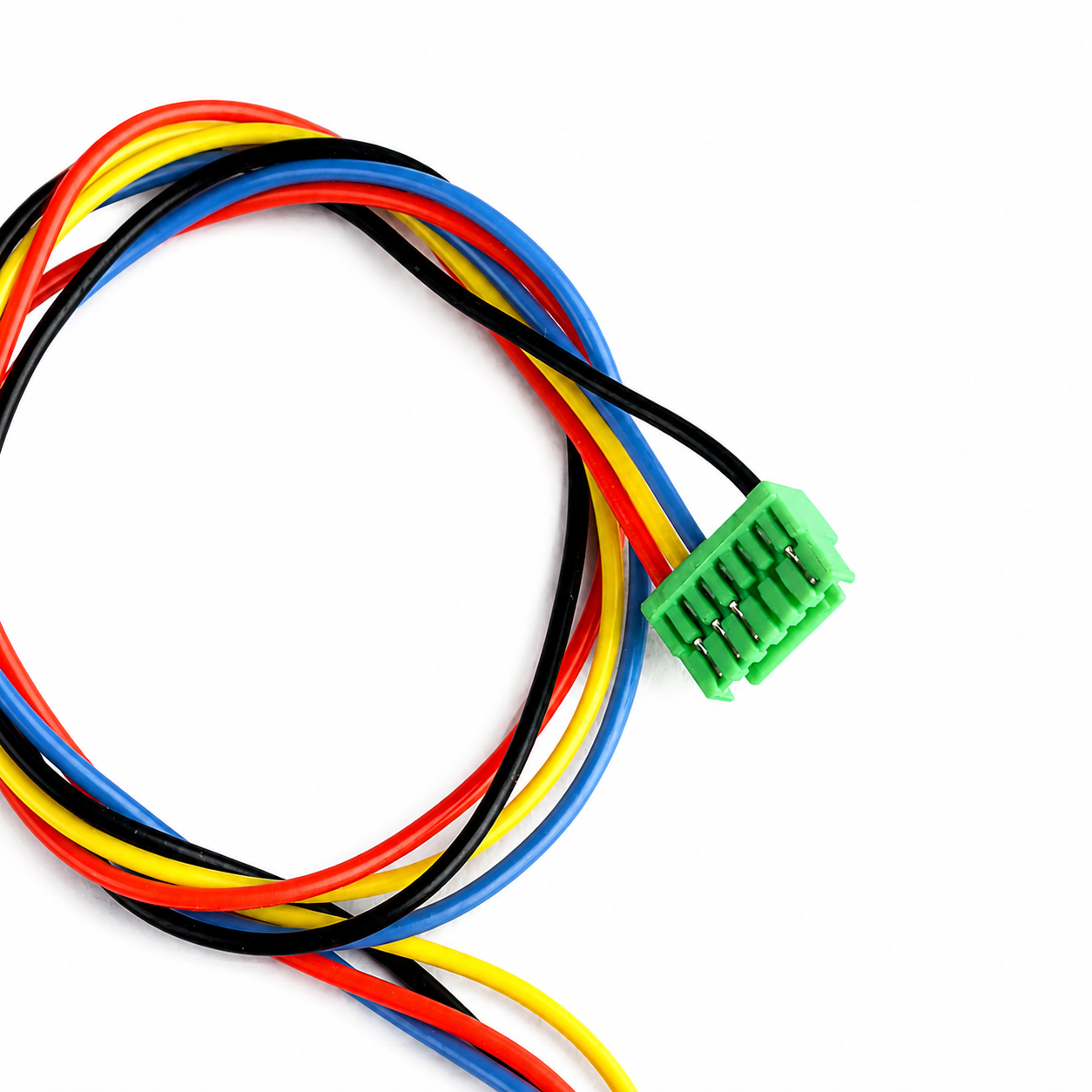

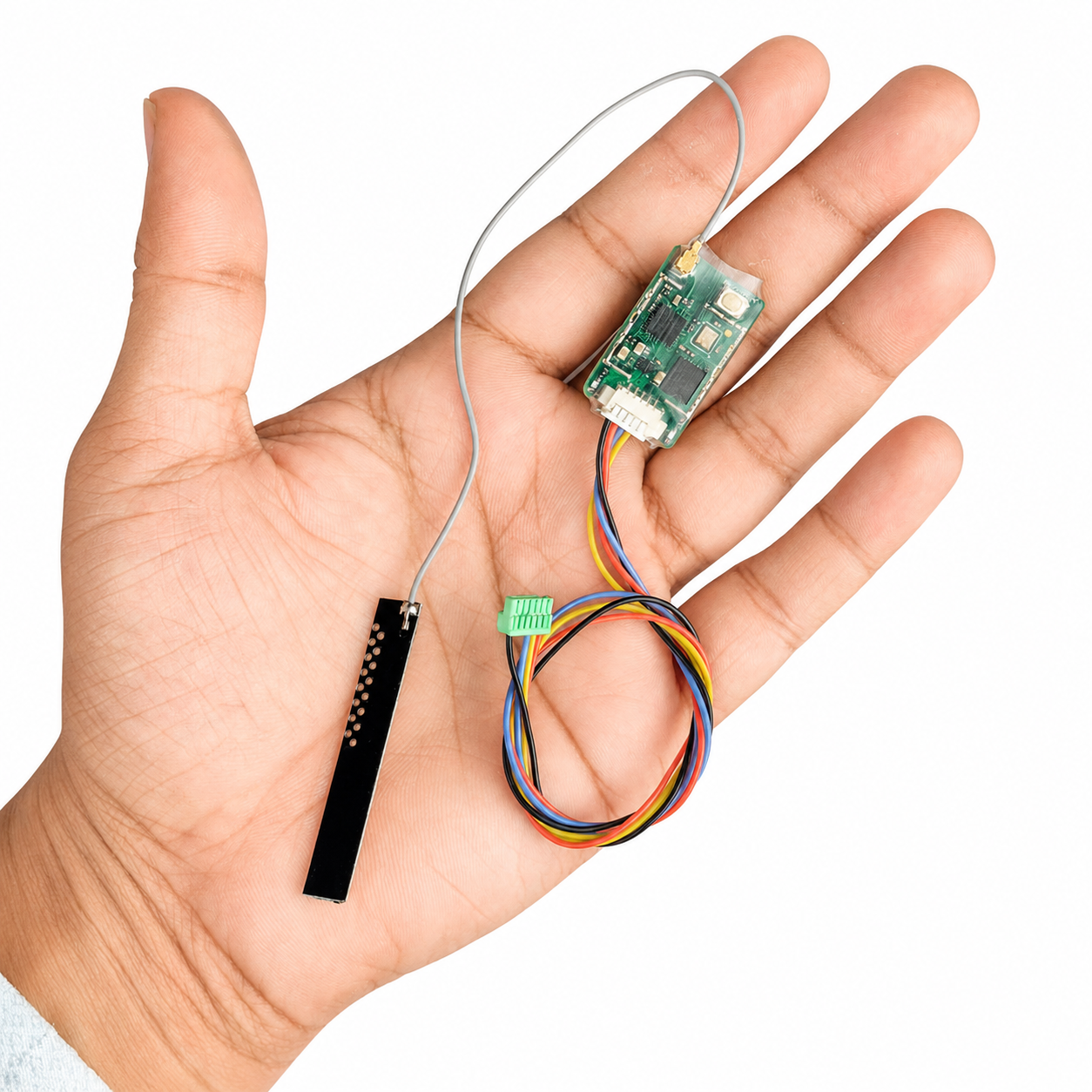

| Size | 3.5cm×1.6cm(Module)Cable Length: about 25cm |
| Weight | Module 3g,cable 3g,total 6g |
