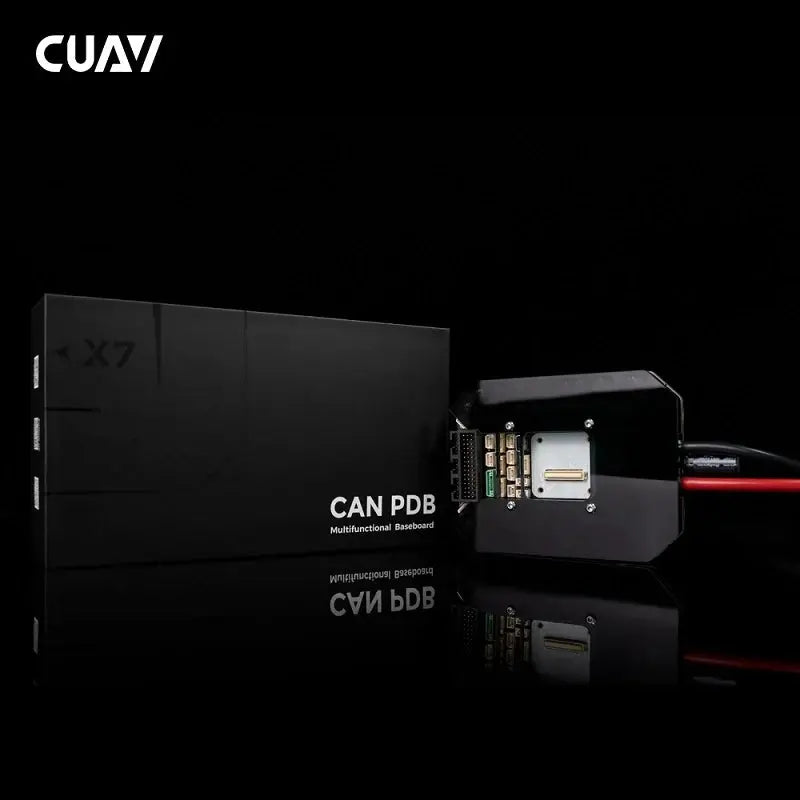

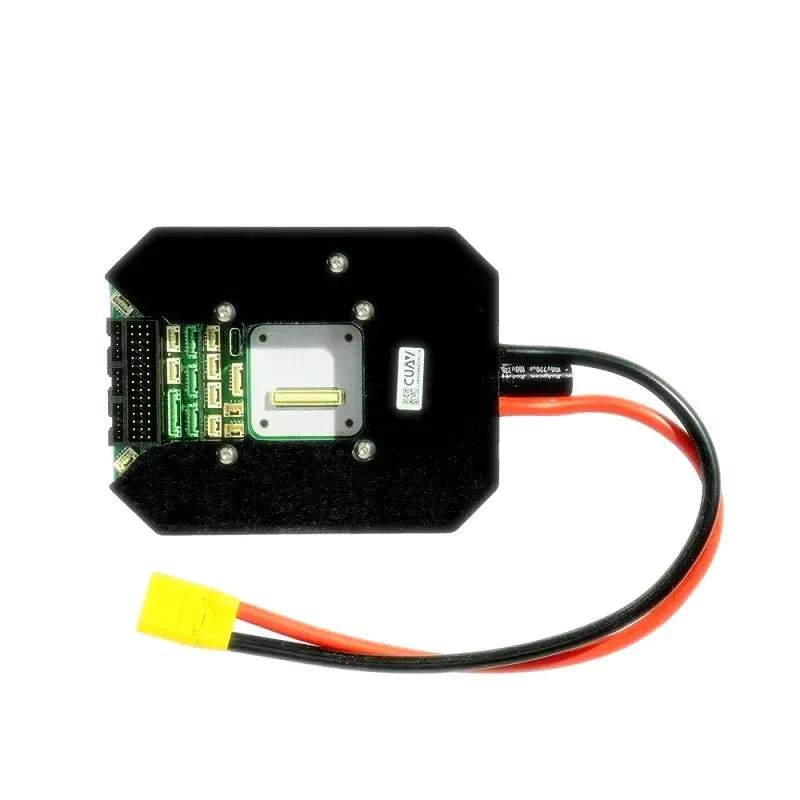

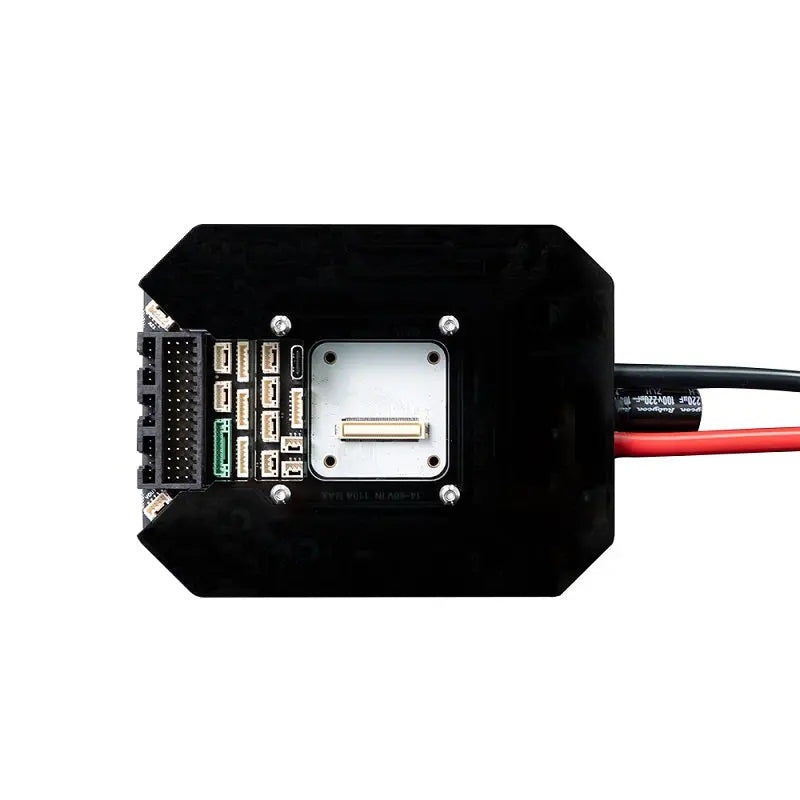

CAN PDB is a multi-functional baseboard of flight controller CORE, which provides abundant interfaces, integrates the functions of the power supply module and power distribution board, supports voltage input of 10~60V, and provides continuous working current up to 110A. It adopts a self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V. It has 10-way power output welding points and provides a 5V/6A and a 12V/4A stabilized output to provide power for external devices. Furthermore, it also supports the CORE module of the flight controller.
V2.5 Update:
1. Adding a PPM interface enriches the support of remote control receiver protocol;
2. The power output is upgraded from screw fixing to welding process, which reduces the risk of loose screws caused by heating and vibration caused by poor contact.
Features:
- Support 10~62V ultra-wide voltage input
- Continuous current: 180A
- Accurately measure voltage and current, current accuracy within 110A is 0.1A, voltage accuracy is 0.05V
- 14 servo channel output
- Dual regulated output interface: It can provide up to 5V/6A, 12V/4A power output for peripherals

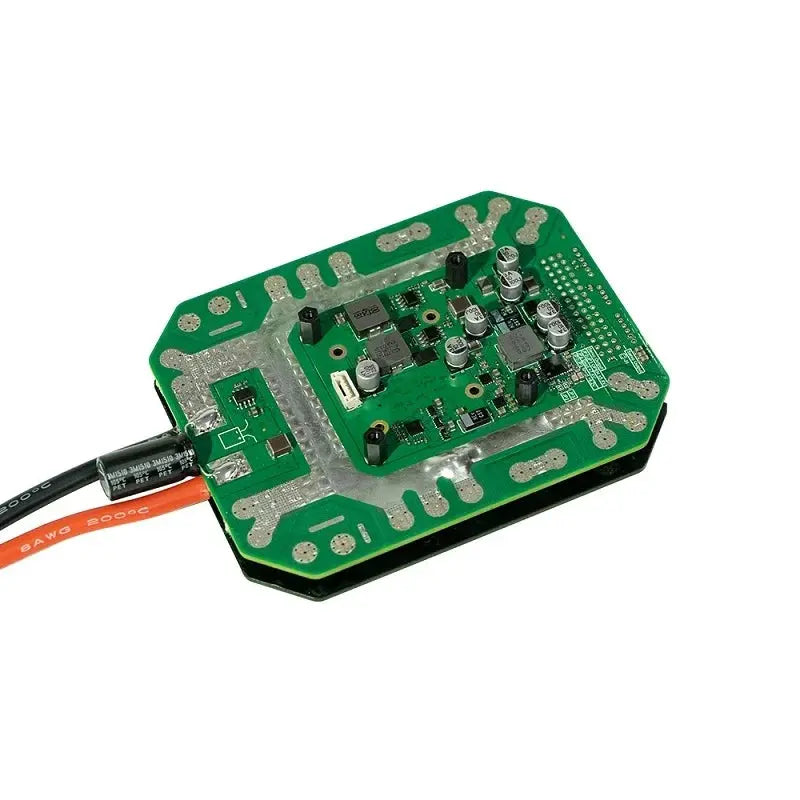

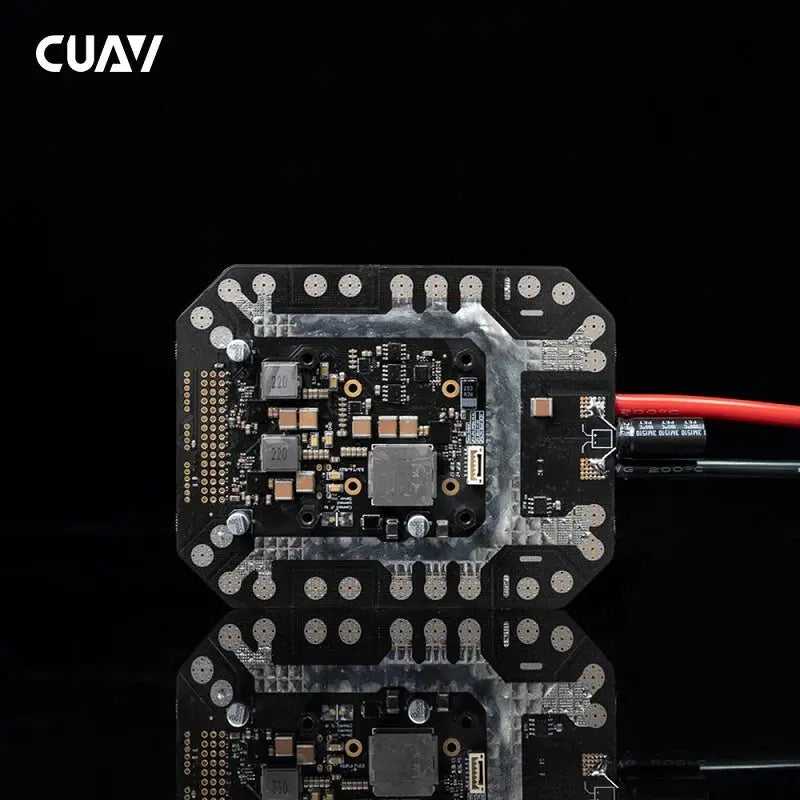

- Ultra-thick copper and thick tin-plated PCB can effectively reduce the heating caused by the internal resistance of the circuit under high current
- Power indicator LED, visually indicating Lipo voltage status
- Ultra-low pressure drop 10 main power output
- Future upgrades support more functions such as high-precision power consumption statistics and transient power consumption push
- Excellent heat dissipation and current-carrying capacity: ultra-thick copper layer PCB brings excellent current-carrying capacity, window tinting reduces internal resistance and improves heat dissipation capacity
- 78W UBEC regulated output: Generally, the UBEC of the distribution board only has a regulated output of 1-2A, and the CAN PDB can provide a regulated output of up to 5V/6A and 12V/4A
Package Includes:
1× CUAV CAN PDB Multifunctional Autopilot Baseboard
| Specification | Details |
| Brand | CUAV |
| Model | CAN PDB Multifunctional Autopilot Baseboard |
| Type | Power Distribution Board (PDB) with Autopilot Baseboard |
| Input Voltage | 6V to 12V DC |
| Output Voltage | 5V, 12V (regulated outputs for components) |
| Current Rating | Up to 60A (varies by model) |
| Power Connectors | XT60 or XT30 (depends on model) |
| Power Distribution | Supports multiple ESCs and other components |
| CAN Bus Ports | 2x CAN ports for communication |
| Telemetry Port | Integrated telemetry port |
| GPS Port | Integrated GPS port |
| Battery Monitoring | Built-in battery voltage monitoring |
| Buzzer Connector | Connector for external buzzer |
| Input Connector Type | JST, XT60, or other (depends on configuration) |
| Mounting Type | Standard mounting holes for frame integration |
| Dimensions (L x W x H) | Approximately 80mm x 80mm x 10mm (varies by model) |
| Weight | Approximately 50-100 grams |
| Operating Temperature | -20°C to +60°C |
| Material | High-quality PCB with durable components |
| Firmware Compatibility | Compatible with CUAV firmware and other supported software |
| Certifications | CE, RoHS |
| Additional Features | - Integrated voltage regulators |
| - Supports various flight controller configurations | |
| - High-efficiency power distribution |
