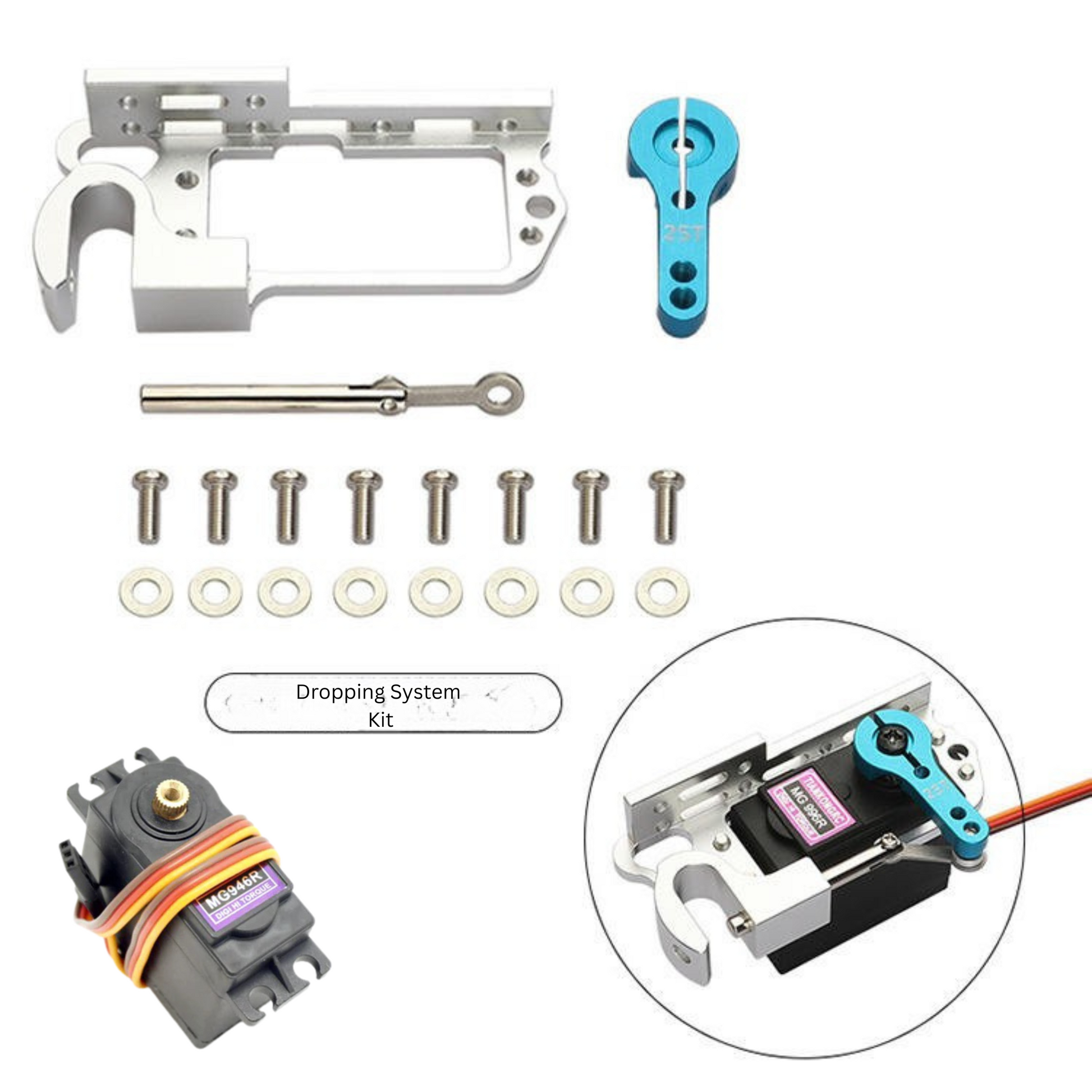

NOTE: You will receive the complete kit of this dropping system which you will need to assemble by yourself.

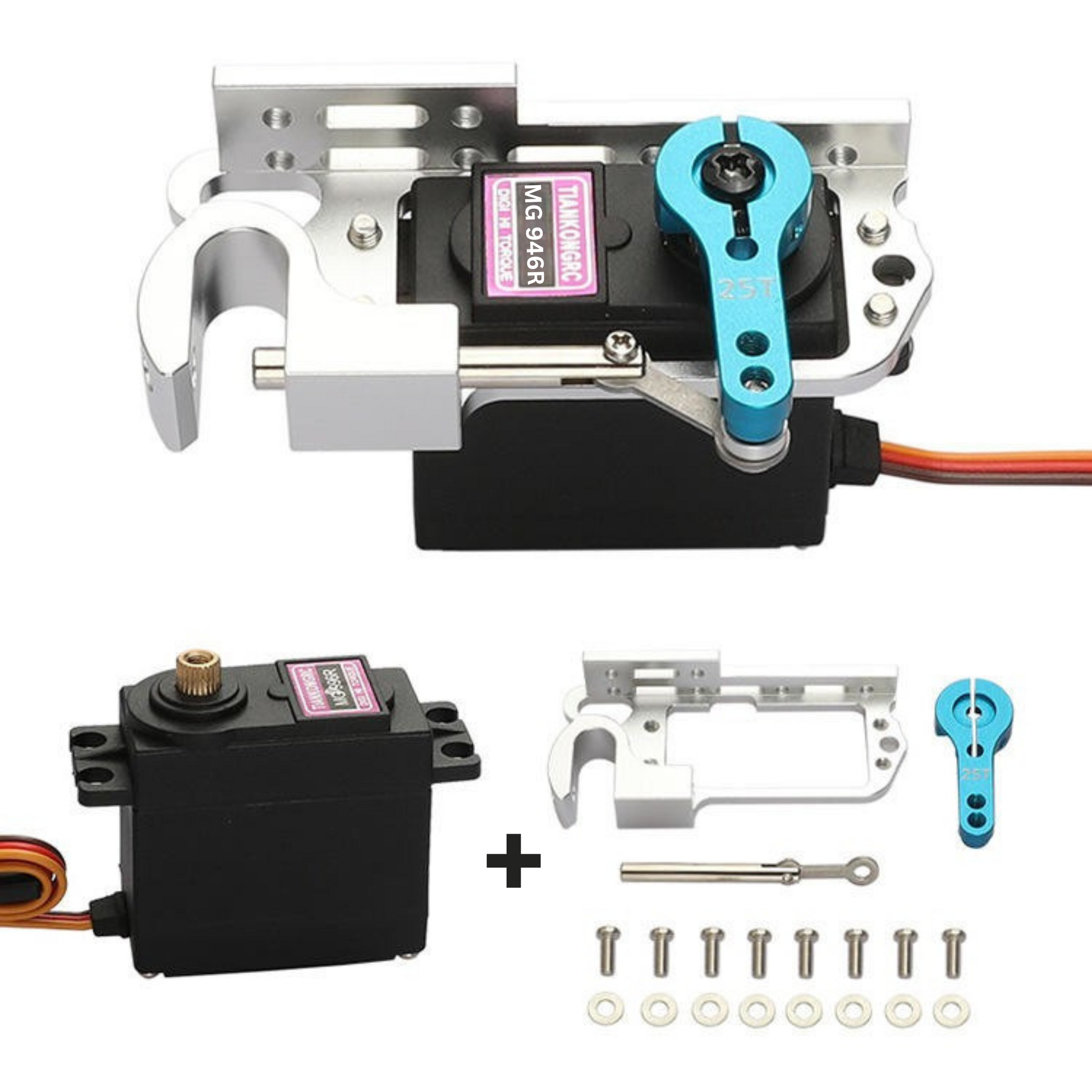

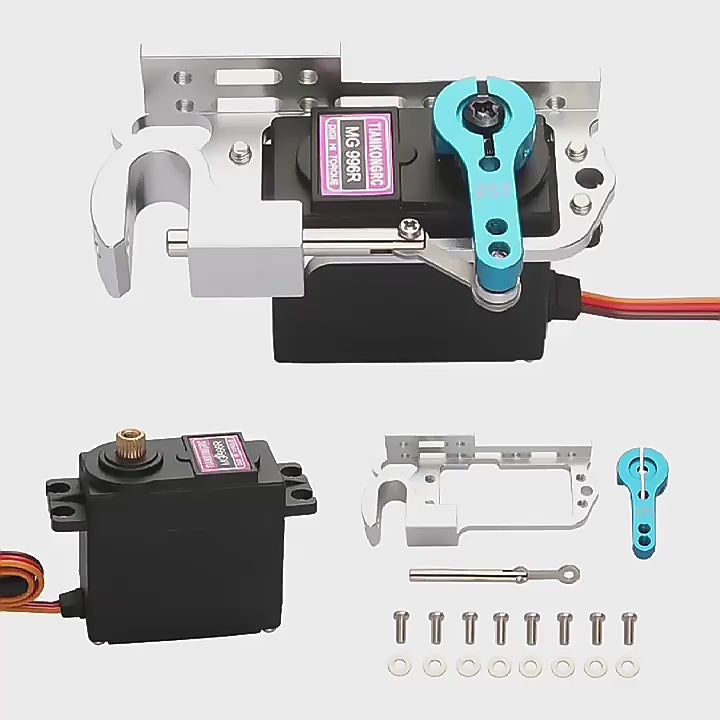

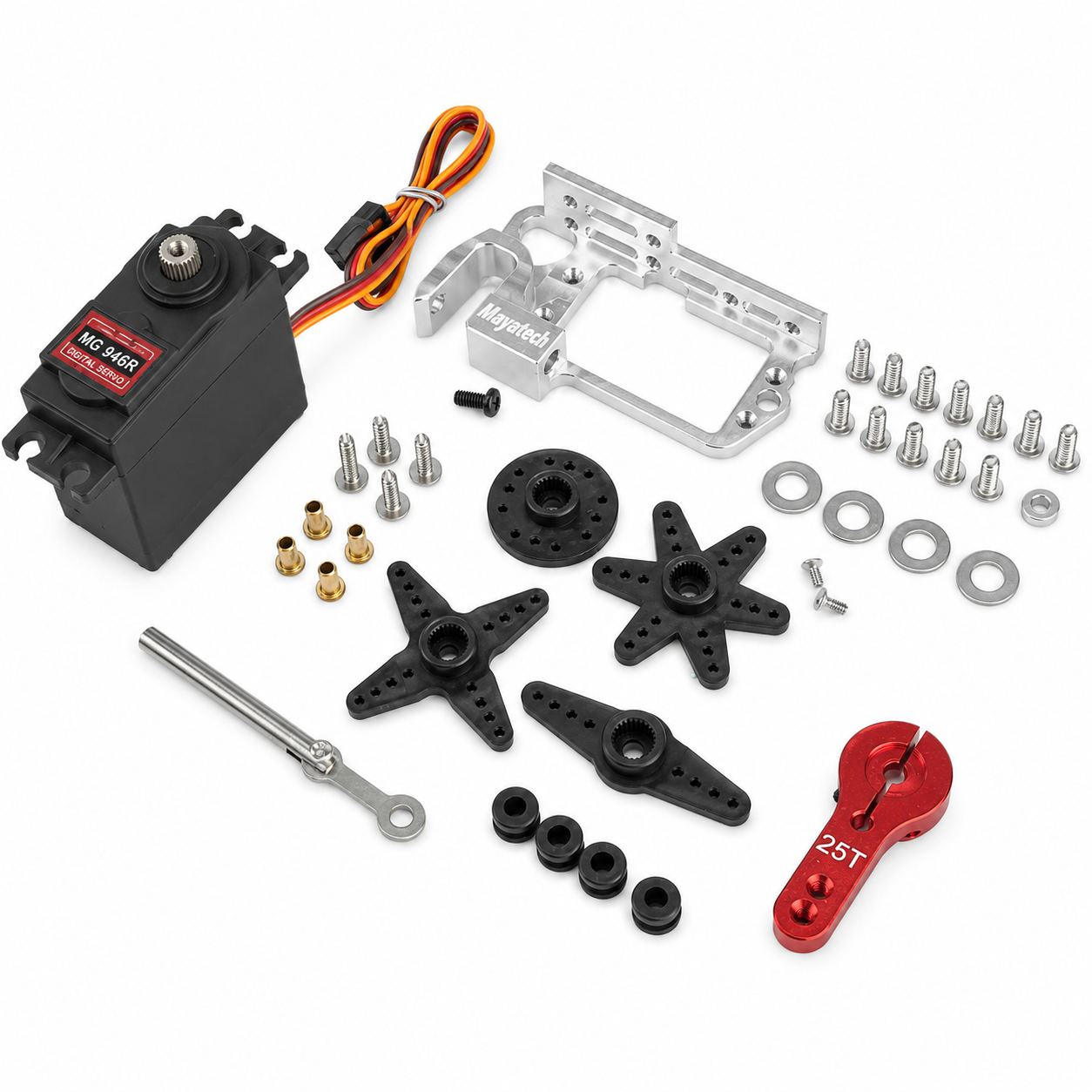

Complete Set of Servo Parabolic & MG946R Servo with Servo Horn.
| Feature | Specification |
|---|---|
| Operating Voltage | 4.8V – 6.6V |
| Stall Torque | 10.5 kg·cm at 4.8V, 13 kg·cm at 6.0V |
| Operating Speed | 0.20 sec/60° at 4.8V, 0.17 sec/60° at 6.0V |
| Gear Type | Metal gears |
| Weight | ~55g (servo), ~55g (parabolic device) |
| Dimensions | 40.7 × 19.7 × 42.9 mm (servo) |
| Connector | JR/Futaba compatible |
| Temperature Range | 0°C – 55°C |
| Dead Band Width | 1µs |
| Material (Parabolic Device) | 6061 Aluminum alloy |
| Servo Compatibility | 25T spline (MG946R.) |
| Servo Arm | 25T metal adjustable type included |
| Applications | Remote deployment of payloads, drones, RC vehicles, and aerial systems |

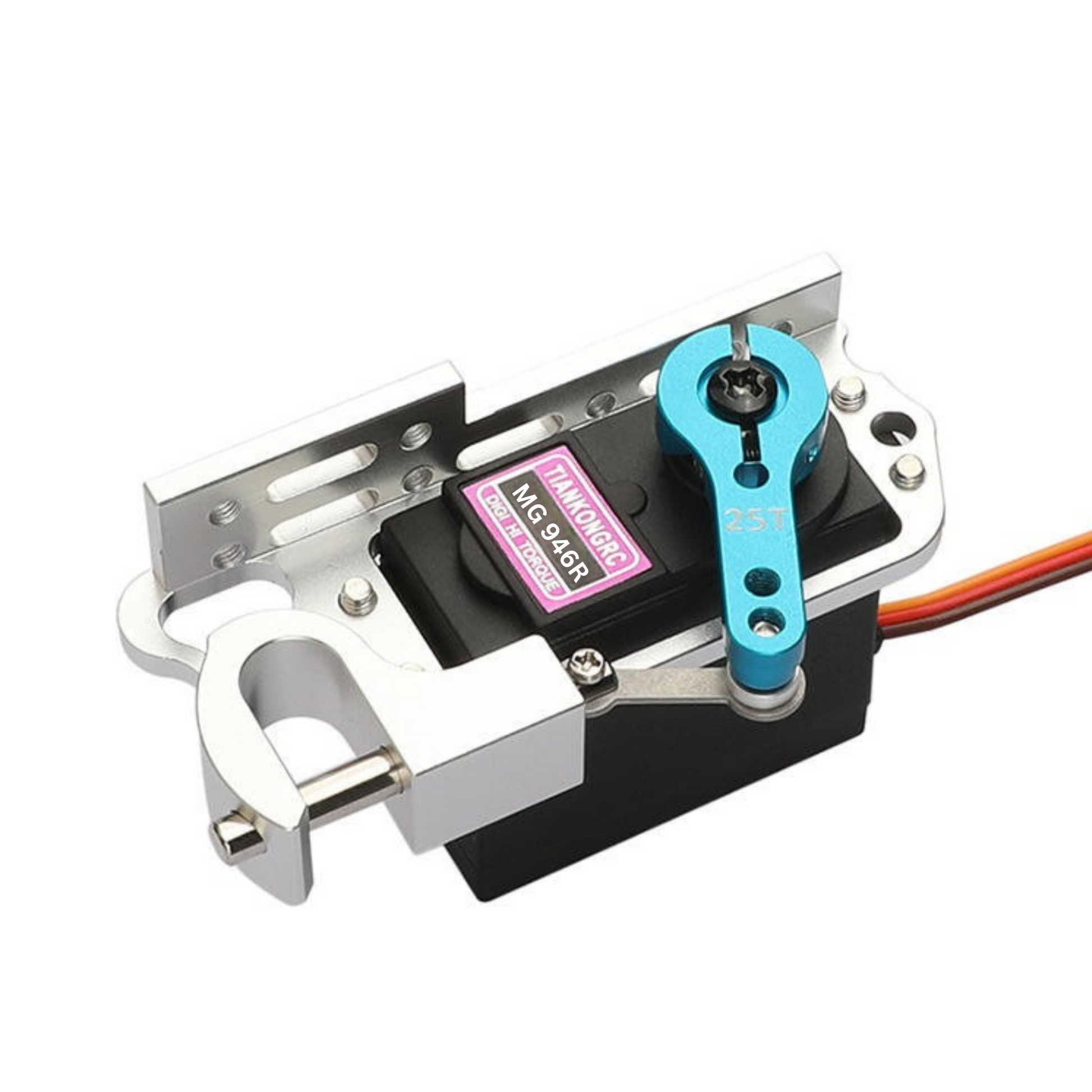

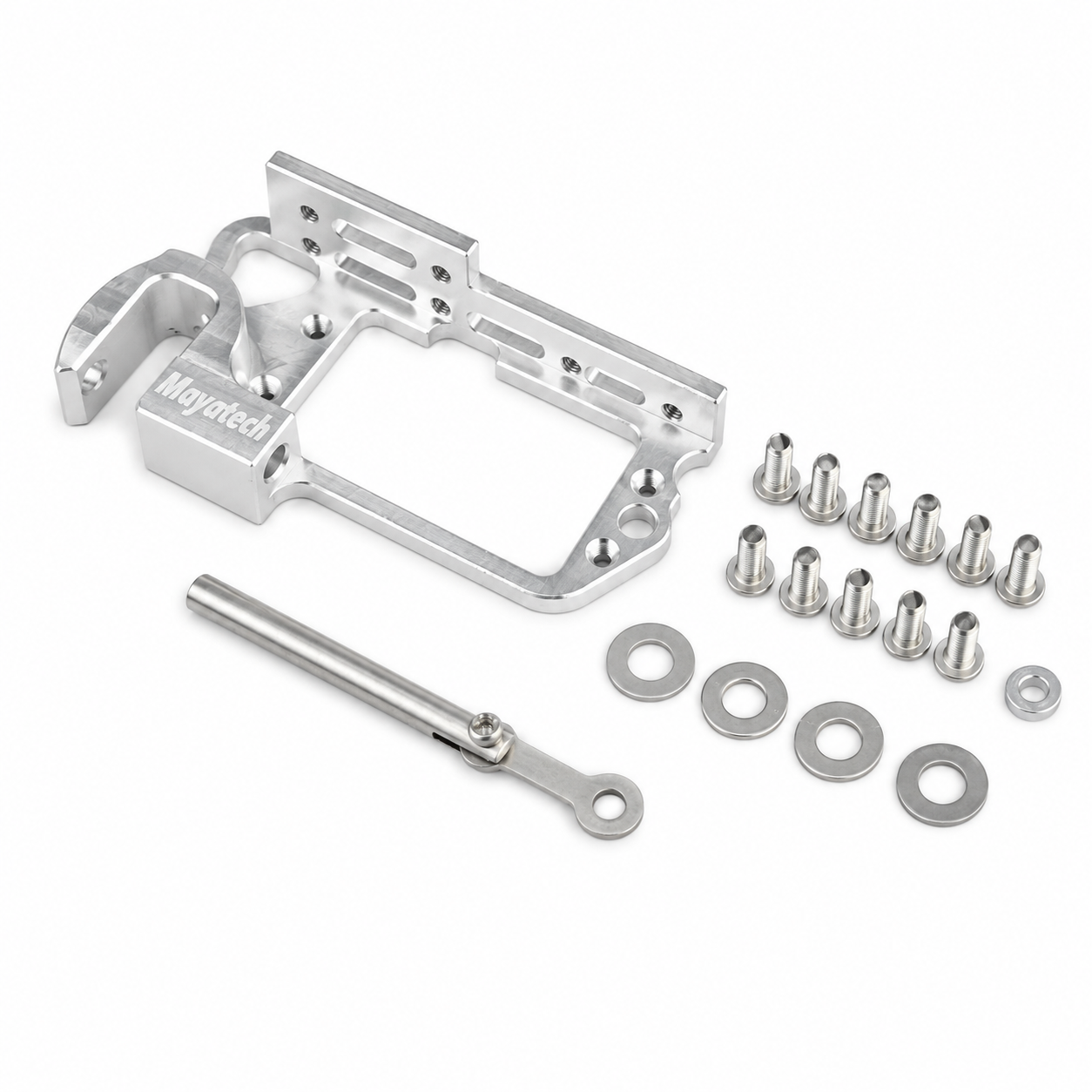

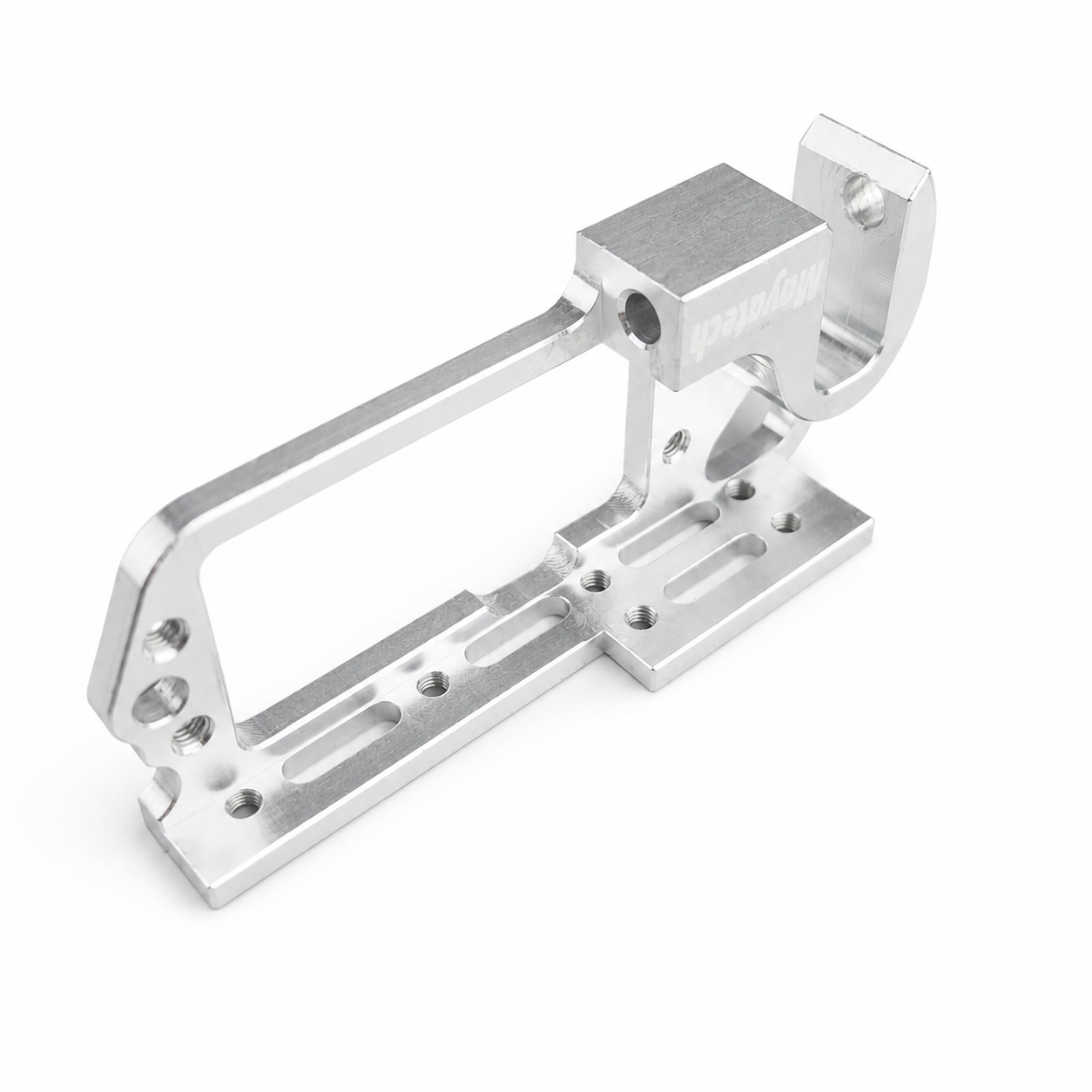

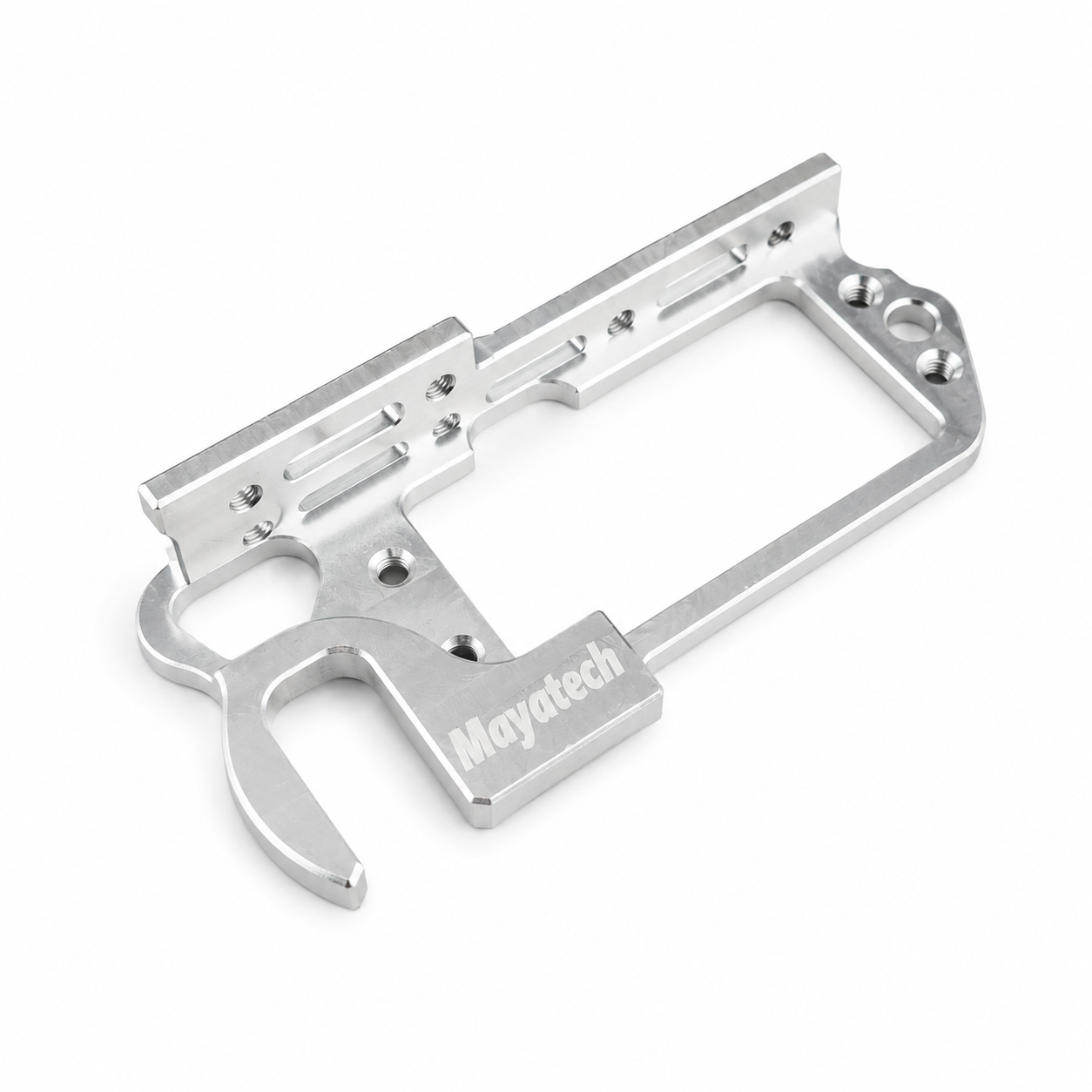

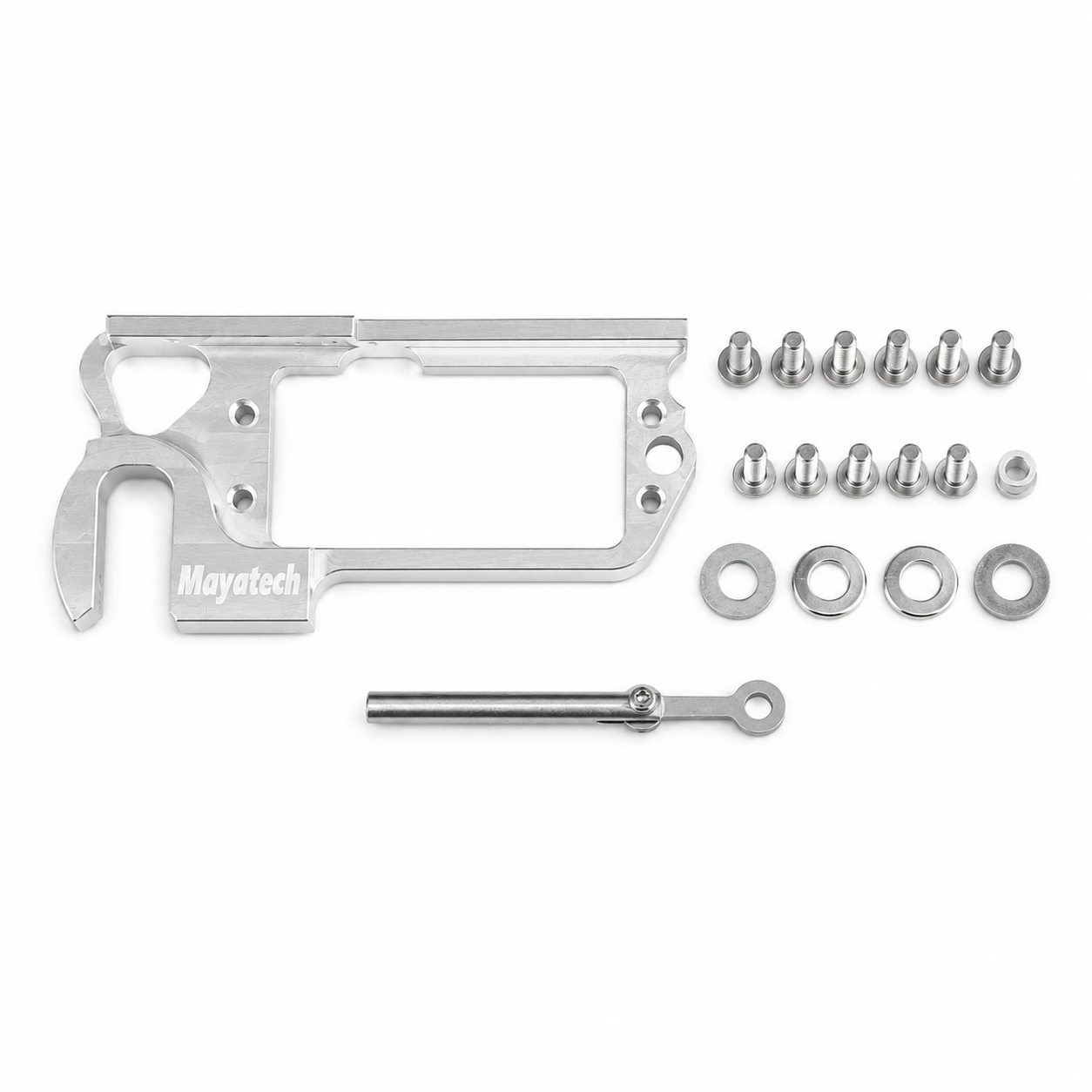

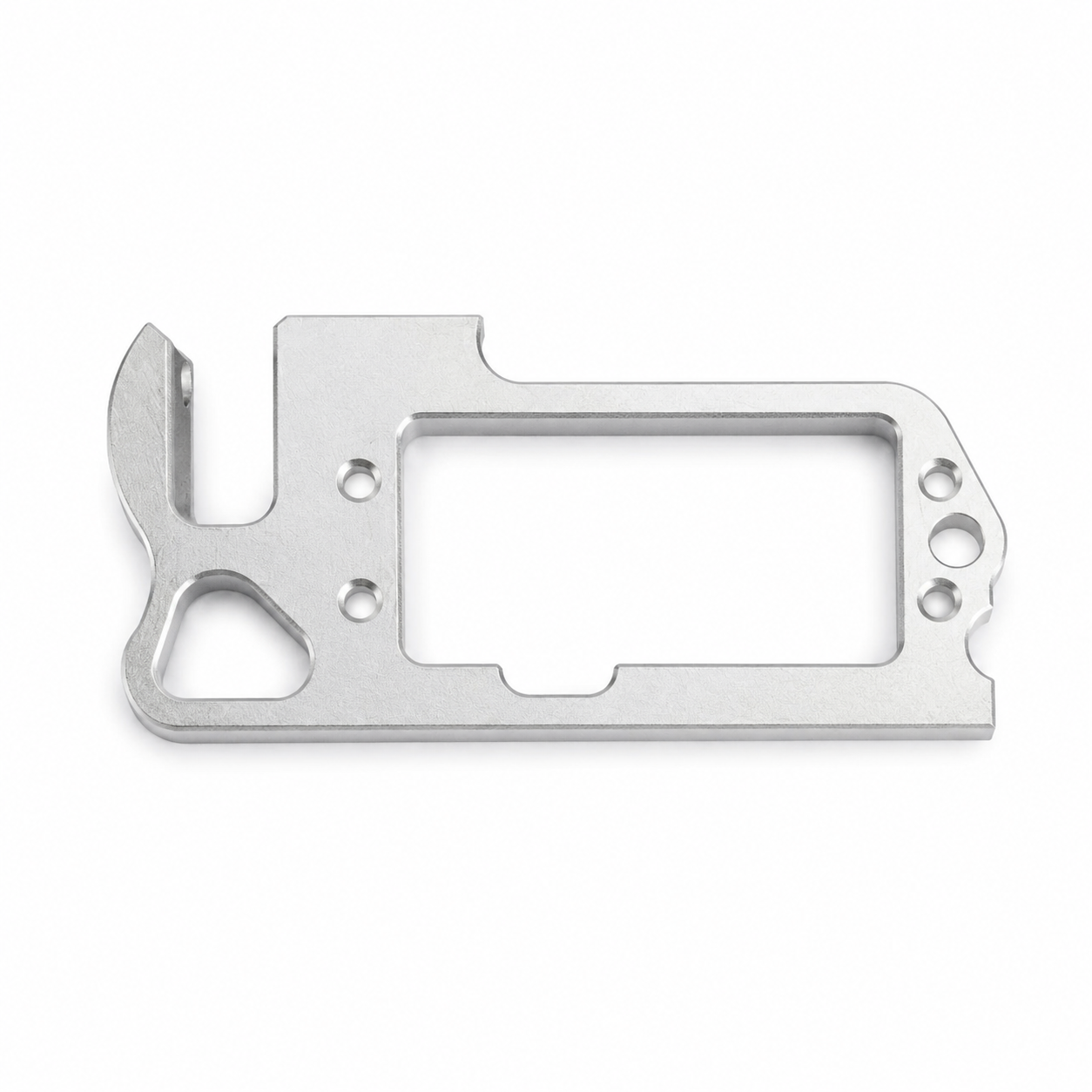

Servo Parabolic:
This Servo Parabolic Switch Device Aerial Vehicle Throwing Device is best applicable for Helicopters, Multicopters, FPV, etc. It can lift up to 4-6kg objects and has high strength and lightweight. For anyone who is trying to find servo parabolic switch device with probably the most successful worth, this may be the most productive offer for you.
Features:
- 100% brand new product
- High strength, lightweight
- Can hold 4-6kg objects
- Easy to install and durable to use.
- Can be fixed with M4 screws or tie-wrap
- Applicable for: Helicopters, Multicopter, FPV
MG946R Servo:
This is a TowerPro MG946R Digital High Torque Metal Gear Servo Motor.
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and serve the purpose. We put them to the test and found them to be of good quality for the price.
You can buy Emax Servos OR Orange servos if you’re seeking high-quality servos.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
Features:
- Servo Plug: JR (Fits JR and Futaba)
- Gear Type: Metal gear
- Power Supply: Through External Adapter
- Servo arms & screws included and fit with Futaba servo arm
- It is a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
- CE & RoHS approved.
- Upgraded servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.

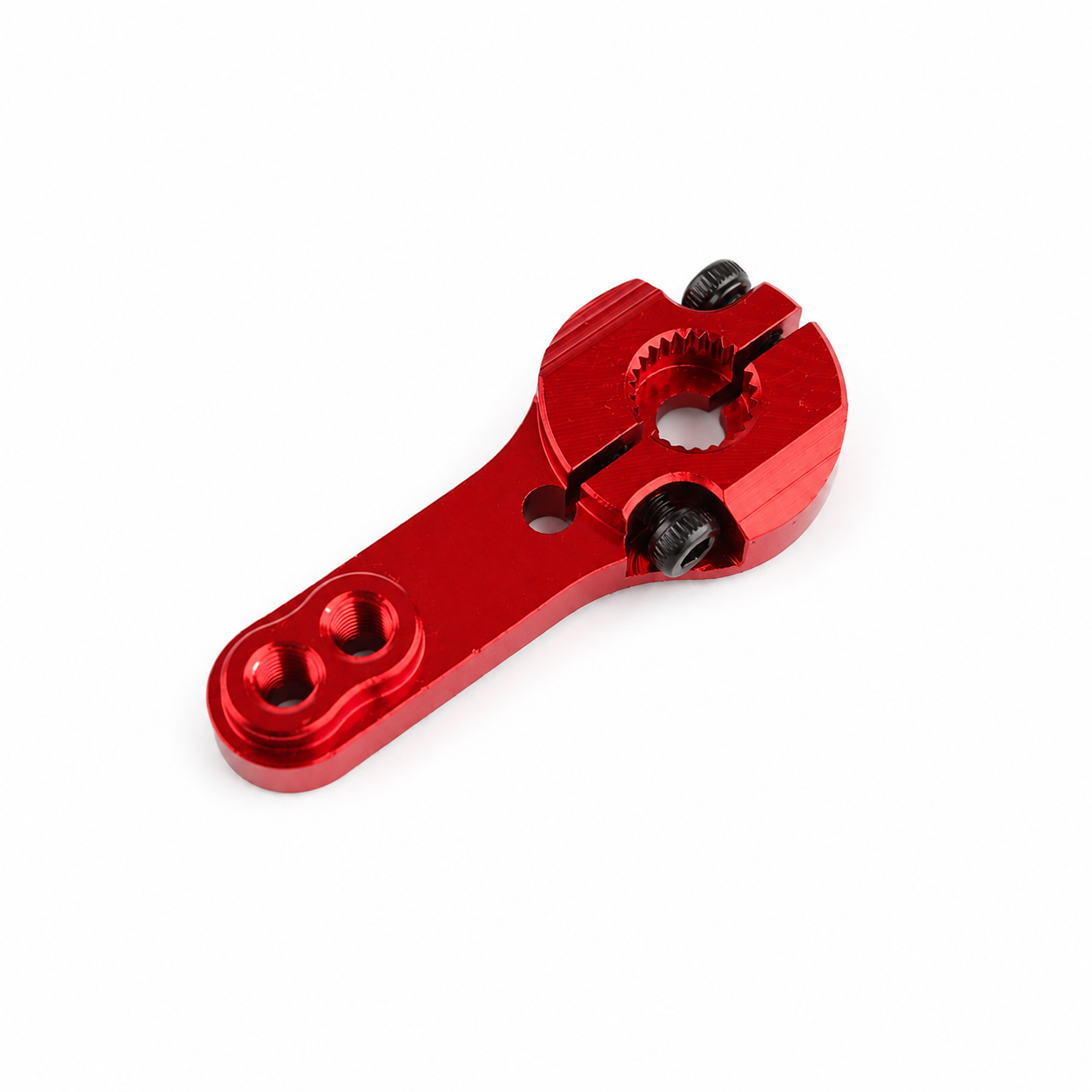

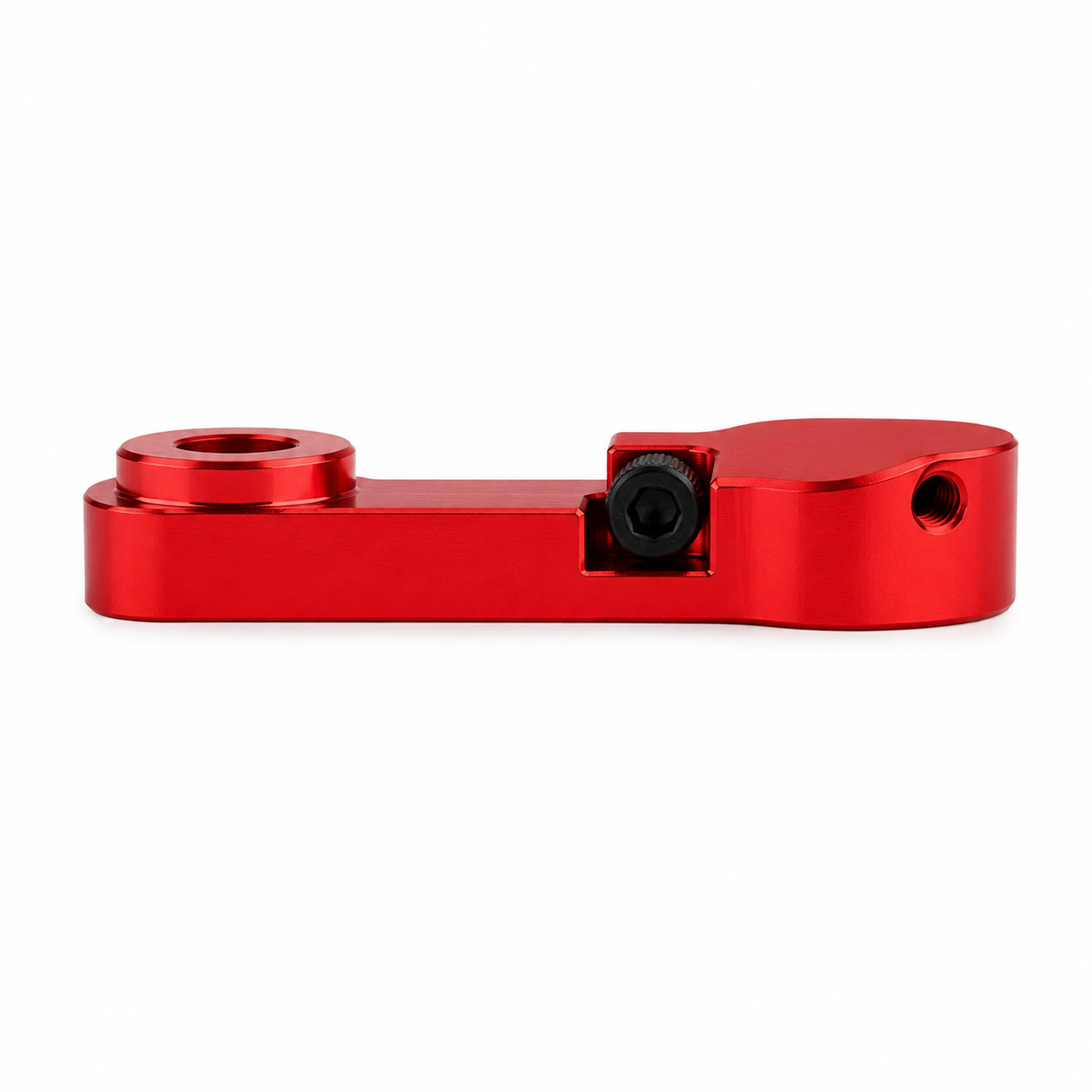

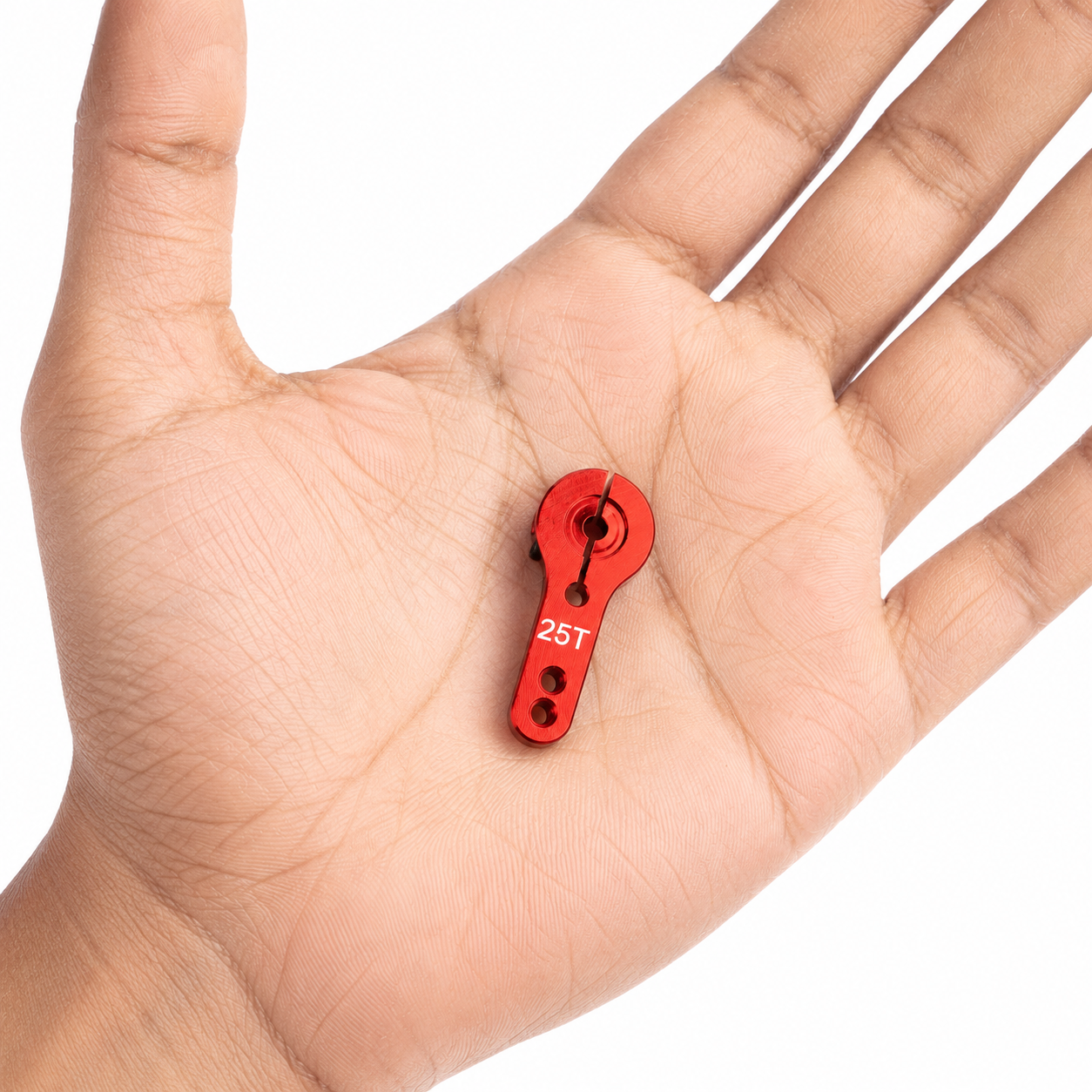

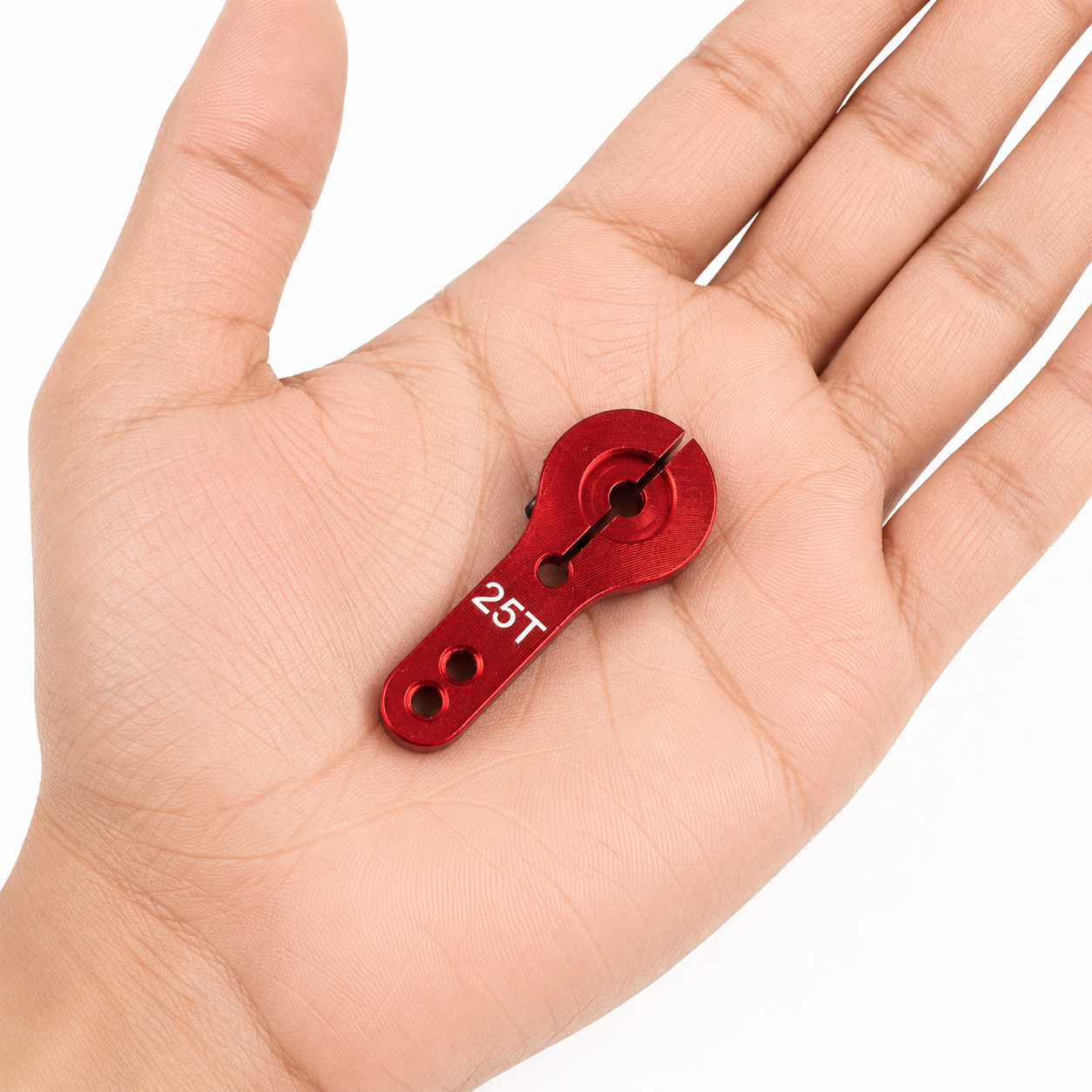

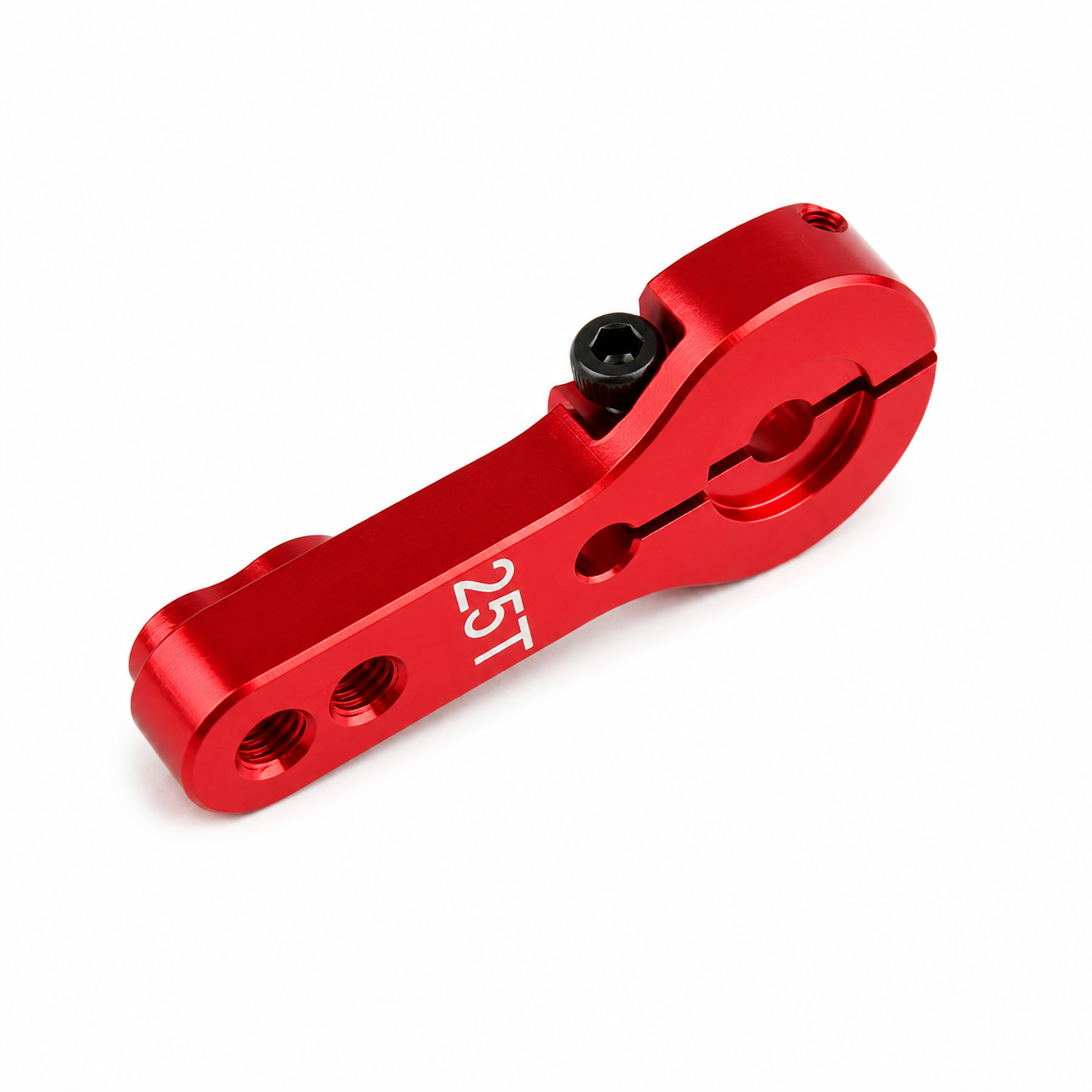

Servo Arm:
Aluminum Servo Horn Rocker Arm 25T For MG995 MG946R MG996R MG945 S3003 RC Model Motor Kids RC Toy Parts.
- 100% brand new and high quality.
- High-quality and durable in performance.
- Suitable for MG995 MG946R MG996R MG945 S3003 RC Model Motor
Specification:-
- Teeth Number: 25T
- Overall Size : 35 x 15 x 6mm/ 1.4' x 0.6' x 0.24'(L*W*T)
- Geared Hole Inner Dia. : 6mm/ 0.24'
- Small Hole Dia. (Each) : 2mm/ 0.08'
- Material: Aluminium
- Color: Blue
- Weight: 8g
