Preface About Goggles X
As the Walksnail Avatar born, we've always been constantly collecting market's feedback and suggestions. In the new generation of research and development, we fully consider each function for customers like HDMI input and CVBS input (AV IN interface).
Meanwhile, we have also optimized wider pupil adjustment range, improved optical clarity, suitable for different people's face shapes, and we are committed at developing the APP, which can realize firmware upgrades, fc adjustment, social media sharing, without cumbersome computer operations.
Product Features:
| ●Weight 290g
|
●+2 to-6 diopter
|
|
●FOV 50°
|
●Lenses can be replaced
|
|
●7-26V
|
●1PD57~72mm
|
|
●Front cover DIY
|
●Infrared Sensing
|
|
●1080P/100FPS
|
●Built-in Gyro |
|
●HDMI input
|
●AV in |
|
●HDMI output
|
Bullet Points for Walksnail Avatar HD Goggles X
- The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.
- The goggles have an AV IN interface and support analog signals, support a versatile solution for FPV pilots.
- The HDMI input expands the range of devices that can be used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your flight footage with pilots in real time.

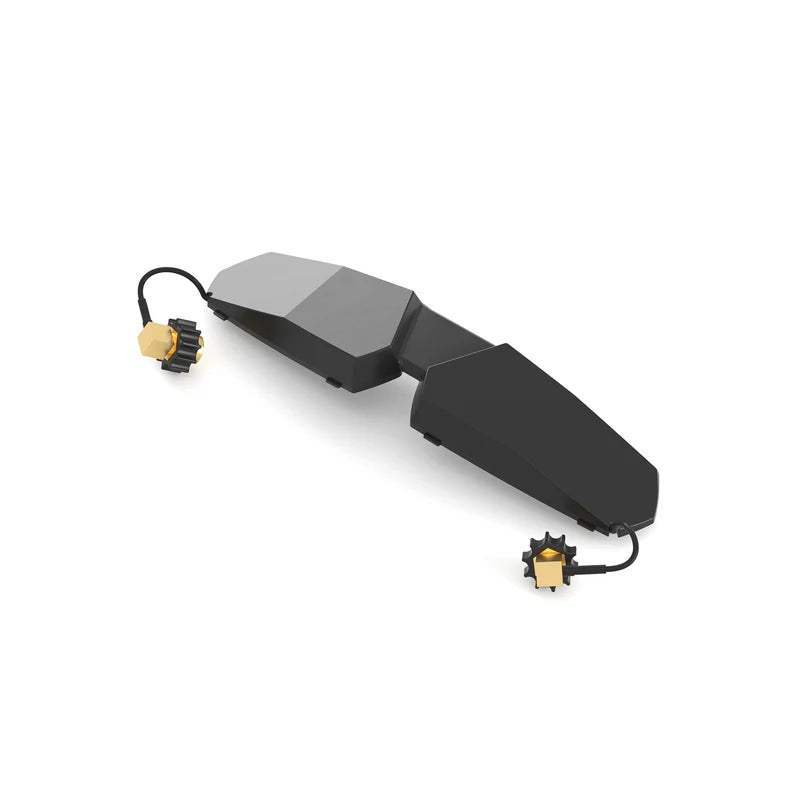

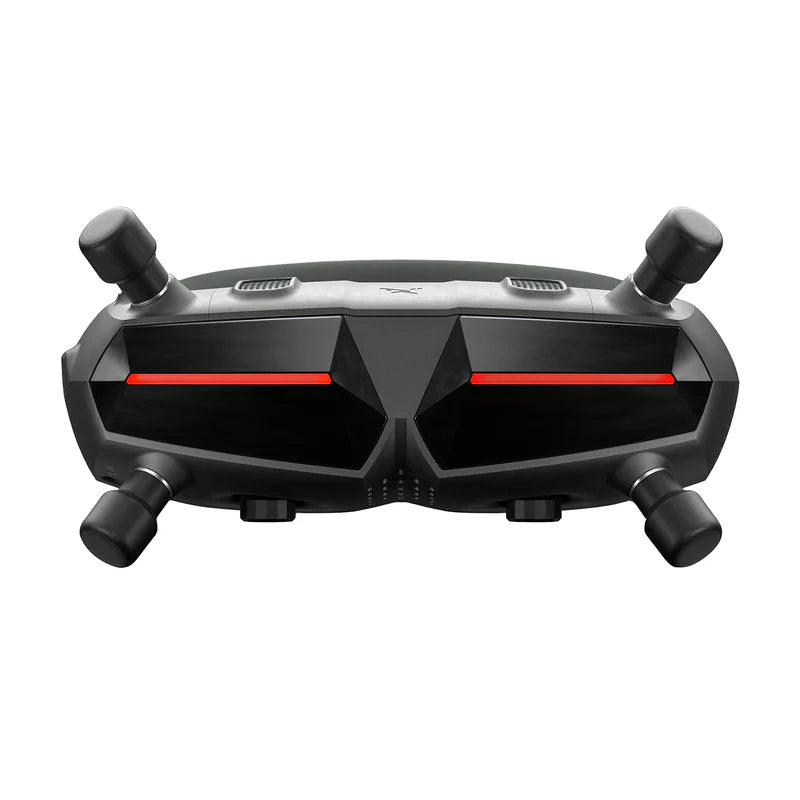

- The front cover of the goggles can be removed and replaced with new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.
- The front cover of the goggles adds a light function, add a touch of style to your gear.
- 100% optical improvement, experience a clearer picture.
- Adjustable from +2.0 to -6.0 via diopter knob to personalize the viewing experience and easily go glasses-free.

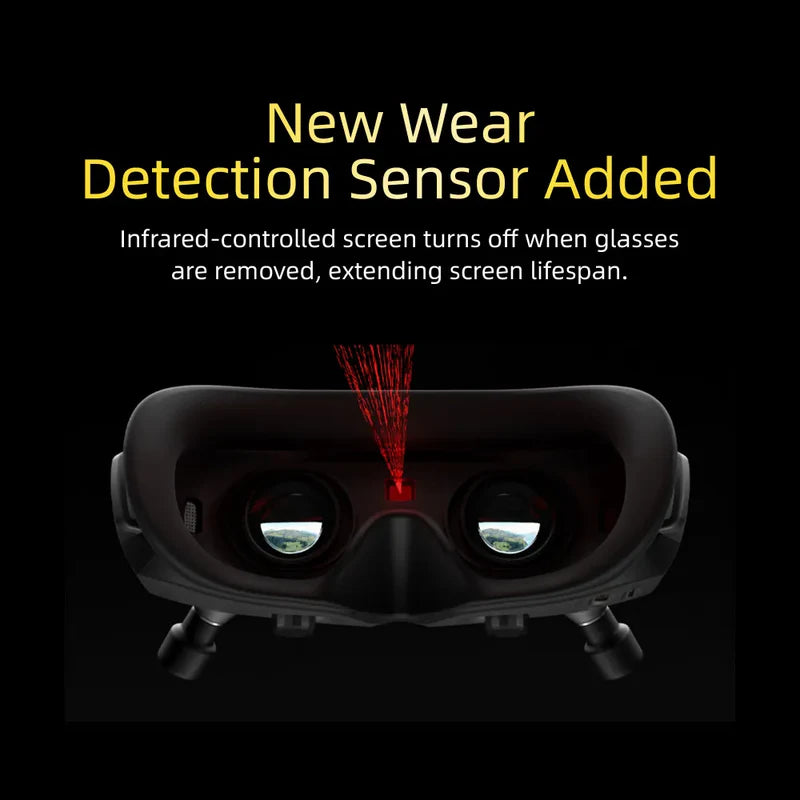

- The goggles use infrared sensing technology to provide pilots with a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helping to extend the life of the screen.
- Lenses for astigmatism, myopia and blue light-blocking glasses can be replaced to meet different vision needs.
- The front cover of the goggles can be DIY, allowing pilots to use their imagination to customize interesting looks for the goggles.

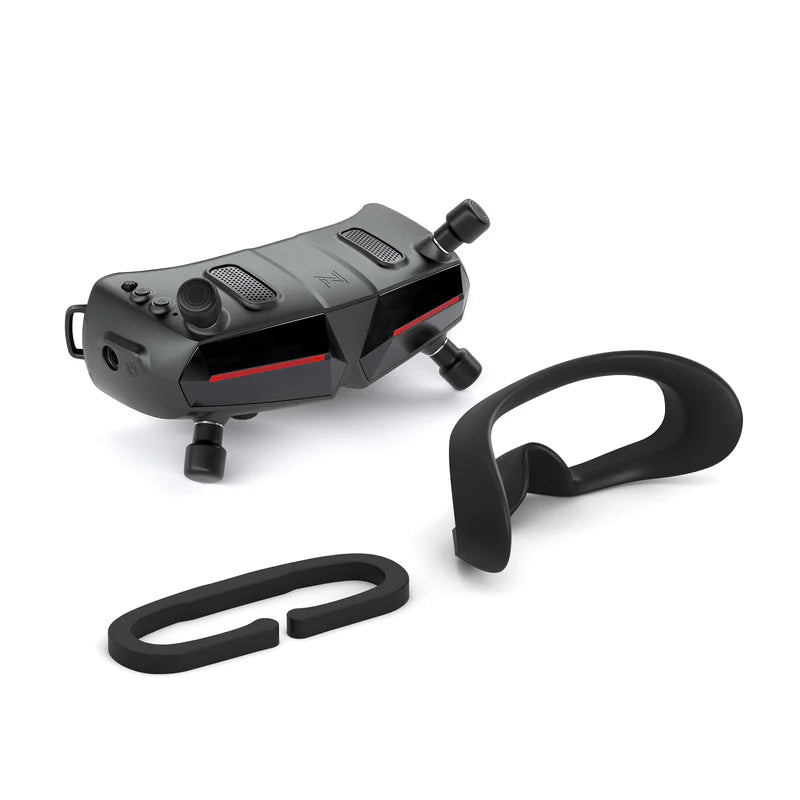

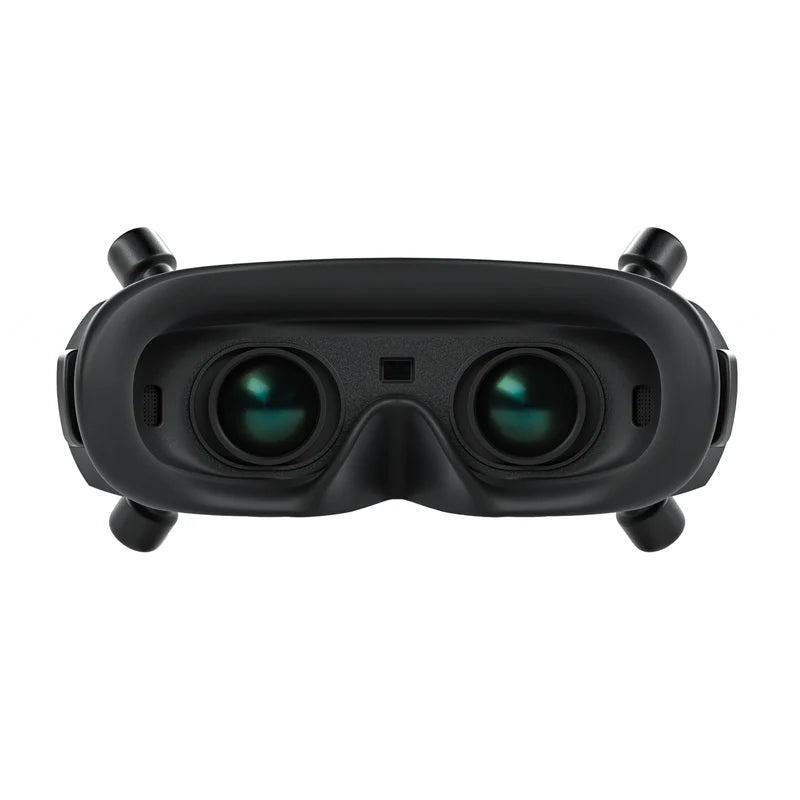

- The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, fits the face to reduce light leakage.
- The goggles are designed to be lightweight, mini, small and carry 50°FOV, making more comfortable for pilots while giving them a more immersive FPV experience.
- The goggles have built-in gyro hardware, which can be used to develop Fixed-wing, RC cars and other scenarios.
Avatar HD Goggles X – Technical Specifications
| Model | Avatar HD Goggles X |
|---|---|
| Communication Frequency | 5.725 – 5.850 GHz |
| Transmitter Power (EIRP) | FCC: <30dBm | CE: <14dBm | SRRC: <20dBm | MIC: <25dBm |

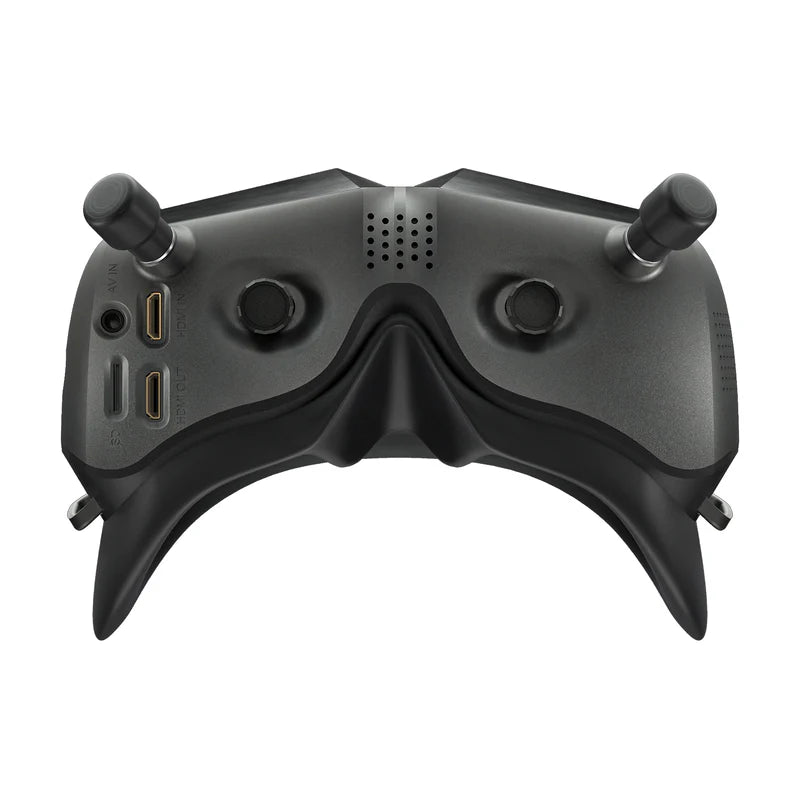

| I/O Interface | HDMI Out, HDMI Input, 5-Pin 3.5mm Audio Port, DC 5.5×2.1mm Port, Micro SD Card Slot |
| Transmission Resolution | 1080p @100fps / 60fps, 720p @100fps / 60fps |
| Code Rate | Maximum 50 Mbps |
| Minimum Latency | Average 22 ms |
| Average Gain | 2 dBi |
| Polarization | LHCP |
| Transmission Distance | > 4 km |
| Channels | 8 |
| Screen Resolution | 1920 × 1080 / 100 Hz |
| Screen Material | OLED |
| IPD Mechanical Range | 57 mm – 72 mm |
| Adjustable Focus Range | +2.0 to −6.0 Diopter |
| Field of View (FOV) | 50° |
| Power Input | 7 – 25.2 V (2S – 6S) |
| SD Card Support | Up to 256 GB |
| System | Avatar HD System |
| Wide Foam Material | PU |
| Built-in Gyro | Yes |

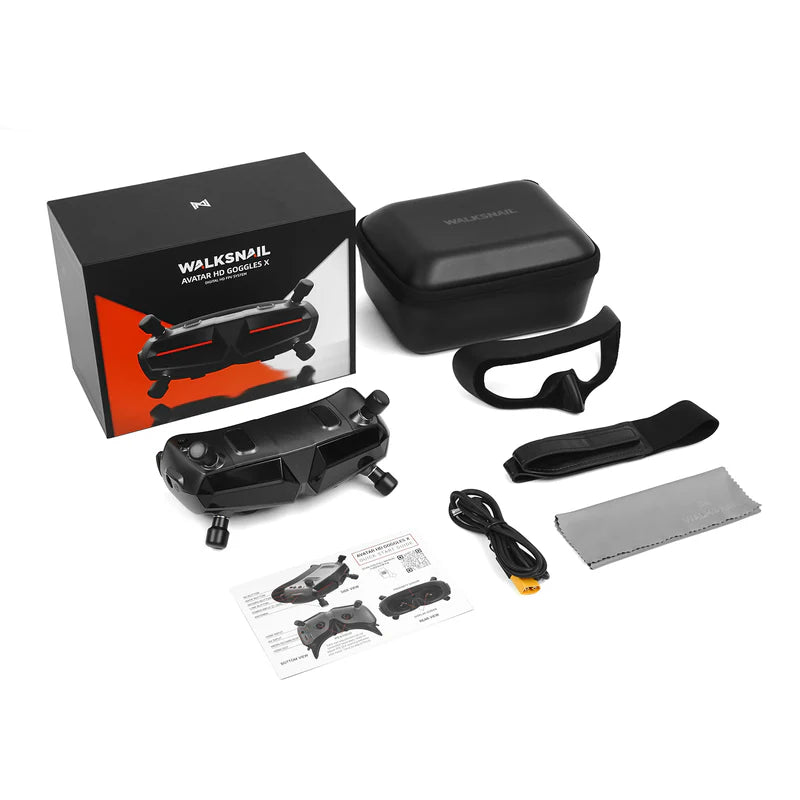

| Product List |
|
