| Specification | Details |
|---|---|

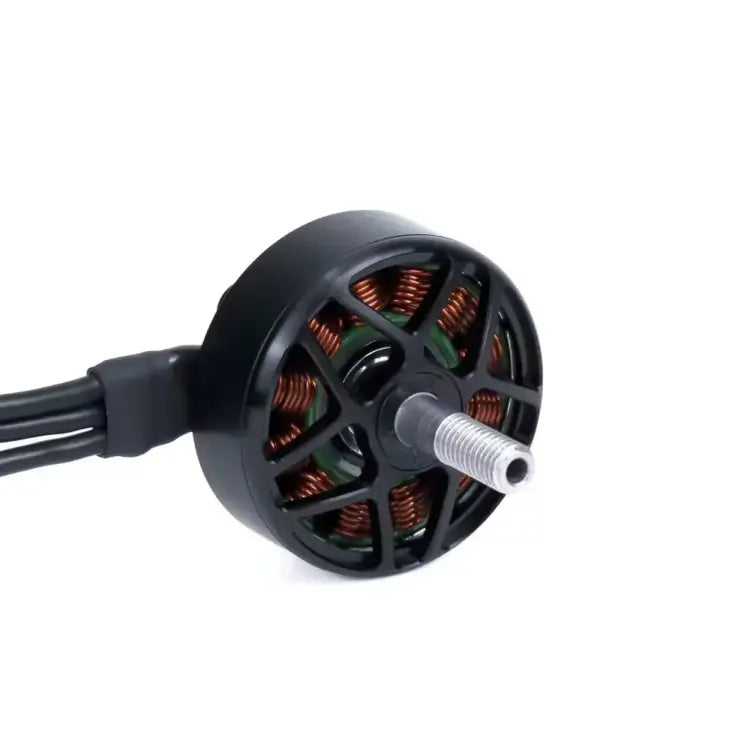

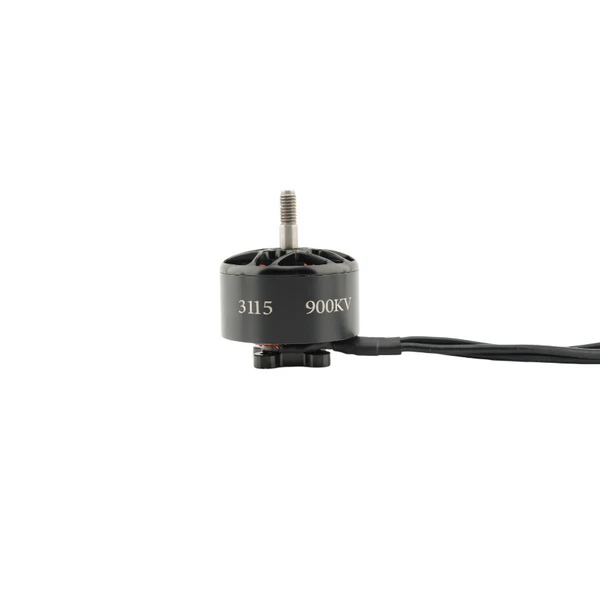

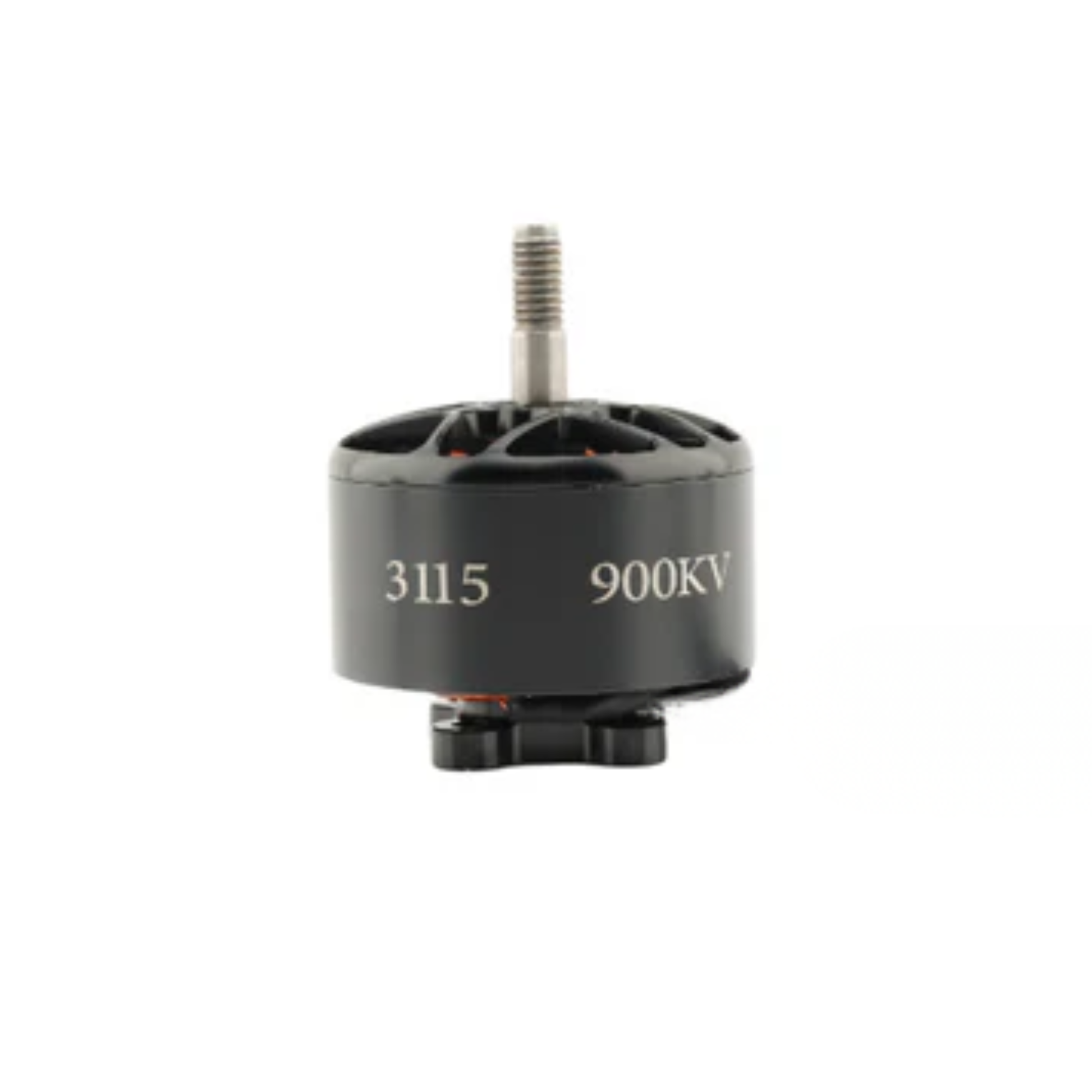

| Model | 3115-900KV |
| Max Watt | 1600W |
| Max Thrust | 4Kg |
| Peak Current | 65A |
| Interphase Resistance | 46mΩ |
| Recommended Propeller | 8–10 inch |
| Magnet | N52H |
| Bearing Type | NSK / NMB |
| Configuration | 12N14P |
| Dimensions | φ37.5mm × 30mm |
| Shaft Diameter | φ5mm |
| Shaft Protruding Length | 16mm |
| Mounting Holes | 19mm × 19mm |
| Lead | 310mm / 18AWG |
| Recommended ESC | 60A – 80A |
| Input Voltage | 25.2V (6S LiPo) |
| Winding | Single Strand Copper Winding |
| Weight | 110g (including wire) |
| Suitable For | 10-inch Long Range FPV Drone |
Note: This product is an independent item and is not associated with any official brand.
