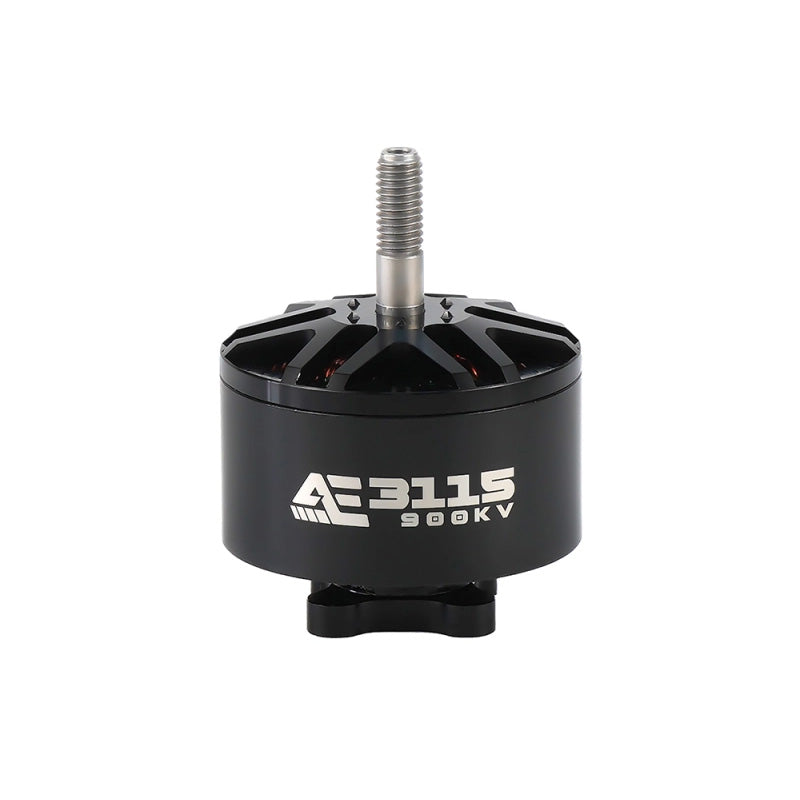

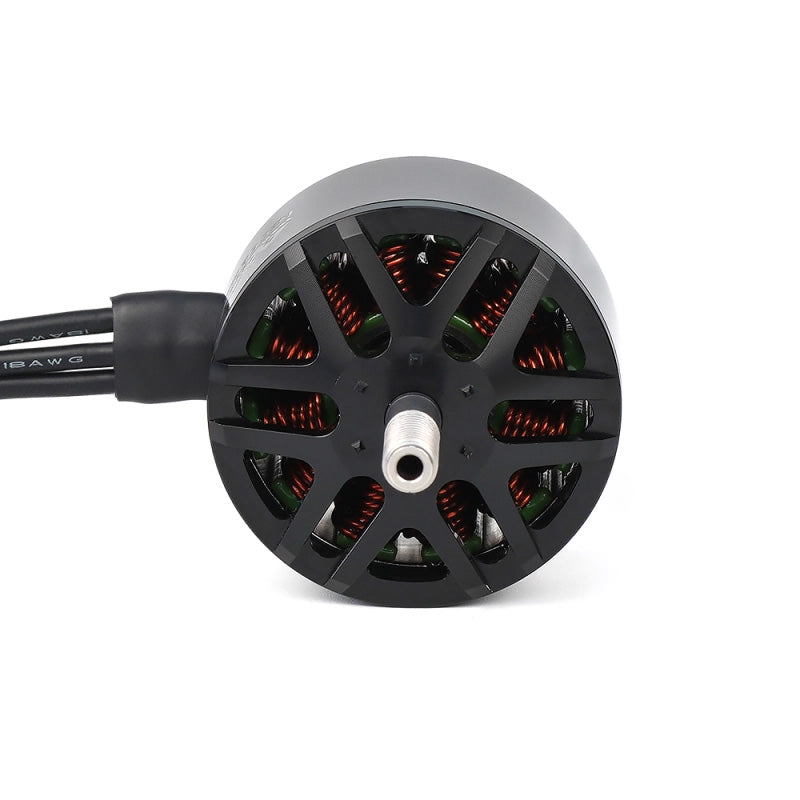

The Axisflying AE3115 Brushless Motor is a powerful and efficient choice for 10-inch FPV drones, expertly designed to deliver exceptional performance without breaking the bank. Part of our renowned AE series, this motor embodies our commitment to high-quality engineering and affordability.
Features:
- High Efficiency: Optimized KV rating of 900 for speed and torque.
- Robust Performance: Handles up to 64.7A peak current for exceptional thrust.
- Durable Construction: 12N14P configuration ensures reliability and longevity.
- Versatile Compatibility: Works with 3-6S LiPo batteries for flexible power options.
- Lightweight Design: Weighs just 113.5g ± 0.5g for optimal performance.
Package Includes:
1× AE3115 Motor
4× M3 × 8 Screws
1× M3 × 4 Locking Screw
1× M5 Flanged Nylon Insert Lock
1× O-Ring
2× Washers
Specifications:-
| Motor Type: |
Brushless Motor |
|---|---|
| Model Name |
AE3115 |
| Max. Continuous Power (W) |
1617 |
| Voltage Rating: |
3-6S |
| Max Thrust |
4185g |
| Configuration: |
12N14P |
| Motor KV (RPM/V): |
900 |
| Internal Resistance(mOhm) |
0.046 |
| Motor Size (mm): |
φ37.1 × 31.5 |
| Weight (g): |
113.5g ± 0.5 |
| Max Current (A) |
64.7 |
| Shipping Weight | 0.34 kg |
| Shipping Dimensions | 13 × 9 × 7 cm |
