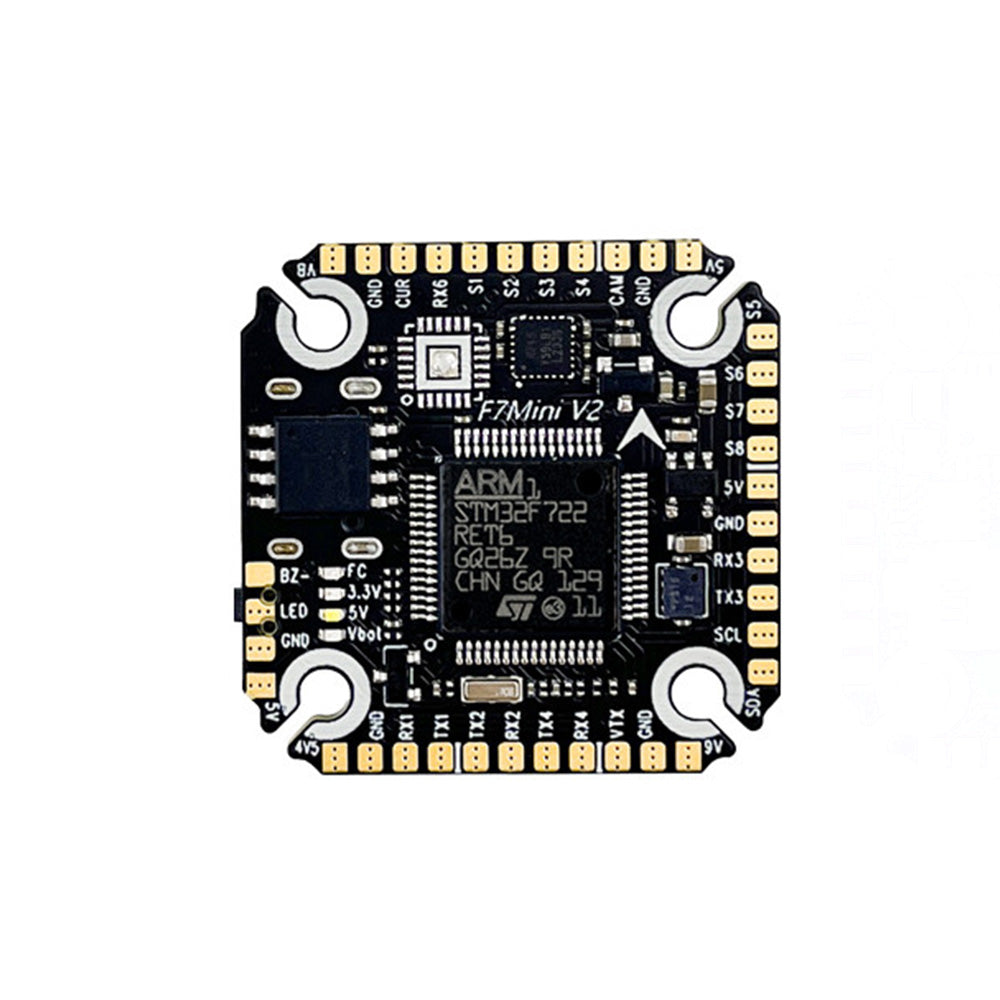

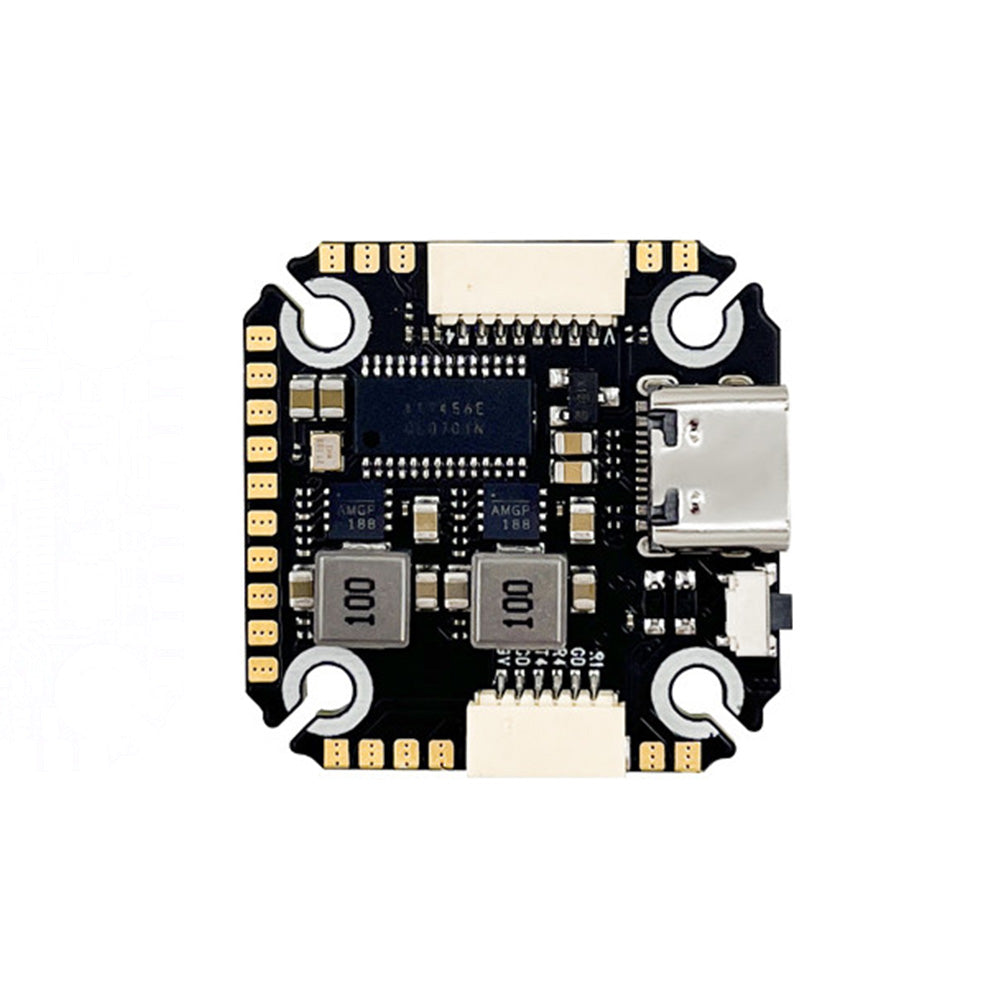

The Aocoda F722 MINI V2 Flight Controller is a high-performance solution for Huafei drones, featuring the STM32F722RET6 MCU and MPU6500 IMU for precision control. It supports DJI digital image transmission, with built-in OSD, 16MB BlackBox, and dual BEC outputs (5V/2.5A, 9V/3A). Compact at 28x28mm, it offers 8 motor outputs, 5 UART ports, and barometer support, ensuring exceptional flight stability and versatility for advanced drone applications.
Features:
- Advanced Control: Powered by STM32F722RET6 MCU and MPU6500 IMU for precise flight control.
- Versatile Connectivity: Supports 5 UART ports and 8 motor outputs for flexible drone configurations.
- Integrated OSD: Built-in AT7456E OSD for real-time data display.
- High-Resolution Data Logging: 16MB BlackBox for comprehensive flight data recording.
- Power Management: Dual BECs (5V/2.5A and 9V/3A) for reliable power distribution.
- DJI Compatibility: Supports DJI digital image transmission, including DJI03 and AIR UNIT.
Package Includes:
1× Aocoda F722 MINI V2 Flight Controller for Huafei
