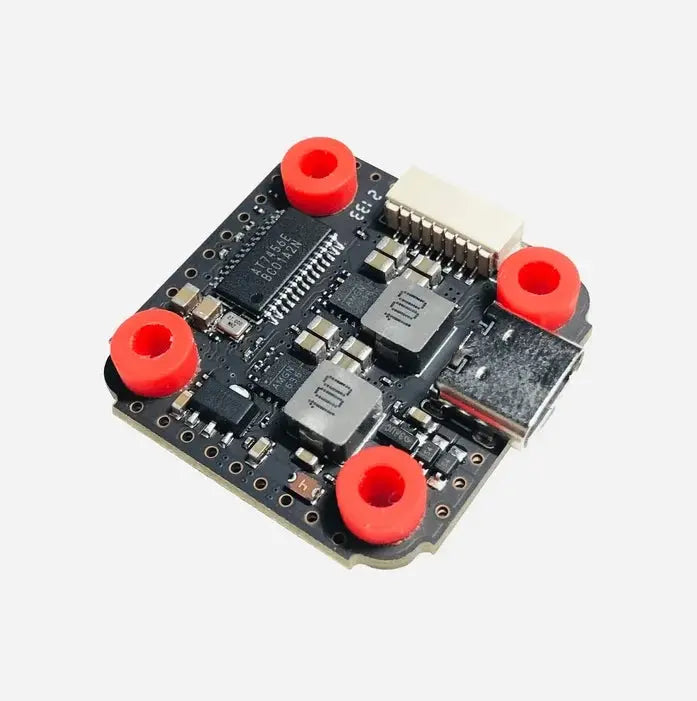

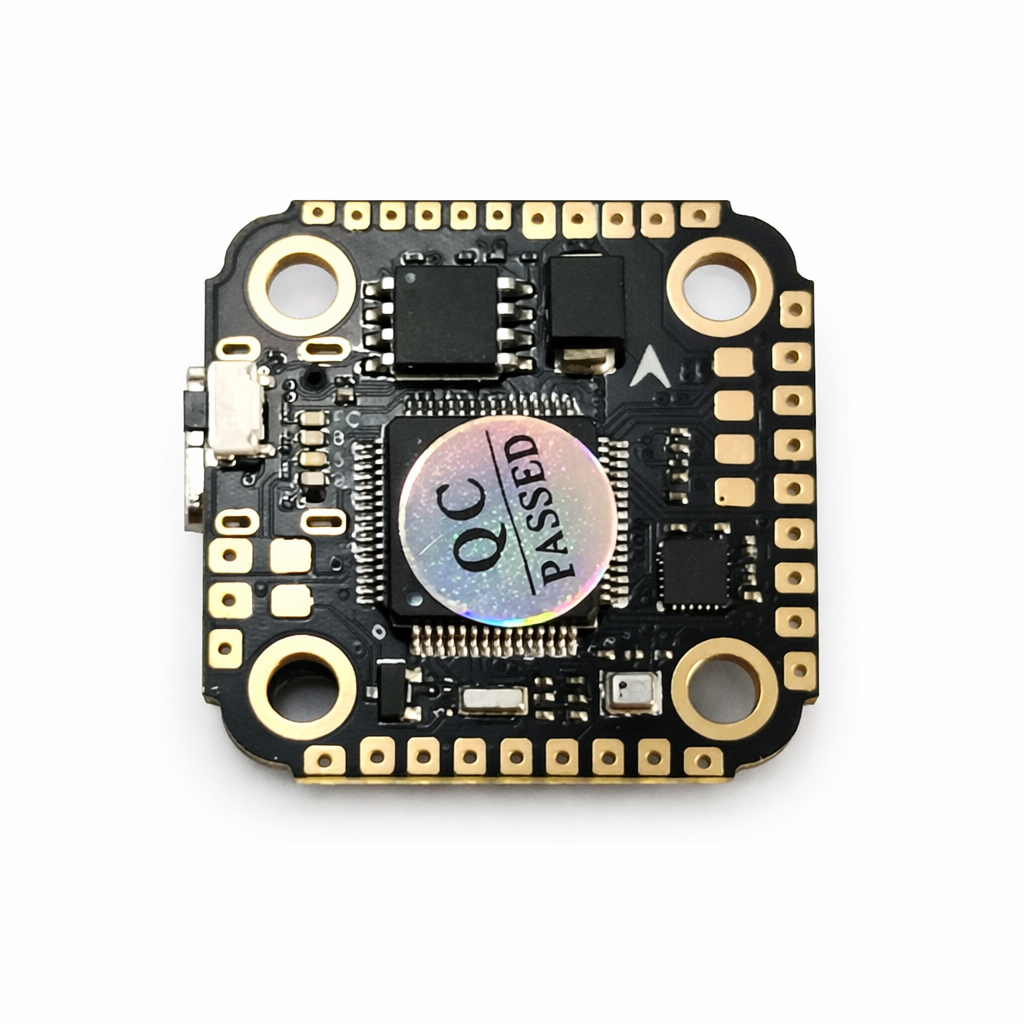

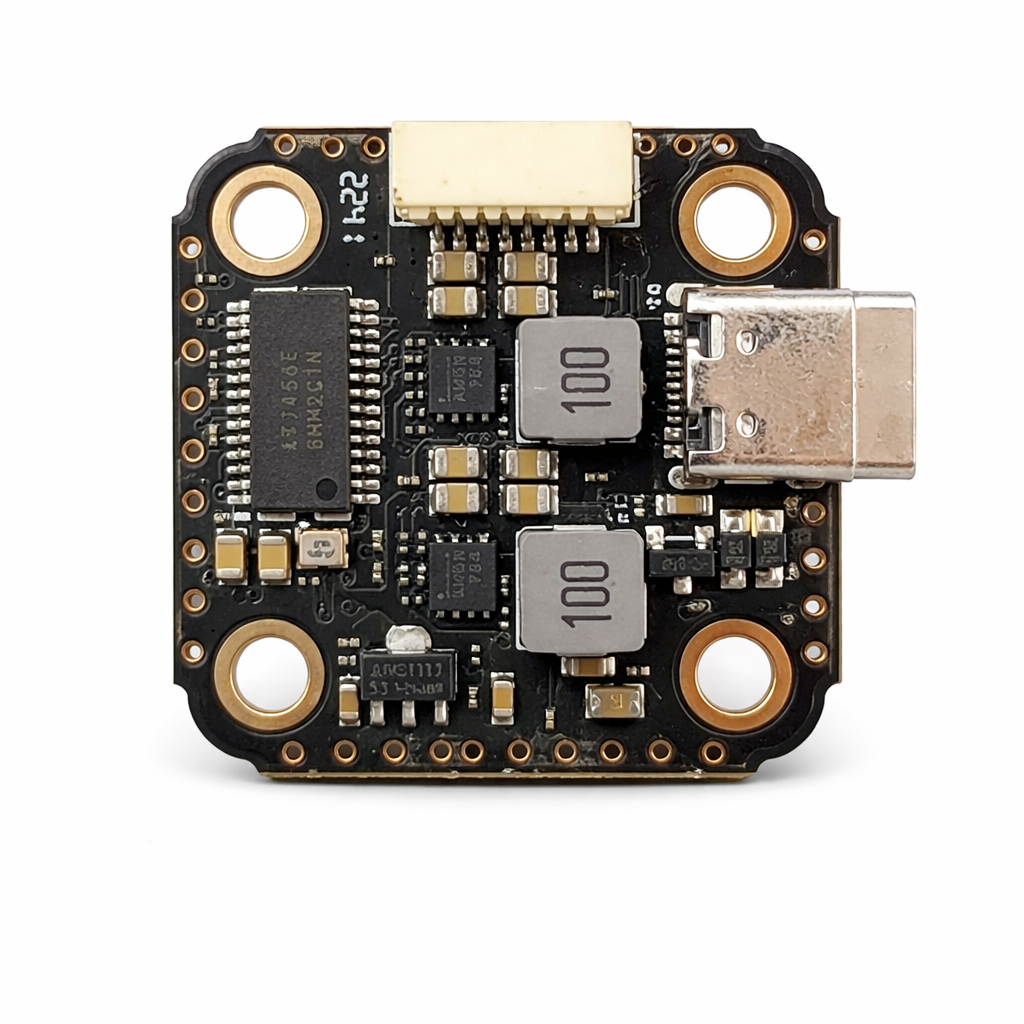

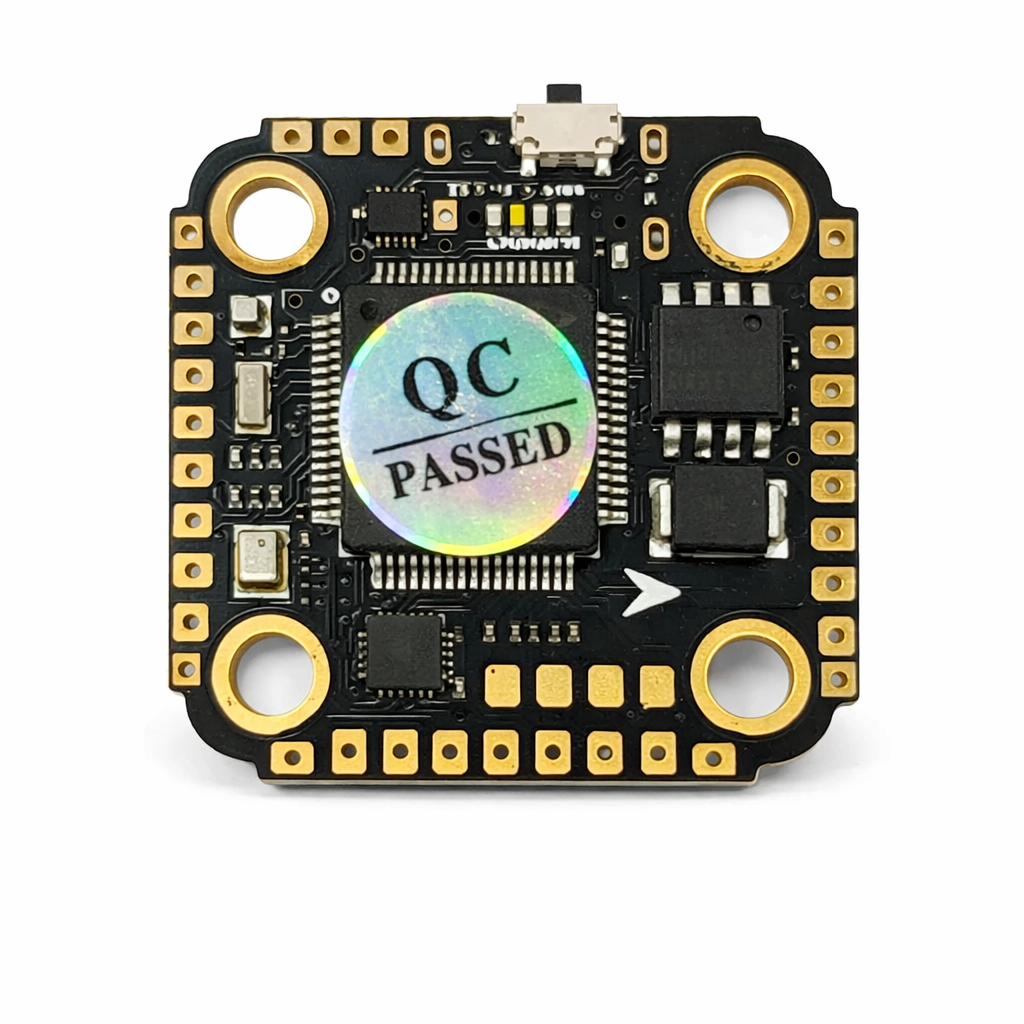

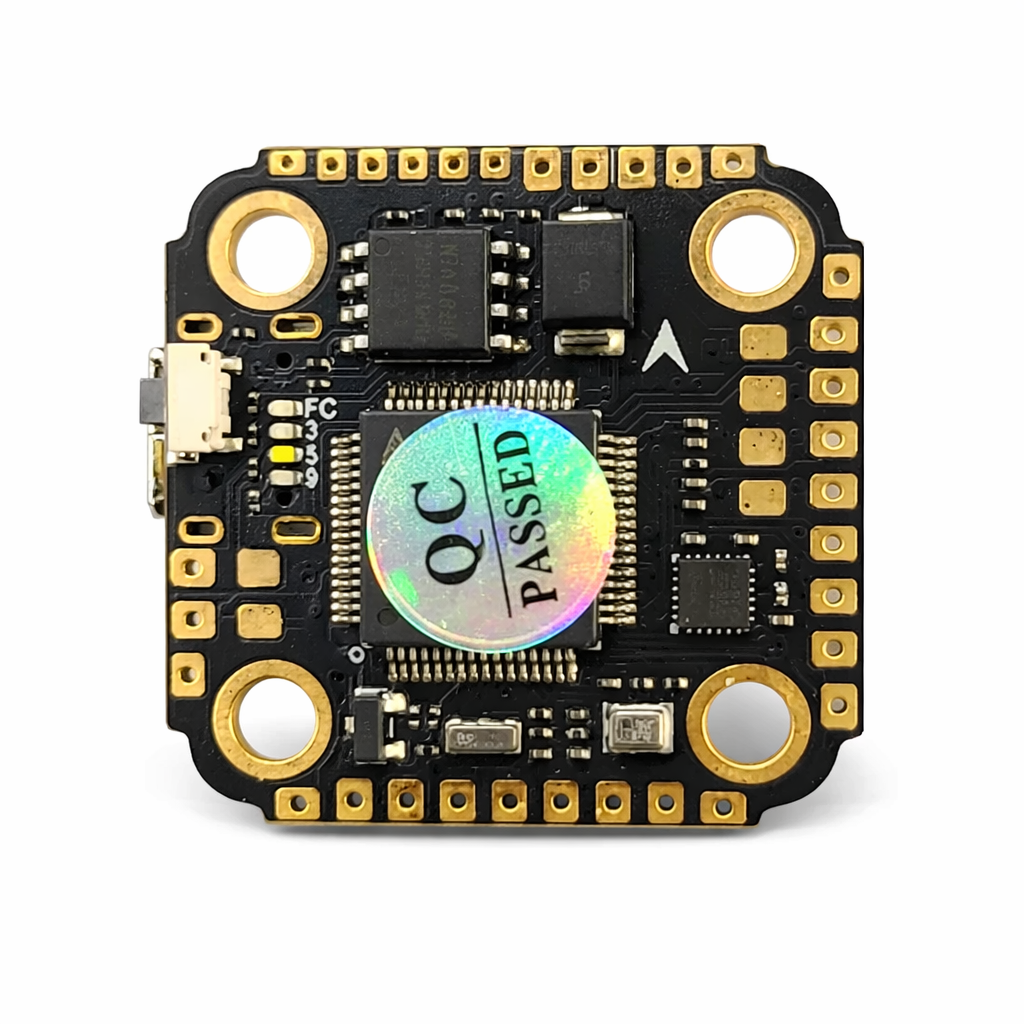

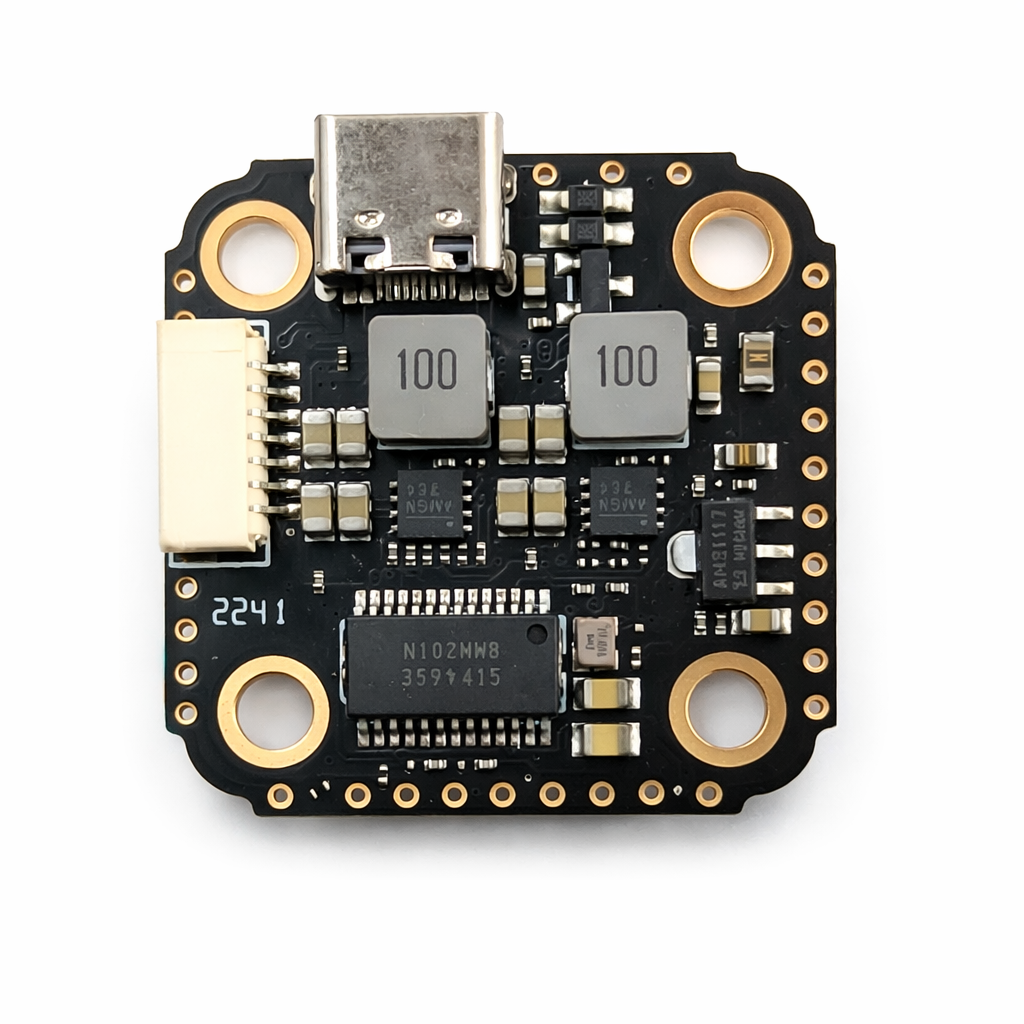

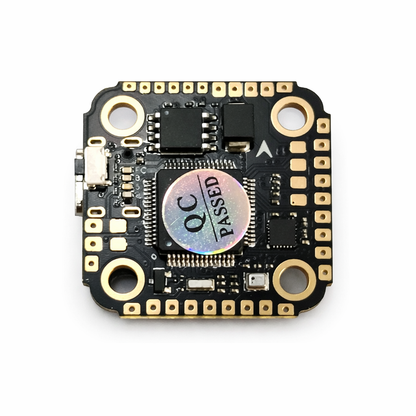

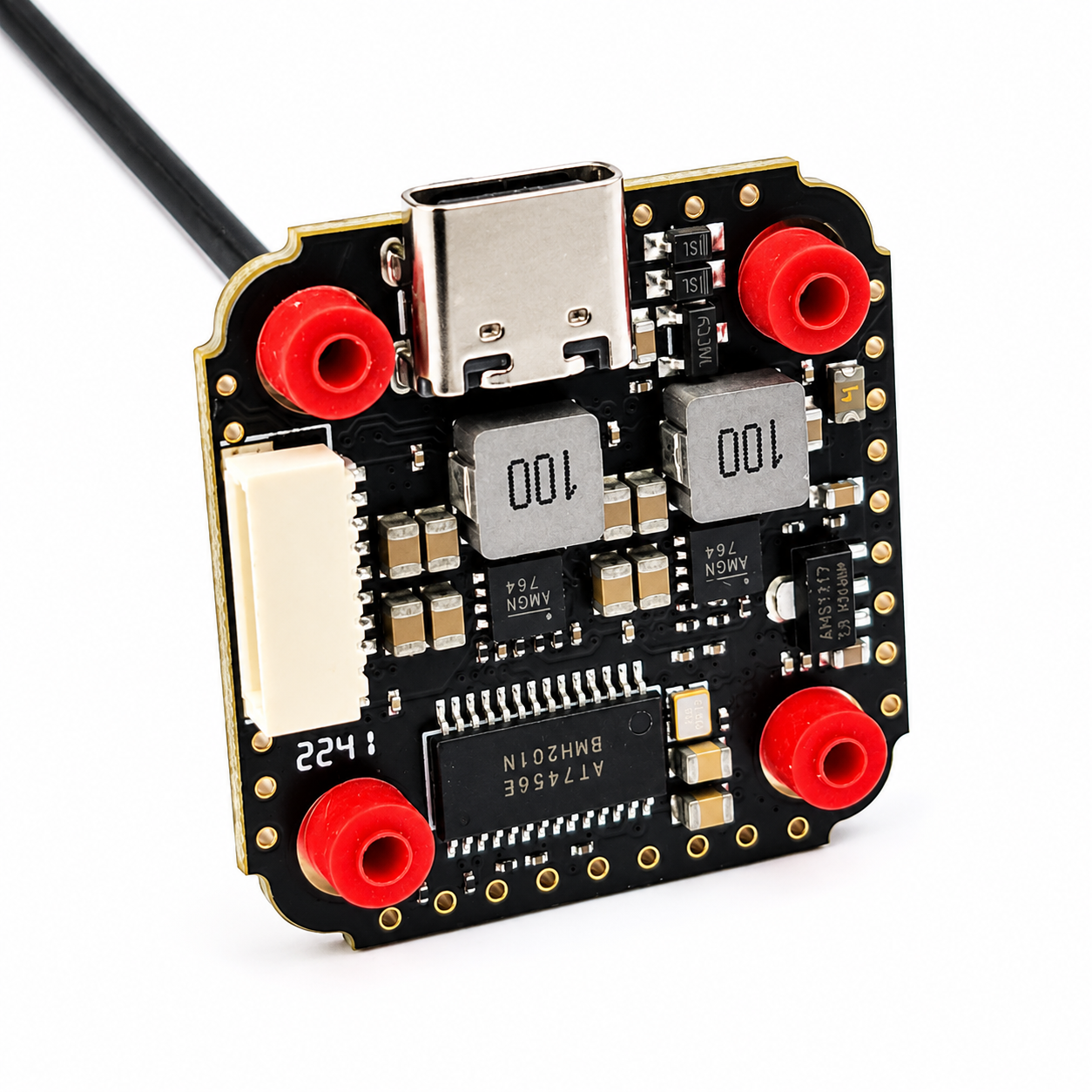

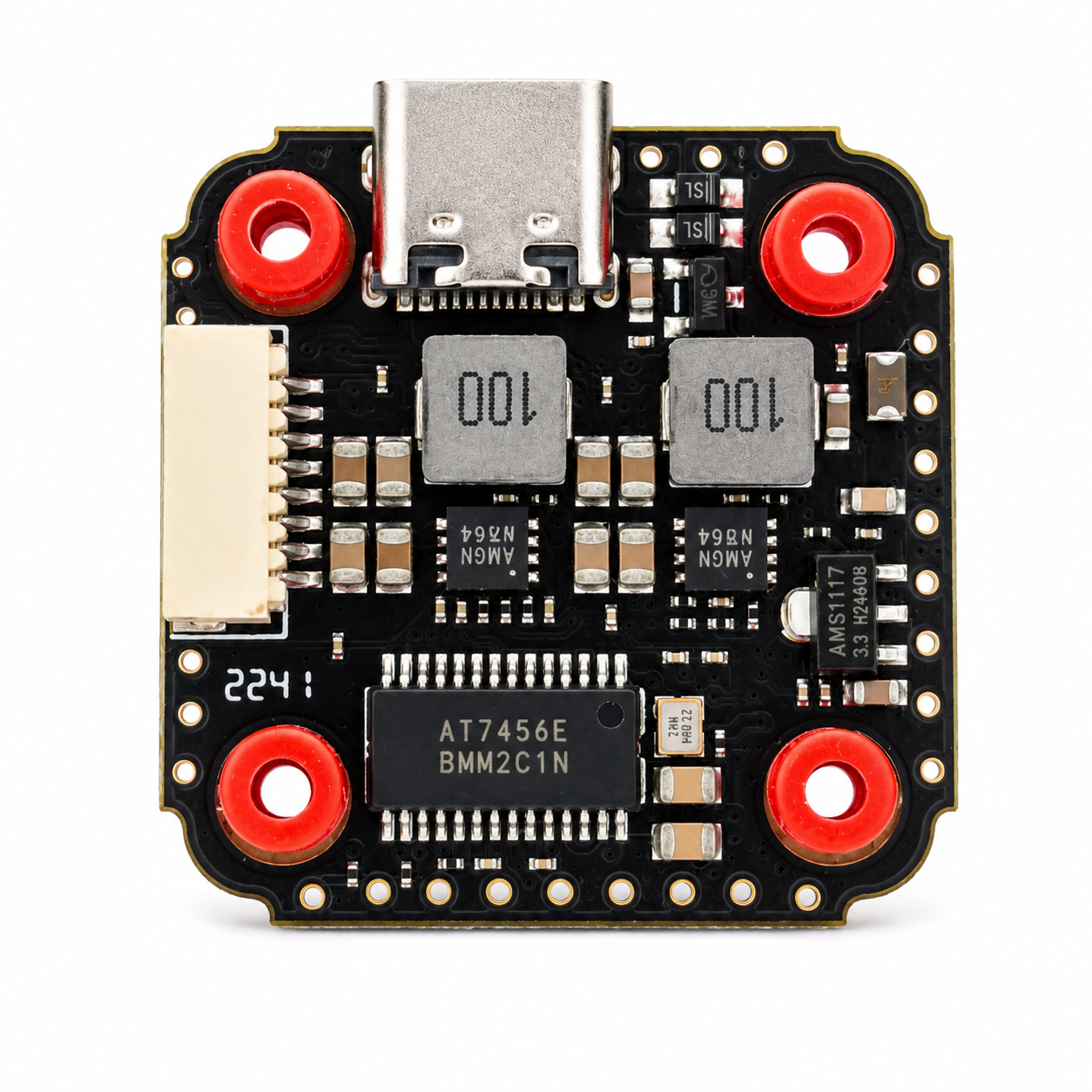

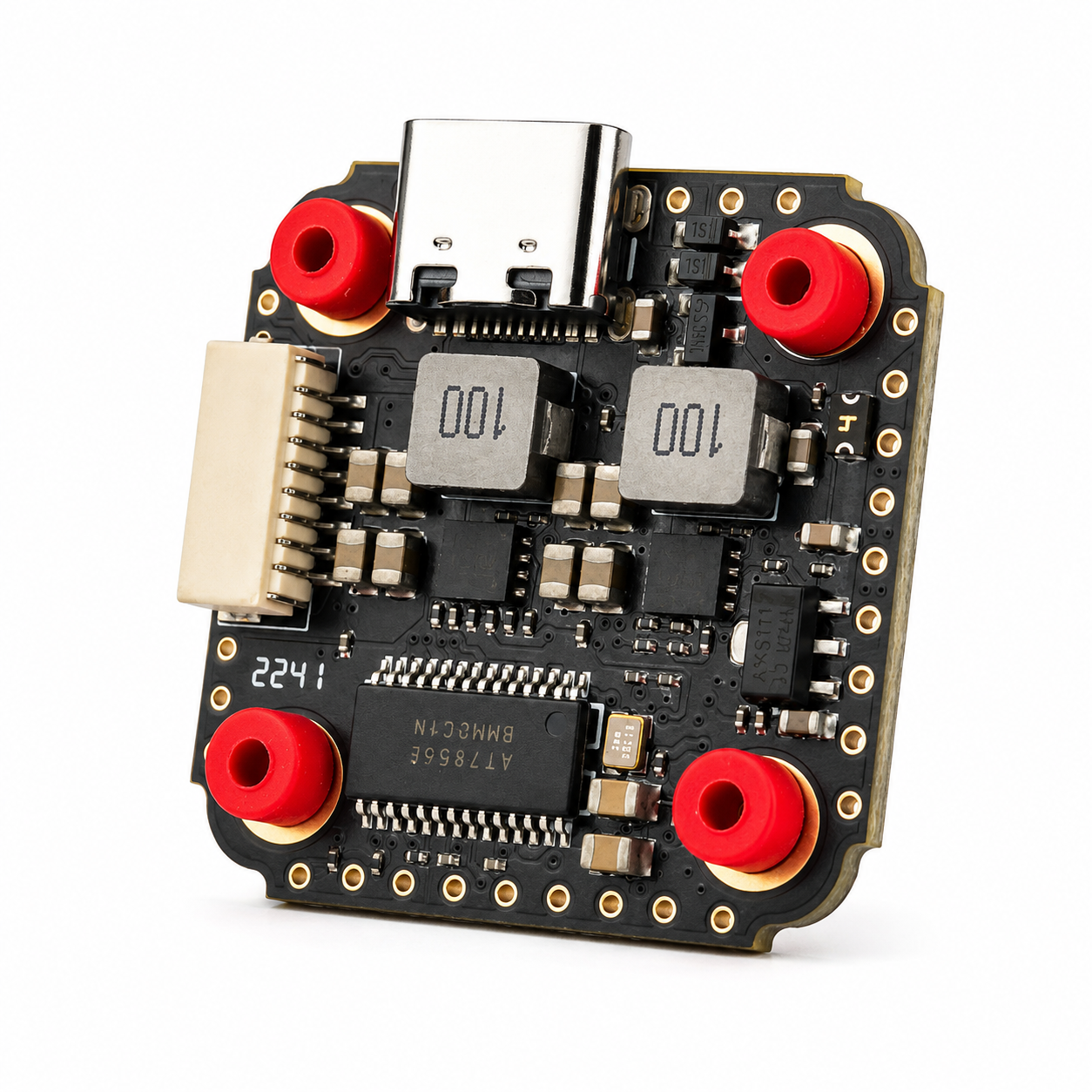

The Aocoda F7 MINI V1.0 Flight Controller is a compact and high-performance flight control system designed for drones and other unmanned aerial vehicles. This flight controller serves as the brain of the drone, processing sensor data, executing flight control algorithms, and providing stability and control during flight. It is typically used in conjunction with other components like electronic speed controllers (ESCs) and motors to create a fully functional drone.

The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand.
The MPU6500 is the most widely used IMU sensor, and it’s used in nearly all of the greatest flight controllers. The reason for this is that it has a high vibration tolerance and can sample the gyro at 8kHz over an SPI interface.

Key Features:

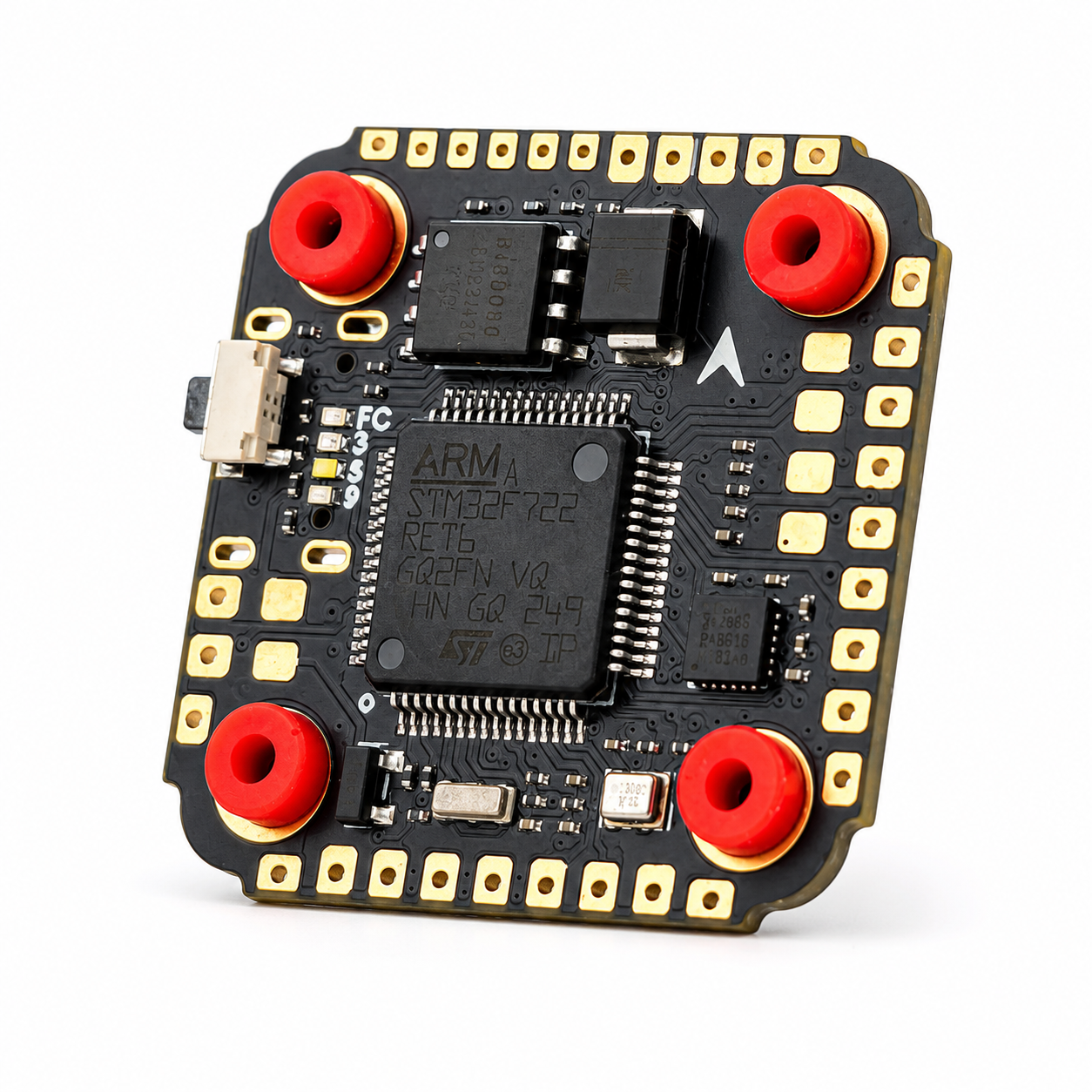

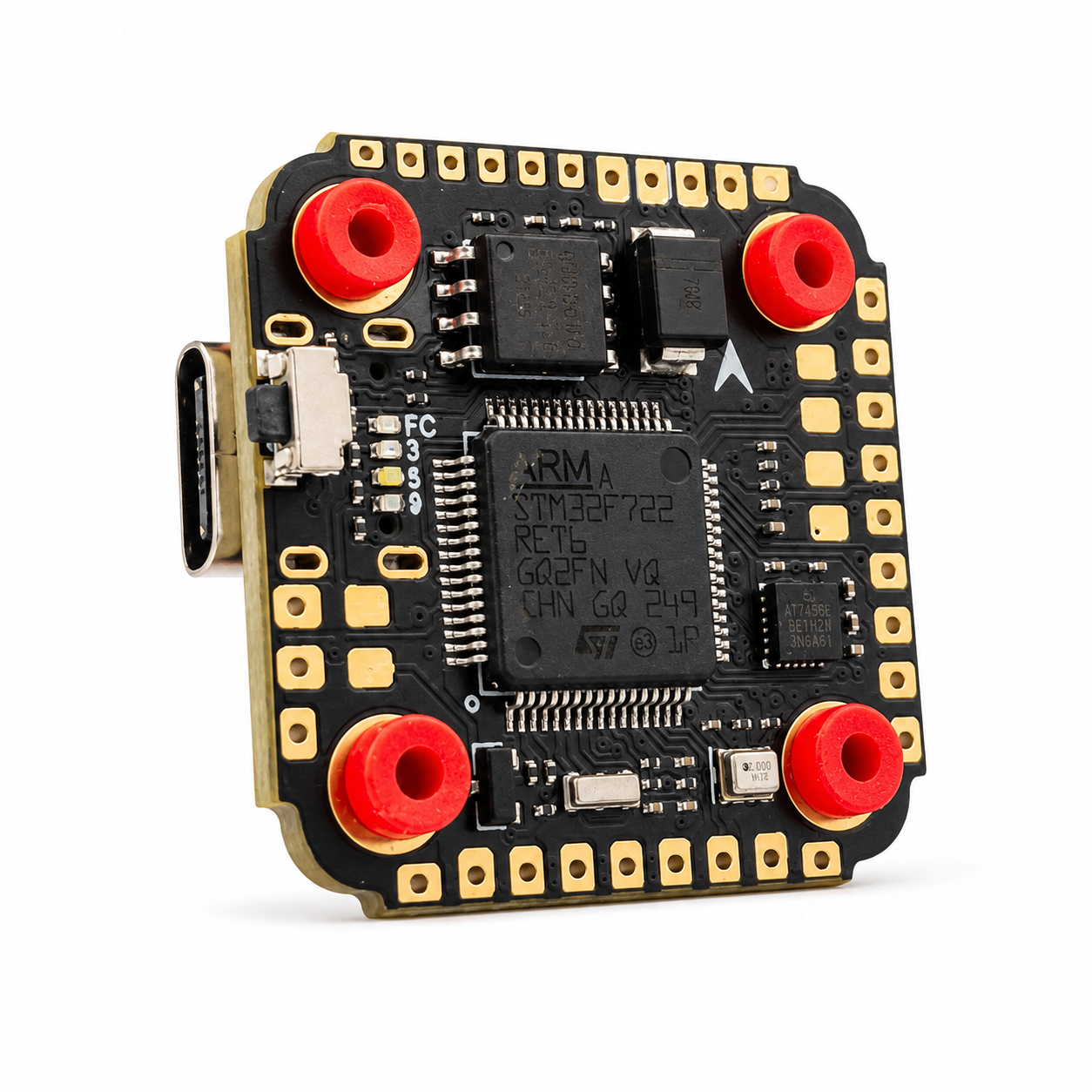

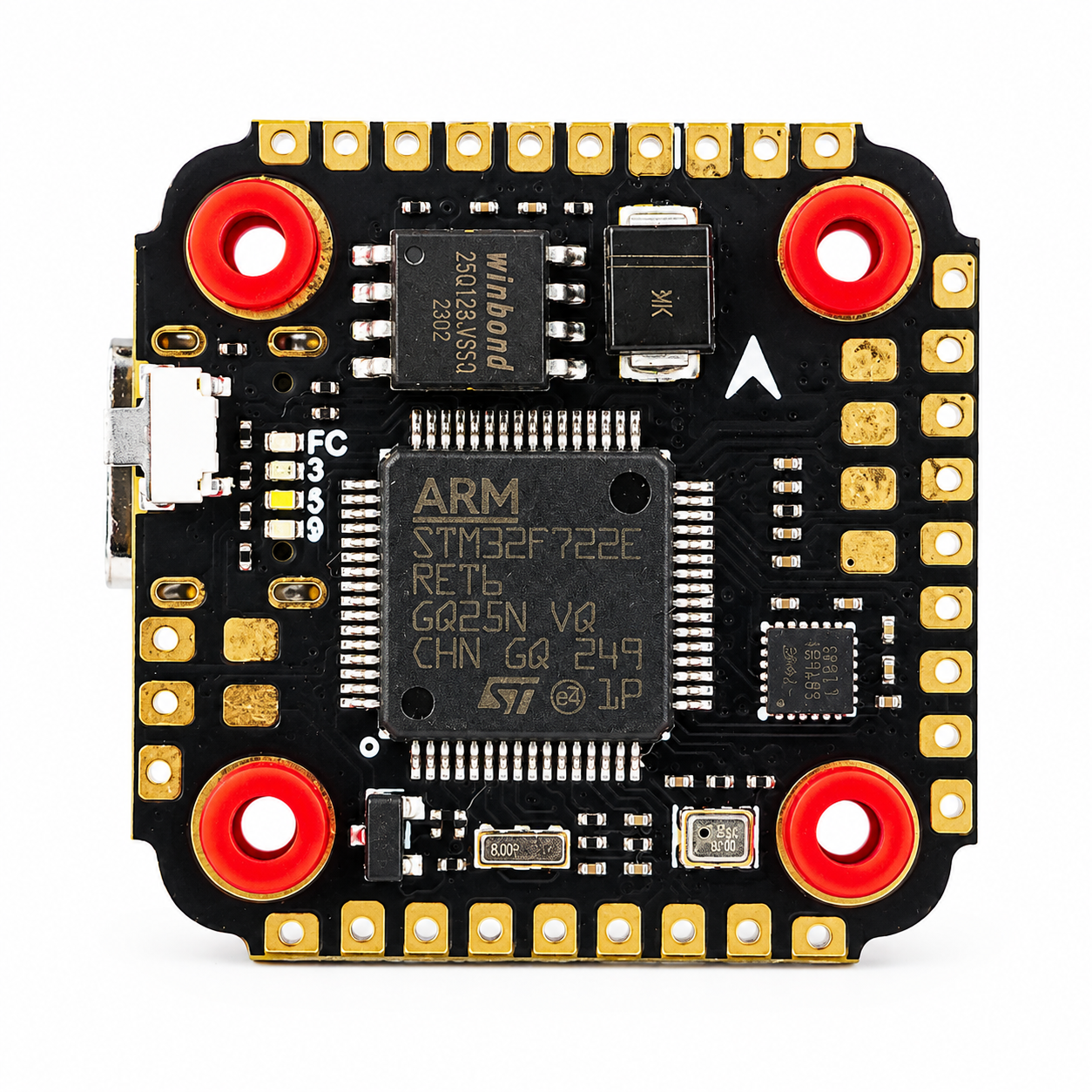

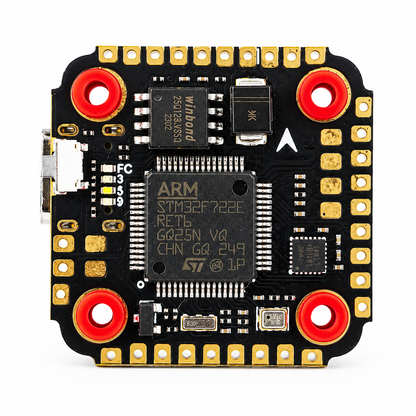

F7 Processor: The flight controller is equipped with an F7 processor (usually an STM32F7 microcontroller). F7 processors are known for their high computational power and efficiency, making them capable of running advanced flight control algorithms and handling various sensors and peripherals.

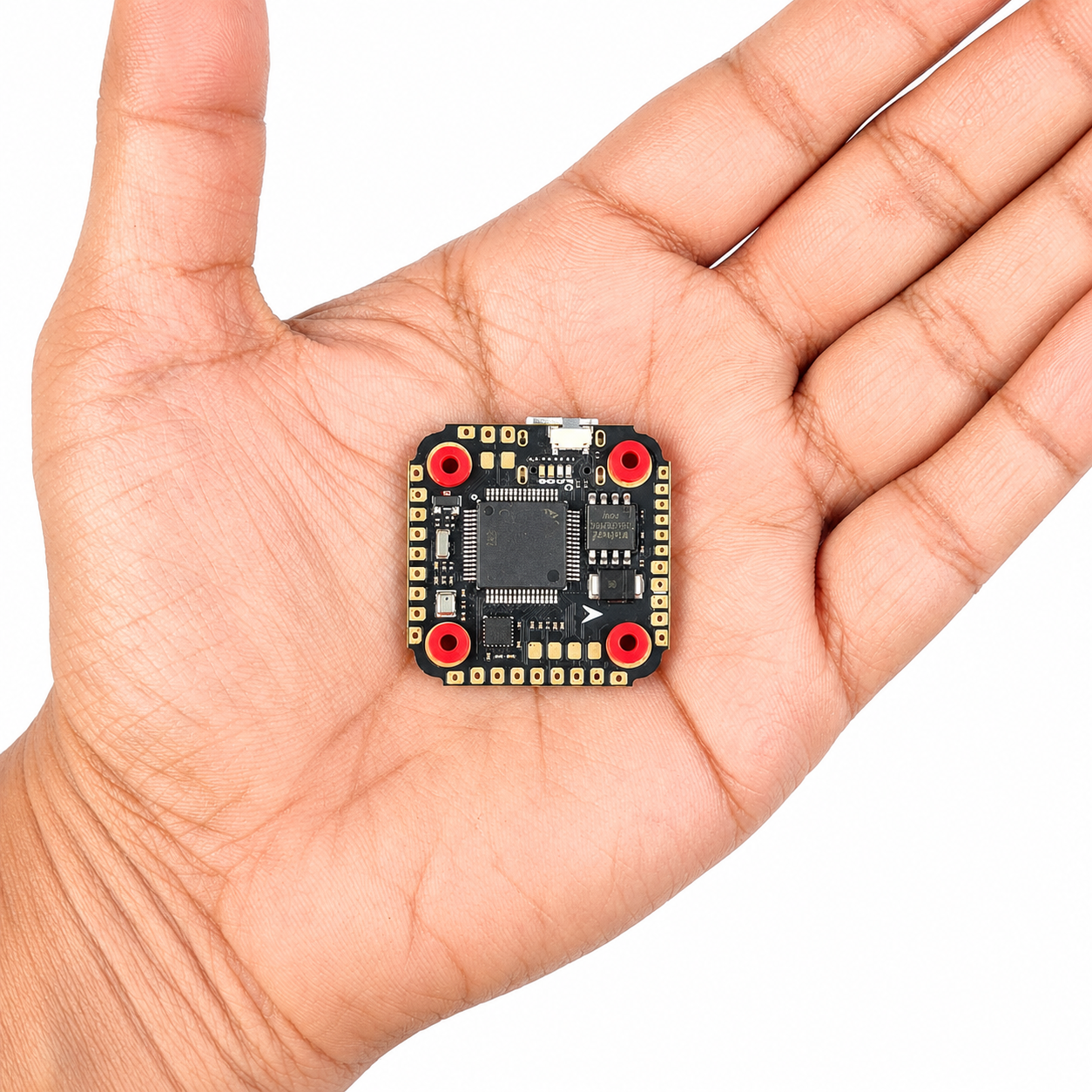

Compact Form Factor: The mini size of this flight controller is ideal for drone builds with limited space and weight constraints. It helps reduce the overall weight of the drone while maintaining high performance.

Integrated Gyroscope and Accelerometer: The flight controller typically includes an integrated gyroscope and accelerometer to provide crucial flight stability and attitude information. These sensors are essential for maintaining level flight and executing maneuvers.

On-Screen Display (OSD): The OSD feature allows real-time data, such as battery voltage, flight mode, GPS information, and more, to be displayed on your FPV goggles or video feed. This information is valuable for the pilot to monitor the drone’s status during flight.

Multiple UART Ports: The flight controller includes multiple UART (Universal Asynchronous Receiver-Transmitter) ports for connecting various peripherals, such as GPS modules, telemetry systems, and receivers.

Built-in BEC: Some models of this flight controller have a built-in BEC (Battery Eliminator Circuit), which provides regulated voltage to power other onboard electronics, such as your receiver, camera, or LED lighting.

External Sensor Support: In addition to the integrated sensors, the F7 flight controller typically supports external sensors like GPS, compass, barometer, and airspeed sensors for more advanced flight capabilities.

Compatibility: The Aocoda F7 MINI V1.0 Flight Controller is typically compatible with various types of multirotor drones and can be used in custom builds or to upgrade existing drone systems.

Flight Modes: The flight controller supports different flight modes, including manual, stabilized, altitude hold, GPS-assisted modes, and more, depending on the connected hardware and firmware.

User-Friendly Configuration Software: Most flight controllers come with user-friendly configuration software that allows pilots to adjust parameters, calibrate sensors, and fine-tune flight performance.

Advanced Firmware Support: The F7 flight controller is typically compatible with popular firmware options like Betaflight, Cleanflight, or INAV, which provide various features and customization options.

Features:
High performance & efficient flight controller & ESC
Light weight, Easy to connect
Compact in size
Flight controller comes with ARM processor
Compact size
Easy to Connect

Pinouts:

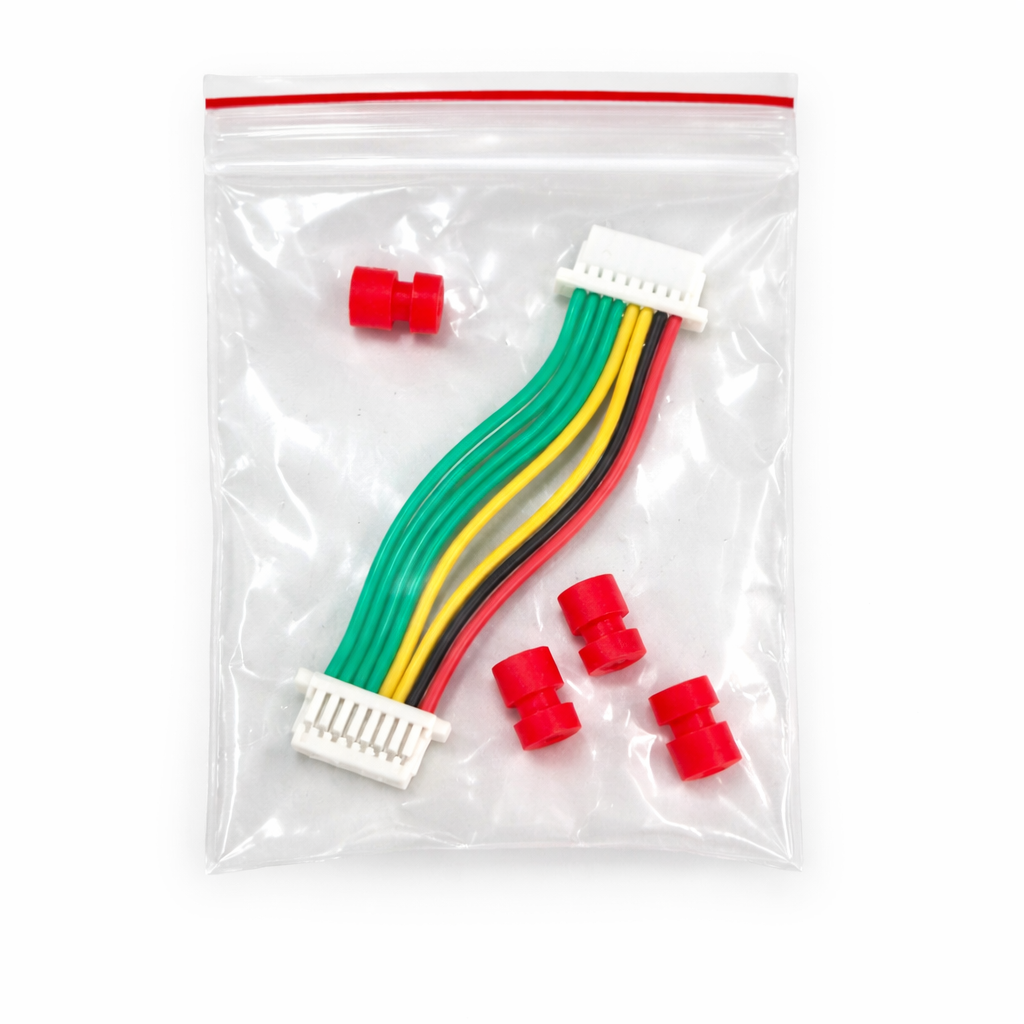

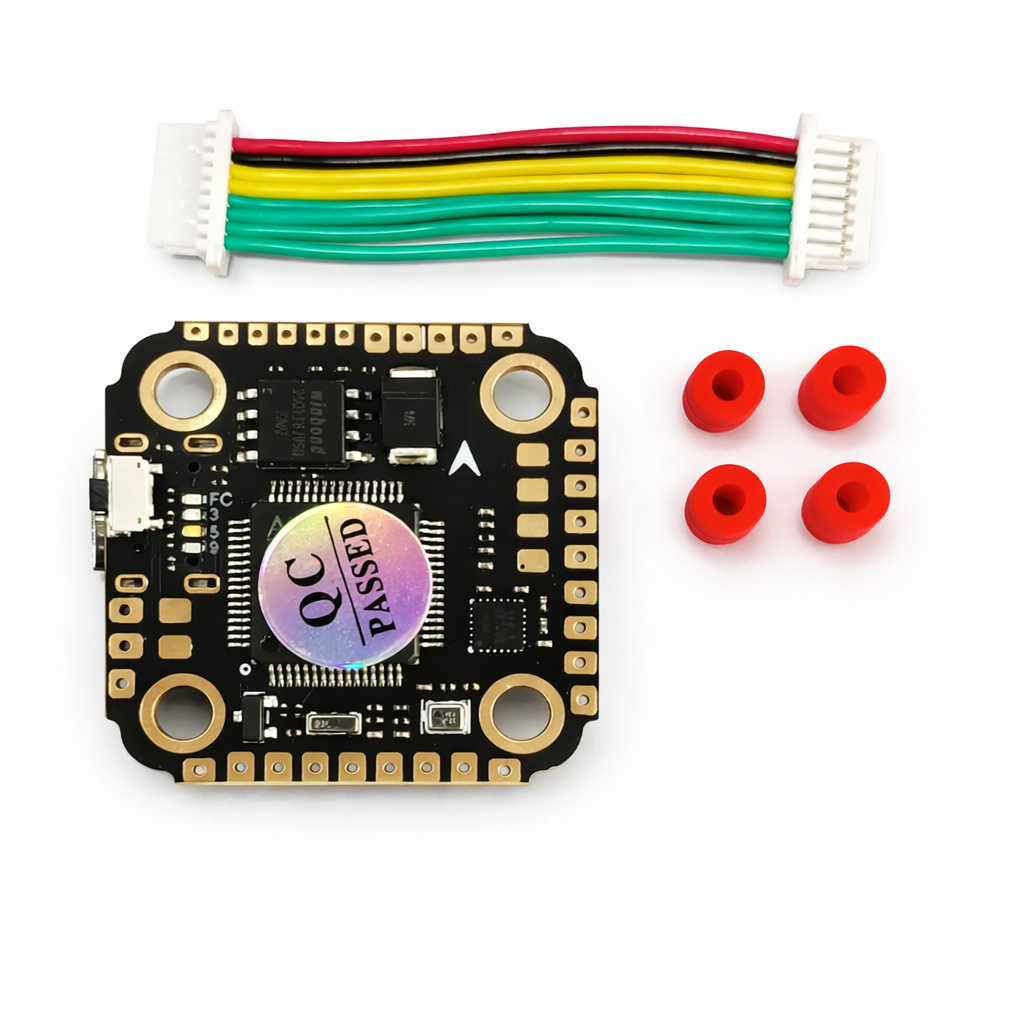

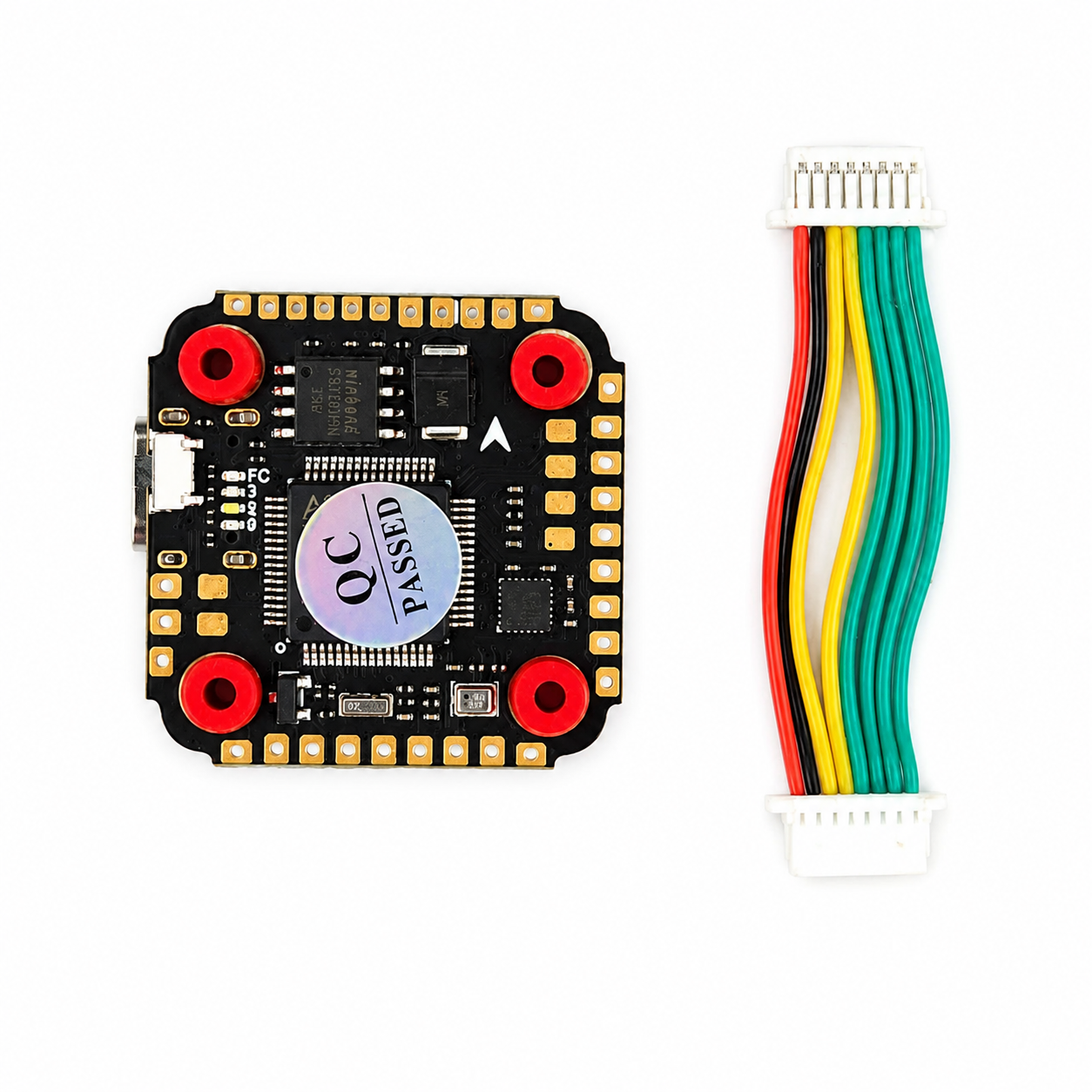

Packages Includes:
1× Aocoda F7 MINI V1.0 Flight Controller for Huafei
